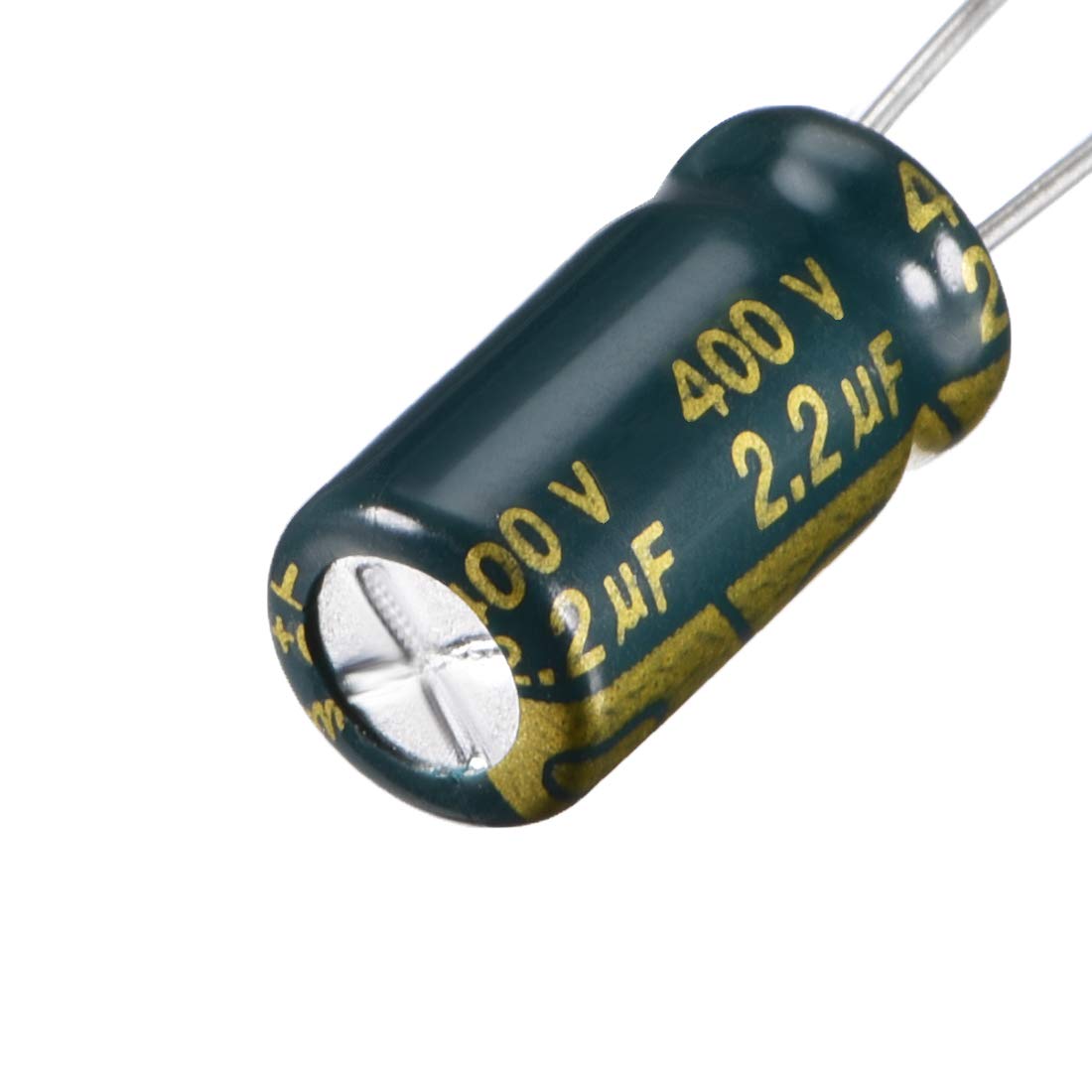

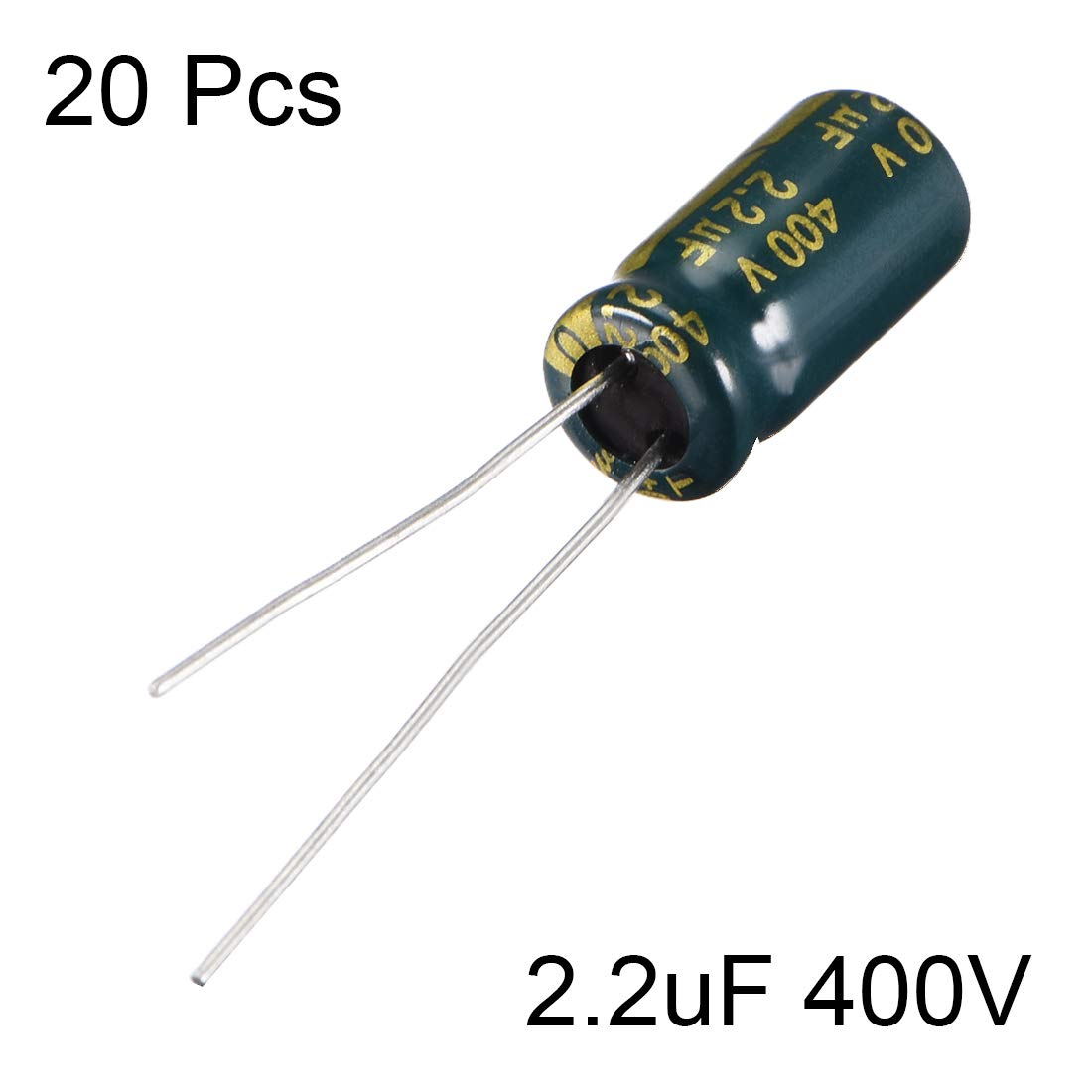

sourcing map Aluminum Radial Electrolytic Capacitor Low ESR Green with 2.2uF 400V 105 Celsius Life 3000H 6.3 x 12 mm High Ripple Current,Low Impedance 20pcs

• Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
• Rated Voltage: 400V; Capacitance: 2.2uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 3000hrs
• Body Size: 6.3 x 12mm/0.25" x 0.47"(D*L); Lead Length: 25mm/0.98", 20mm/0.78"; Lead Pitch : 2.5mm/0.1"
• Application : Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content : 20 x Electrolytic Capacitors

Features: High Ripple Current,Low Impedance. Radial lead, aluminum electrolytic capacitor. The longer lead is positive electrode and the shorter one is negative electrode. Notice: 1.Capacitance: Don't change the capacitance. 2.Voltage: You can go higher, but don't go lower. 3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic Capacitor Type: Radial Lead Feature: High Ripple Current,Low Impedance Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V) Rated Voltage: 400V; Capacitance: 2.2uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 3000hrs Body Size: 6.3 x 12mm/0.25" x 0.47"(D*L); Lead Length: 25mm/0.98", 20mm/0.78"; Lead Pitch : 2.5mm/0.1" Lead Diameter :0.5mm Size : 20pcs 2.2UF 400V 6.3x12mm Package Content : 20(+/-2%)x Electrolytic Capacitors
