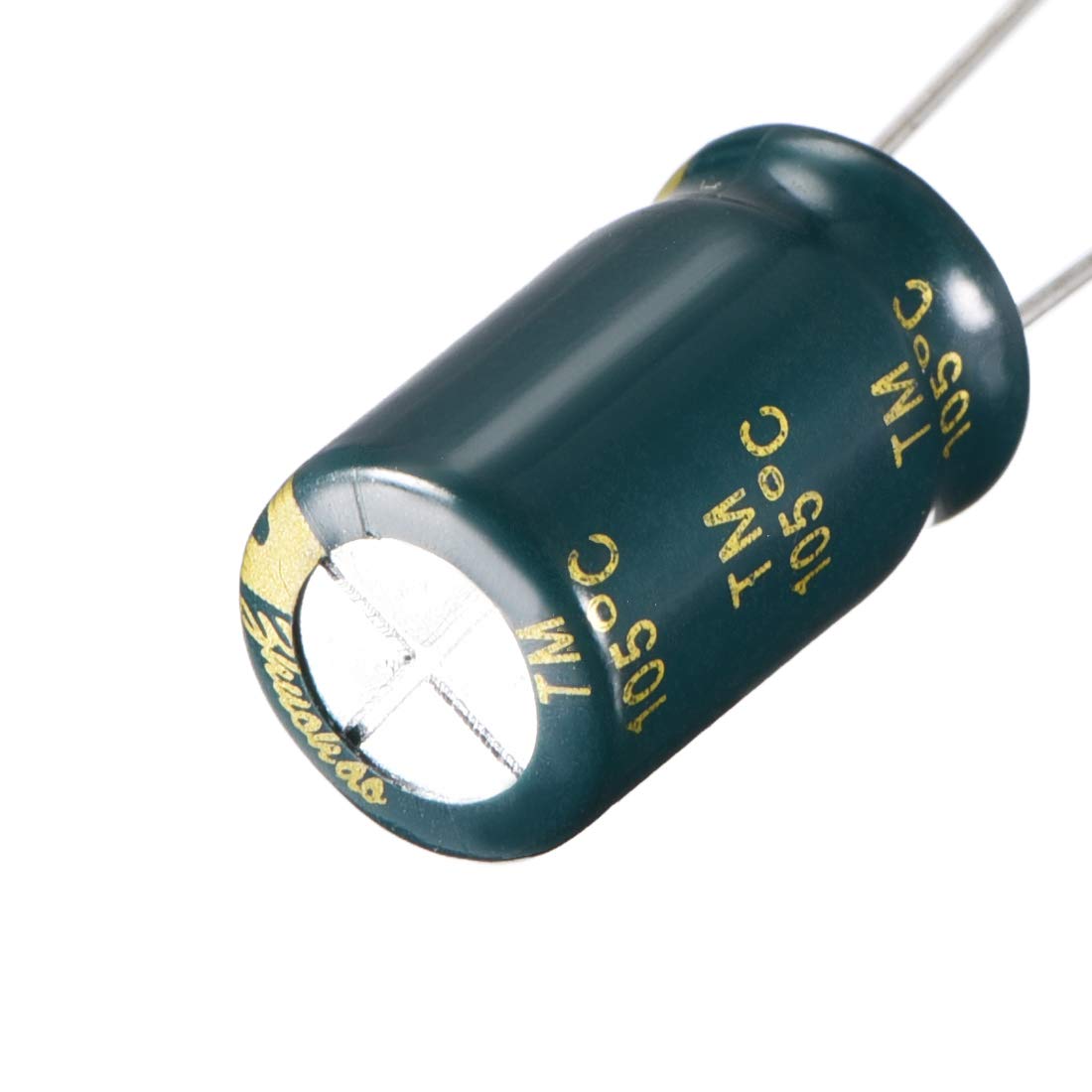

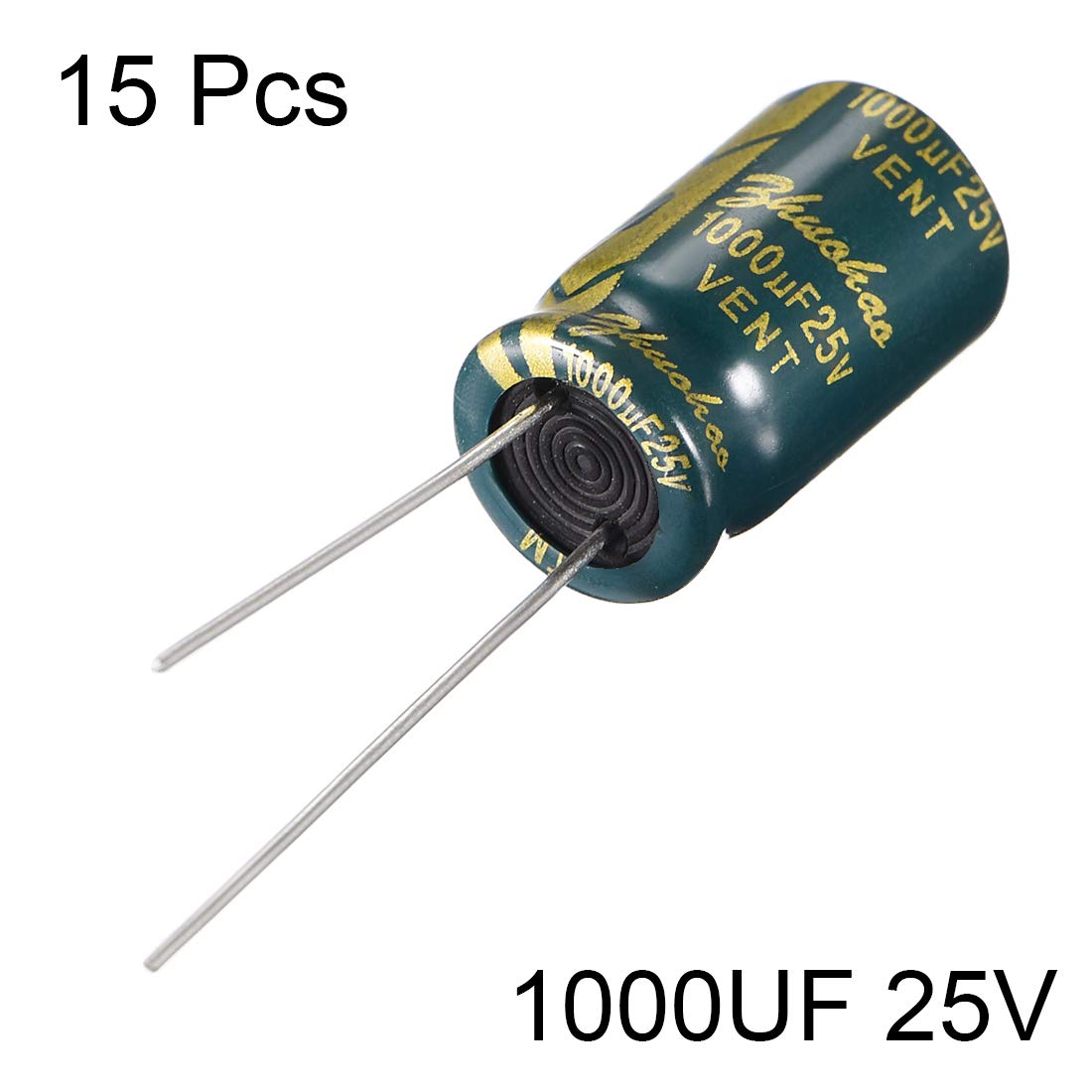

sourcing map Aluminum Radial Electrolytic Capacitor Low ESR Green with 1000UF 25V 105 Celsius Life 3000H 10 x 17 mm High Ripple Current,Low Impedance 15pcs

• Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
• Rated Voltage: 25V; Capacitance: 1000uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 3000hrs

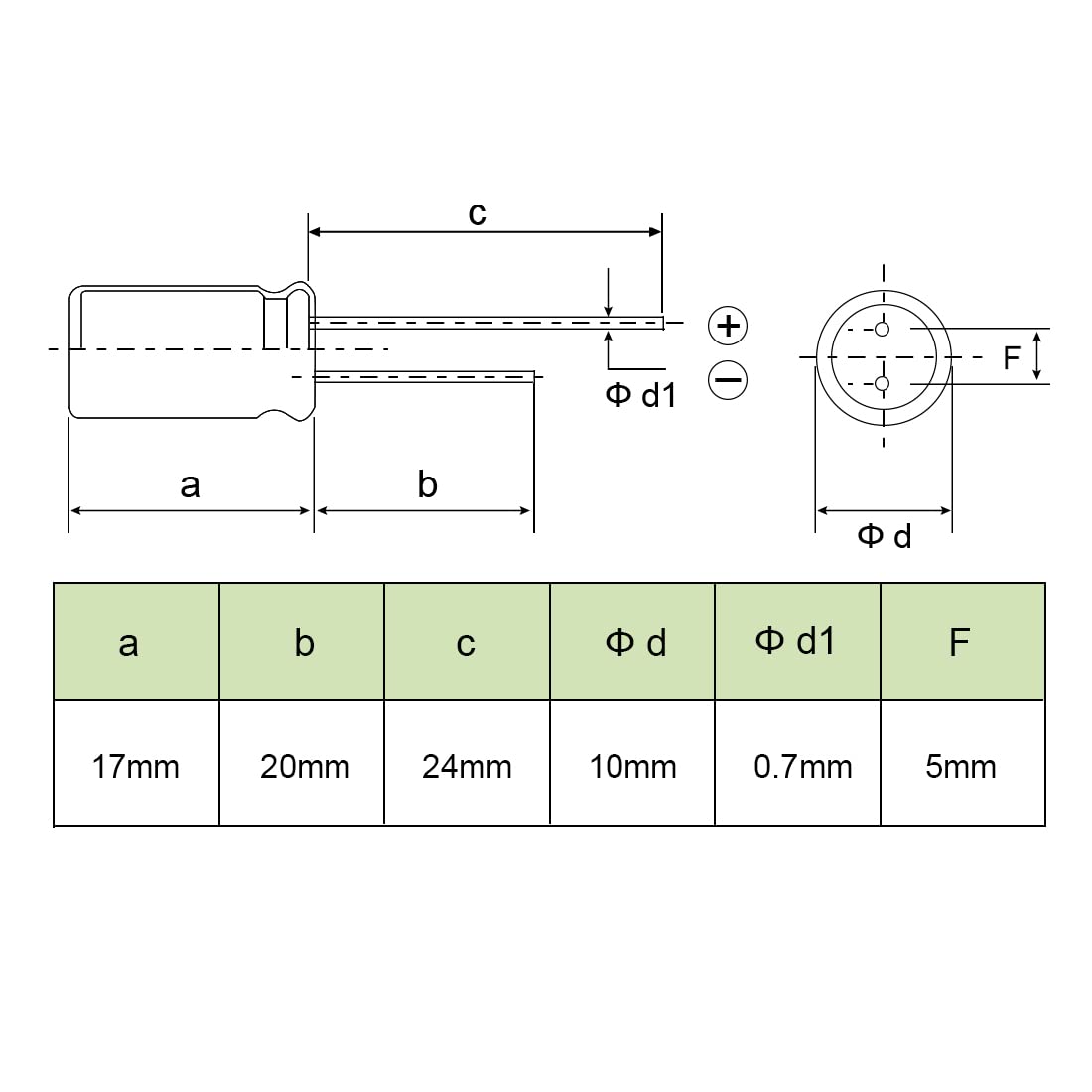

• Body Size: 10 x 17mm/0.39" x 0.67"(D*L); Lead Length: 24mm/0.94", 20mm/0.79"; Lead Pitch : 5mm/0.2"

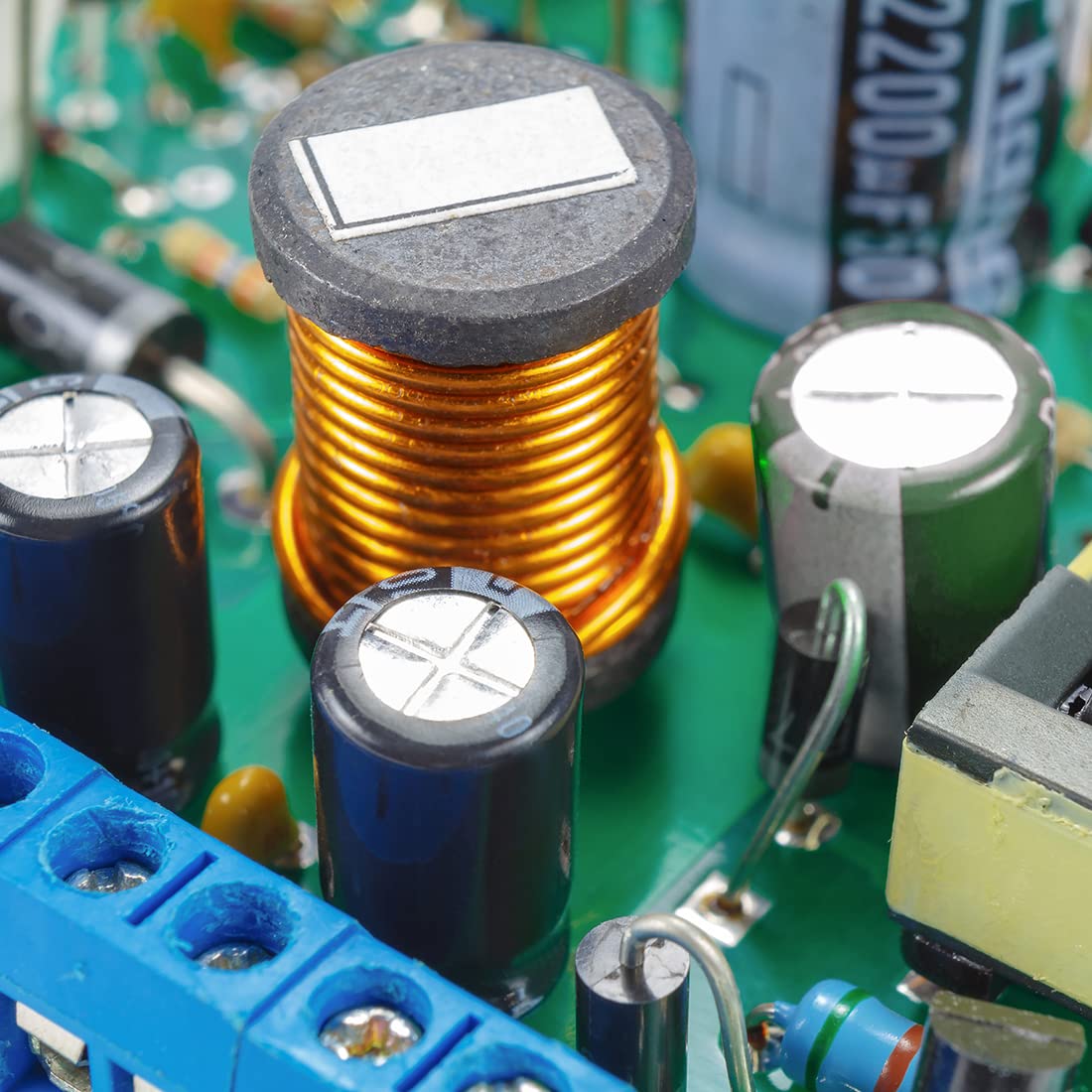

• Application : Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content :15 x Electrolytic Capacitors

Features: High Ripple Current,Low Impedance. Radial lead, aluminum electrolytic capacitor. The longer lead is positive electrode and the shorter one is negative electrode. Notice: 1.Capacitance: Don't change the capacitance. 2.Voltage: You can go higher, but don't go lower. 3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic Capacitor Type: Radial Lead Feature: High Ripple Current,Low Impedance. Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V) Rated Voltage: 25V; Capacitance: 1000uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 3000hrs Body Size: 10 x 17mm/0.39" x 0.67"(D*L); Lead Length: 24mm/0.94", 20mm/0.79"; Lead Pitch : 5mm/0.2" Lead Diameter :0.6mm Size : 15pcs 1000UF 25V 10x17mm Package Content :15 x Electrolytic Capacitors
