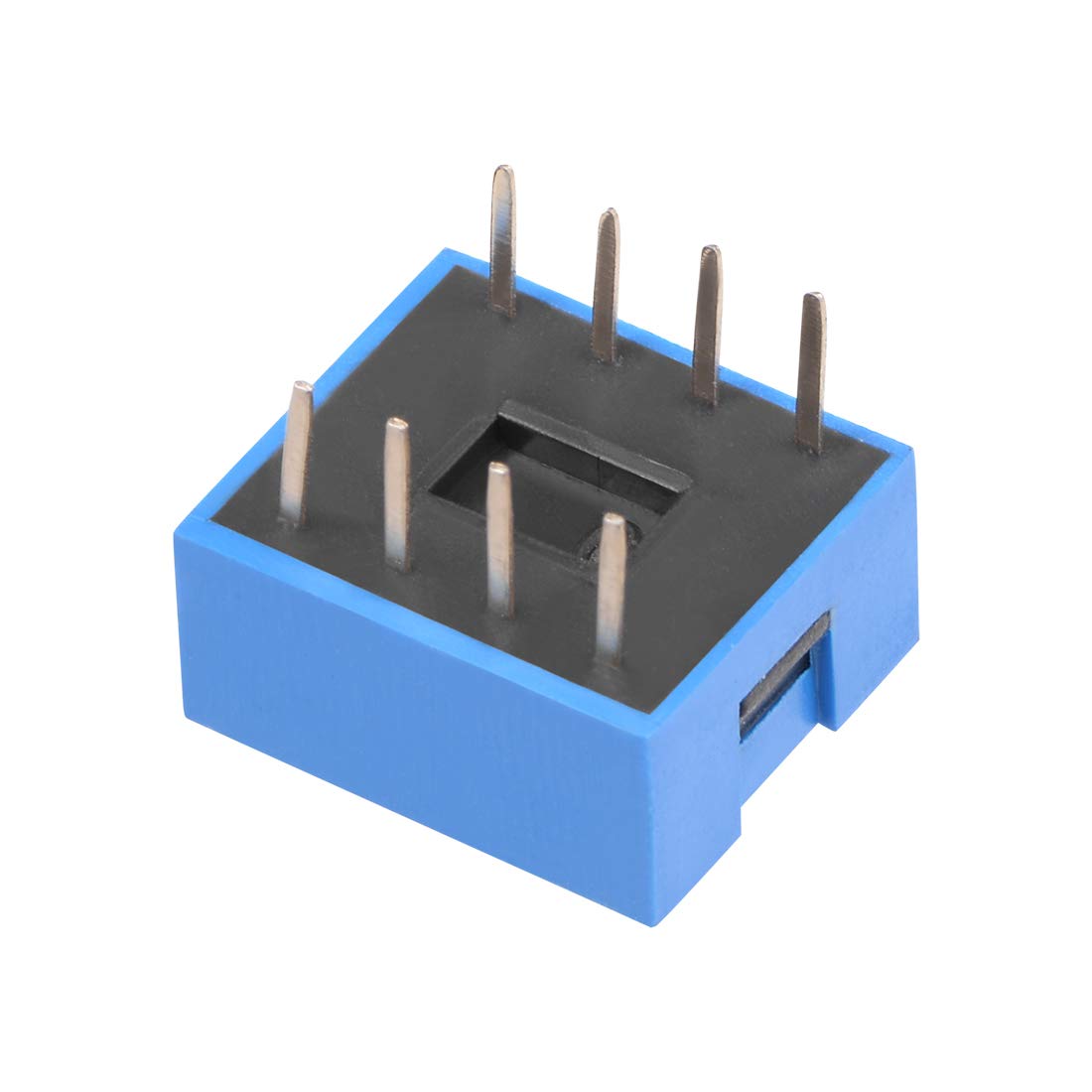

sourcing map 8Pcs Blue DIP Switch Horizontal 1-4 Positions 2.54mm Pitch for Circuit Breadboards PCB

• 4 Positions ( 2 Row 8 Pins)，Package Content: 8 x DIP Switch
• 1/2/3/4 Way 2 Row Dip Encode Switch, Blue color.Pitch: 2.54mm
• Material: Durable Plastic and Metal; Non-Switching Rating: 100mA 24V DC; Switching Rating: 25mA 24V DC; Contact Resistance:50mΩ; Insulation Resistance:500MΩ/DC500V;
• This DIP switch is designed to be used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations.The DIP switch is a durable device, constructed with a combination of metal and plastic materials. It is highly portable and designed for an extended lifespan.
• Widely used in circuit boards, breadboards and all pcb projects, perfect as a toggle or on off switch for your projects.

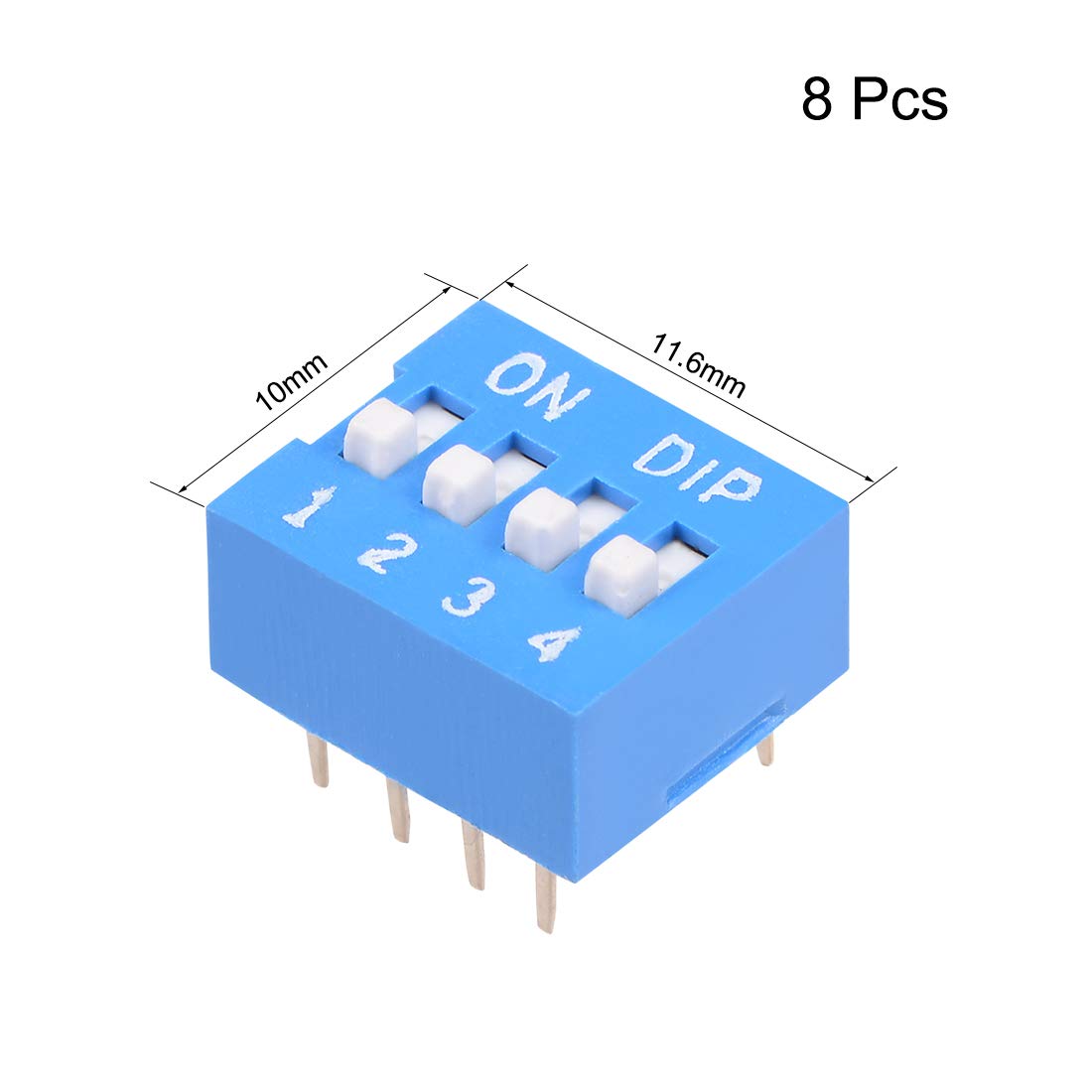

Description: Widely used in circuit boards, breadboards and all pcb projects, perfect as a toggle or on off switch for your projects. Specification: Product Name: DIP Switch Type: Piano-Dip Type Features: 4 Positions ( 2 Row 8 Pins) Positions: 1/2/3/4 Pitch: 2.54 mm Non-Switching Rating: 100mA DC 50V Switching Rating: 25mA DC 24V Contact resistance: 50mΩ 24VDC/100mA (at initial),100mΩ 24VDC/100mA (after life test) Each Size: 11.6x10x10.5mm (L*W*H) Main Material: Plastic, Metal Package Content: Package Content: 8 x DIP Switch
