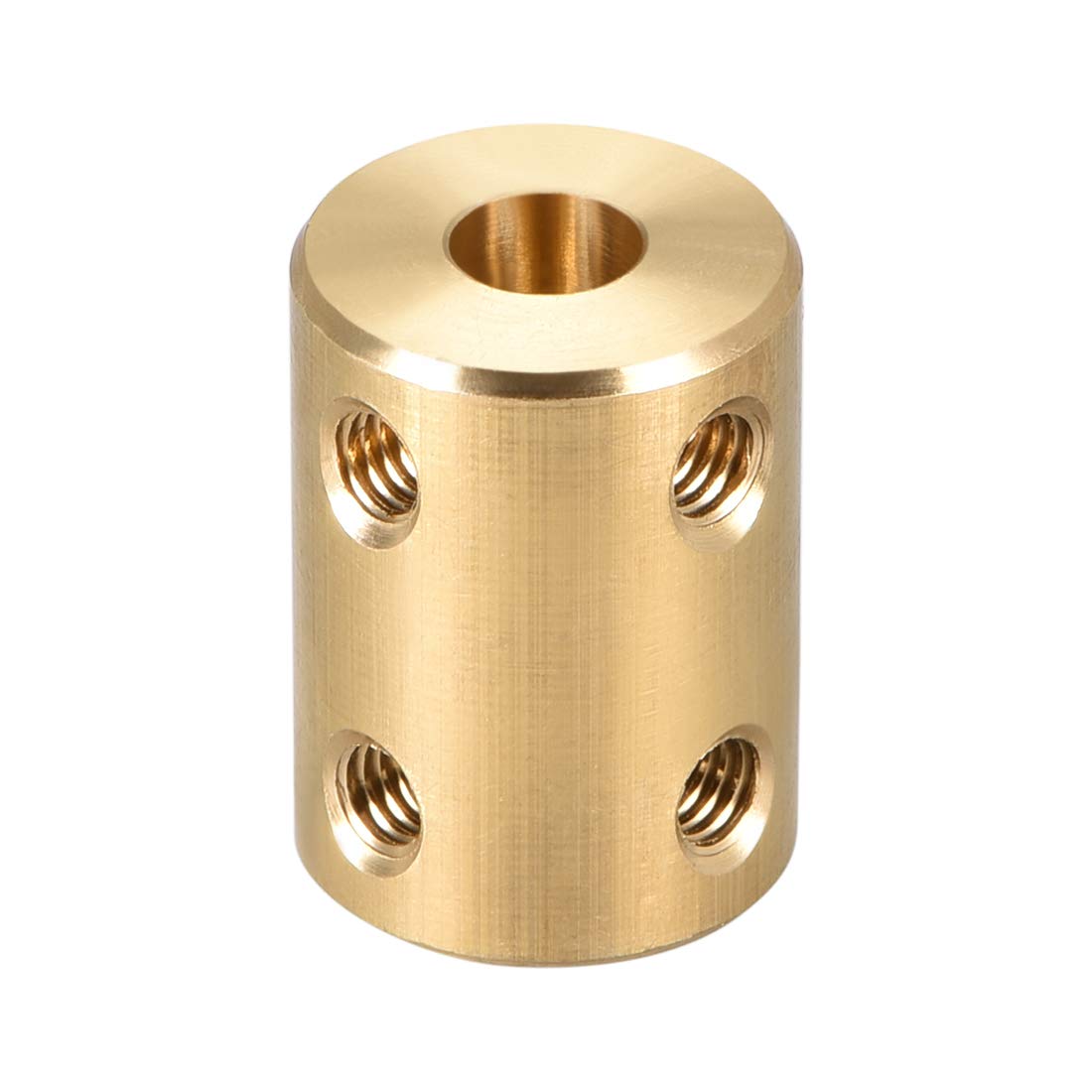

sourcing map 6mm to 10mm Bore Rigid Coupling Set Screw L22XD16 Copper,Shaft Coupler Connector,Motor Accessories

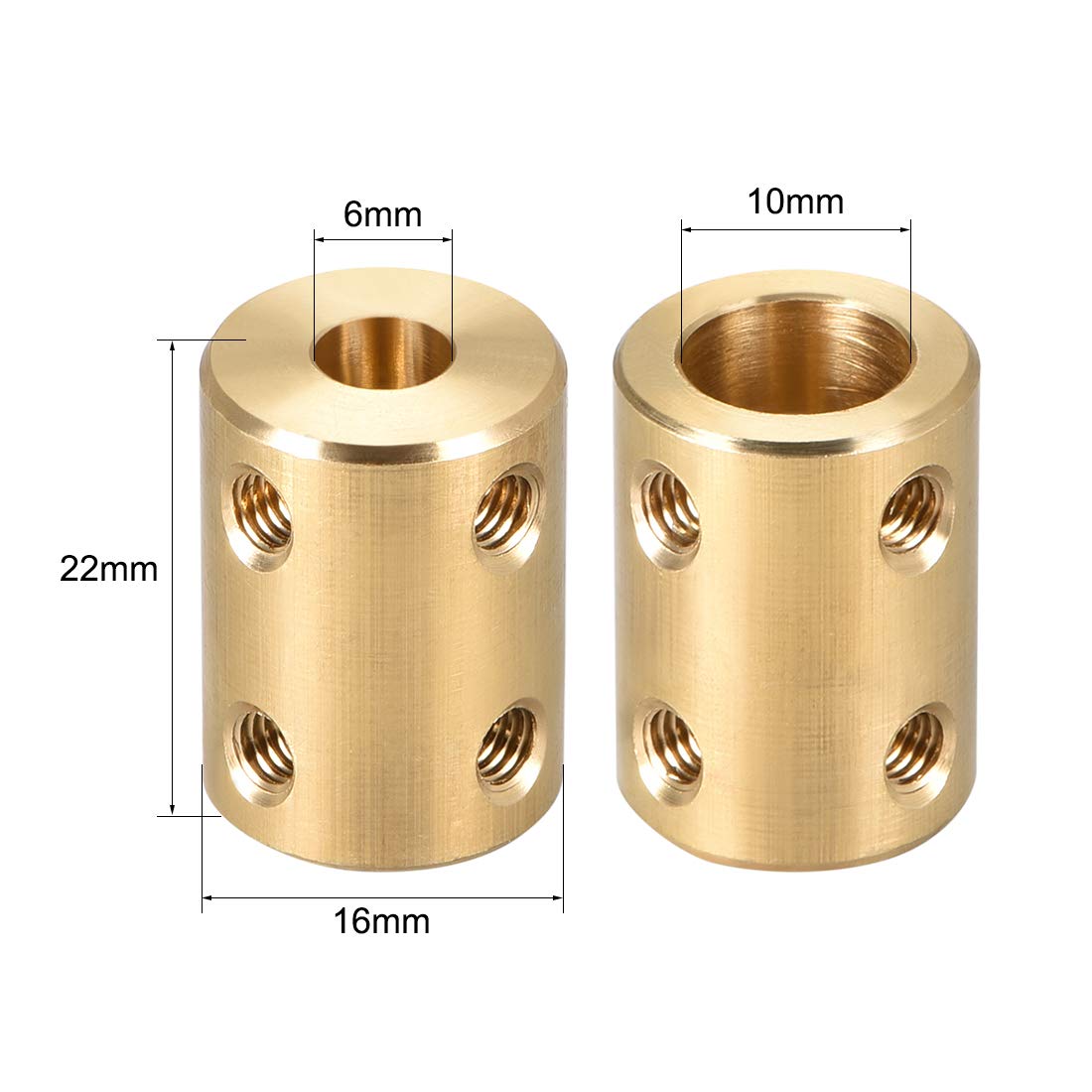

• Connection Diameter: 6mm to 10mm, Total Length: 22mm /0.87 inch, Outside Diameter : 16mm/ 0.63 inch
• Widely used in blowers,3D printer,DIY robots,CNC machine,stepper motors,etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.
• Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
• NOTE: The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
• Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.

Specification: 4 pcs screws design Thread Size: M4 Color: Gold Tone Material: Copper Connection Diameter: 6mm to 10mm Total Length: 22mm /0.87 inch Outside Diameter : 16mm/ 0.63 inch Through Angle: 90 Degree Package List: 1 Pcs x Rigid Shaft Coupler 4 Pcs x M4 Screws Description: Made from copper material to reduce inertia Rigid coupling,high torque with rigidity,low inertia and excellent sensitivity No rotation gap, elastic action can make up for symmetrical angular misalignment Maintenance-free, oil proof and corrosion resistance Suitable for model car, model boat, hardware, mould, mechanical drive situations etc Note: Please allow 1-3mm differs due to manual measurement Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
