sourcing map 6906Z Deep Groove Ball Bearing Single Shield 1060906, 30mm x 47mm x 9mm Chrome Steel Bearings (Pack of 2)

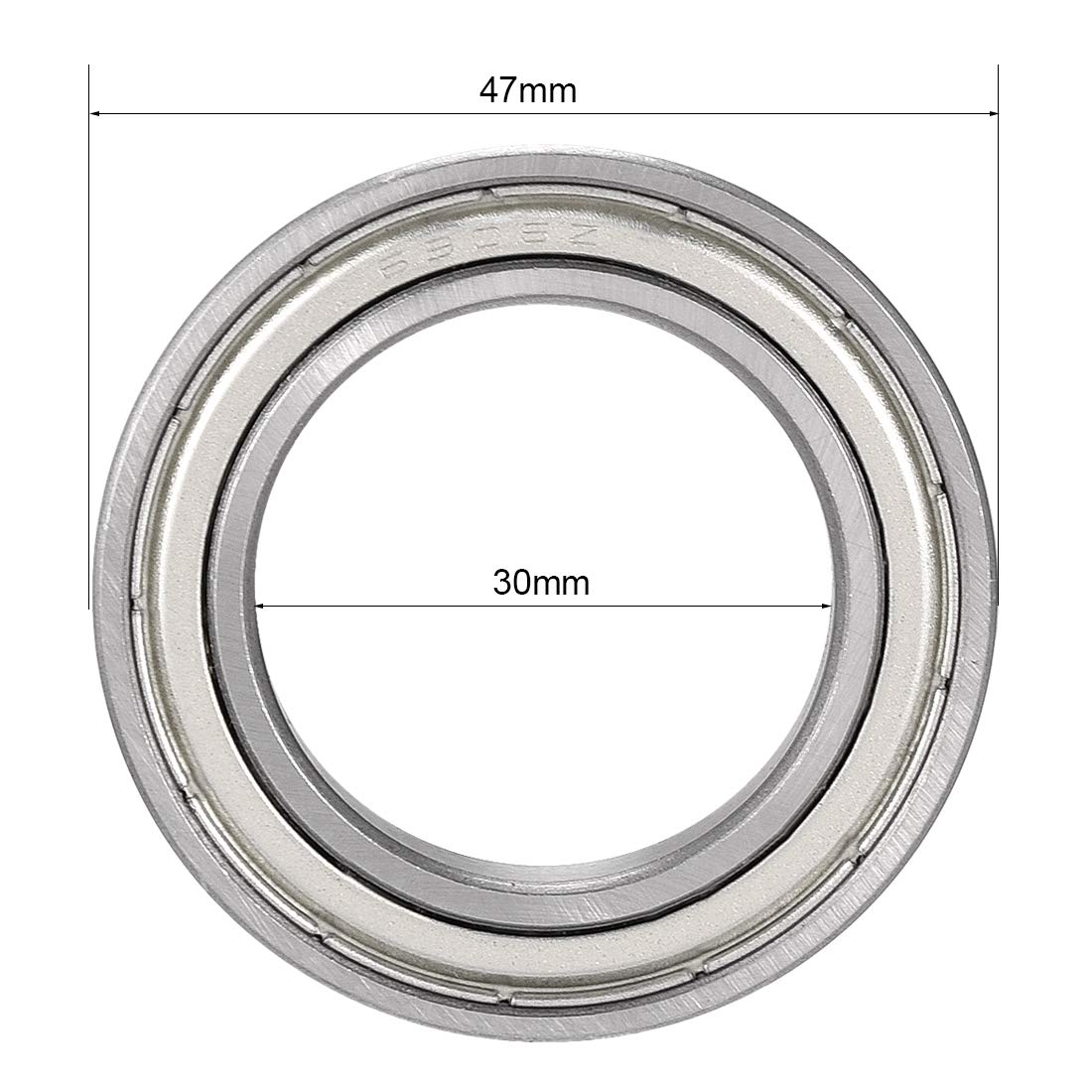

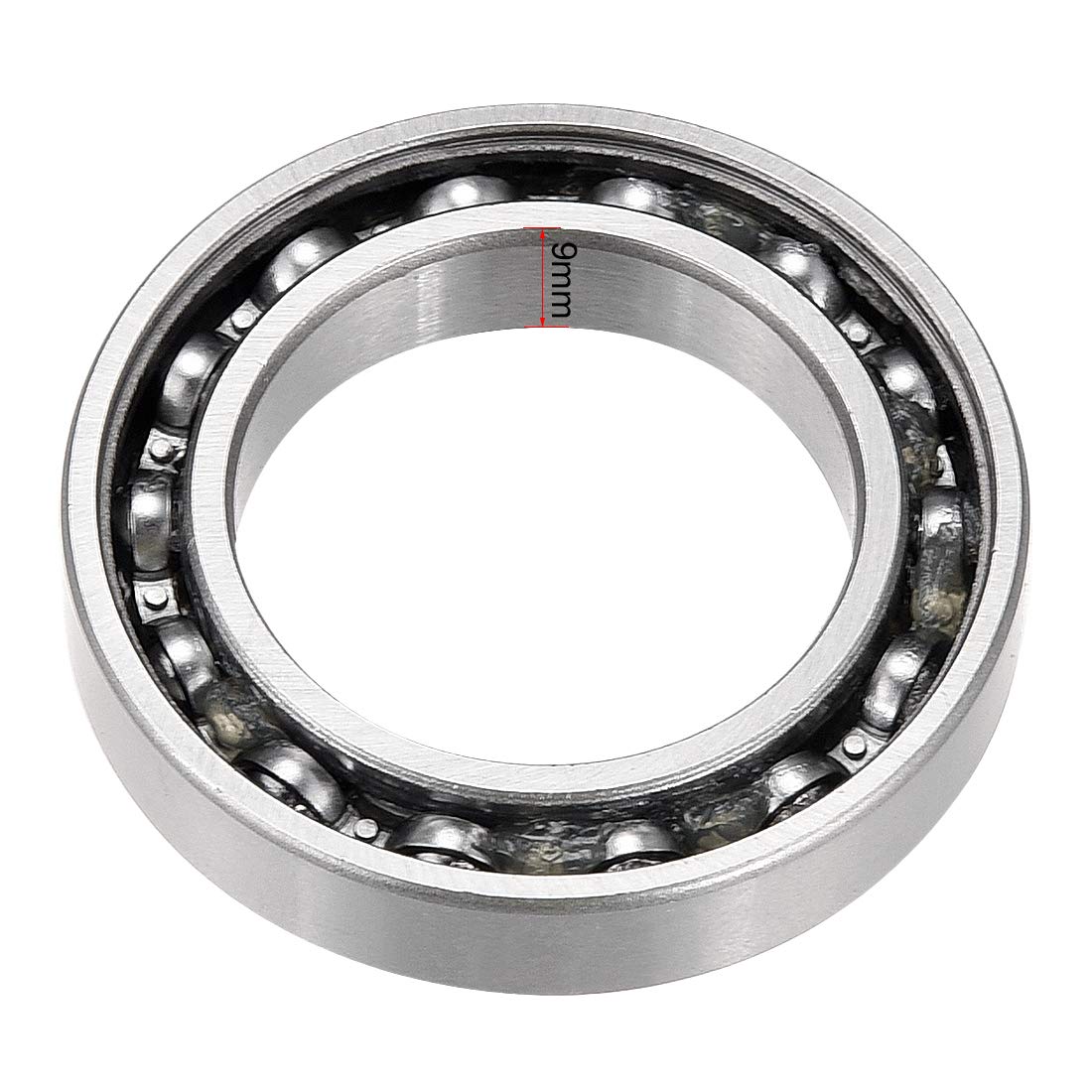

• Size: 6906Z (Inner Dia.=30mm, Outer Dia.=47mm, Thickness=9mm)

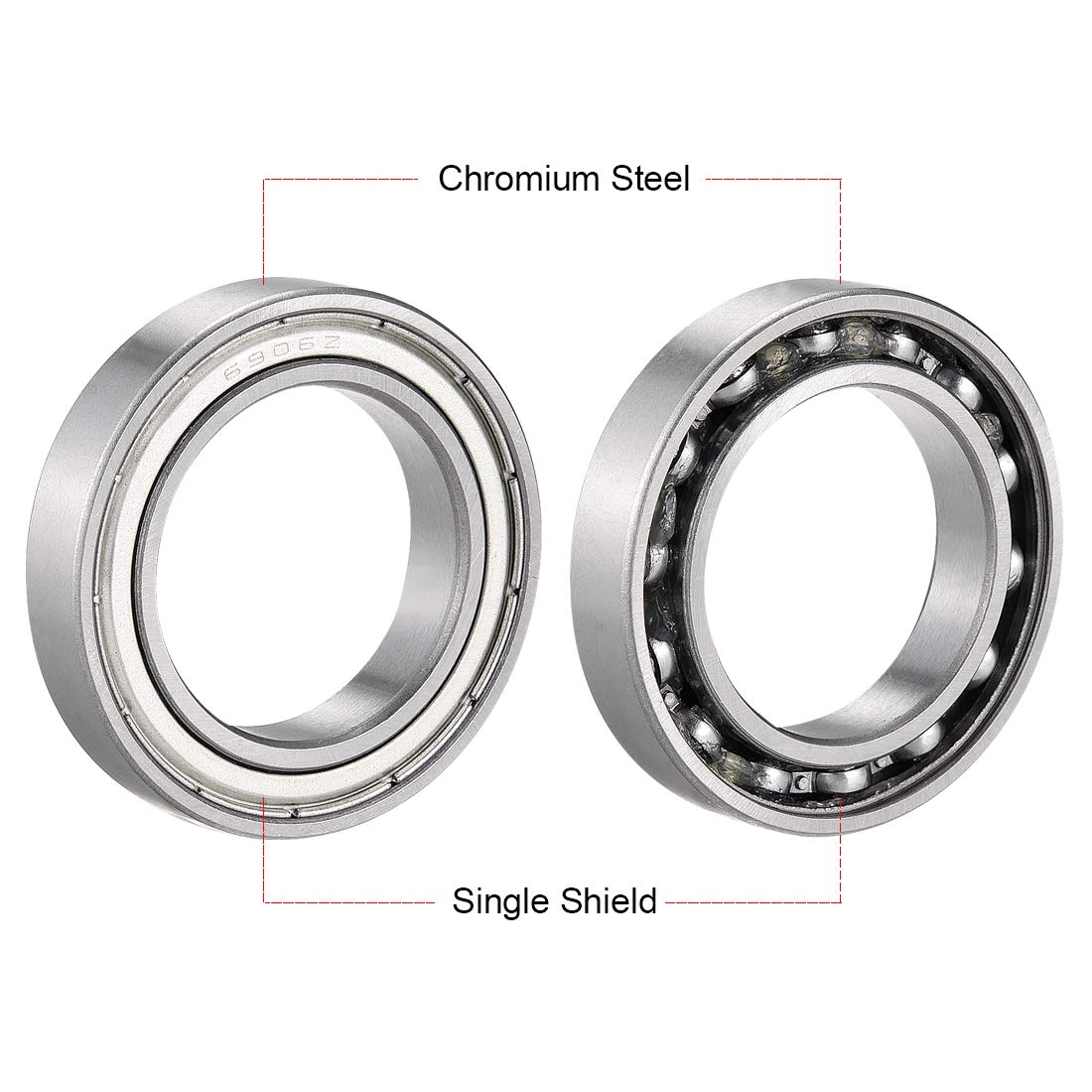

• Shield on SINGLE SIDE of the bearing for easy lubrication and maintenance while protecting from dirt. Ideal for vertical installation
• Chromium Steel long-life bearings, smooth and low noise
• ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
• Pre-Lubricated, Easy to maintain

NOTE： Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product. Description: Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on. With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance. Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance. Single-row, pre-lubricated, normal accuracy. Selection Guide: Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris. Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings. Specification: Model: 6906Z Shield Type: Single Shield Cage Material: Stamping Steel Inner Diameter (d): 30mm Outer Diameter (D): 47mm Thickness (B): 9mm Dynamic Load Rating (Cr): 7.25kN Static Load Rating (Cor): 5kN Accuracy Class: P0 (ABEC1) Noise Level: Z2 Number of Pack: 2 Pcs Weight: 95g
