sourcing map 628-2RS Deep Groove Ball Bearing Double Sealed 180028, 8mm x 24mm x 8mm Chrome Steel Bearings (Pack of 20)

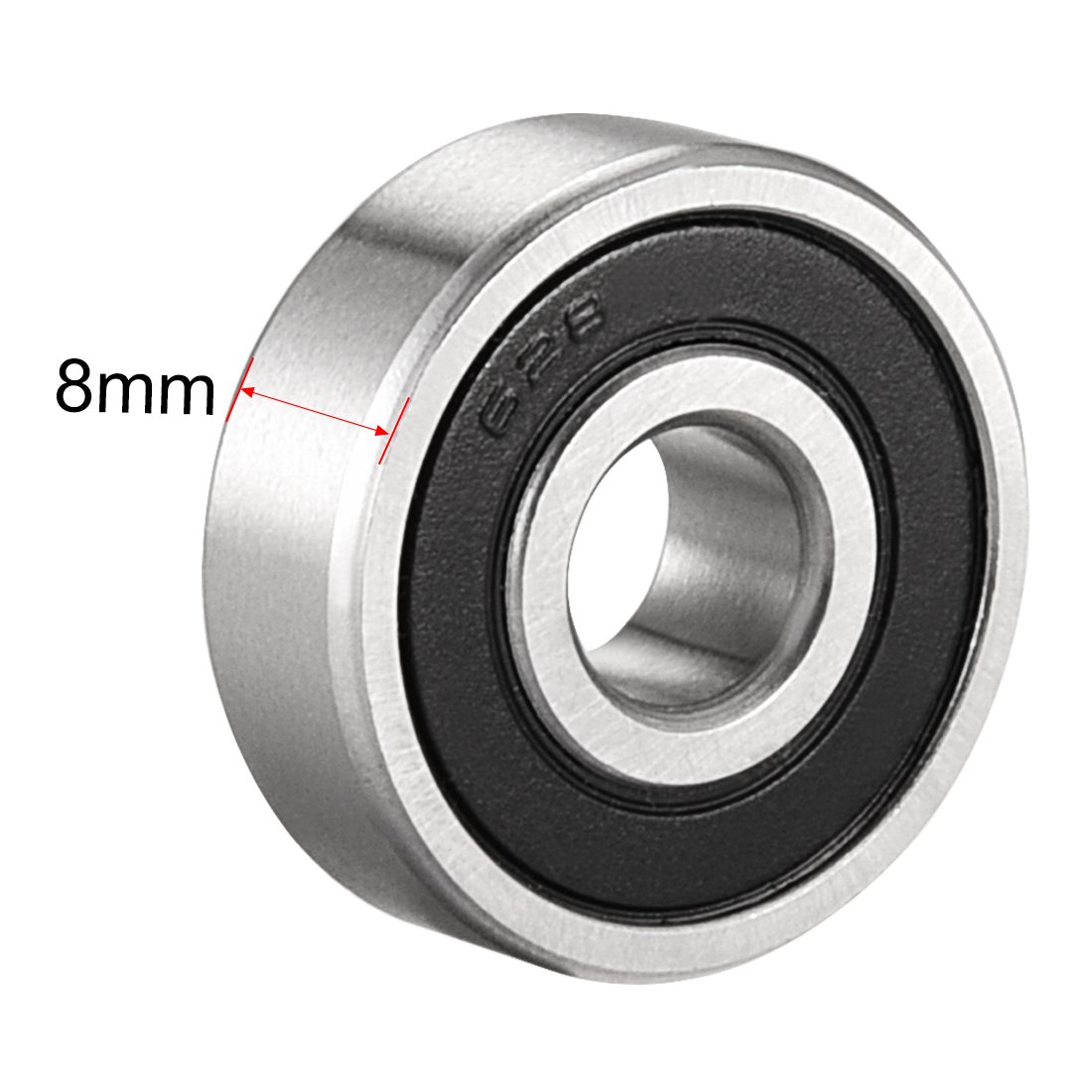

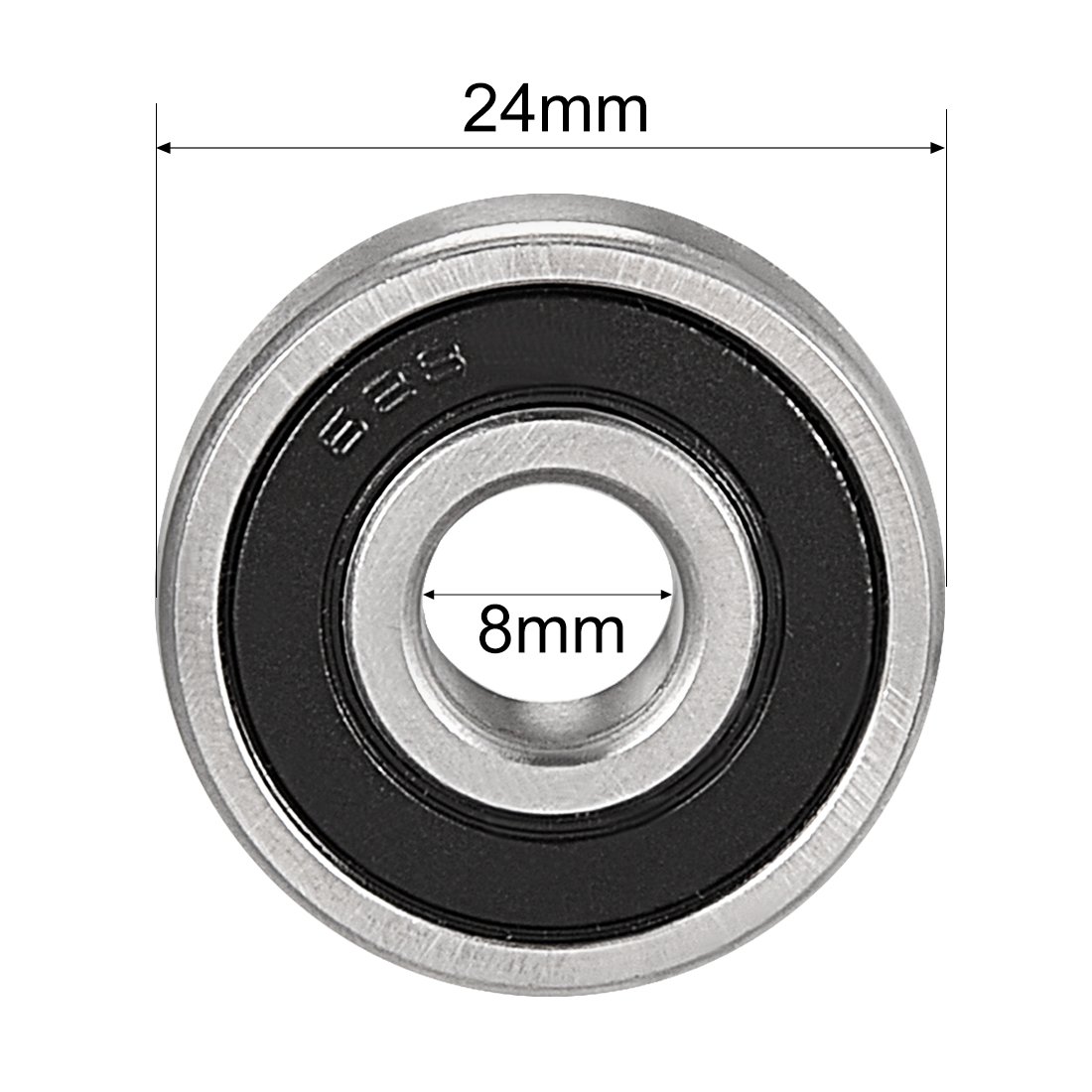

• Size: 628-2RS (Inner Dia.=8mm, Outer Dia.=24mm, Thickness=8mm)

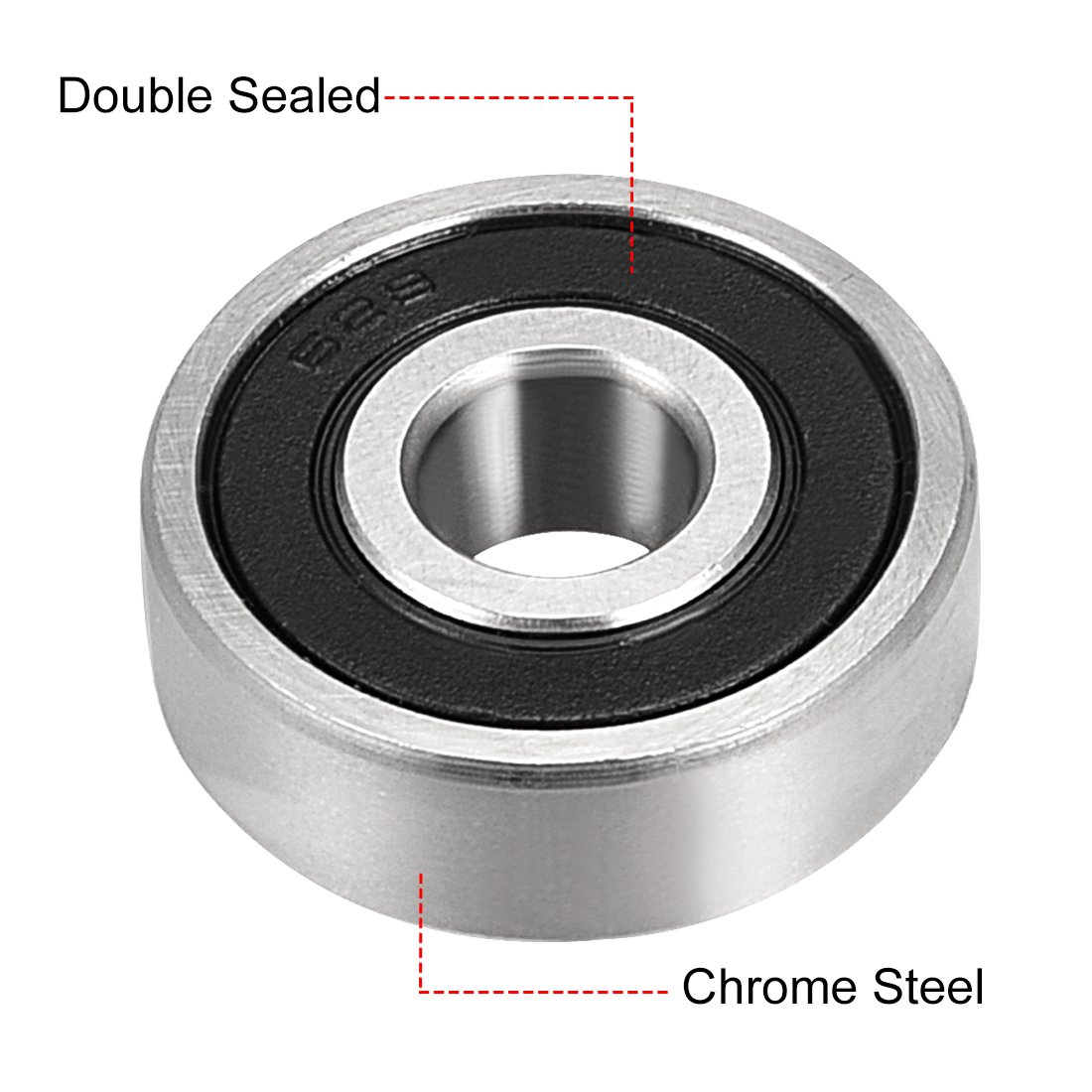

• Sealed on BOTH SIDES of the bearing to keep lubricant in. Suitable for complex environment
• Made from Chromium Steel, features with good anti-rust and corrosion resistance
• ABEC Tolerance 1 (P0)
• Same As 628-2RS / 180028. Pre-Lubricated, Easy to maintain

NOTE： Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product. Description: Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on. With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance. Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance. Single-row, pre-lubricated, normal accuracy. Selection Guide: Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris. Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings. Specification: Model: 628-2RS Sealed Type: Double Sealed Material: Chromium Steel Cage Material: Stamping Steel Inner Diameter (d): 8mm Outer Diameter (D): 24mm Thickness (B): 8mm Dynamic Load Rating (Cr): 3.35kN Static Load Rating (Cor): 1.4kN Accuracy Class: P0 (ABEC1) Number of Pack: 20 Pcs Weight: 339g
