sourcing map 5Pcs Red Indicator Light AC/DC 24V, 16mm Panel Mount, for Electrical Control Panel, HVAC, DIY Projects

• RED LED indicator lights drove with AC/DC 24 VOLT
• Industrial standard 16mm (5/8") mounting diameter
• Low behind the panel depth (34mm) and come with a panel locking nut (Fits Panel Thickness: ≤6mm)

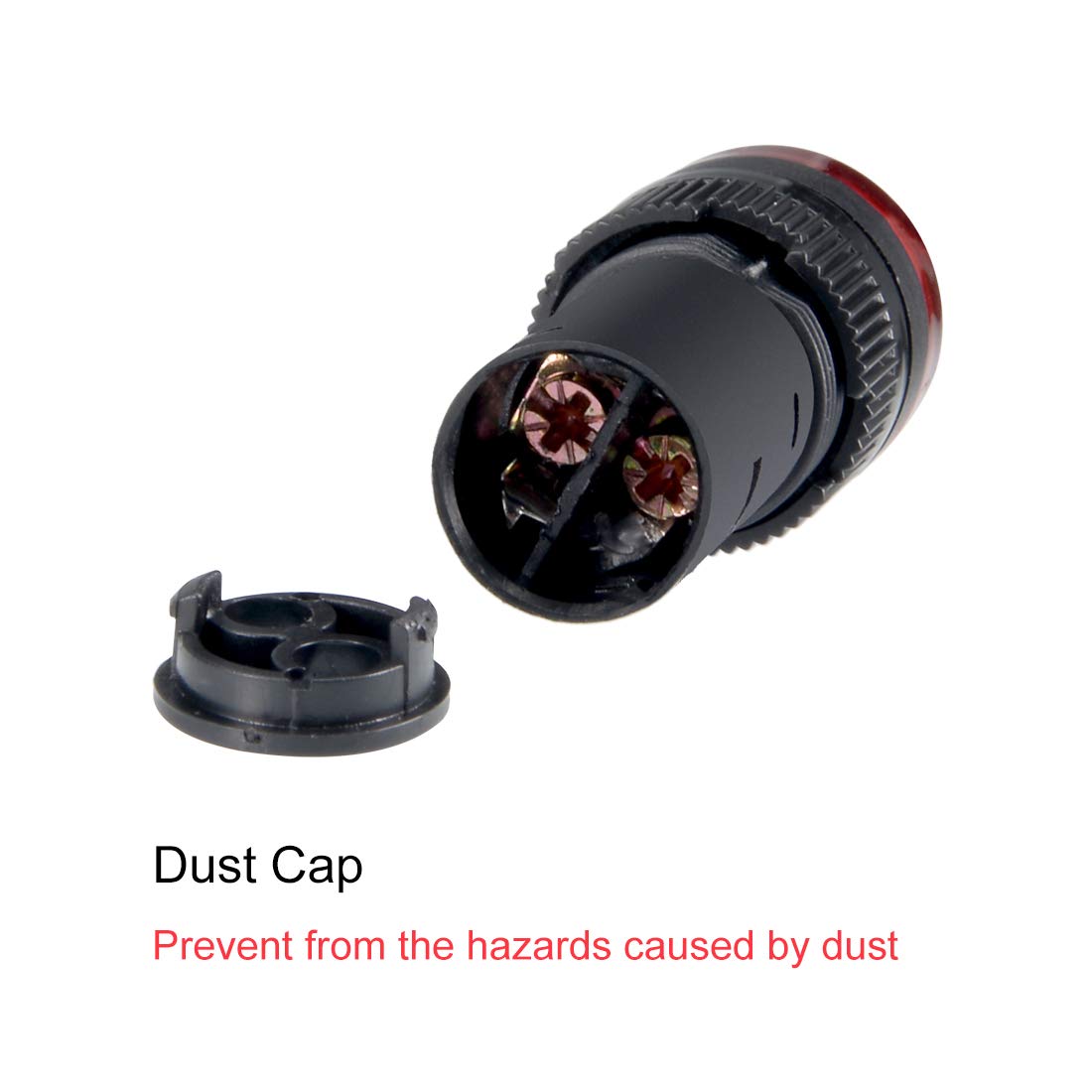

• Screw-clamp connection provides firm contact for reliable operation. Tested over 20,000 hours of using time, they will surely offer a steady performance
• Widely used in the ship, machine tools, machine equipment, switch cabinet and power distribution cabinet, electrical control panel such as HVAC Panel and electrical Panel, DIY Projects such as PLC Training Project

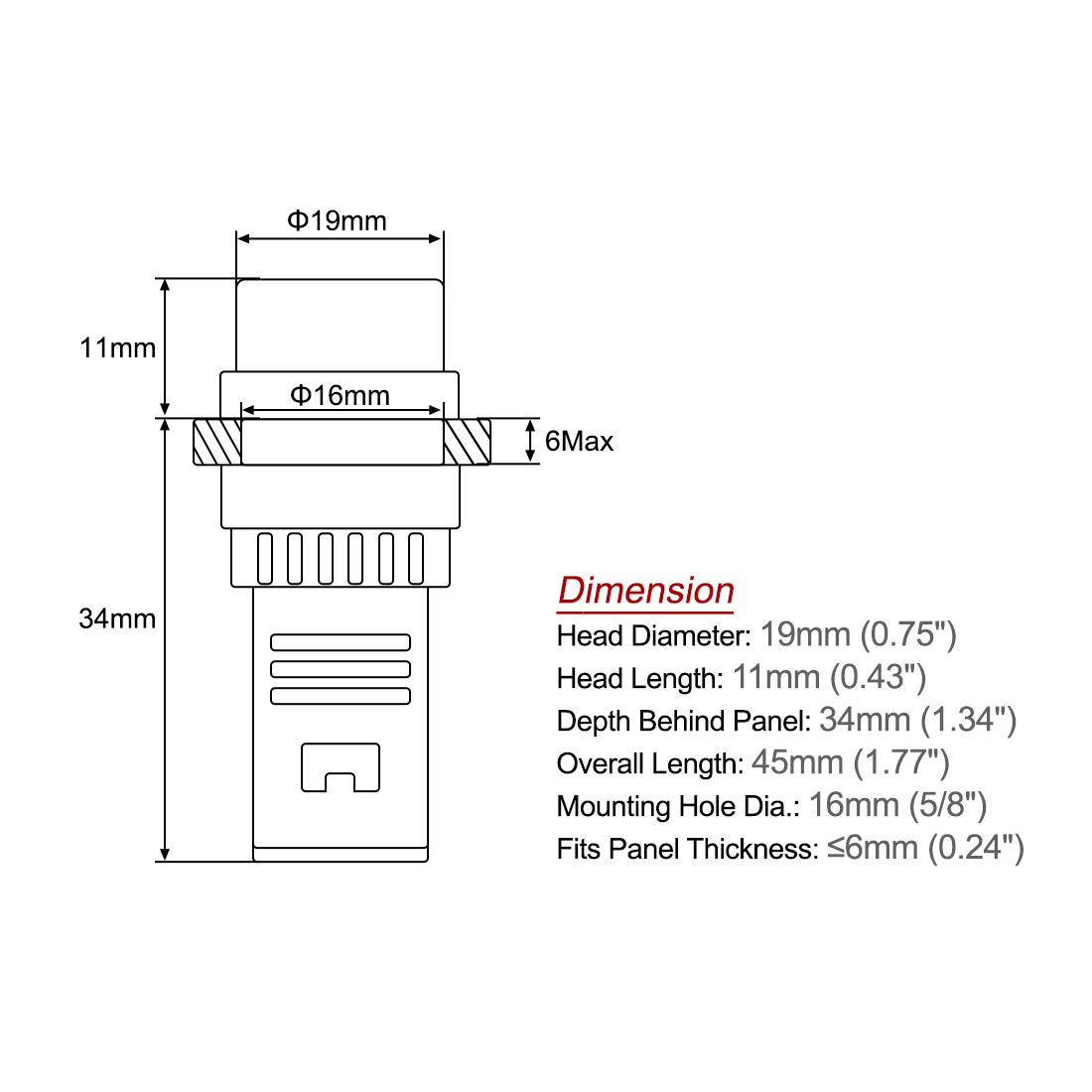

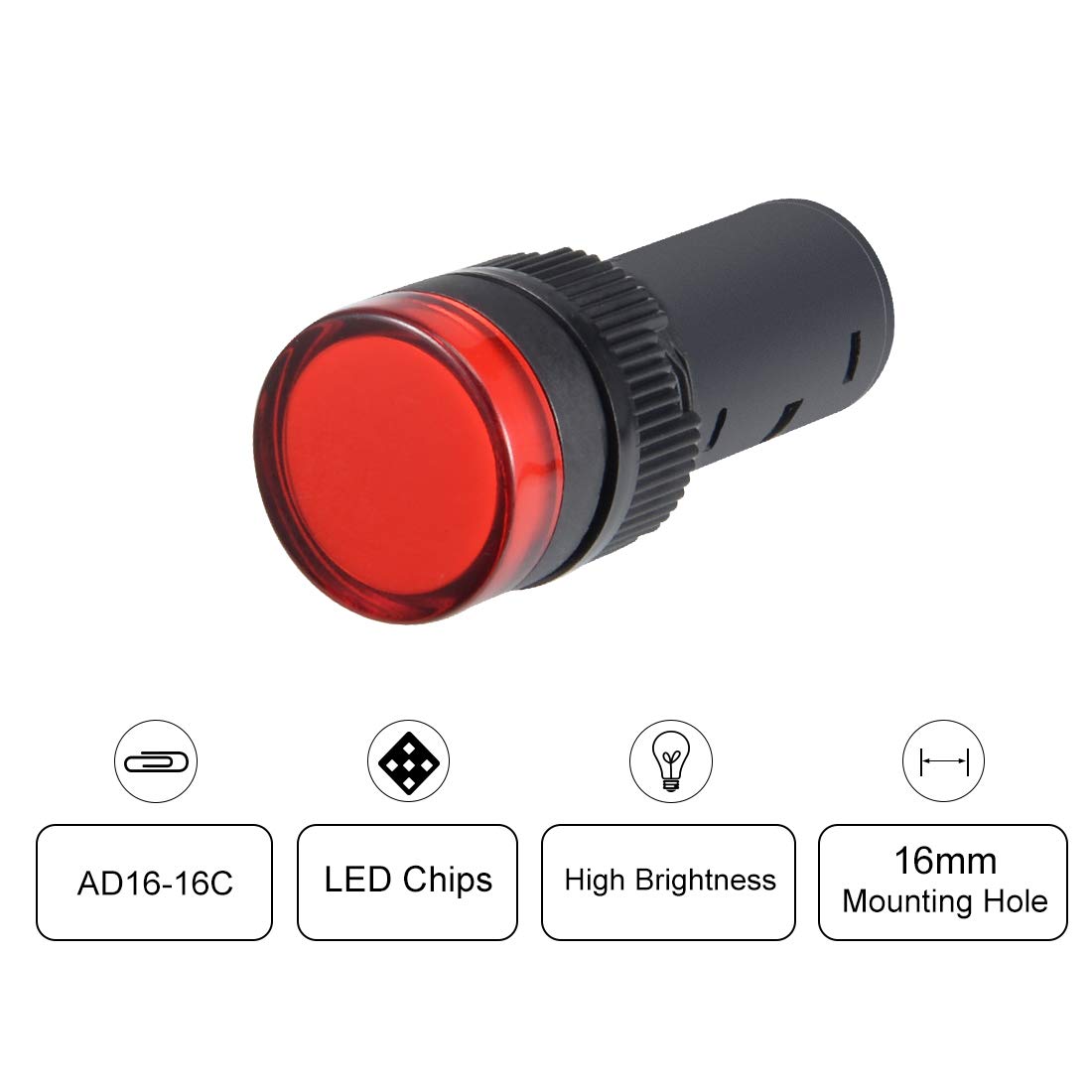

-AD16 Series LED Indicators are applied high-bright LED chips as the light source with long service life, low energy consumption, and lightweight. -These indicator lights are mainly used on the circuit or mechanical equipment to monitor and alarm the operation status of the equipment, indicate whether power is on or show the operating condition of an equipment device. Technical Indexes: Model: AD16-16C Rated Voltage: AC/DC 24V Rated Current: ≤20mA Ambient Temperature: -25℃ ~+55℃ Continuous Work-Life: ≥20,000H Dimension: Head Diameter: 19mm (0.75") Head Length: 11mm (0.43") Depth Behind Panel: 34mm (1.34") Overall Length: 45mm (1.77") Mounting Hole Dia.: 16mm (5/8") Fits Panel Thickness: ≤6mm (0.24") Energy Saving & Low Maintenance Cost Plenty bright LED chips offer uniform illumination without dark areas. They will surely give you a visual status cue of any indexing signal, anticipating signals or emergency signals. Ultra-Short Body & Popular 16mm Size -These LED Pilot Lights feature a popular dimension and ultra-short body, which are good for installation places with narrow and small spaces. -Simply drill a 16mm (5/8") hole, and use the included screw ring to secure this Indicator Light to any 24-volt power source. Screw Termination Assembling with spade terminal connectors (or fork connectors) will provide a tight connection. You may need a screwdriver to help to open the dust-prof cap. Applications Include: The ship, machine tools, electrical equipment, switch cabinet, and power distribution cabinet. Electrical control panels such as HVAC Panel and electrical Panel DIY Projects such as PLC Training Project.
