sourcing map 2Pcs Red/Green Indicator Light AC/DC 24V, 22mm Panel Mount, Dual-Color, for Electrical Control Panel, HVAC, DIY Projects

• Dual-Color RED or GREEN LED indicator lights drove with AC/DC 24 VOLT

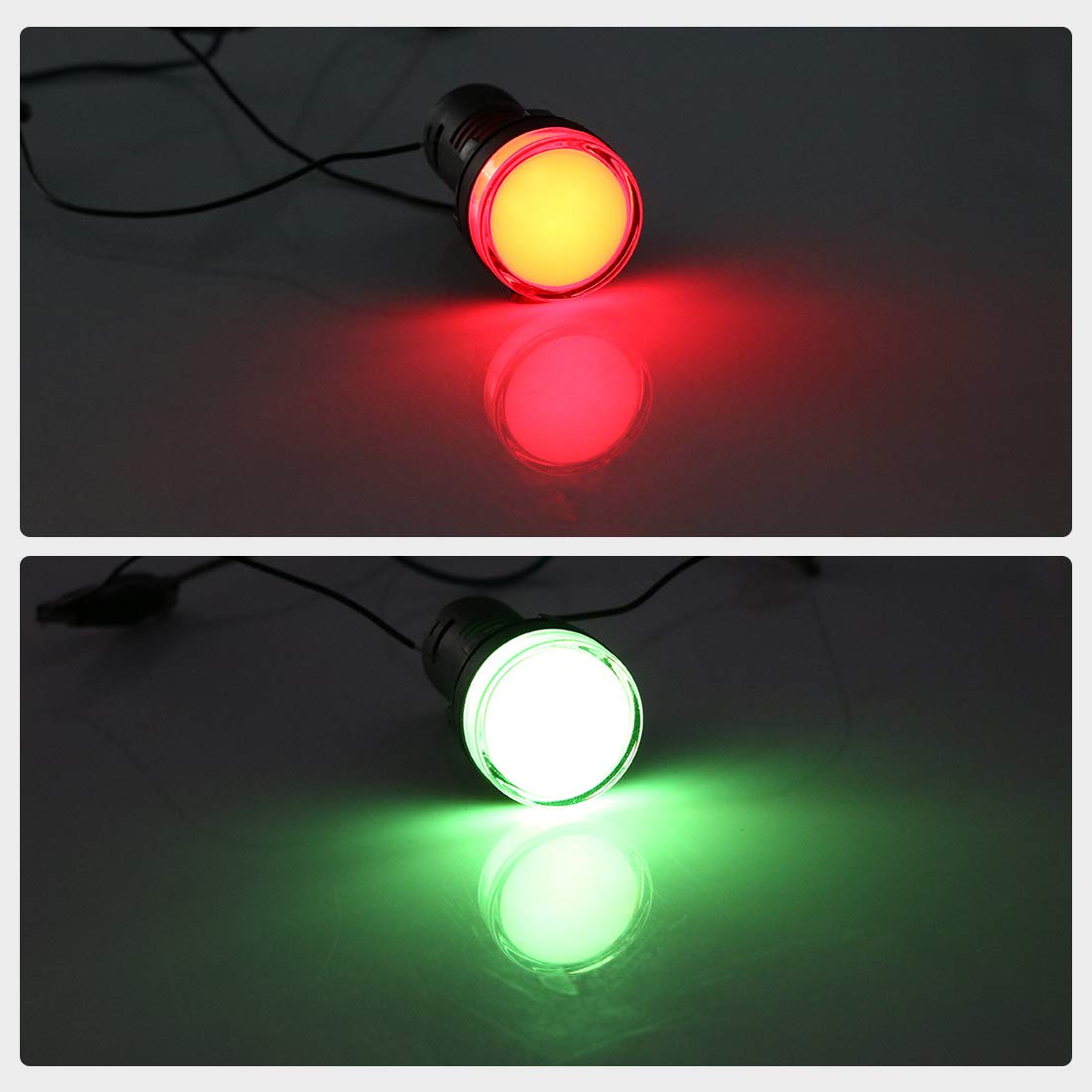

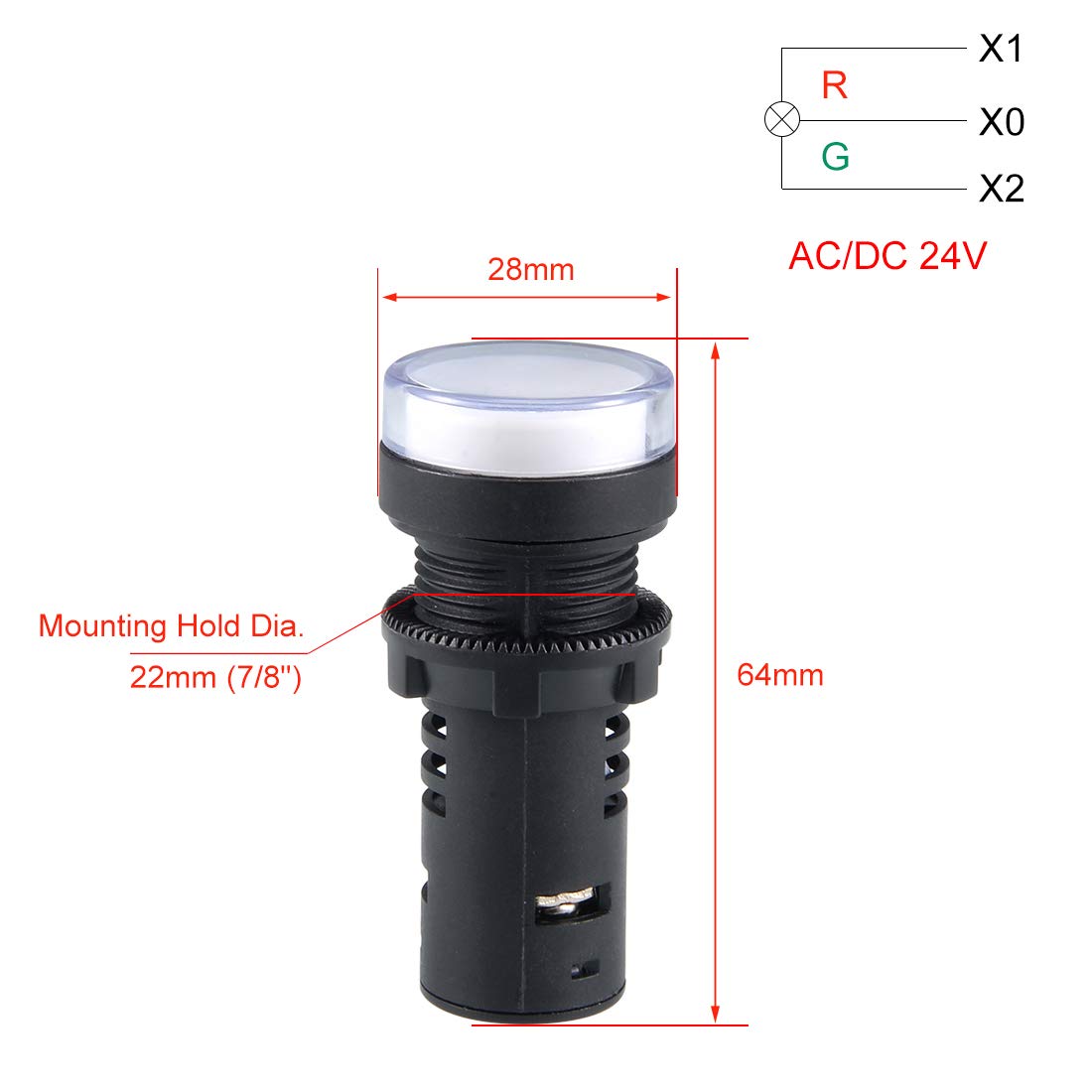

• Industrial standard 22mm (7/8") mounting diameter (X0+X1=Red, X0+X2=Green. X1 X2 can not connect in series)
• Hight brightness for easy recognition. Comes with a panel locking nut (Fits Panel Thickness: ≤6mm)
• Screw-clamp connection provides firm contact for reliable operation. Tested over 20,000 hours of using time, they will surely offer a steady performance
• Widely used in the ship, machine tools, machine equipment, switch cabinet and power distribution cabinet, electrical control panel such as HVAC Panel and electrical Panel, DIY Projects such as PLC Training Project

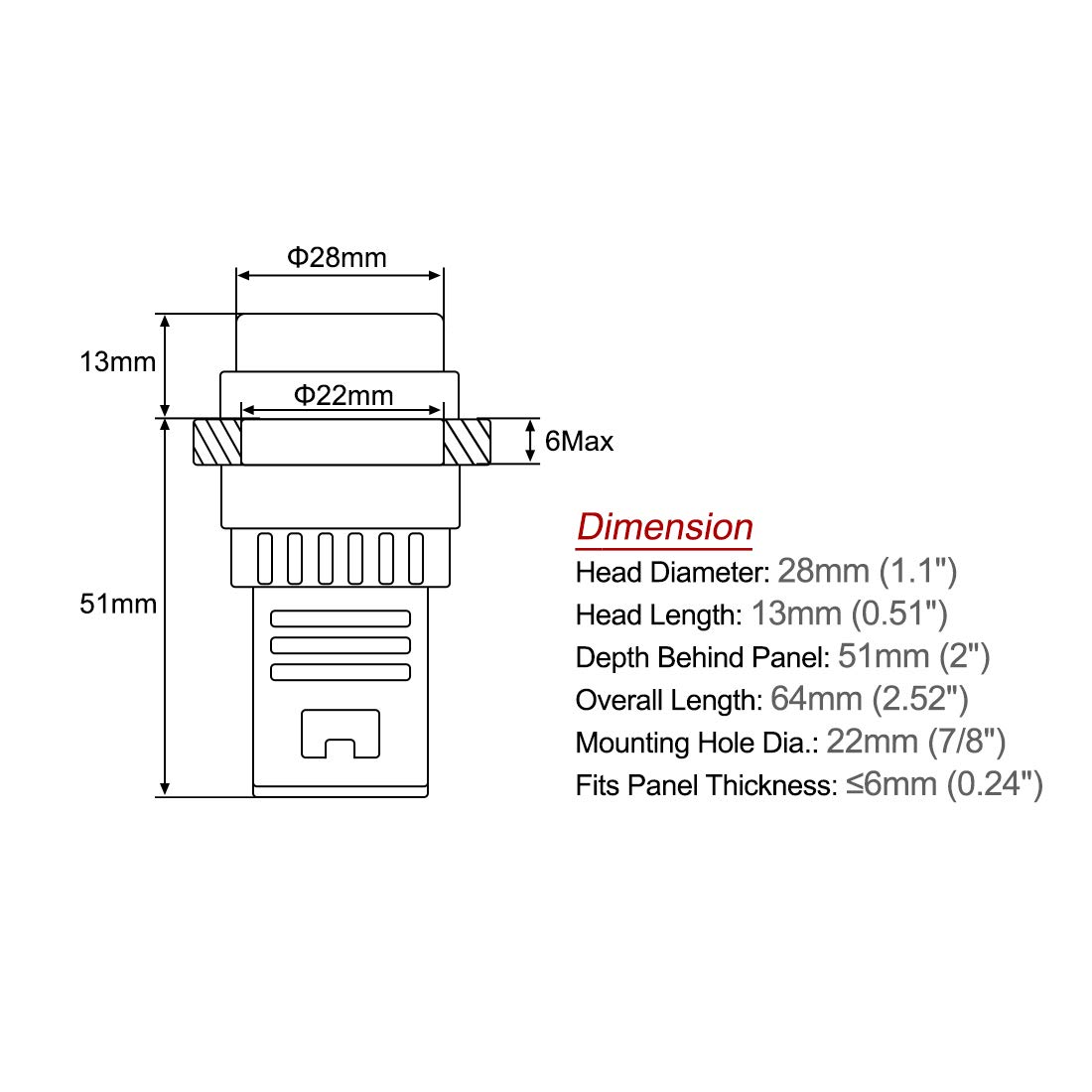

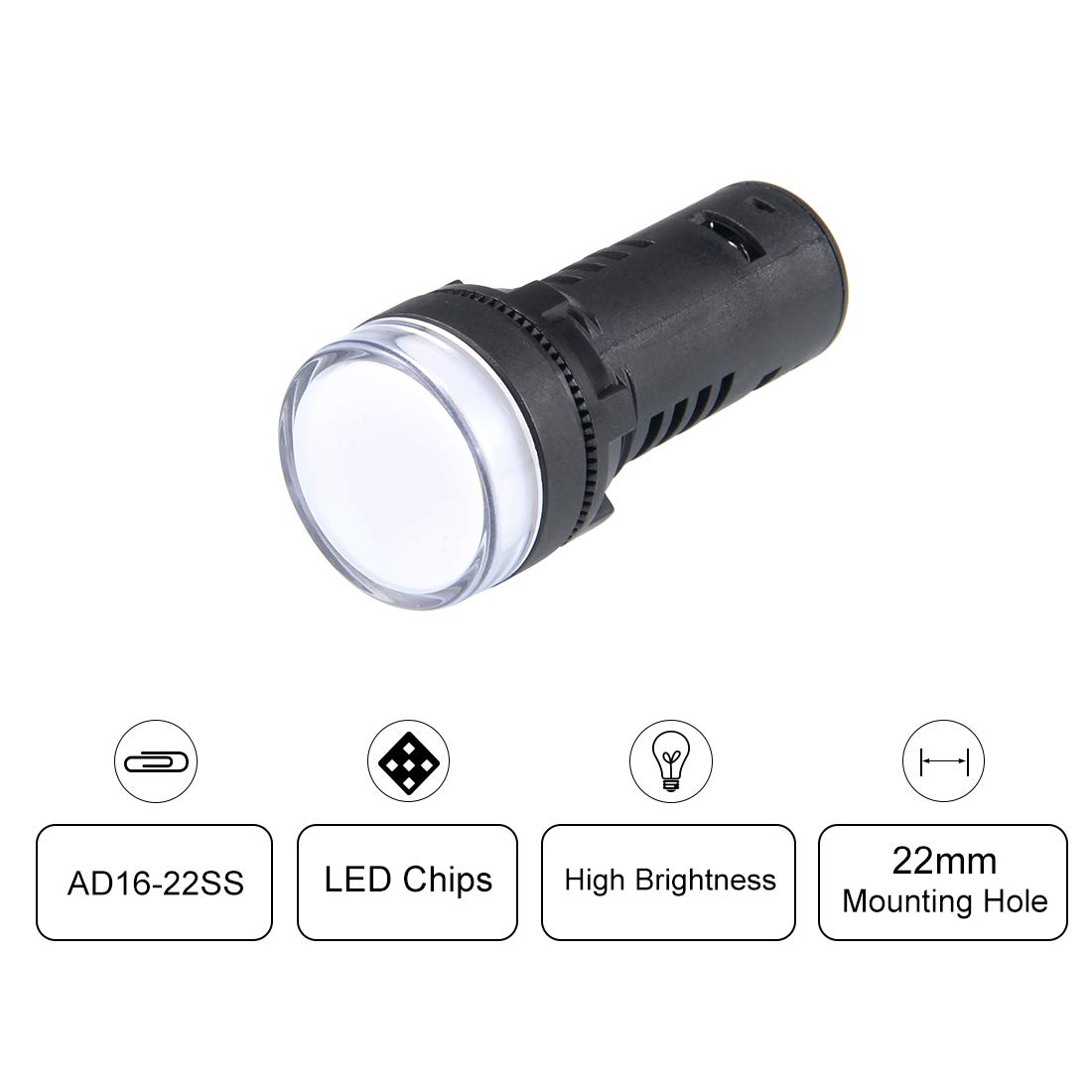

-AD16 Series LED Indicators are applied high-bright LED chips as the light source with long service life, low energy consumption, and lightweight. -These indicator lights are mainly used on the circuit or mechanical equipment to monitor and alarm the operation status of the equipment, indicate whether power is on or show the operating condition of an equipment device. -NOTE: X0+X1=Red, X0+X2=Green. X1 X2 can not connect in series. Technical Indexes: Model: AD16-22S Rated Voltage: AC/DC 24V Rated Current: ≤20mA Ambient Temperature: -25℃ ~+55℃ Continuous Work-Life: ≥20,000H Dimension: Head Diameter: 28mm (1.1") Head Length: 13mm (0.51") Depth Behind Panel: 51mm (2") Overall Length: 64mm (2.52") Mounting Hole Dia.: 22mm (7/8") Fits Panel Thickness: ≤6mm (0.24") Energy Saving & Low Maintenance Cost Plenty bright LED chips offer uniform illumination without dark areas. They will surely give you a visual status cue of any indexing signal, anticipating signals or emergency signals. Popular 22mm Size These LED Pilot Lights feature a popular dimension. Simply drill a 22mm (7/8") hole, and use the included screw ring to secure this Indicator Light to any 24-volt power source. Screw Termination Assembling with spade terminal connectors (or fork connectors) will provide a tight connection. You may need a screwdriver to help to open the dust-prof cap. Applications Include: The ship, machine tools, electrical equipment, switch cabinet, and power distribution cabinet. Electrical control panels such as HVAC Panel and electrical Panel. DIY Projects such as PLC Training Project.
