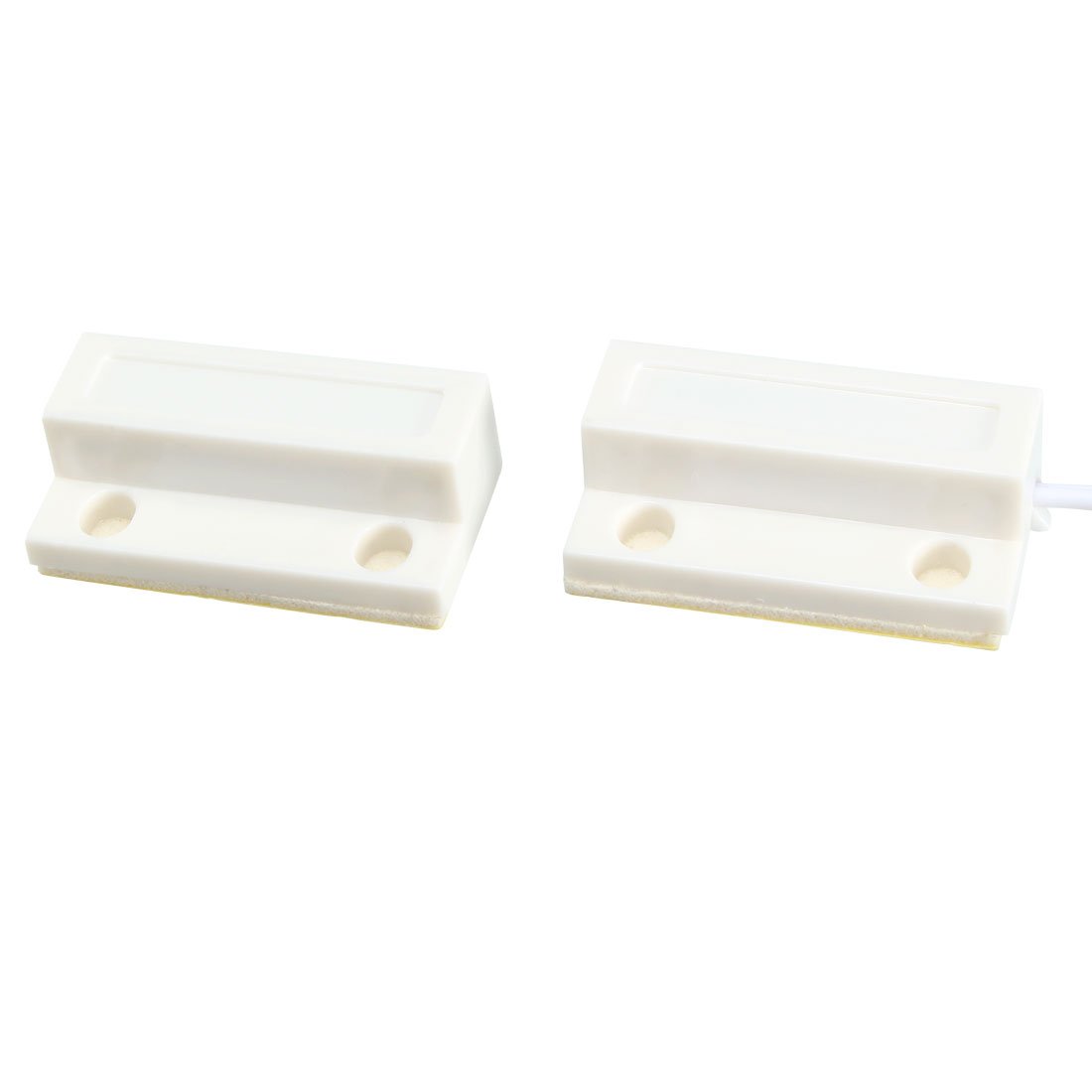

sourcing map 2pcs MC-38 Surface Mount Wired NO Door Sensor Alarm Magnetic Reed Switch White

• ABS Normally Open Door Contact Switch
• 0.5A Maximum Switch Current
• Will make Sense Door Closer at Roughly 10-15mm
• Self-Adhesive Mount, Screw Surface Mount
• Long wire lead that is side mounted

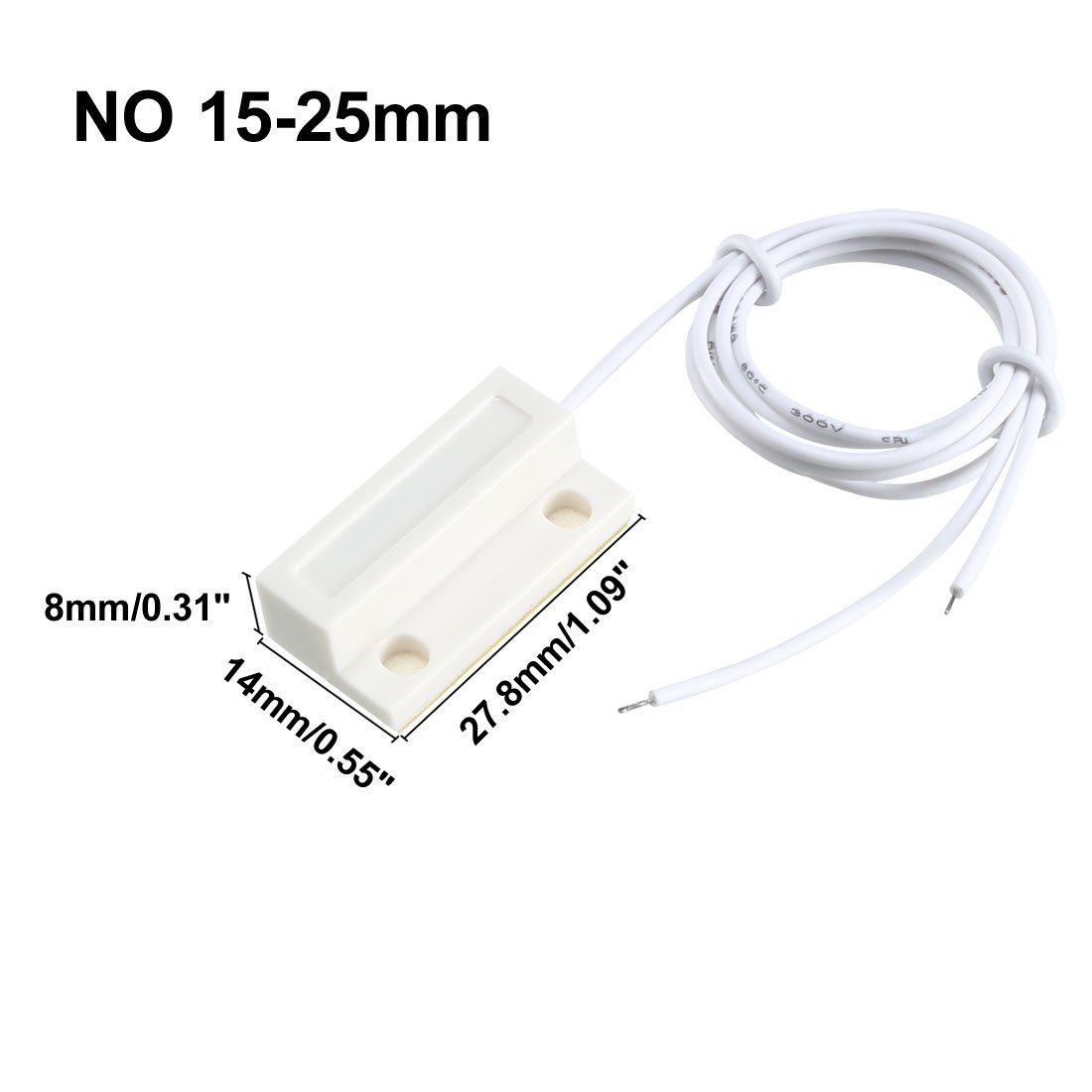

Description: 1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted. 2.Switch Type: NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully! 3.Work as an anti-theft alarm, perfect for wood door and window. Specification: Product Name: Magnetic Door Switch Model: MC-38 Contact Type: NO (Normally Open) Actuation Distance: 10-15mm Max. Current: 0.5A Max. Power: 10W Working Voltage: DC100V Each Size(Approx): 27.8 x 14 x 8mm / 1.09 x 0.55 x 0.31-inch (L*W*H) Mounting Hole Diameter: 4mm/0.16-inch Cable Length(Each): 26cm / 10.2-inch Material: ABS (Housing) Wire Type: 1007UL#24AWG Color: White Net Weight: 16g Package Content: 2pcs x Magnetic Door Switch, Some Install Parts Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
