sourcing map 25mm OD 30mm Long Spiral Stamping Light Load Compression Die Spring Yellow

• Hole Diameter(Outer Diameter): 10mm/0.39"; Rod Diameter(inner Diameter): 5mm/0.2"; Free Length: 100mm/3.93" (+/- 2mm).
• The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown.
• Rectangular section, closed-end design. Die springs are primarily used in die machinery, for plastic injection.
• In addition, because die springs are well suited for high stress applications, they are also suitable for a variety of other applications as well.
• Package Content: 1 x compression mould die spring, Load Type: Light Load; Color: yellow.

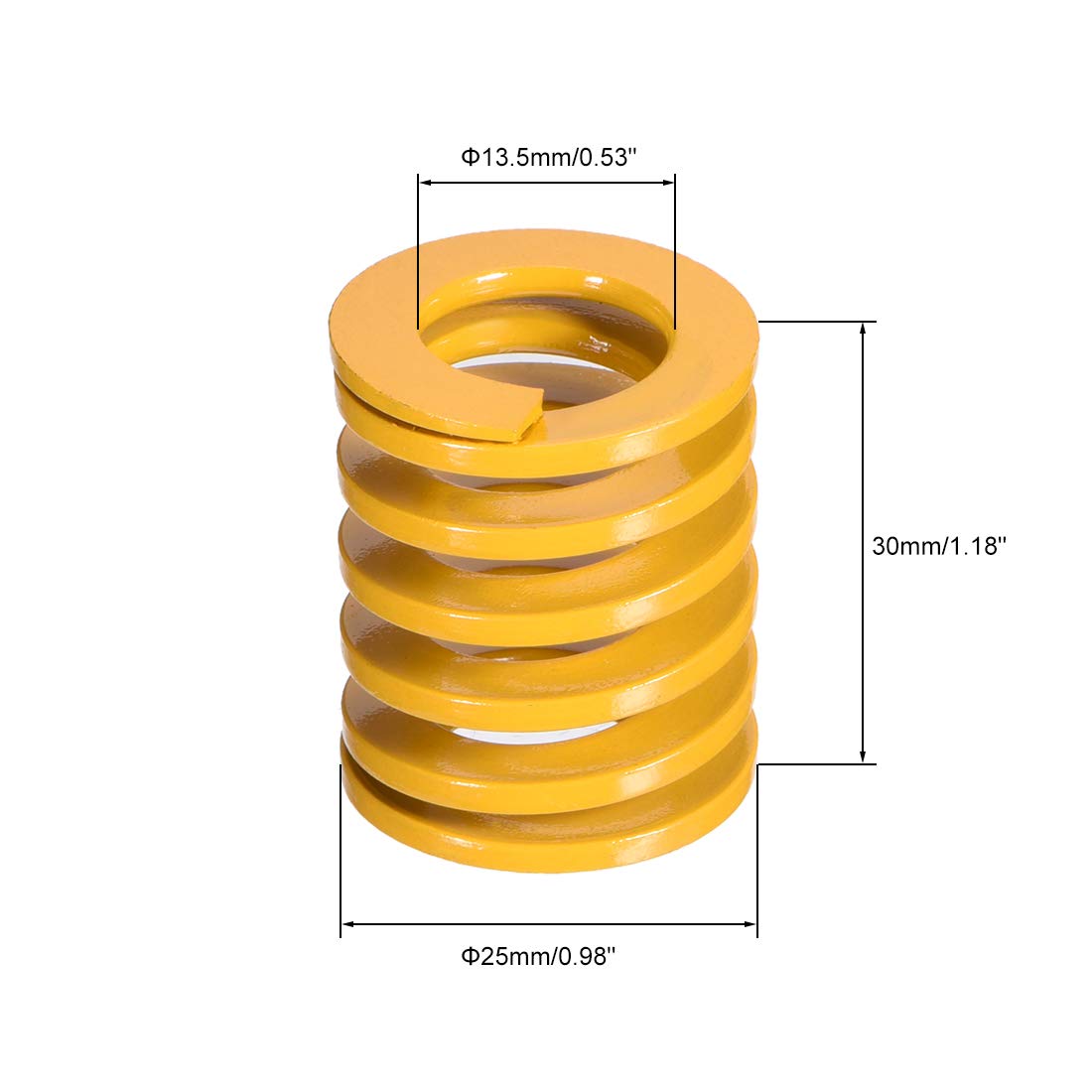

Description: * Rectangular section, closed-end design. Die springs are primarily used in die machinery, For Plastic Injection. * The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown. * In addition, because die springs are well suited for high stress applications, they are also suitable for a variety of other applications as well. Specification: * Product Name: Compression Die Spring * Load Type: Light Load * Color: Yellow * Hole Diameter(Outer Diameter): 25mm/0.98" * Inner Diameter （tolerance +0.5mm): 13.5mm/0.53" * Free Length: 30mm/1.18" (+/- 2mm) * Max compression rate: 50% * Material: spring steel * Surface treatment: Paint Package Content: * 1 x Compression Die Spring
