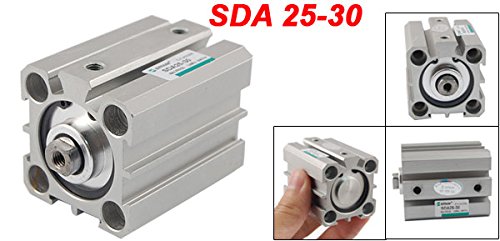

sourcing map 25mm Bore 30mm Stroke Double Action Pneumatic Actuator Air Cylinder

• Product Name : Air Cylinder;Model : SDA 25-30;Action Type : Double Action
• Bore : 25mm/1'';Stroke : 30mm/1.2'';Max Presssure : 1.0Mpa
• Port Dia.(Approx) : 4mm/0.16'';Center Threaded Hole Dia(Approx) : 5mm/0.2'';Piston Rod External Diameter : 10mm/0.39''
• Mounting Thread Diameter : 5mm/0.2'';Overall Size(Approx) : 42 x 40 x 56mm/1.7'' x 1.6'' x 2.2''(L*W*H);Material : Aluminum Alloy
• Weight : 161g;Package Content : 1 x Air Cylinder

25mm bore and 30mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
