sourcing map 20 Pcs IP68 Waterproof Cable Gland, NPT3/8 PA Plastic Strain Relief Cord Connector with Tube Plugs for 4-8mm Electrical Wiring Outdoor Enclosures, Gray White

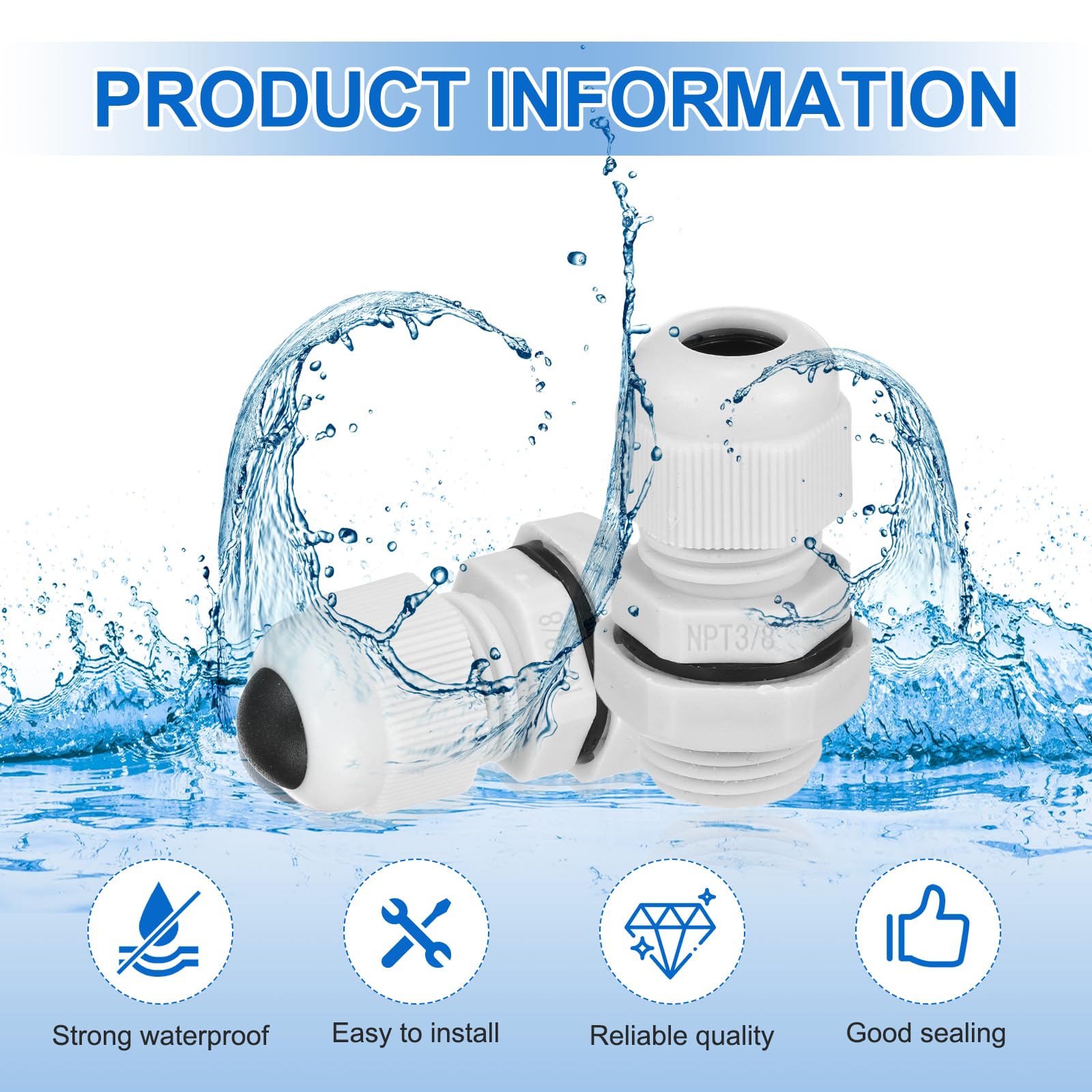

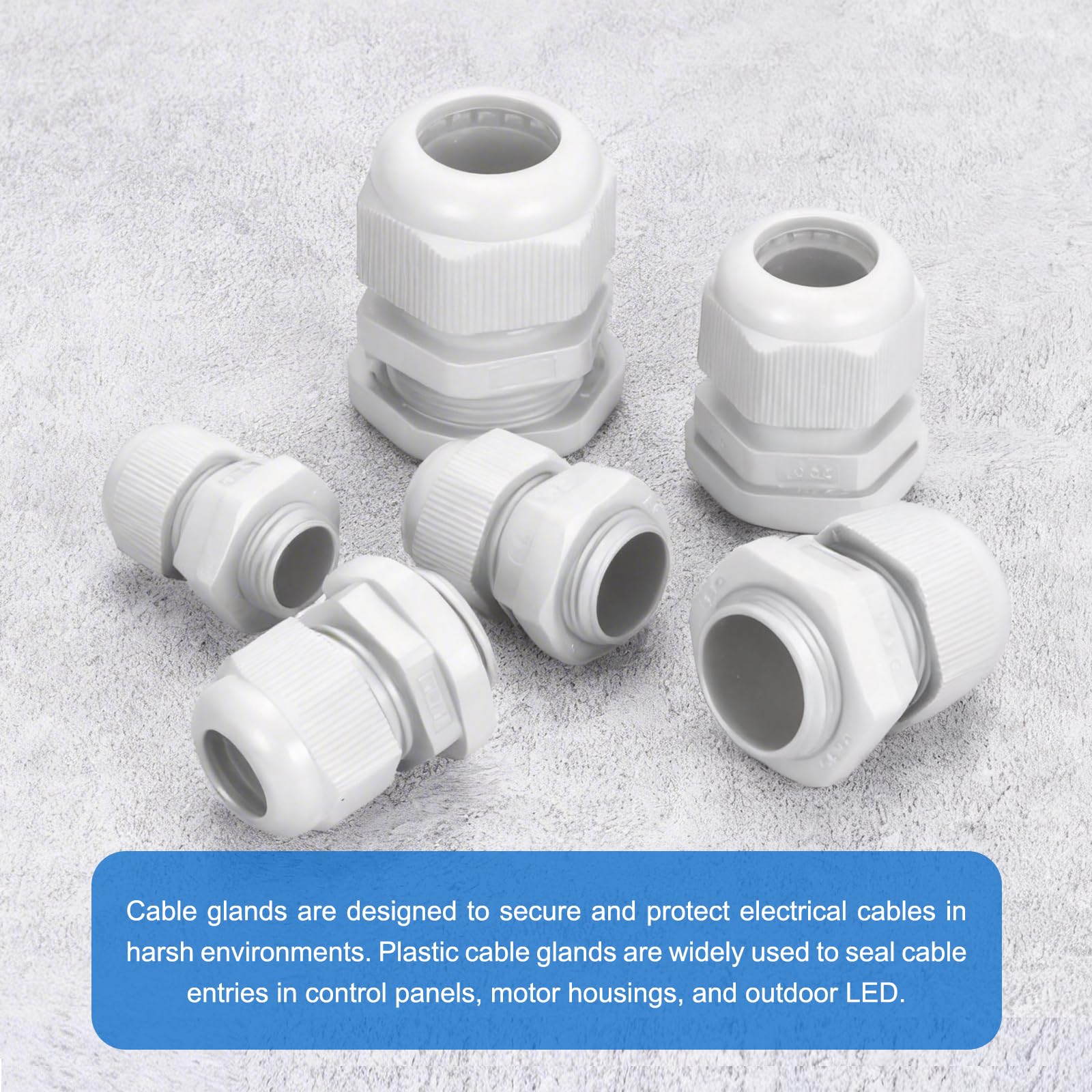

• This waterproof cable gland is designed for secure cable management in demanding environments. The cable glands provide reliable sealing for wires passing through panels in electrical systems, machinery, marine applications, and corrosion-resistant installations. This cord grip creates watertight connections while protecting cables from strain and environmental damage.
• Color: Gray White Glands, Black Plugs;Material: PA Cable Glands, Plastic Plugs;Glands Thread Specification: NPT3/8;Glands Thread Diameter: 16.6mm/0.65 Inch;Glands Thread Length: 15.1mm/0.59 Inch;Glands Length: 41mm/1.61 Inch;Glands width across sides: 21mm/0.83 Inch;Glands Cable Range: 4-8mm;Plug Size: 8x9mm/0.31x0.35 inch(D*H);Package Contents: 20 x Waterproof Cable Glands, 20 x Hemispherical Plugs
• This cable gland joints features a double-seal design, achieving an IP68 protection rating, resisting water, dust, and various solvents including weak acids and oils. Our stress-relieving cable connector uses reinforced threads, combining flexibility and structural stability to ensure long-term stable operation and prevent deformation. The hemispherical plug is made of wear-resistant plastic, with high hardness and a long service life, enhancing waterproof and dustproof performance.

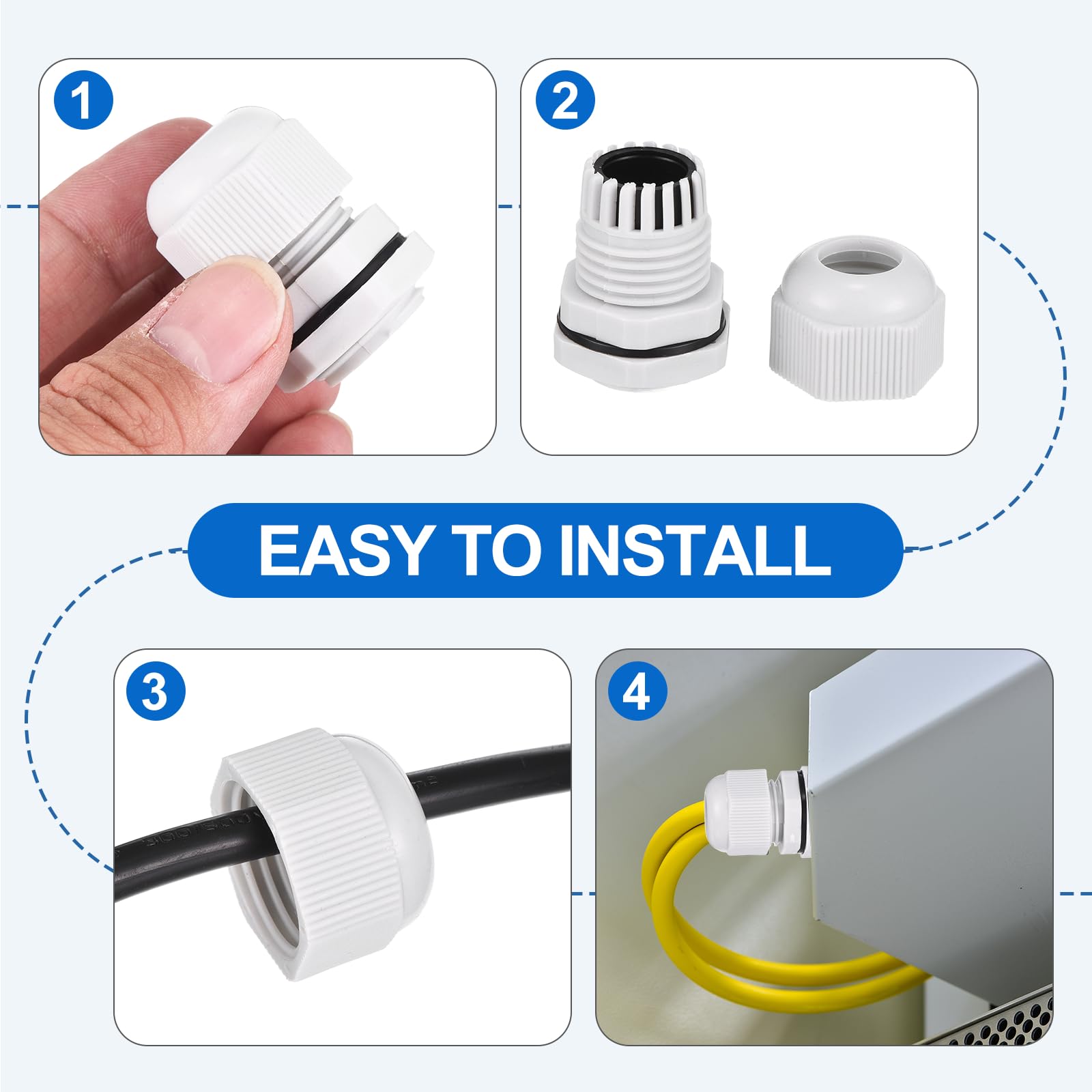

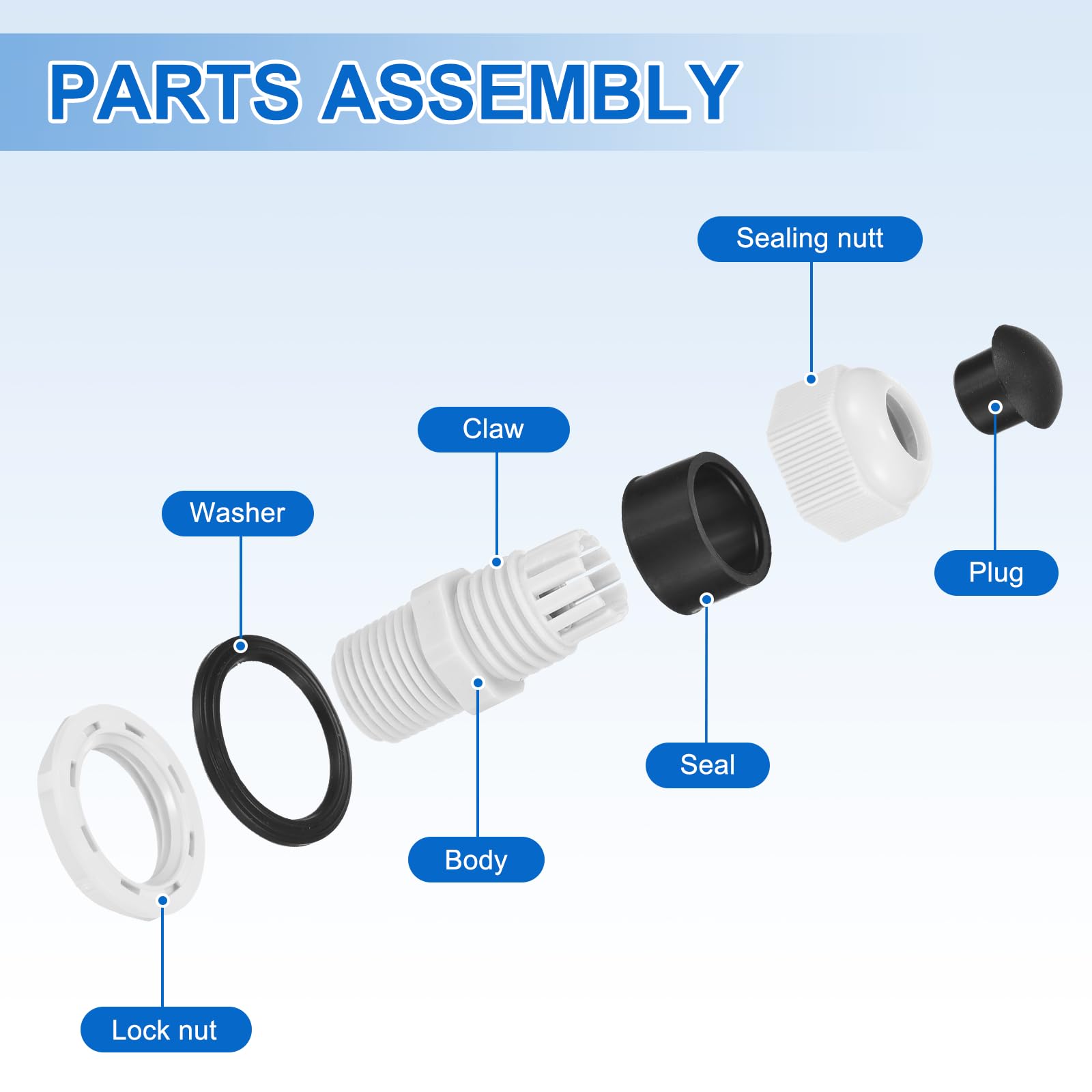

• Insert the cable connector into the appropriately sized hole in the junction box and tighten it. Then insert the cable and tighten the lock nut and sealing nut. The hemispherical plug is easy to install and use; simply slip it on.
• Please confirm the wire diameter of the wiring cable before purchasing, and select the appropriate gland according to the wire diameter.

What is this? This waterproof cable gland is designed for secure cable management in demanding environments. The cable glands provide reliable sealing for wires passing through panels in electrical systems, machinery, marine applications, and corrosion-resistant installations. This cord grip creates watertight connections while protecting cables from strain and environmental damage. What will I get? Color: Gray White Glands, Black Plugs Material: PA Cable Glands, Plastic Plugs Glands Thread Specification: NPT3/8 Glands Thread Diameter: 16.6mm/0.65 Inch Glands Thread Length: 15.1mm/0.59 Inch Glands Length: 41mm/1.61 Inch Glands width across sides: 21mm/0.83 Inch Glands Cable Range: 4-8mm Plug Size:8x9mm/0.31x0.35 inch(D*H) Package Contents: 20 x Waterproof Cable Glands, 20 x Hemispherical Plugs Are there any advantages of the product? This cable gland joints features a double-seal design, achieving an IP68 protection rating, resisting water, dust, and various solvents including weak acids and oils. Our stress-relieving cable connector uses reinforced threads, combining flexibility and structural stability to ensure long-term stable operation and prevent deformation. The hemispherical plug is made of wear-resistant plastic, with high hardness and a long service life, enhancing waterproof and dustproof performance. How to use it? Insert the cable connector into the appropriately sized hole in the junction box and tighten it. Then insert the cable and tighten the lock nut and sealing nut. The hemispherical plug is easy to install and use; simply slip it on. What should I notice? Please confirm the wire diameter of the wiring cable before purchasing, and select the appropriate gland according to the wire diameter.
