sourcing map 18mm OD 70mm Long Spiral Stamping Light Load Compression Die Spring Yellow

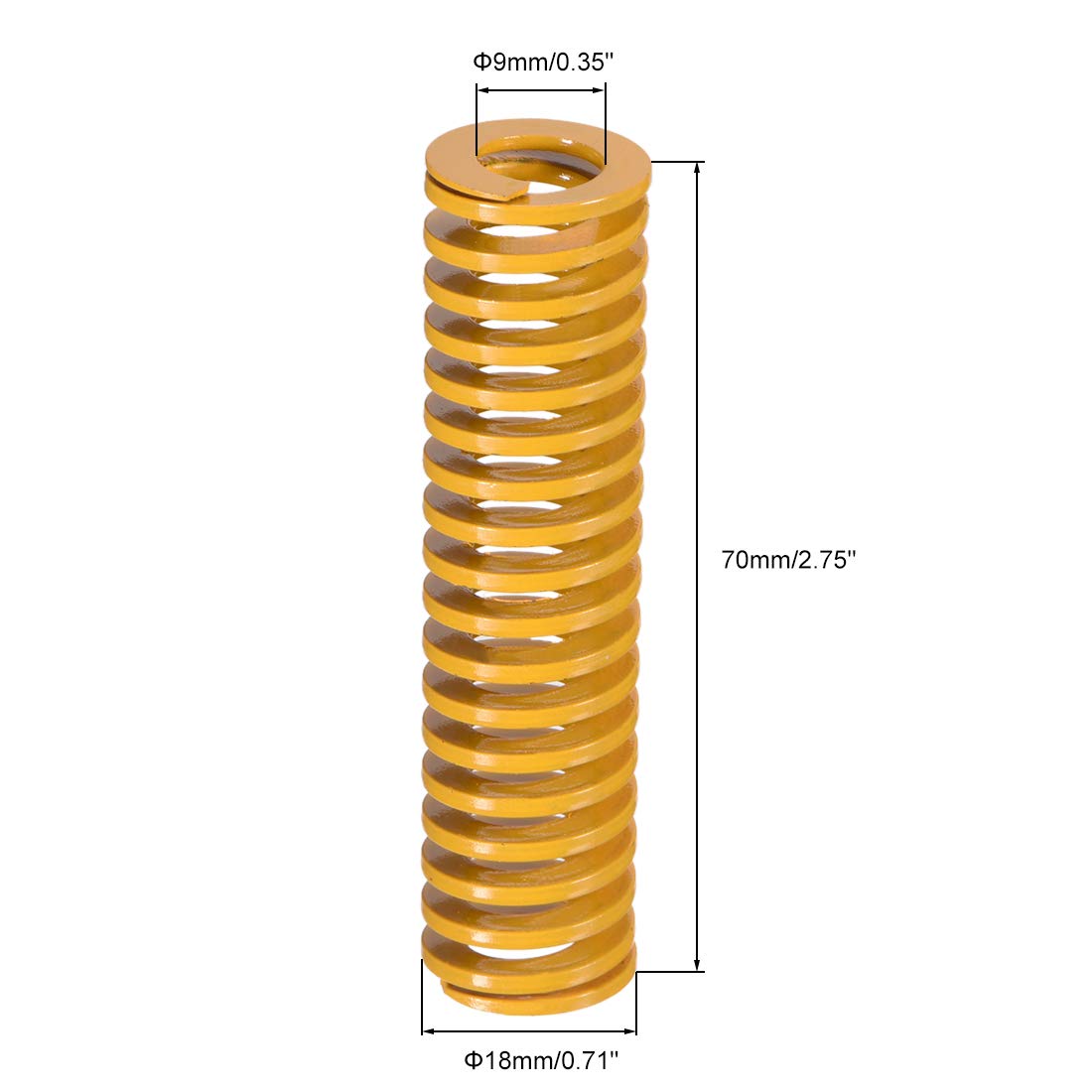

• Hole Diameter(Outer Diameter): 18mm/0.71"; Rod Diameter(inner Diameter): 9mm/0.35"; Free Length: 70mm/2.75" (+/- 2mm).
• The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown.
• Rectangular section, closed-end design. Die springs are primarily used in die machinery, for plastic injection.
• In addition, because die springs are well suited for high stress applications, they are also suitable for a variety of other applications as well.
• Package Content: 1 x compression mould die spring, Load Type: Light Load; Color: yellow.

Description: * Rectangular section, closed-end design. Die springs are primarily used in die machinery, For Plastic Injection. * The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown. * In addition, because die springs are well suited for high stress applications, they are also suitable for a variety of other applications as well. Specification: * Product Name: Compression Die Spring * Load Type: Light Load * Color: Yellow * Hole Diameter(Outer Diameter): 18mm/0.71" * Inner Diameter （tolerance +0.5mm): 9mm/0.35" * Free Length: 70mm/2.75" (+/- 2mm) * Max compression rate: 50% * Material: spring steel * Surface treatment: Paint Package Content: * 1 x Compression Die Spring
