sourcing map 1654-2RS Deep Groove Ball Bearings Z2 1-1/4 Inch x 2-1/2 Inch x 5/8 Inch Double Sealed Chrome Steel

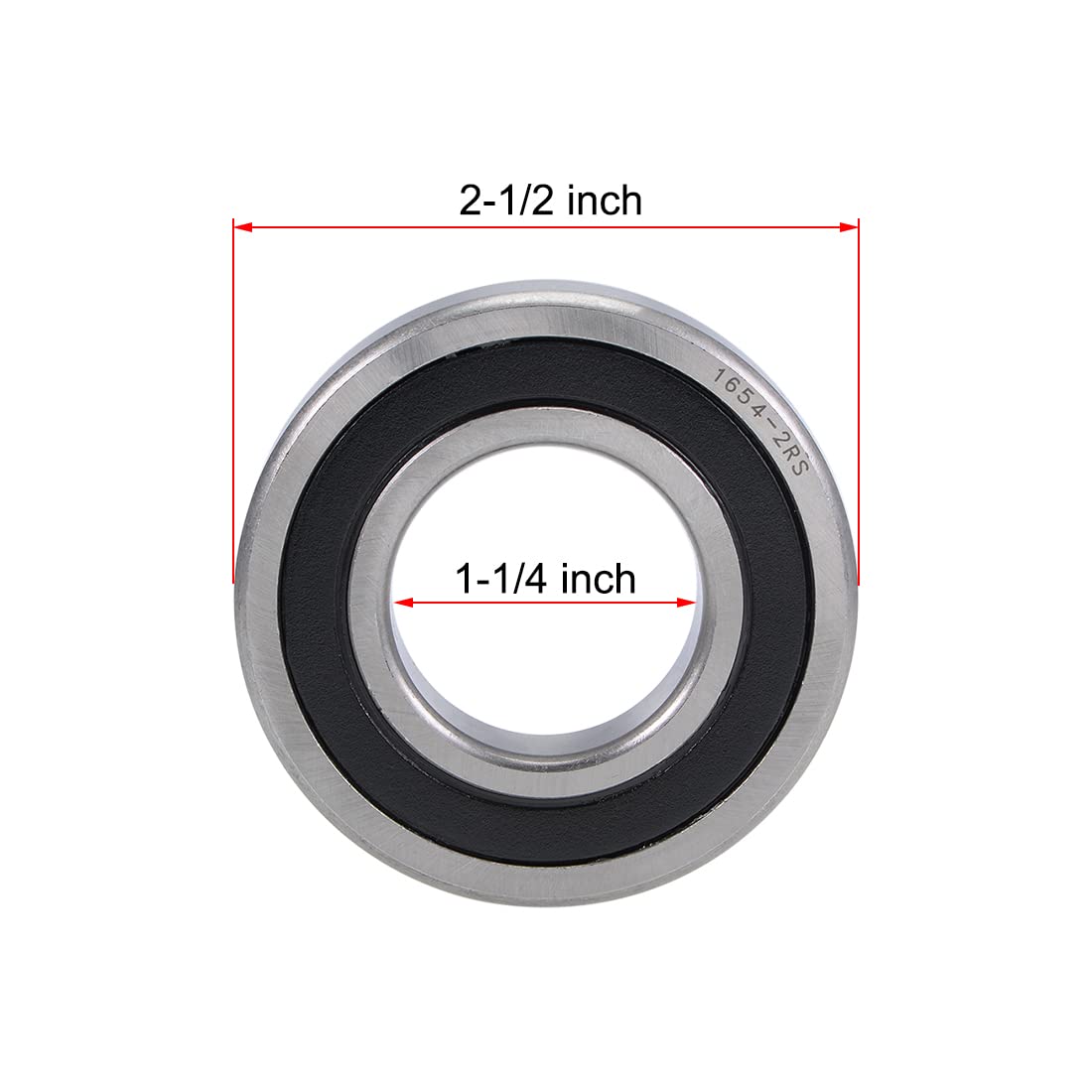

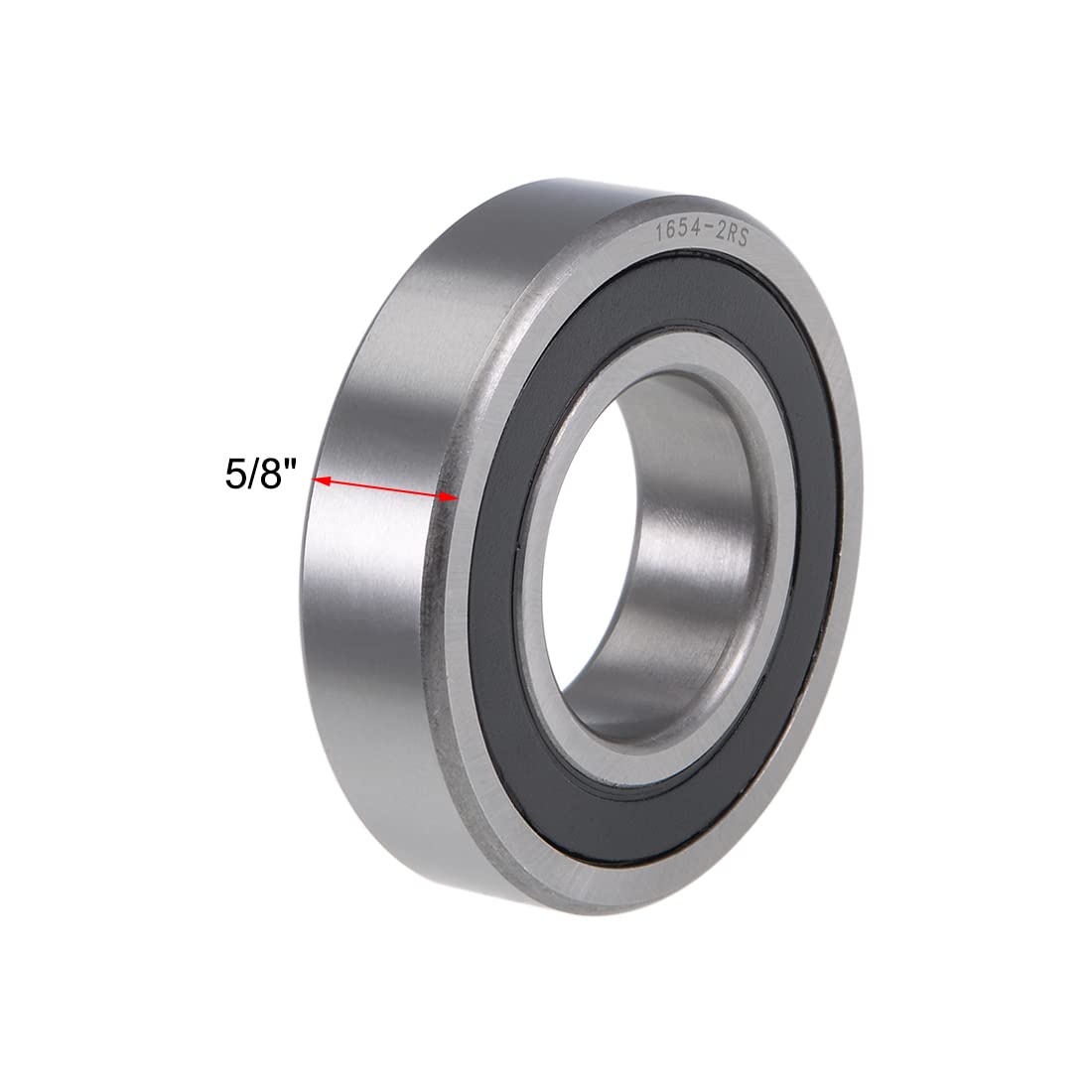

• 1654-2RS (I.D.=1-1/4 inch, O.D.=2-1/2 inch, Thickness=5/8 inch)
• 1654 2RS bearings are sealed on BOTH SIDES to keep lubricant in

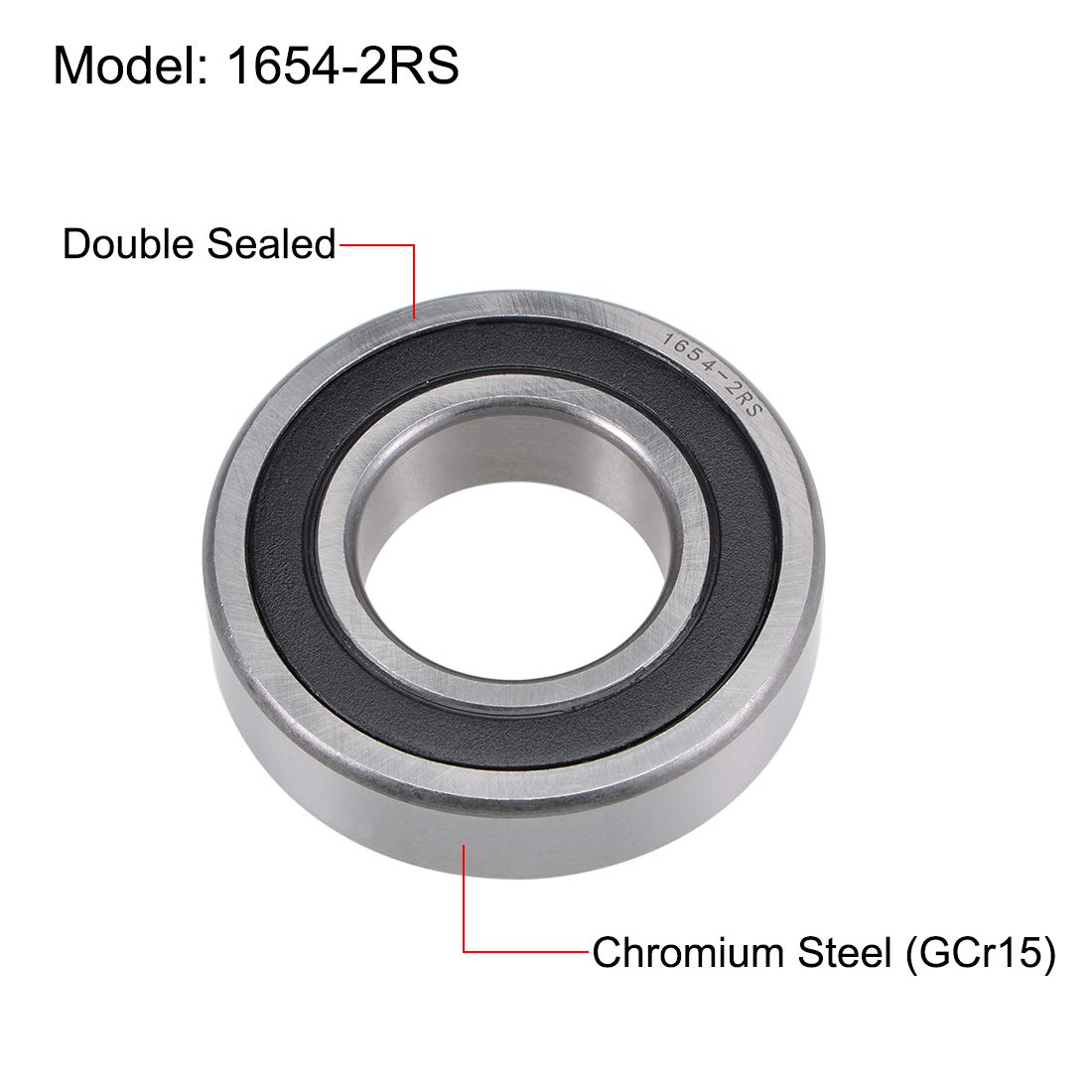

• Made from Chromium Steel (GCr15), durability and resistance to under heavy loads
• ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
• Static load rating of 2300 newtons and dynamic load rating of 3600 newtons

NOTE： Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product. Description: Single-row, pre-lubricated, normal accuracy. Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions. With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on. Selecting Guide: Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris. Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings. Specification: Model: 1654-2RS Seal Type: Double Sealed Inner Race/Outer Race Material: Chromium Steel (GCr15) Cage Material: Stamping Steel Inner Diameter (d): 1-1/4 inch Outer Diameter (D): 2-1/2 inch Thickness (B): 5/8 inch Dynamic Load Rating (Cr): 3600N Static Load Rating (Cor): 2300N Accuracy Class: P0 (ABEC-1) Noise Level: Z2 Number of Pack: 1 Pcs
