sourcing map 11P Screw Terminal Block Connector,3.5mm Male Female 300V 8A

• PCB terminal blocks are widely used in electronic devices such as I/O cards, data acquisition (DAQ) equipment, small electronic meters, PCB general boards, power modules, calculators, general computers, communication electronic equipment automatic control systems, household appliances, alarm devices, etc.

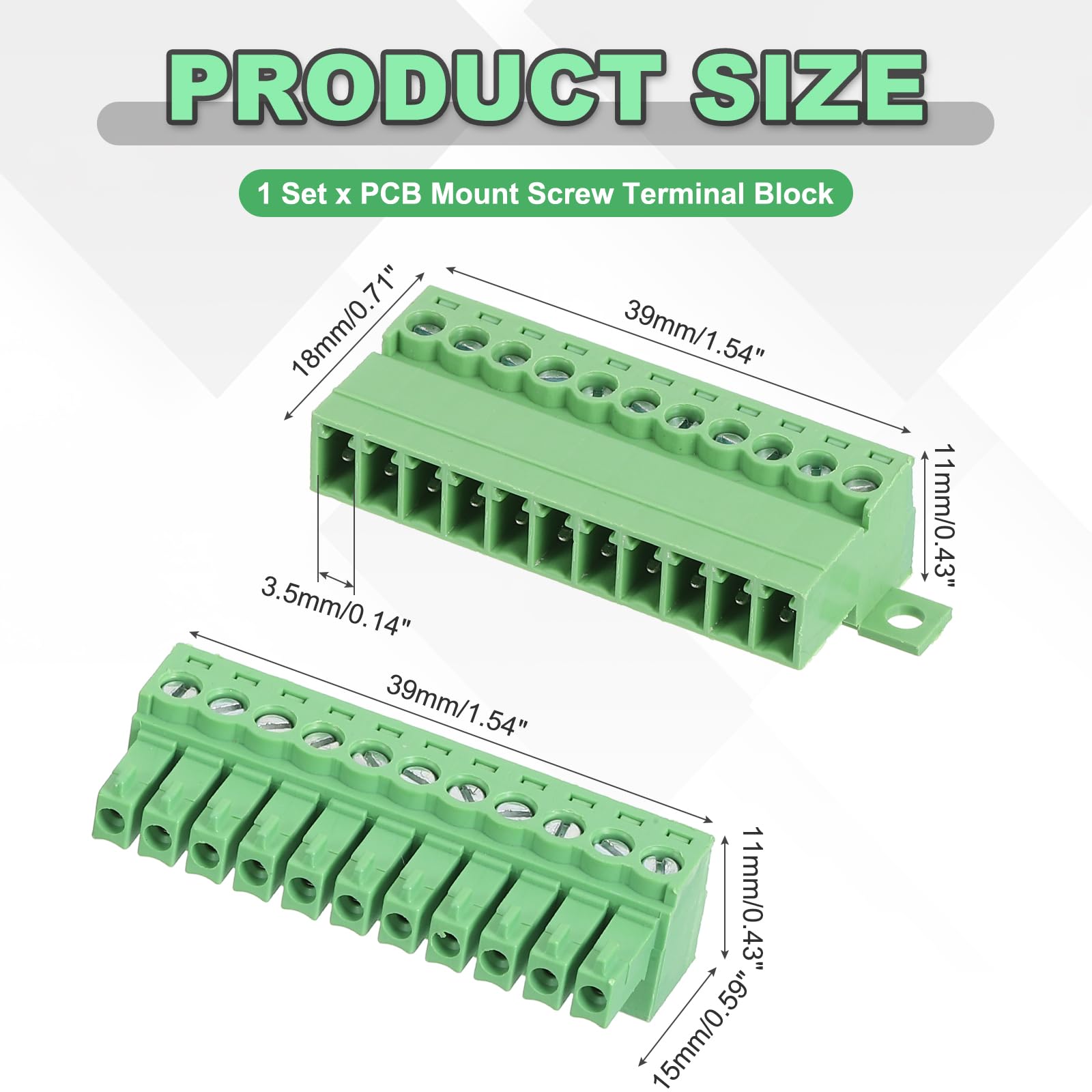

• The JM15EDGKP-3.5mm green PCB terminal block (11 pin straight needle, lock plate fixation) features tinned copper conductors, rated for 300V/8A. Male socket dimensions: 39x11x18mm/1.54x0.43x0.71 inch, female plug: 39x11x15mm/1.54x0.43x0.59 inch, with 3.5mm pin spacing. Each package includes 1 set of screw terminal blocks, good for compact circuit connections.
• The pcb terminal connectors are easy to use, no welding is required, and they can be easily installed or removed, saving installation time, super strong fixation, better shockproof design, ensuring long-term closed connection and safe and reliable. These connector conductors are made of copper tin-plated material, which is heat-resistant, flame-retardant, current balanced, ensuring no leakage, low signal loss, excellent workmanship, stable performance, and greatly improves conductivity
• 1.Insert bare wire into socket’s screw terminal and tighten. 2.Push the plug into the socket until a "click" ensure full engagement. 3.Tug wires gently to ensure no slippage.
• Please pay attention to the product size before purchasing

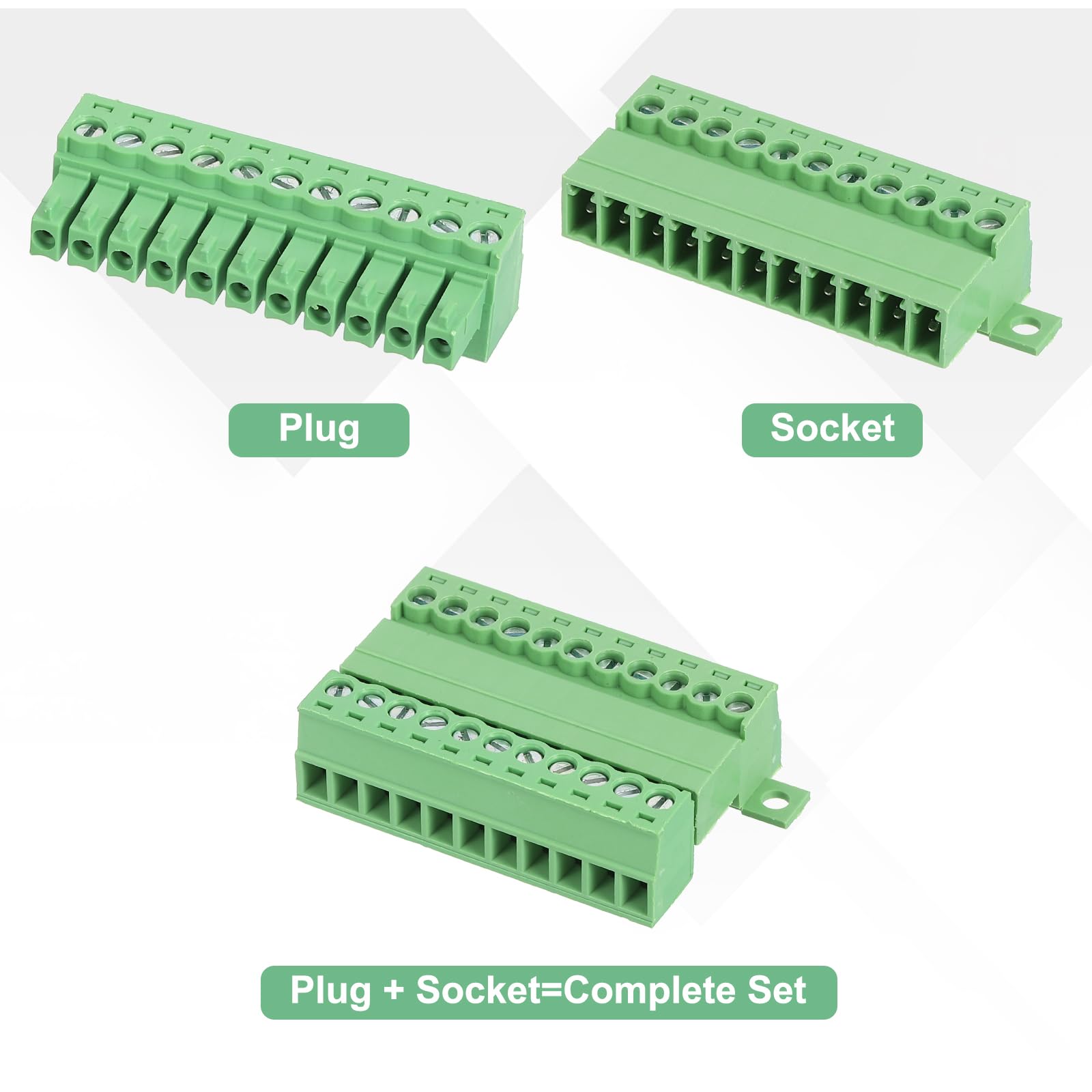

What is this? PCB terminal blocks are widely used in electronic devices such as I/O cards, data acquisition (DAQ) equipment, small electronic meters, PCB general boards, power modules, calculators, general computers, communication electronic equipment automatic control systems, household appliances, alarm devices, etc. What will I get? PCB Terminal Block Connector Number of pin:11 Pin(Straight needle) Fixing method:Lock plate fixation Model:JM15EDGKP-3.5mm Conductor Material:Copper tinning Terminal Type:Female plug + Male socket Color:Green Voltage:300V Rated current:8A Pin spacing:3.5mm/0.14 inch Size:Male:39x11x18mm/1.54x0.43x0.71 inch(L*W*H) Female:39x11x15mm/1.54x0.43x0.59 inch(L*W*H) In the package of:1 Set x PCB Mount Screw Terminal Block Are there any advantages of the product? The pcb terminal connectors are easy to use, no welding is required, and they can be easily installed or removed, saving installation time, super strong fixation, better shockproof design, ensuring long-term closed connection and safe and reliable. These connector conductors are made of copper tin-plated material, which is heat-resistant, flame-retardant, current balanced, ensuring no leakage, low signal loss, excellent workmanship, stable performance, and greatly improves conductivity How to use it? 1.Insert bare wire into socket's screw terminal and tighten. 2.Push the plug into the socket until a "click" ensure full engagement. 3.Tug wires gently to ensure no slippage. What should I notice? Please pay attention to the product size before purchasing
