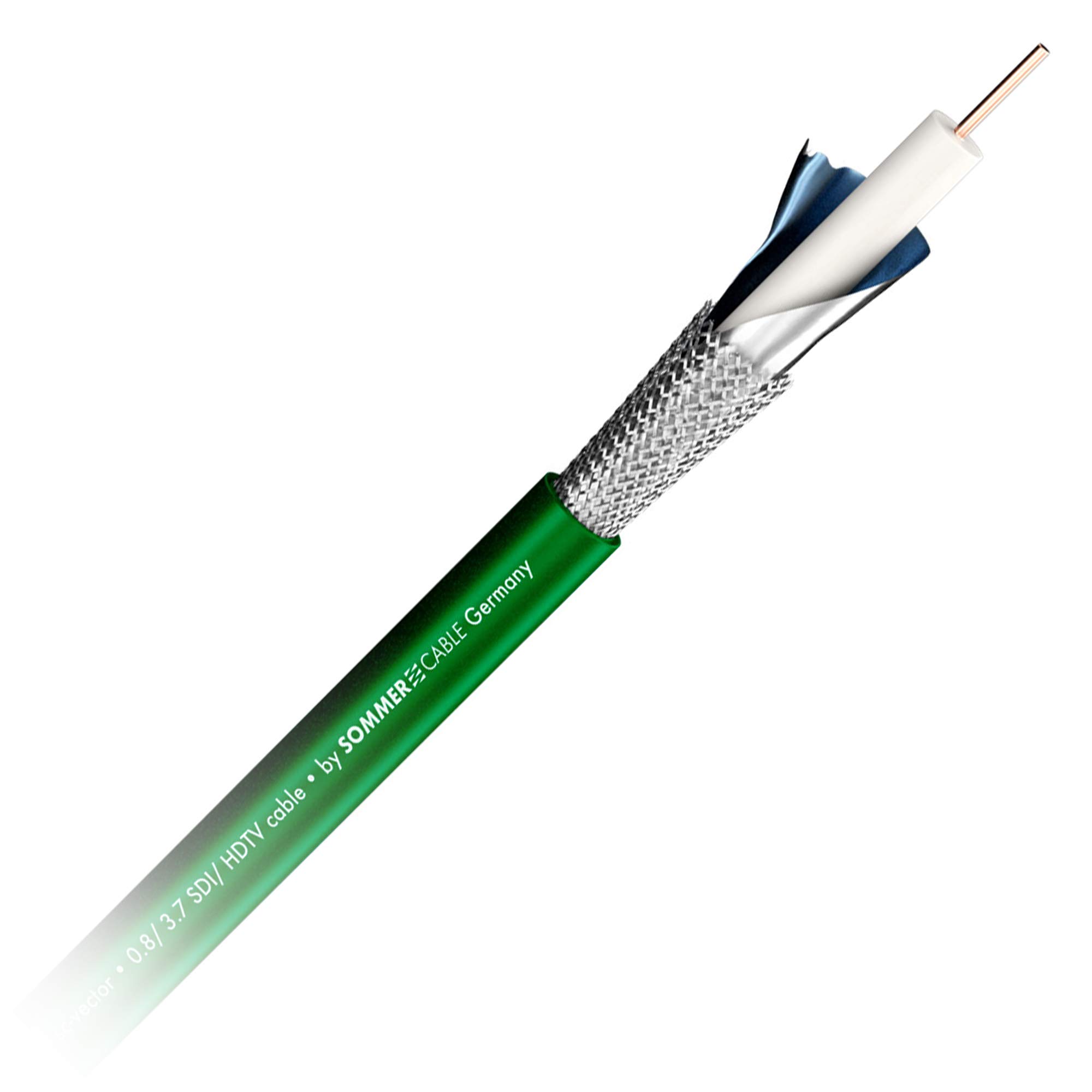

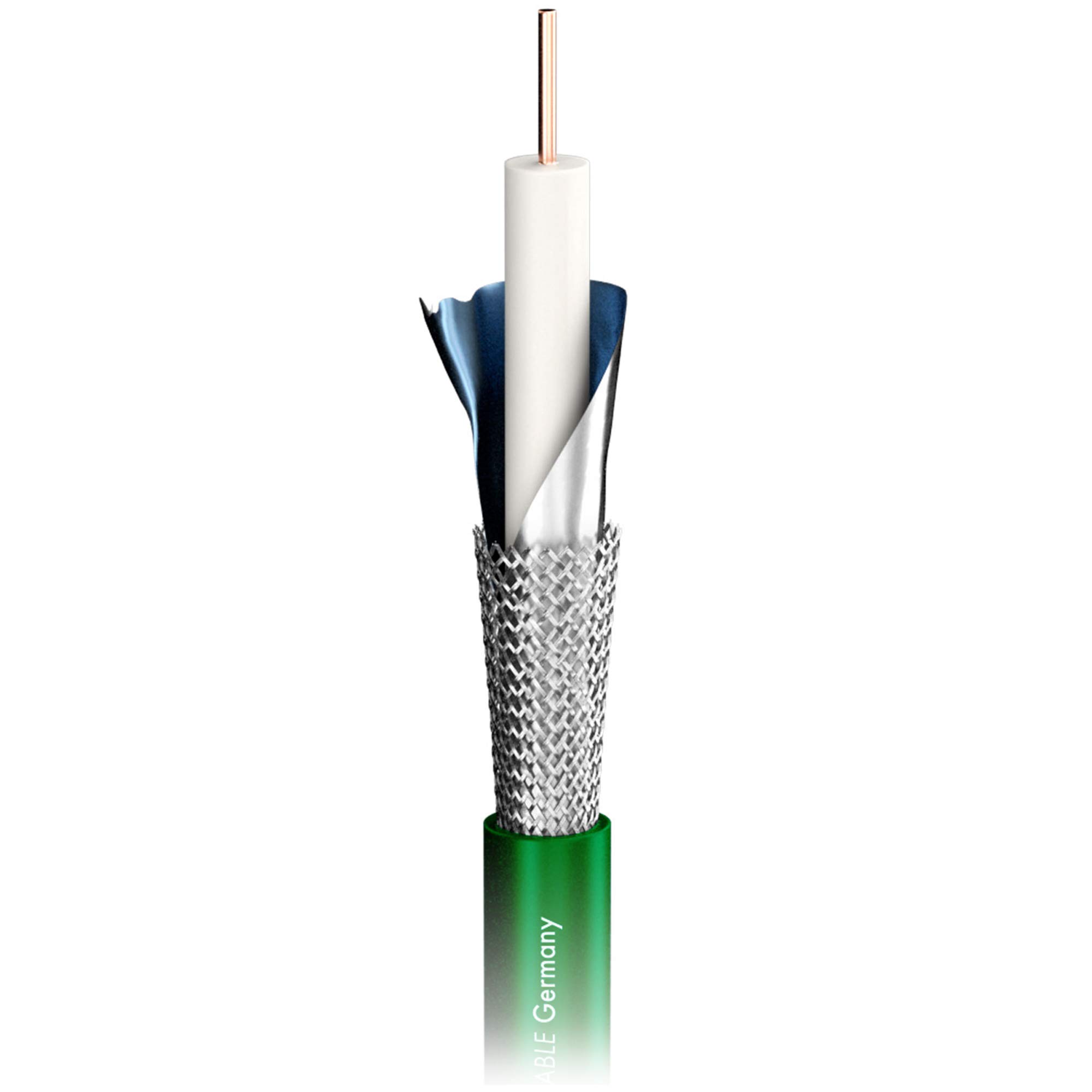

SommerCable Video 6G-SDI / 4K SC-Vector 0.8/3.7 Equipped BNC/BNC NBNC75BLP9X NEUTRIK, Green (0.75m)

• Sensational attenuation values, also over long distances
• Robust and durable outer shell
• Digital long-distance SDI/HD-SDI/3G-SDI/6G-SDI retransmission
• Video retransmission on broadcasting vehicles

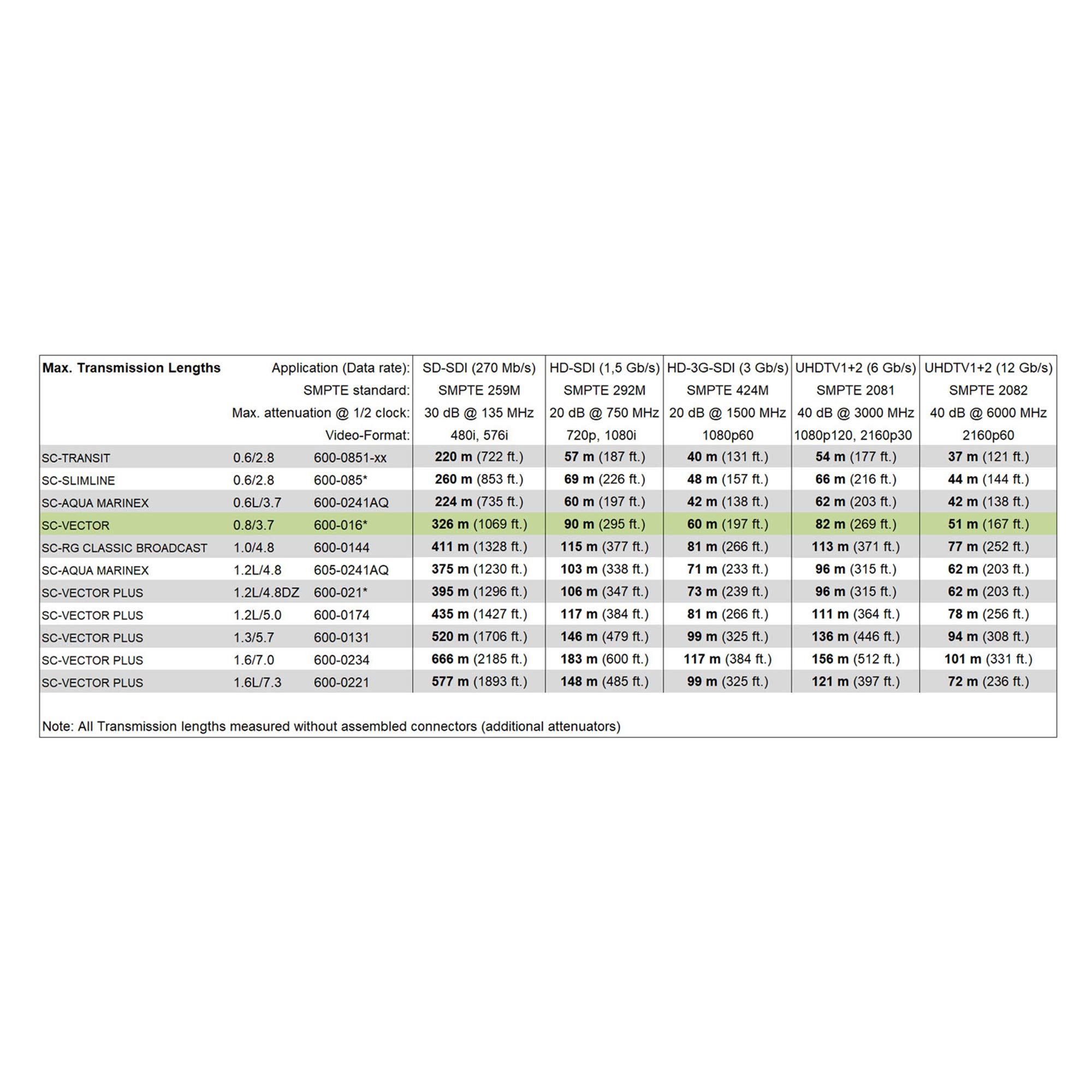

It is to the end of the world... that the technicians of broadcasting organizations try to transmit video data, and only the use of a cable that allows a high speed transfer can help. The VECTOR is a key asset: its transfer capacity of 1.5 Gbps guarantees high stability in the transmission of video and H.F signals. as well as a low regularity value (Return Loss). The VECTOR, a video cable of exceptional quality, is of course highly suitable for use in recording studios or on broadcast vehicles. Its double shielding and excellent attenuation values give it obvious advantages: among other things, a retransmission distance of 30% greater than that allowed by a standard 0.6/3.7 video cable. The VECTOR cable is frequently used in broadcast vehicles, in digital sectors + PAY-TV, sports events, live concerts and other challenging stage installations. Constitution: xx02YS(ST)CH0.8/3.7 Inner conductor: solid copper conductor Ø 0.8 mm Envelope, diameter: 6 mm PVC. Conductor insulation: Gas injected PE 3.7mm Protection: AL/PT foil + 85% tinned copper braid Metric cond./display capacity:52.9 pF Odometer resistance, conductor: <37 Ohm Wavelength (for 200 MHz): 75 Ohm Reduction factor: 0.82 Weakening per 100 m (20°C): 10 MHz: 2.9 dB Attenuation per 100 m (20°C): 100 MHz: 8.0 dB Weakening per 100 m (20 °C)1000 MHz: 26.4 dB
