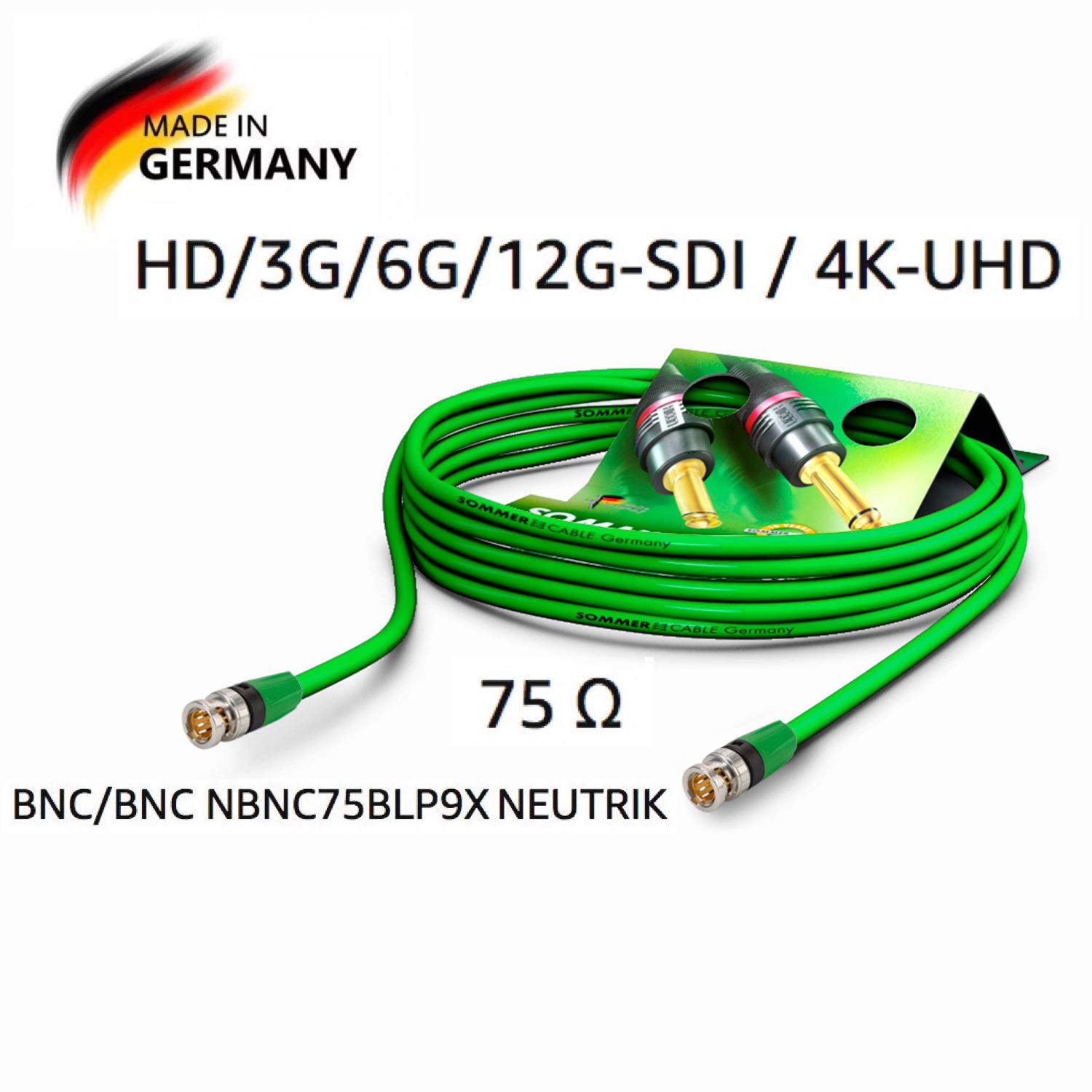

Sommer Cable Video Patch Cable 6G-SDI / 4K SC-Vector 0.8 / 3.7, BNC/BNC NBNC75BLP9X Neutrik Green

• Low attenuation values.
• Sturdy and durable outer jacket.
• Digital SDI / HD-SDI / 3G-SDI / 6G-SDI long-distance transmission.
• For professional HD-SDI use.
• Video transmission using outside broadcast van technology.

As quick as lightning - that’s the data transfer of the SC vector (RCB), at a rate of 1.5 Gb/s which also guarantees a low return loss. Of course, the SC vector (RCB) is also suitable as a high-quality G-SDI video cable for the studio or outside broadcast van. With its double shielding and excellent attenuation values, it offers many advantages over simple video cables. Compared to a 0.6 / 3.7 video cable, they allow up to 30 % longer transmission paths.
The SC vector (RCB) is used in outside broadcast vans, for digital TV, at sports events, live shows or other major events. Construction: 02YS (ST) CH 0.8 / 3.7 HD-SDI. Jacket, diameter: PVC 1 x coax: 6 mm. Inner conductor: Cu solid wire, diameter 0.80 mm (AWG20). Conductor insulation: Gas-injected PE 3.7 mm. Shielding: AL / PT film + Cu braid, tin-plated, 85 % coverage, opt.: 100 %. Maximum transmission distance: SDI: 220 m; 3G-SDI: HD 1080p, 60: 160 m. 6G-SDI: Ultra-HD 2160p, 30: 70 m. Weight at 1 m: PVC 1 x coax: 40 g. Wave resistance (at 200 MHz): 75 ‰. Wire / shield capacity at 1 m: 52.9 pF. Conductor resistance at 1 km: <37 ‰. Shielding rating: >95 dB. Shield resistance at 1 km: 20 ‰. Maximum delay difference (skew): 4 ns @ 100 MHz. Shortening factor: 0.82. Attenuation at 100 m (20 °C): 200 MHz: 11.2 dB / 470 MHz: 17.0 dB / 862 MHz: 24.0 dB / 1,000 MHz: 26.4 dB / 1,750 MHz: 35.9 dB / 3,000 MHz: 46.4 dB.
