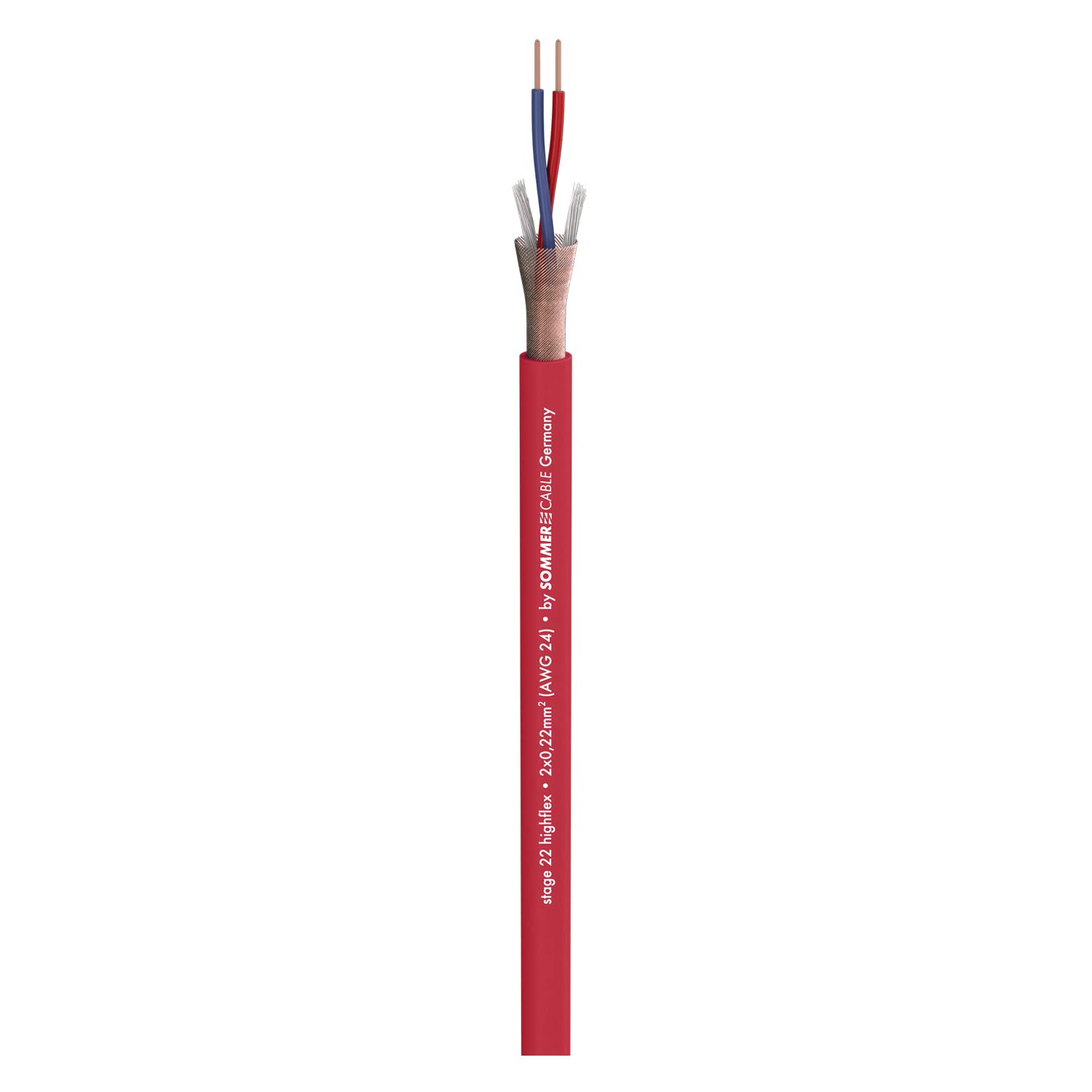

Sommer Cable Stage 22 Highflex Microphone Cable Red 10m

• Stage use, home recording.
• High transmission quality thanks to the use of fine-stranded strands.
• Very robust thanks to thick soft PVC coating.
• Good shielding due to dense copper spiral shielding.
• High flexibility, therefore easily drumable.

A thick skin... Protects the interior from mechanical stress such as pulling, tugging and knotting. That's why we have given the STAGE 22 a thick outer coat of 6.40 mm. The electrical data and the technical structure can also be seen: The STAGE 22 offers a low capacity and high bending cycles thanks to the fine wire and tightly stranded single strands. The shield made of bare copper wires has an optical coverage of 99 % (instead of the usual 85%). The STAGE 22 is therefore the ideal cable for the stage, the home order, the distributor and the ELA technician. The STAGE 22 is a very affordable cable that you don't have to compromise. Technical details: Construction: (2LI2Y0.22mm2)DY Sheath, diameter: PVC, 6.4 mm / off-road 6.5 mm Inner conductor: 2 x 0.22 mm2 (AWG24) Cu-wire strands for Ader: 28 mm x 0.10 mm. Conductor insulation: PE 1.40 mm. Shielding: Copper spiral parasol with 0.10 mm single strands. Coverage opt.: 99 %. Temperature range: -20 / +70 °C. Fire load per m: 0.22 kWh. Weight at 1 m: 44 g. Electrical data Wire capacity at 1m. 68 pF. Wire / shield capacity at 1m: 130 pF. Conductor resistance at 1 km: <87 Ohm. Screen Resistance at 1 km: <30 Ohm. Insulation resistance at 1 km: > 1 G Ohm. Wave impedance: ca. 100 Ohms.
