Sommer Cable Stage 22 Highflex XLR Male 3-Pin Neutrik NC3MXX / Jack 6.3 mm Stereo Neutrik NP3X, Black Cable, Made in Germany by Sommer Cable

• High transmission quality thanks to the use of fine wire strands
• Very robust thanks to thick soft PVC coating
• Good shielding thanks to dense copper canopy
• High flexibility, making it easy to drum
• Stage use

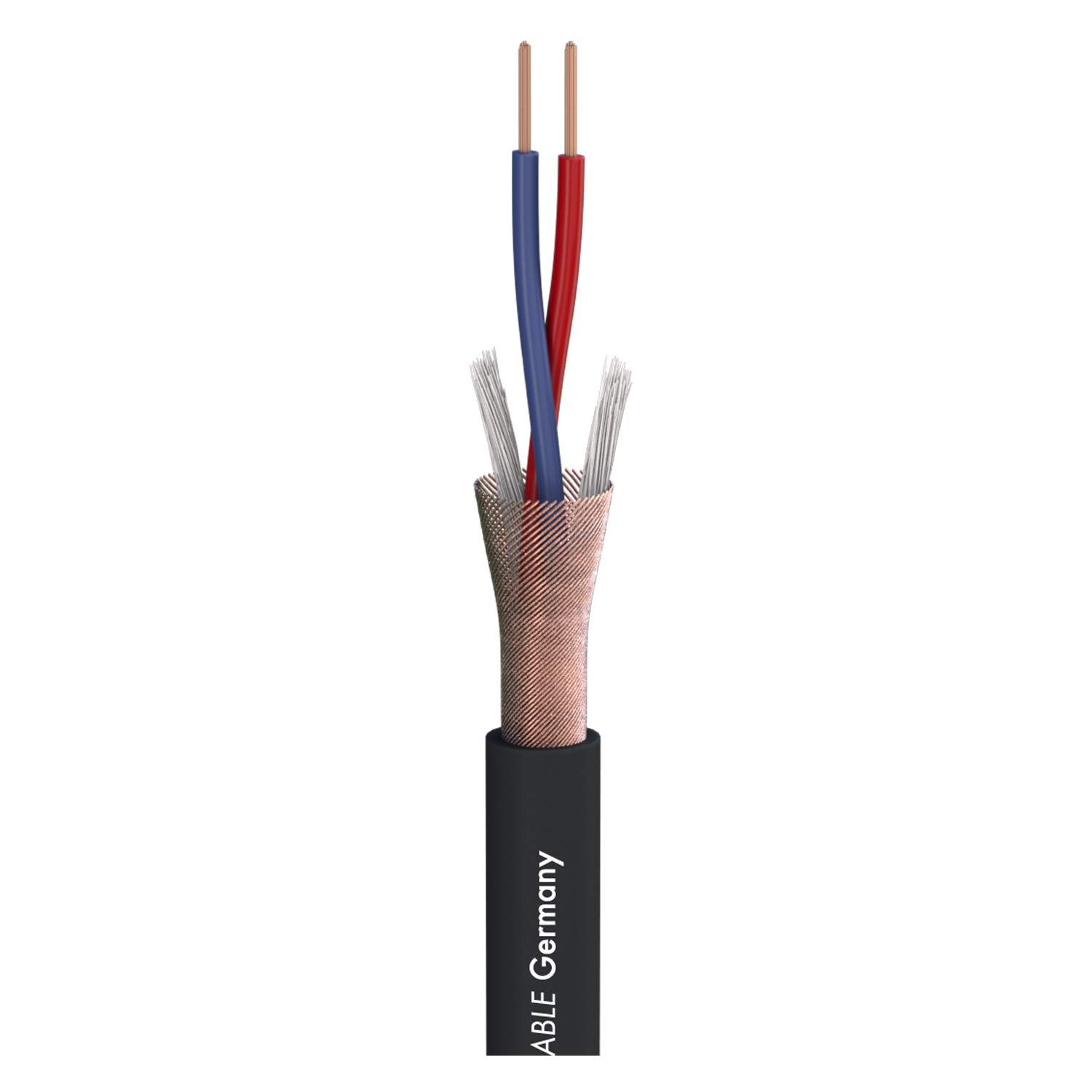

A thick skin... protects the interior from mechanical stress such as pulling, tugging and knotting. That's why we have given the Stage 22 a thick outer jacket of 6.4 mm. But the electrical data and the technical structure can also be seen. The STAGE 22 offers a low capacity and high bending cycles, this is ensured by the fine-wire and tightly stranded single strands. The shielding made of bare copper wires has an optical coverage of 99% (instead of the usual 85%). The Stage 22 is a very affordable cable that does not have to compromise. Technical data: Construction: (2LI2Y0,22mm2) DY Sheath diameter: 6.4 mm. Inner conductor: 2 x 0.22 mmÇ (AWG24) Copper wire per core: 28 x 0.10 mm. Conductor insulation: PE 1.40 mm. Shielding: copper reversible shield with 0.10 mm single strands. Coverage, opt. : 99% Temperature range: -20 °C to +70 °C. Electrical data: Capacity/core at 1m: 68pF Capacity/shield at 1m: 130pF Conductor resistance at 1 km: <87 ohms Shielding resistance at 1 km: <30 ohms. Insulation resistance at 1 km: > 1 GOhm. Wave impedance: approx. 100 Ohms.
