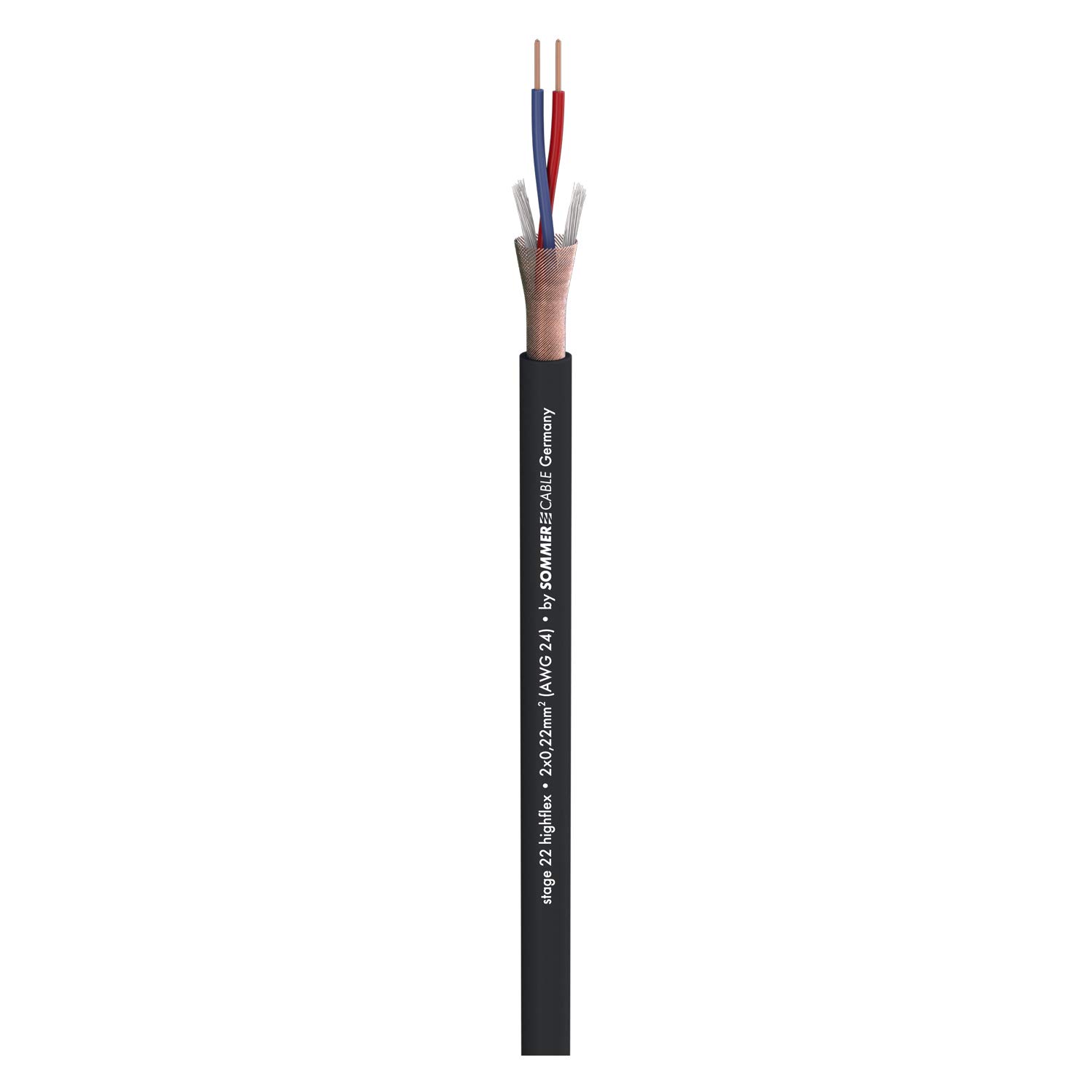

Sommer Cable SC Stage 22 Highflex Microphone Cable 10 m Black

• Stage use, home recording
• High transmission quality thanks to the use of fine-wire strands
• Very robust thanks to thick soft PVC coating
• Good shielding thanks to dense Cu reversible shield
• High flexibility, making it easy to drum

A thick skin... Protects the interior from mechanical stress such as pulling, tugging and knotting. That's why we have given the STAGE 22 a thick outer sheath of 6.40 mm. But the electrical data and the technical structure are also impressive: The STAGE 22 offers a low capacity and high bending cycles, which is ensured by the fine-wire and tightly stranded individual strands. The shielding made of bare copper wires has an optical coverage of 99% (instead of the usual 85%). The STAGE 22 is therefore the ideal cable for the stage, the home recorder, the rental company and the ELA technician. The STAGE 22 is a very affordable cable, but you don't have to compromise. Technical data: Construction: (2LI2Y0.22mm2)DY Sheath, diameter: PVC, 6.4 mm / off-road 6.5 mm. Inner conductor: 2 x 0.22 mm² (AWG24). Copper strand per core: 28 x 0.10 mm. Conductor insulation: PE 1.40 mm. Shielding: Cu reversible shield with 0.10 mm individual strands. Coverage, opt. : 99% Temperature range: -20 °C to +70 °C. Fire load per m: 0.22 kWh. Weight at 1m: 44g Electrical data: Capacity of core/core at 1 m: 68 pF Capacity core/shield at 1 m: 130 pF Conductor resistance at 1 km: <87 Ω. Screen resistance at 1 km: <30 Ω. Insulation resistance at 1 km: > 1 GΩ. Wave resistance: approx. 100Ω
