Sommer Cable Video 75 Ω - HD/3G-SDI (HDTV) SC-Vector 0.8/3.7 equipped BNC/BNC NBNC75BLP9 NEUTRIK, Black (3 m) - Made in Germany by

• Excellent weakening values, also over long distances
• Robust and durable outer shell
• Impedance: 75Ω - SDI/HD-SDI/3G-SDI digital transmission
• The VECTOR is used in broadcast buses, digital television, sports events, live shows and other large-scale events.
• Fixed installations in broadcast, television and stage - Wiring of image or surveillance monitors

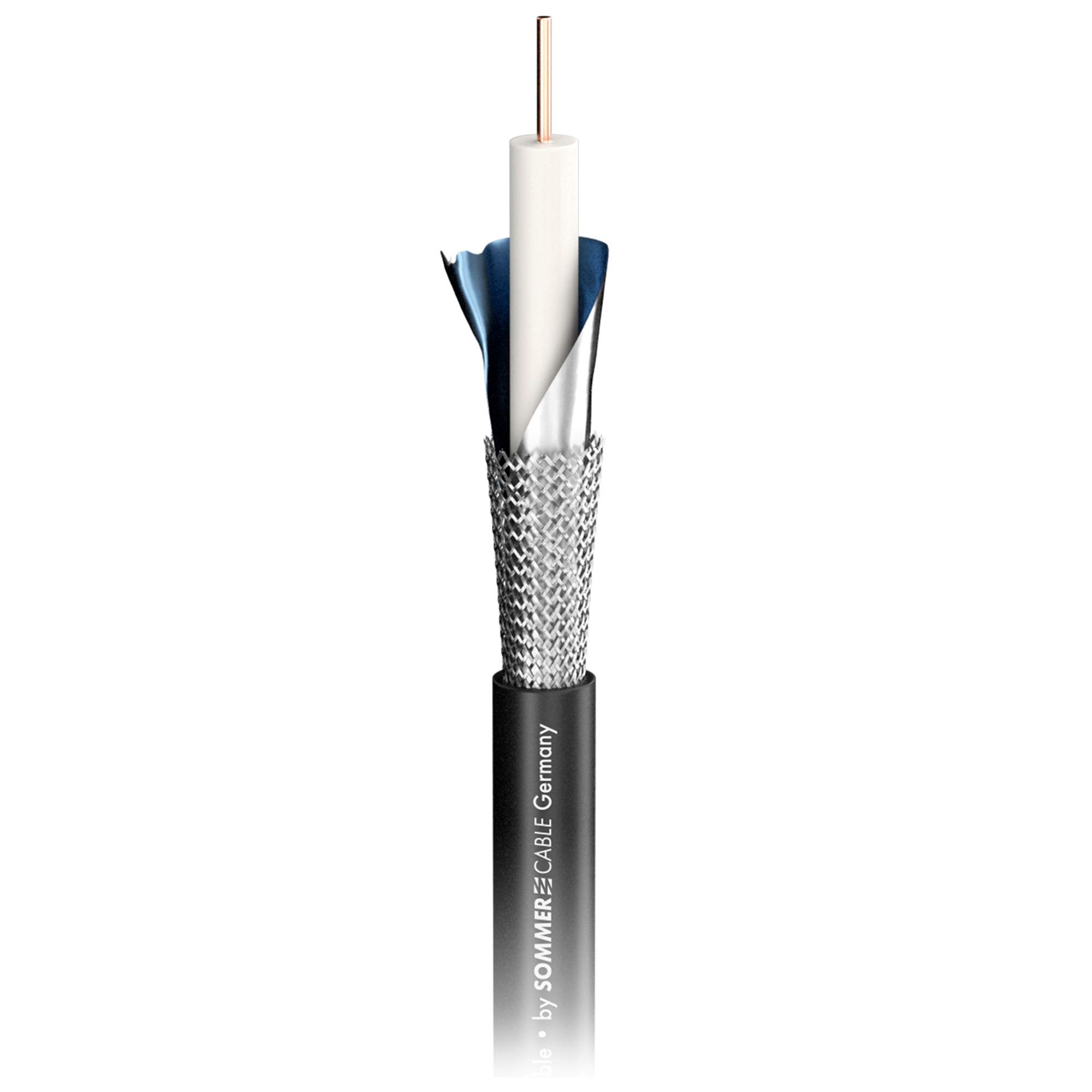

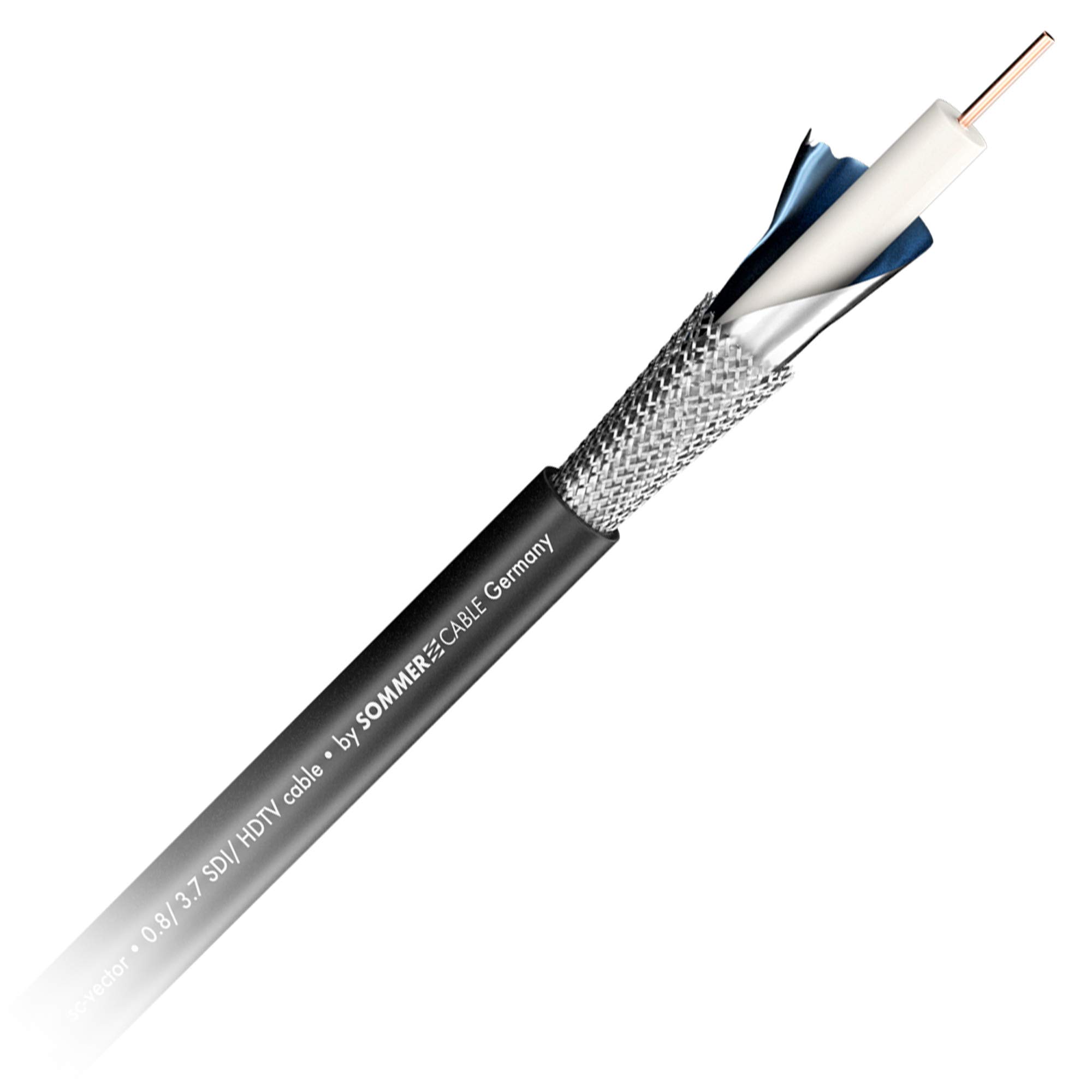

Description As swift as an arrow... is the data transmission of the SC-VECTOR (RGB) with its 1.5 Gbit/s rate which also guarantees a low return loss. Of course, the SC-VECTOR can also serve as a high-quality G-SDI video line for studio or OB van applications. With its dual shielding and outstanding attenuation values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 / AWG23 video cable it allows up to 30 % longer transmission distances. Construction: ..x02YS(ST)CH0.8/3.7 HD-SDI Jacket, diameter: PVC: 1 x coax: 0.236“ Inner conductors: Copper-solid wire . AWG20 (0.031“) Conductor insulation: Gas injected PE 0.146“ Shielding: AL/PT-foil + Copper braiding tin-plated 85% Shielding factor: 100% Surge impedance (at 200 MHz): 75 Ω Capac. cond./shield. per ft.: 16.1 pF Cond. resistance per 1000 ft.: <11.3 Ω Screening attenuation: > 95 dB Shield. resistance per 1000 ft.: 6.1 Ω Max. delay (skew): 0.012 ns @ 100 MHz Velocity factor: 0.82 Attenuation per 100 ft. (20°C / 68°F): 200 MHz: 3.4 dB 470 MHz: 5.2 dB 862 MHz: 7.3 dB 1000 MHz: 8.0 dB 1485 MHz: 10.0 dB 1750 MHz: 10.9 dB 2150 MHz: 12.2 dB 3000 MHz: 14.1 dB S.R.L Frequency (Return loss): 30+300 MHz: >30 dB 300+600 MHz: >25 dB 600+900 MHz: >20 dB
