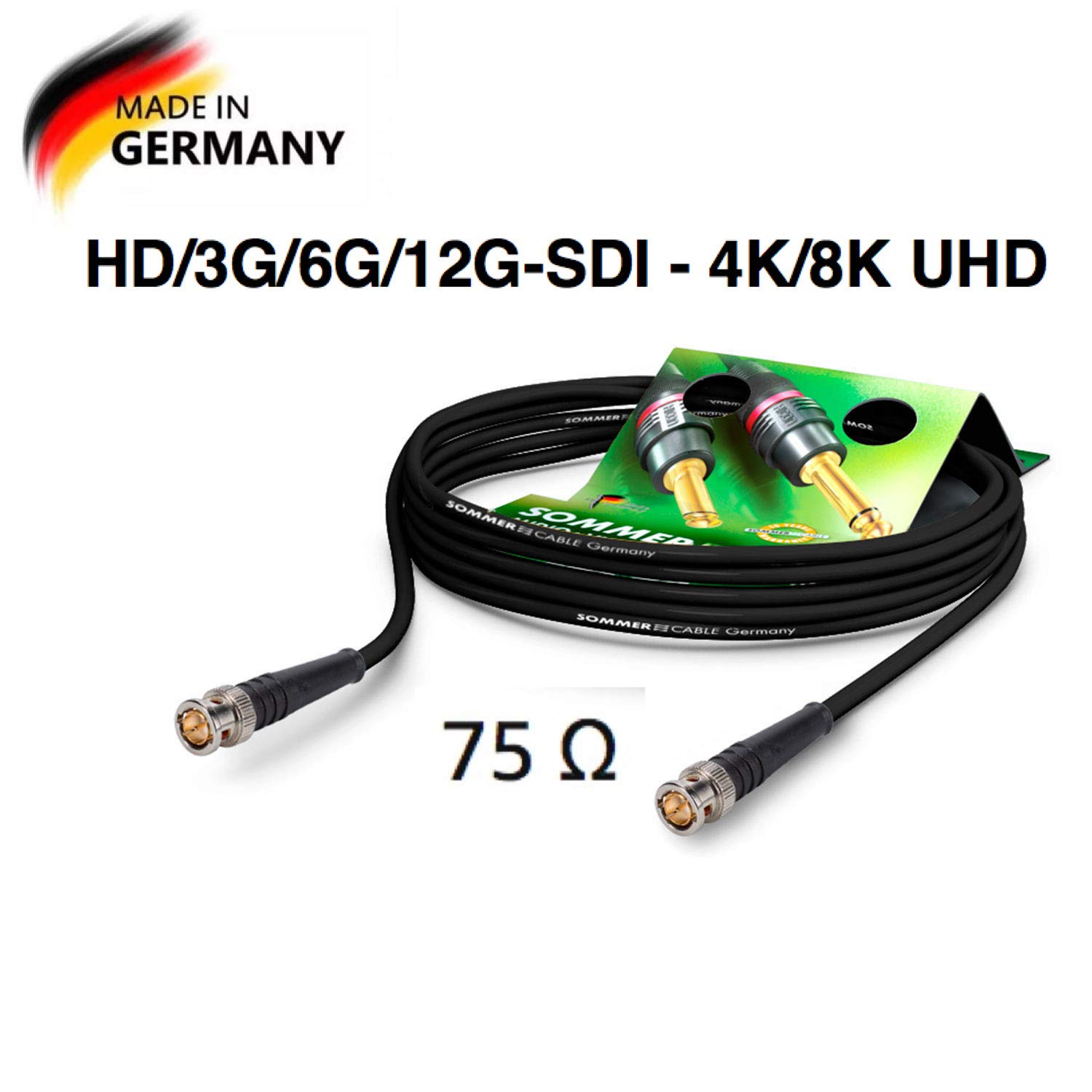

Sommer Cable - BNC Coaxial Video Cable 75 Ω - HD/3G/6G/12G-SDI / 4K-UHD SC-Vector 0.8/3.7 - BNC/BNC Hicon - Black 3,2ft (1m) - Made in Germany

• Dependable and very high-quality image transmission - Very good attenuation and transmission values even with excessive lengths
• Robust and durable outer sleeve
• Precise wave impedance of 75 Ω - Digital SDI / HD-SDI / 3G-SDI / 6G-SDI / 12G-SDI long distance transmission
• The SC-VECTOR Cable is used in OB vans, digital TV, at sporting events, live shows or other large events.
• Video transmission in the professional broadcasting/studio sector. Fixed installation (theaters, sporting arenas, media and congress centers…) Cabling of viewing and surveillance monitors

As swift as an arrow... is the data transmission of the SC-VECTOR (RGB) with its 1.5 Gbit/s rate which also guarantees a low return loss. Of course, the SC-VECTOR can also serve as a high-quality G-SDI video line for studio or OB van applications. With its dual shielding and outstanding attenuation values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 / AWG23 video cable it allows up to 30 % longer transmission distances. Construction: ..x02YS(ST)CH0.8/3.7 HD-SDI Jacket, diameter: PVC: 1 x coax: 0.236“ Inner conductors: Copper-solid wire . AWG20 (0.031“) Conductor insulation: Gas injected PE 0.146“ Shielding: AL/PT-foil + Copper braiding tin-plated 85% Shielding factor: 100% Surge impedance (at 200 MHz): 75 Ω Capac. cond./shield. per ft.: 16.1 pF Cond. resistance per 1000 ft.: <11.3 Ω Screening attenuation: > 95 dB Shield. resistance per 1000 ft.: 6.1 Ω Max. delay (skew): 0.012 ns @ 100 MHz Velocity factor: 0.82 Attenuation per 100 ft. (20°C / 68°F): 200 MHz: 3.4 dB 470 MHz: 5.2 dB 862 MHz: 7.3 dB 1000 MHz: 8.0 dB 1485 MHz: 10.0 dB 1750 MHz: 10.9 dB 2150 MHz: 12.2 dB 3000 MHz: 14.1 dB S.R.L Frequency (Return loss): 30+300 MHz: >30 dB 300+600 MHz: >25 dB 600+900 MHz: >20 dB
