Sommer Cable AES/EBU - DMX512 110 Ohms SC-Binary 434 DMX512 XLR Male 5 Point Hicon HI-X5CM-M/XLR Female 5 Point Hicon HI-X5CF-M, Black (5m)

• Suitable for transf. digital over long distances, given DMX and AES/EBU compliance
• Connections for digital controls and miscellaneous devices
• Excellent protection against electrical disturbance (copper braid + AL/PT sheet)
• Very robust thanks to the high-strength sheath
• Interconnection of scanners and equipment. lighting with back-control function

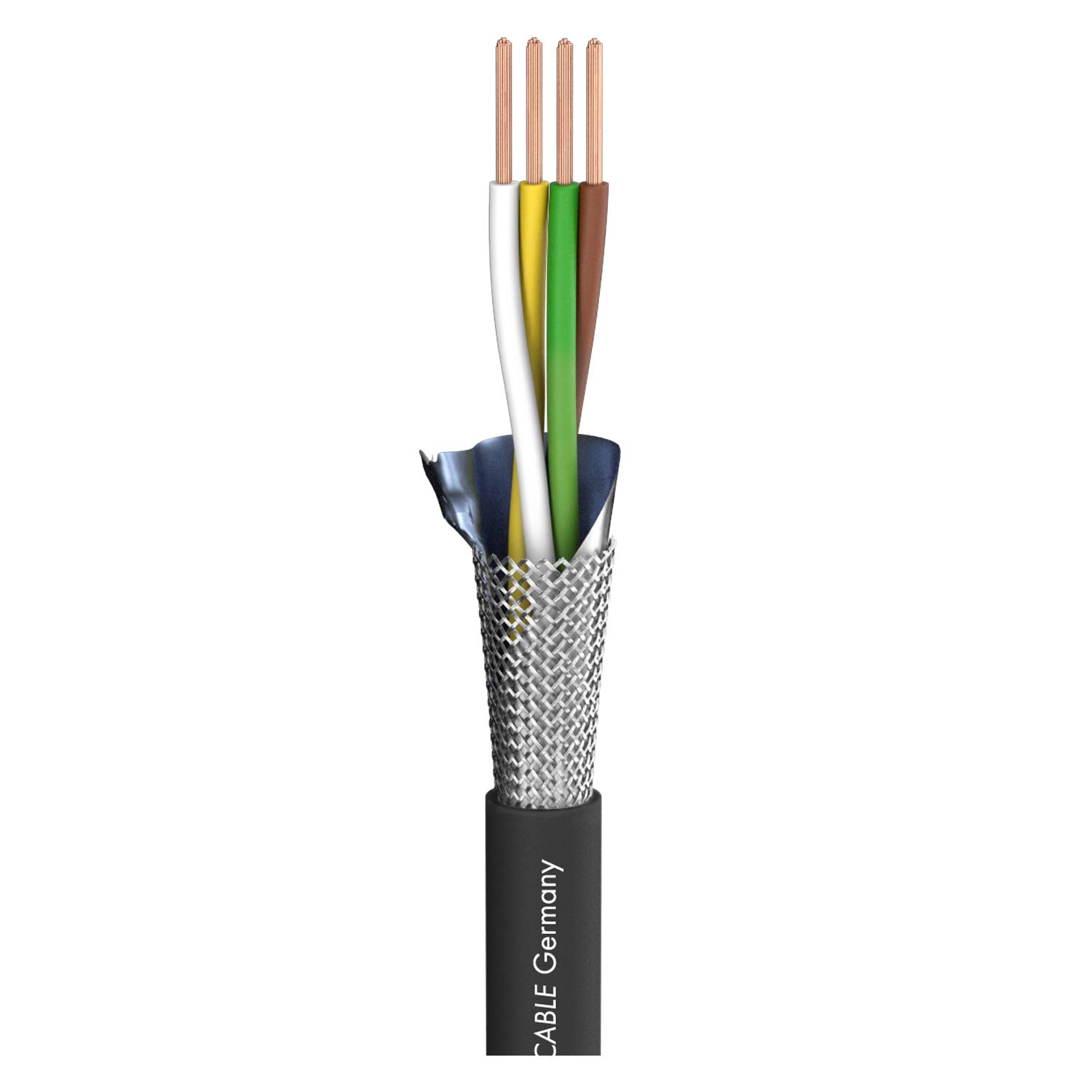

Once forward, once back… and once back: If the signals have to travel in both directions, you should use a digital cable with a back-control line. This cable also has a characteristic impedance of 110 Ohms, two of the four conductors are designed for the back-control function. With its high resistance sheath it can be used for fixed and outdoor installations. Due to its double shielding (AL/PT foil + copper braid) and colour-coded this cable complies with current general electrotechnical regulations VDE 0812/ VDE 0207. Transmission rate 256 Kbs according to EIA 485 standard. Technical details: Constitution: [2LI2YS0.34mm2)(ST)]CY Envelope, diameter: 7 mm. Cover material: Standard: PVC Inner conductor: 4 x 0.34mm2 (AWG22) Copper strands per core: 7 x 0.25 mm Conductor insulation: 1.7 mm PE Protection: interwoven braid, tinned + AL/PT sheet Optical coating: 100% ELECTRIC FEATURES Metric capacity cond./cond. : 58 pF Metric capacity cond./screen: 100 pF Mileage resistance, cond. : 53 Ohms Odometer resistance, shielding 15 Ohms Durable Odometer, insulation: > 5 GOhms Characteristic impedance: 110 Ohms
