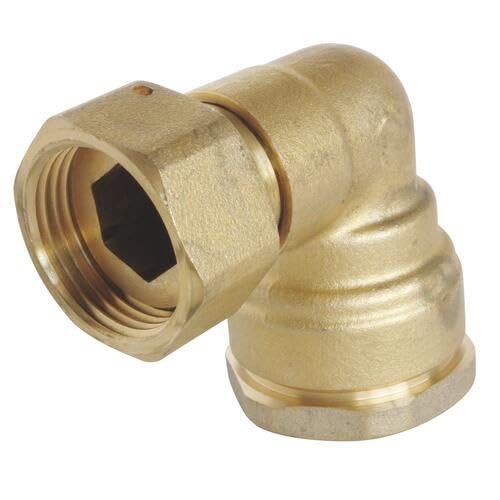

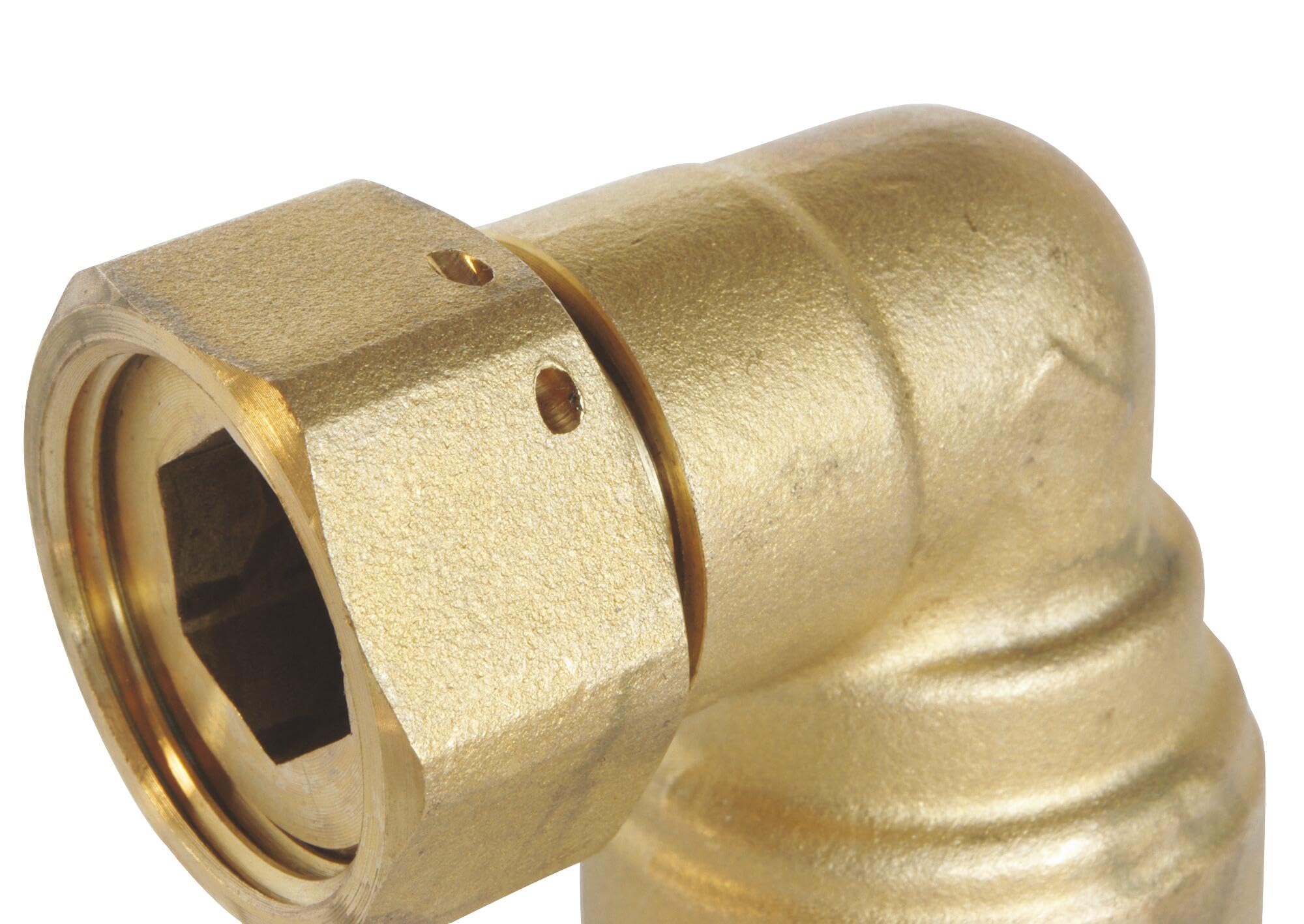

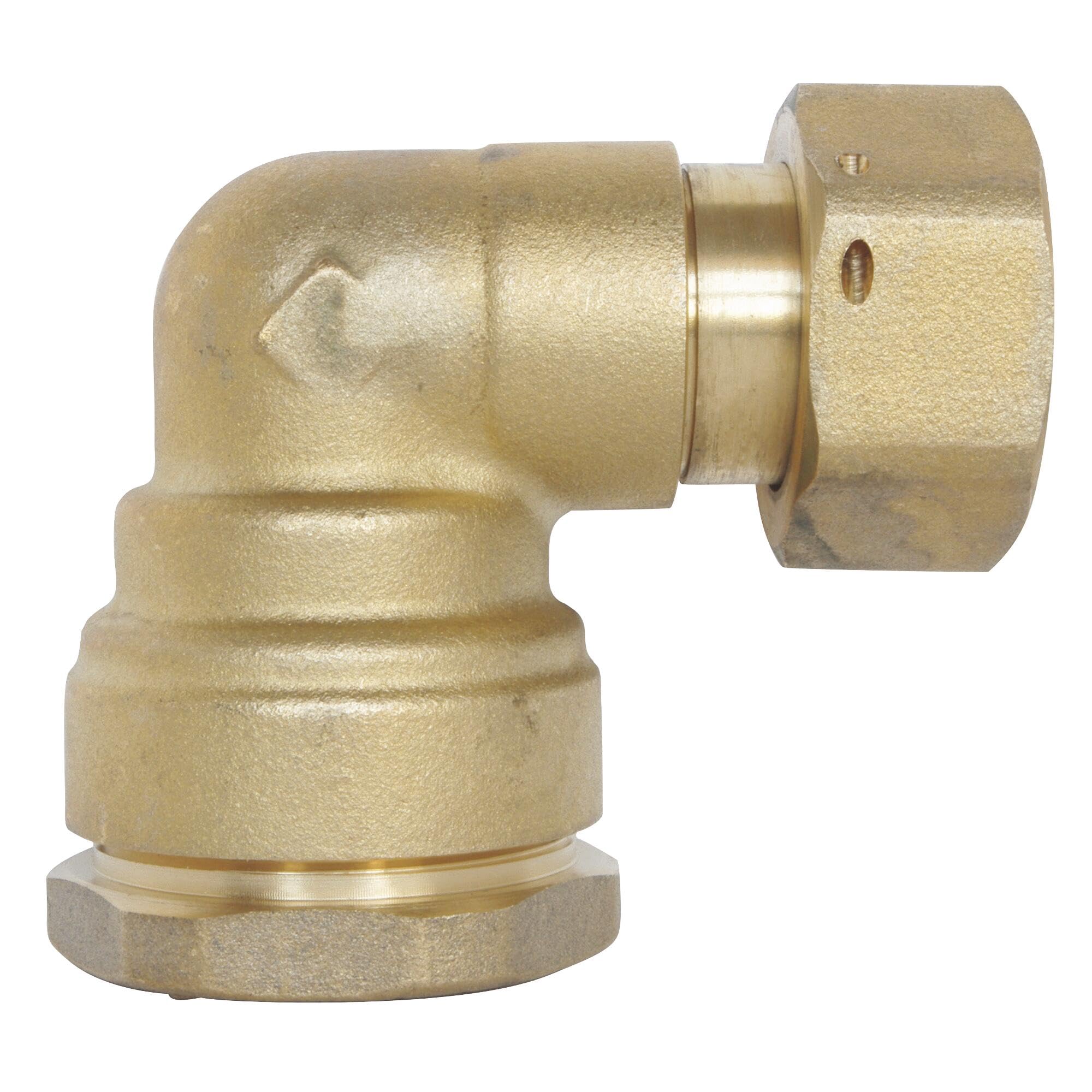

SOMATHERM FOR YOU 857-25-20S Brass Elbow Fitting Prisoner nut PE25-ec.20/27, Grey

• Brass elbow with prisoner nut 20/27 (3/4") for polyethylene tube with outer diameter 25 - Standardized - Operating pressure: 20 bar - Operating temperature: -10° to +80°C - ACS - Conical notched ring guarantees the direction of assembly.
• Allows the installation of a PE tube circuit without the risk of error in the direction of fitting the fittings
• Compliant for use on drinking water networks
• Always cut the PE tube with a suitable tube cutter making sure that the tube section is clean and deburred.Mark the tube to view the length of the pipe fitting in the fitting. Thoroughly insert the tube into the fitting up to the stop. Tighten the nut on the fitting body using two wrenches without exceeding a tightening torque of 20 Nm.

Angled fitting with PE25 nut cap, 20/27 nut Brass body and nut cw617n, (European standard). O-ring in EPDM. Cannot be mistaken, meaning with the tapered ring. Anti-tear thanks to the crimping of the ring which ensures a good grip of the tube.
