SOLIDfy 4 x Ball Pan B10 M6 DIN 71805 + Safety Bracket Form B Galvanised 10 mm

• Made in Germany – high-quality ball pan (right-hand thread) DIN71805 form B with snap ring (stainless steel) and groove for safety bracket. Thanks to the galvanic galvanising, a long service life is guaranteed - no rusting!

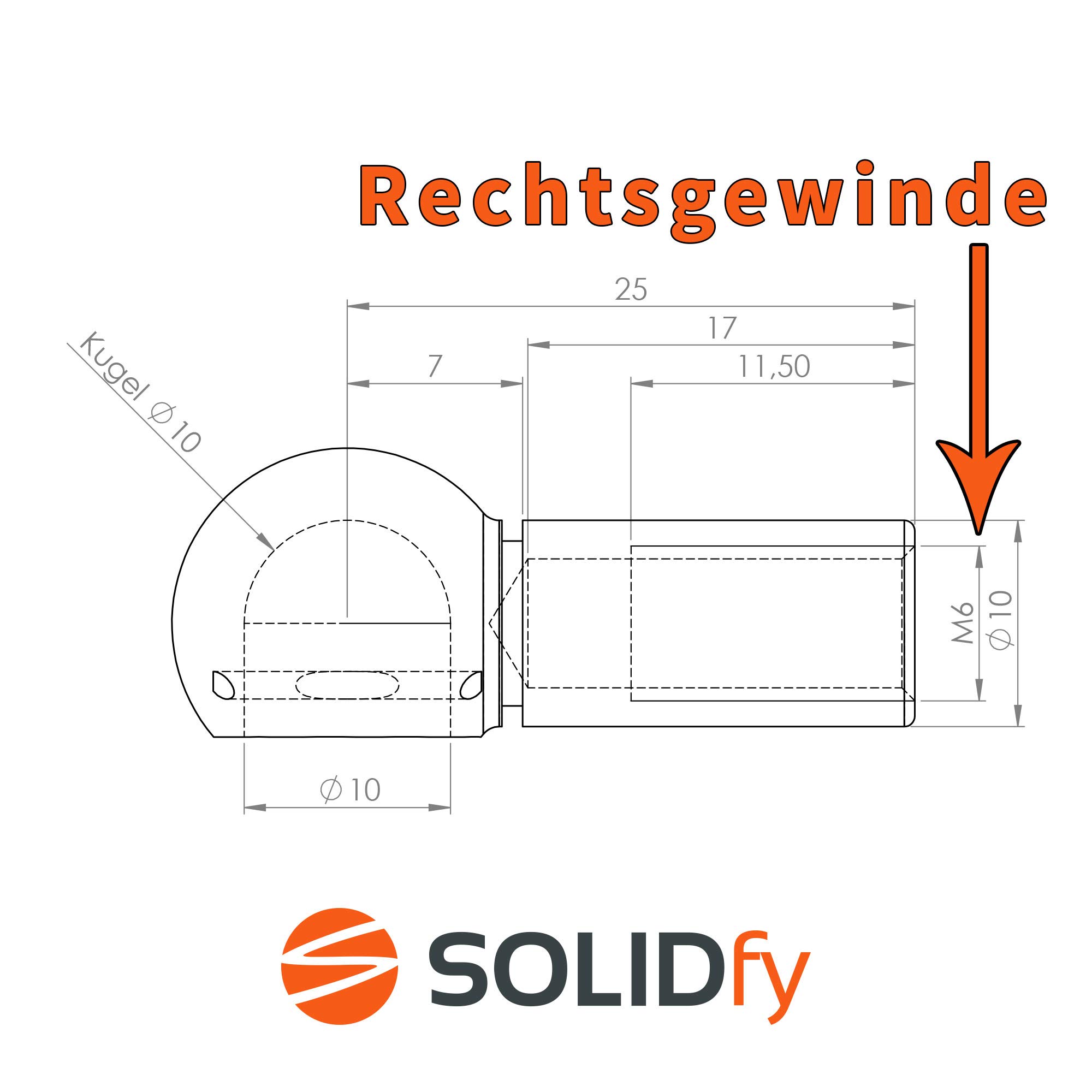

• Technical data: ball diameter: 10 mm, thread size: M6 (right-hand thread), thread length: 11.50 mm, total length: 32.50 mm, weight: 14.1 g, material: galvanised steel
• Universal use: the area of application ranges from the car spare part area (coupling rods, hood lifters, gear cables and much more). from home, garden, model making in various areas, to plant construction in industry.
• 100% perfect fit – thanks to the production according to DIN71805 standard (including tolerance classes), the dimensions are strictly observed and the range of application is not tied to manufacturers, brands or components.
• Certified quality – consistent quality is guaranteed thanks to the strict quality criteria according to DIN EN ISO 9001:2008

SOLIDfy Ball Pan 10 mm M6 DIN 71805 Made in Germany. Our ball pans are manufactured according to DIN 71805 form B, made of galvanised steel with safety bar. The area of application ranges from the car spare part area (coupling rods, hood lifters, gear cables and much more). from home, garden, model making in various areas, to plant construction in industry. Thanks to the production according to DIN standard, consistent quality is guaranteed and the range of application is not tied to manufacturers, brands or components. Ball sockets according to DIN combined with a ball pin according to DIN 71803 form an angle joint according to DIN 71802 Technical data: Ball diameter (ball diameter): 10 mm. Thread size (thread size): M6 (right thread). Thread length: 11.50 mm. Total length: 32.50 mm. Weight: 14.1 g. Material (material): galvanised steel white (silver) – galvanised steel. Minimum tensile strength of Rm (minimum tensile strength Rm): 500N/mm².
