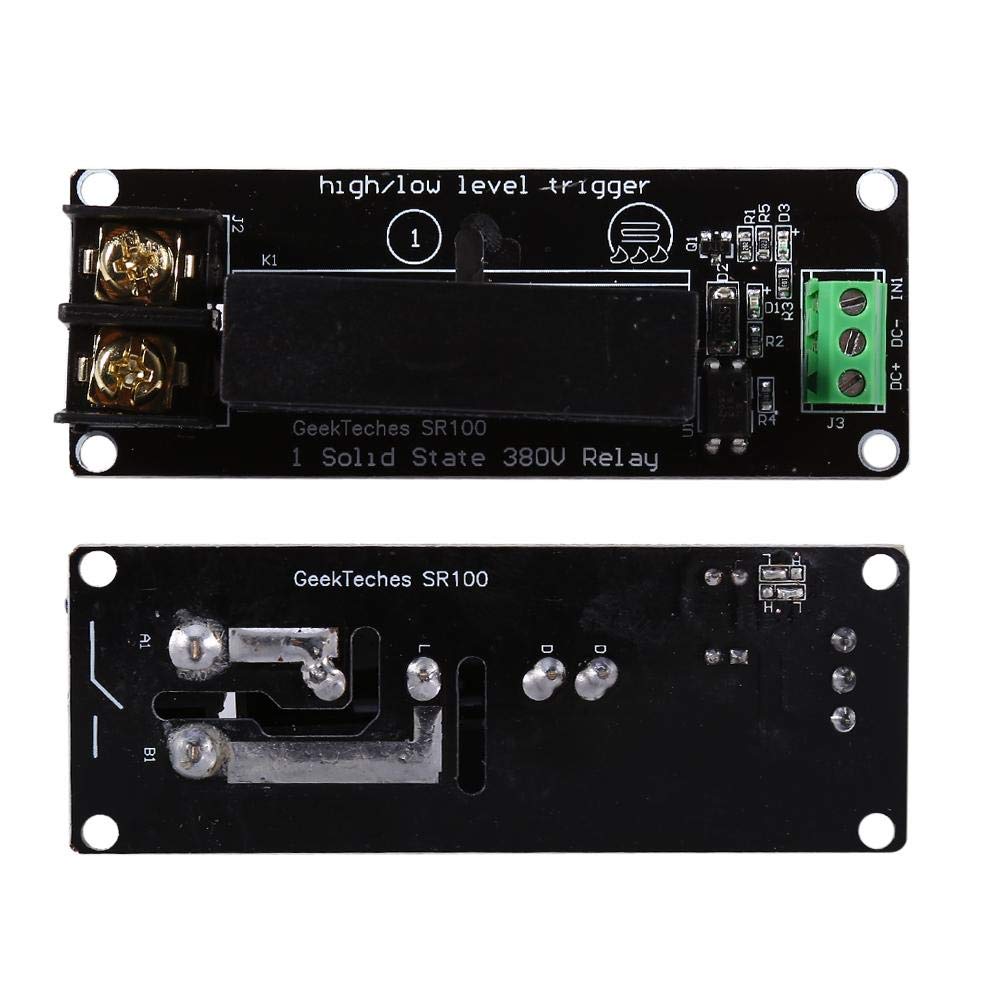

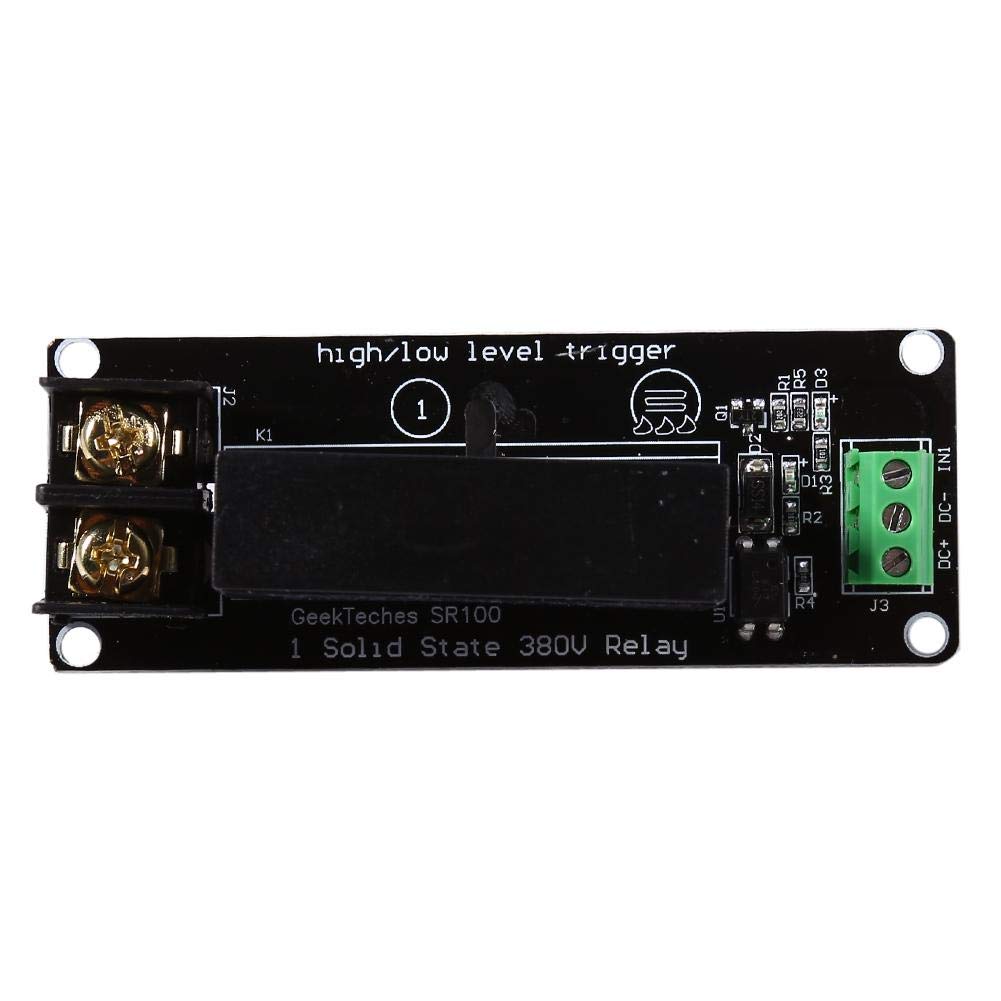

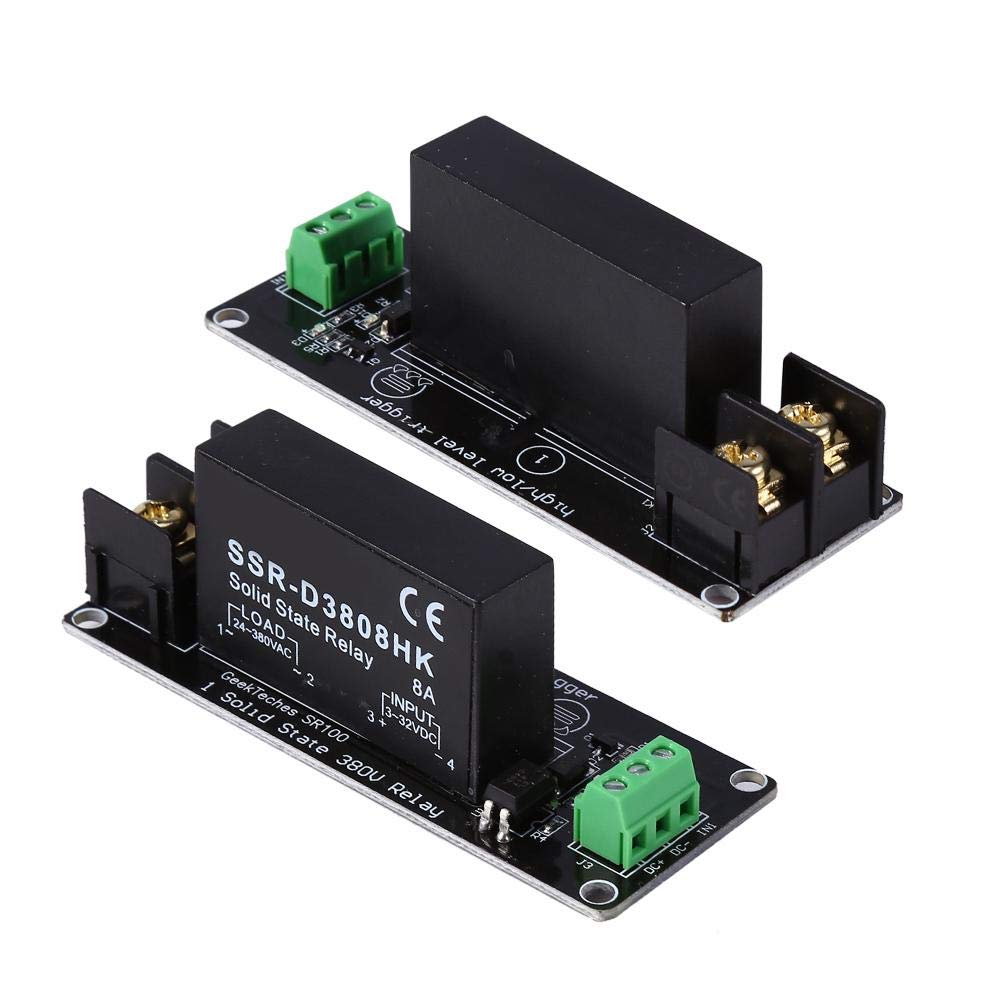

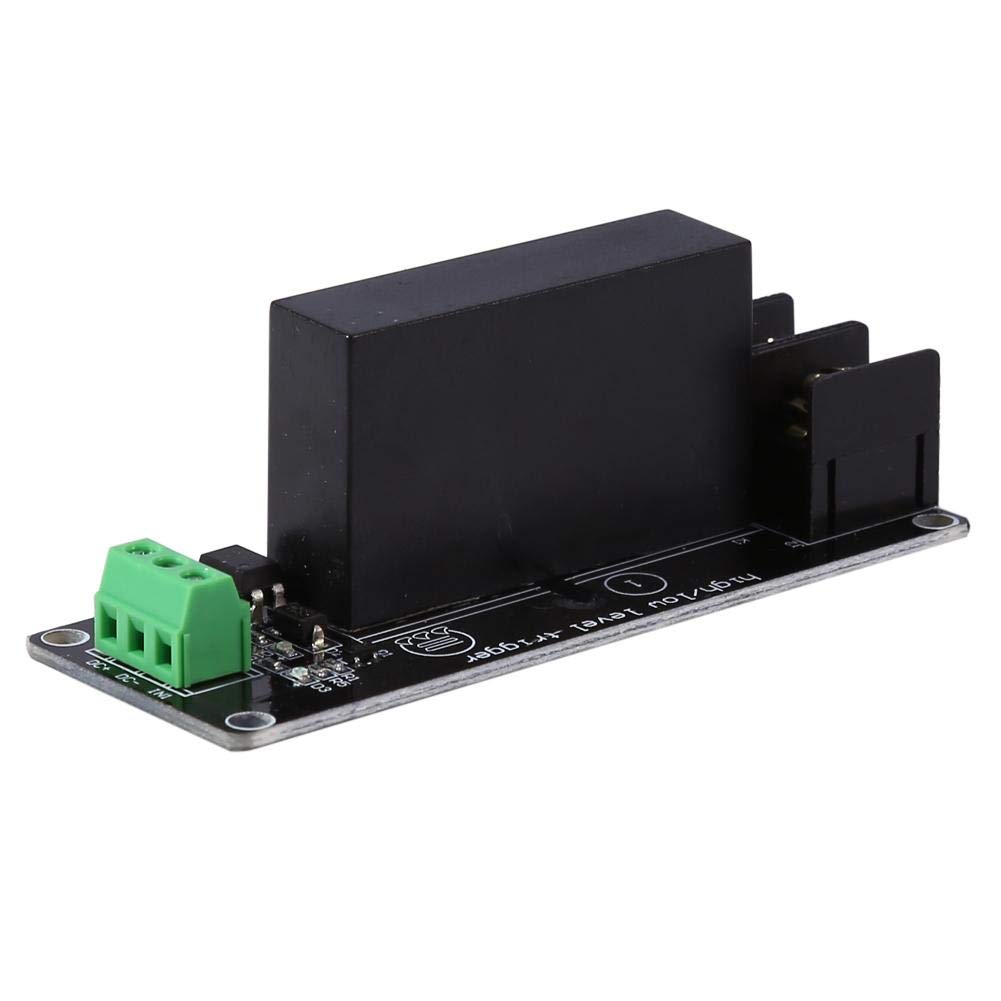

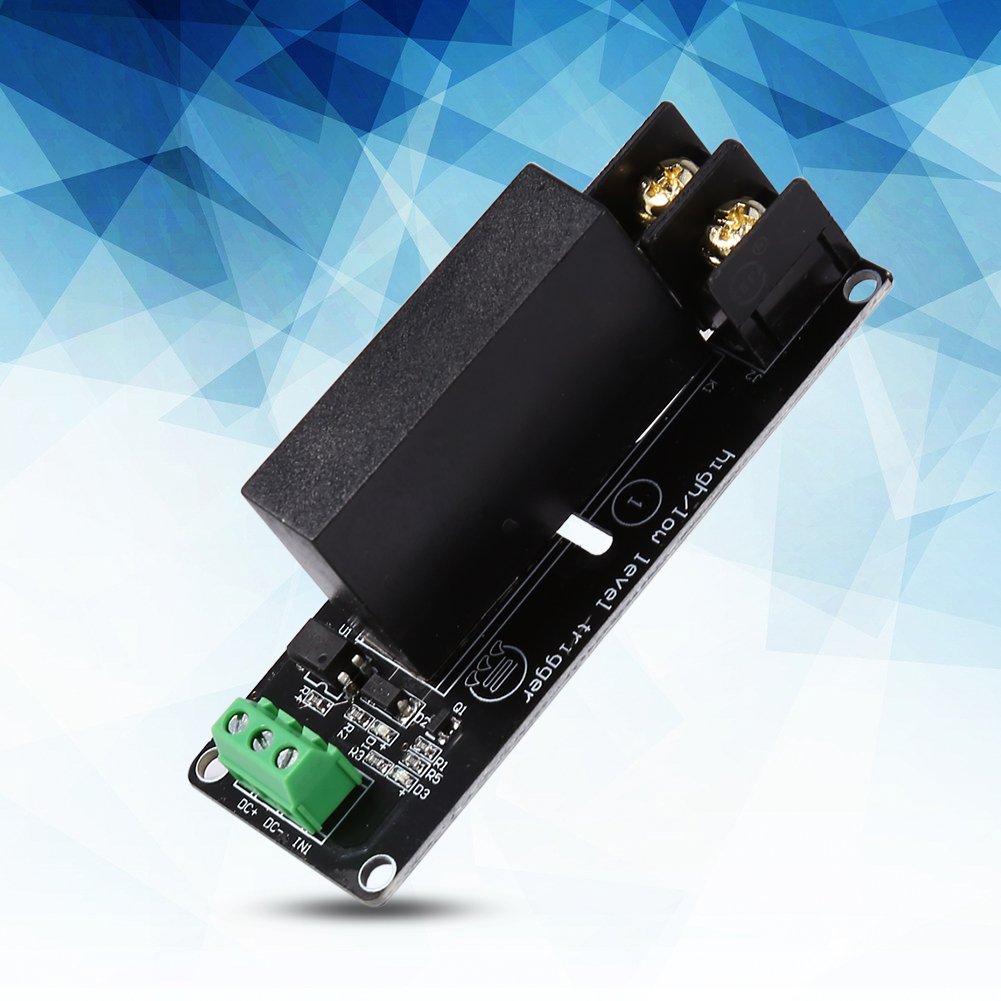

Solid State Relay Board 380V 8A 1 Single Channel Solid State Relay Module Board SSR Switch Controller AC 24V to 380V

• Specifications: The controlled voltage range of relay is AC 24 V to 380 V. Max Current: 8 A. Convenient KF301 green input wiring terminals. Safe KF1000-2P output wiring terminals. 380 V 8 A solid-state relay.
• Solid State Relay Single Channel Relay Board: Power supply of module should be direct current, and voltage should be associated to that of relay.
• High Voltage Level Trigger: it refers to a forward voltage between trigger end(IN) and power cathode, is a trigger way of connecting anode of power with trigger end. When there is forward voltage or the voltage reaches to a certain trigger amount at the trigger end, relay is actuated.
• Input Control Voltage: High and low voltage level can be set (short circuit boards welding on the back plate, the default is low voltage level)
• Low Voltage Level Trigger: it refers to the voltage between trigger end and power cathode is 0 V, or voltage of trigger end is lower than that of power anode, and relay is actuated. Usually connect power cathode with trigger end.

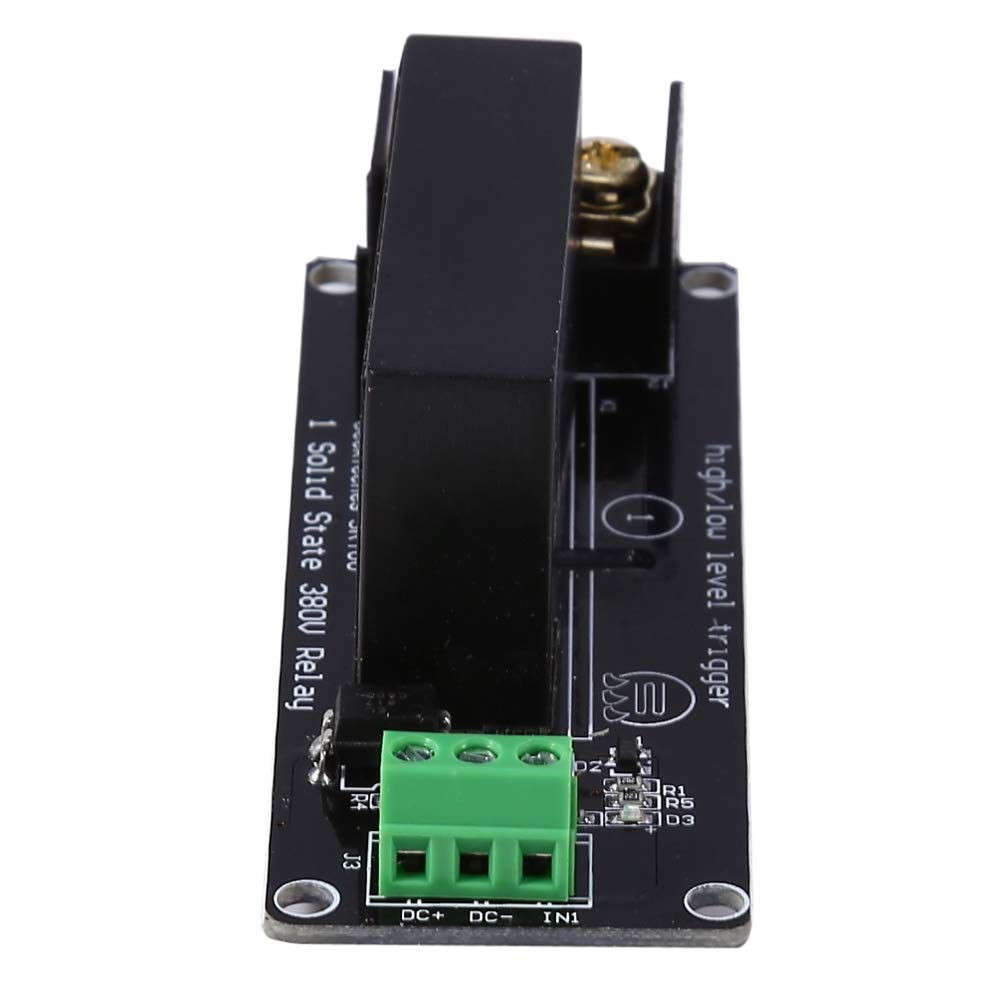

Description: High voltage level trigger refers to a forward voltage between trigger end(IN) and power cathode, is a trigger way of connecting anode of power with trigger end. When there is forward voltage or the voltage reaches to a certain trigger amount at the trigger end, relay is actuated. Low voltage level trigger refers to the voltage between trigger end and power cathode is 0 V, or voltage of trigger end is lower than that of power anode, and relay is actuated. Usually connect power cathode with trigger end. Specifications: Input Voltage Range: DC 5 V to 12 V Input Control Voltage: High and low voltage level can be set (short circuit boards welding on the back plate, the default is low voltage level) Weight: 39 g(approx.) Input Interface: DC+ DC- CH1: 1 channel relay module triggering end Package includes: 1 x Relay Module
