Chedin Solar Panel Extension Cable -1M/2M/3M/5M/10M/20M/30M 10AWG(6mm²)，Harness Wiring Wire Adapter with Connector，Tinned Copper Electrical Wire Cable- Red+Black(6mm²5M)

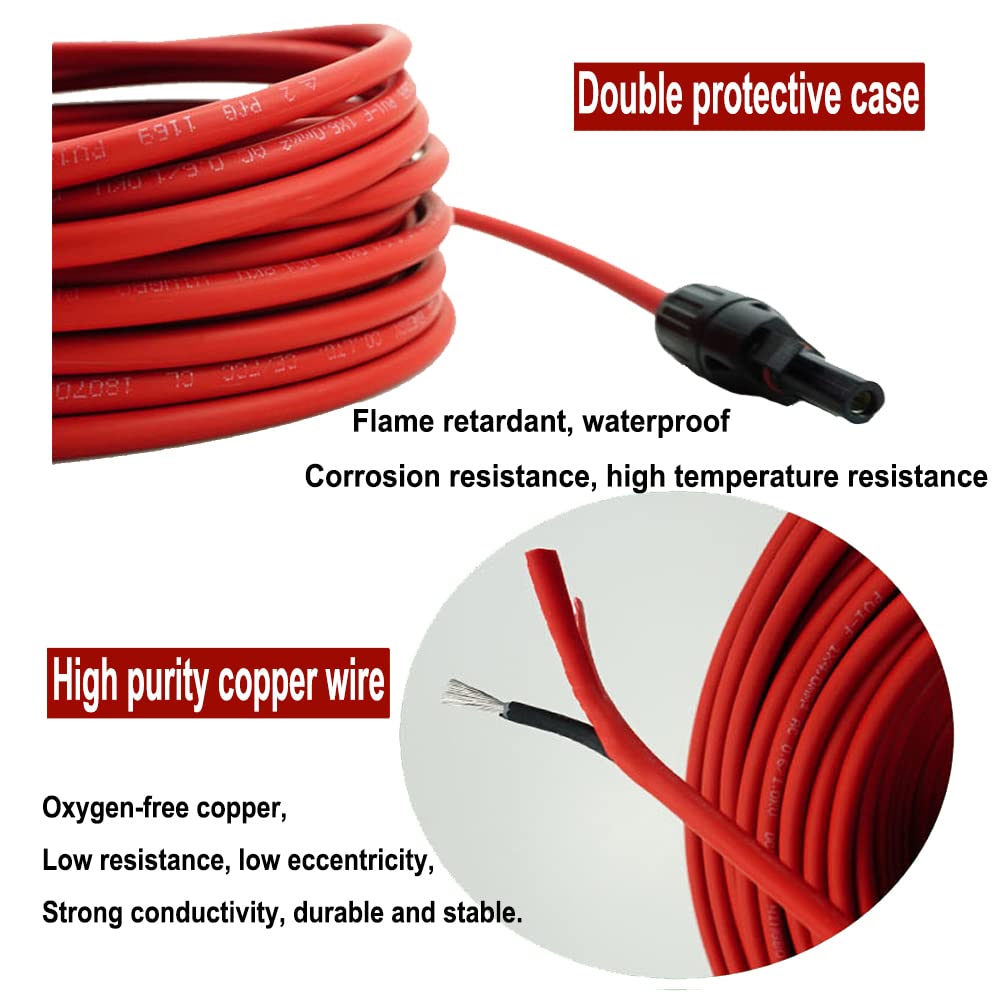

• 🔆High Quality: The conductors are made of tinned copper, the connectors are made of PPO, and the cables are made of XLPE. Good contact material ensures transmission under stable conditions. The outer wrap insulation has excellent anti-aging and anti-ultraviolet, high temperature, wear and corrosion resistance.
• 🔆Good compatibility: Compatible with photovoltaic cables with different insulation diameters (2.5mm2--6mm2).

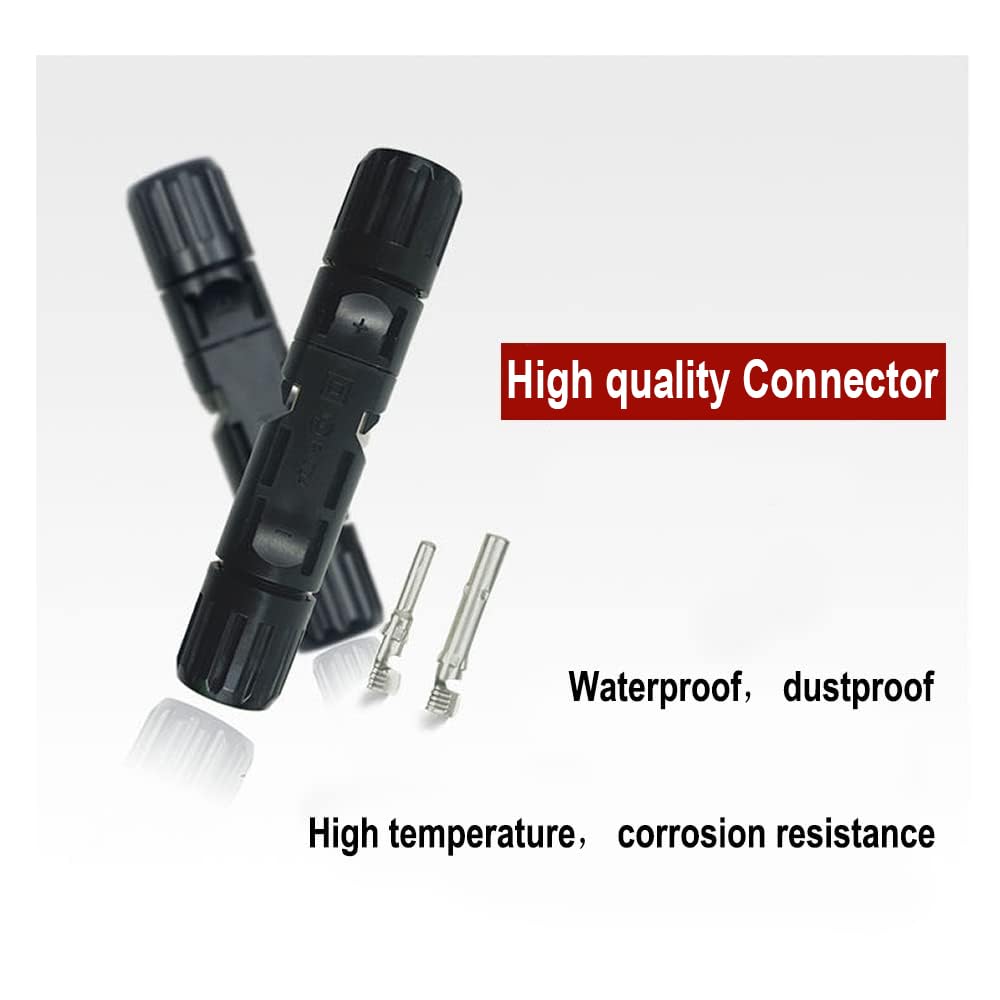

• 🔆Easy to install and remove: The connector can be installed and removed quickly and easily without any extra equipment, very convenient.
• 🔆Excellent water resistance: Waterproof and dustproof, waterproof IP67, can be used in harsh environments.
• 🔆Professional: specially developed for connecting photovoltaic systems with high mechanical requirements and extreme weather conditions.

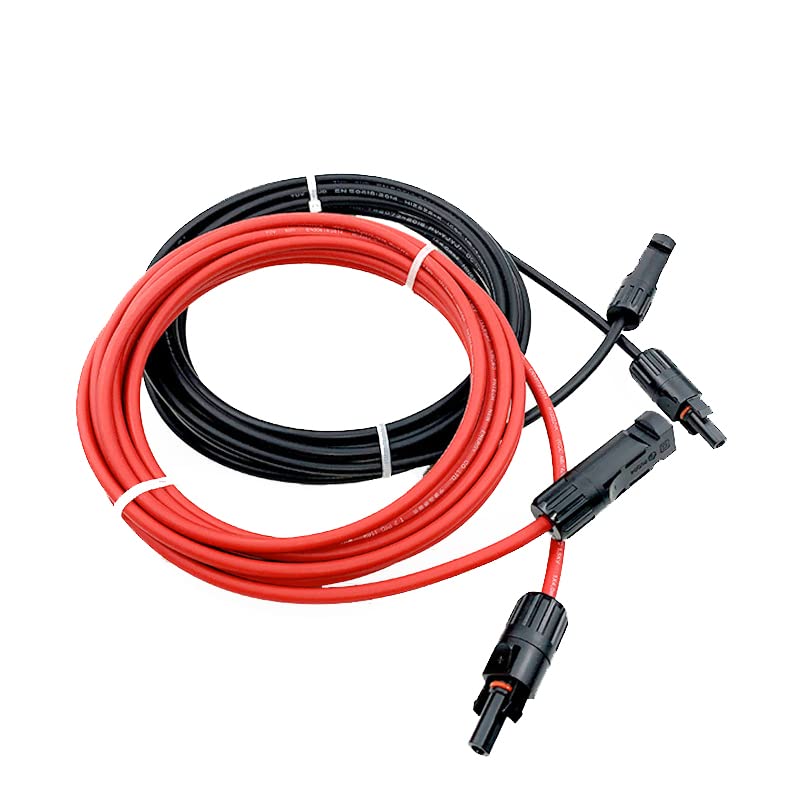

Connecting Cables with Compatible Plugs and Sleeves Ready-made Positive and Negative Kits - For Wiring Parallel Circuits Simply plug the connecting cable of the junction box on the module or the distributor plug of the photovoltaic system into the solar charge controller. Technical Specifications: Model: PV1-F（H1Z2Z2-K） Protection voltage/system voltage up to 1500V Rated current at least 30A Cable cross section 6mm² Degree of protection IP67 when plugged in characteristic: Conductor according to IEC 60228 class 5 tinned copper Ozone resistance, UV resistance, halogen free, acid and alkali resistance Short circuit resistance: up to 200°C / 5s Thermal expansion test at 200°C Rated voltage (Uo/U): AC 0.6/1.0 kV / DC 0.9/1.5 kV AC voltage test: AC 6.5 kV Maximum allowable voltage: 1.8 kV Temperature range: -40°C to 90°C Maximum conductor temperature: 120°C Item list: 1 x red and 1 x black
