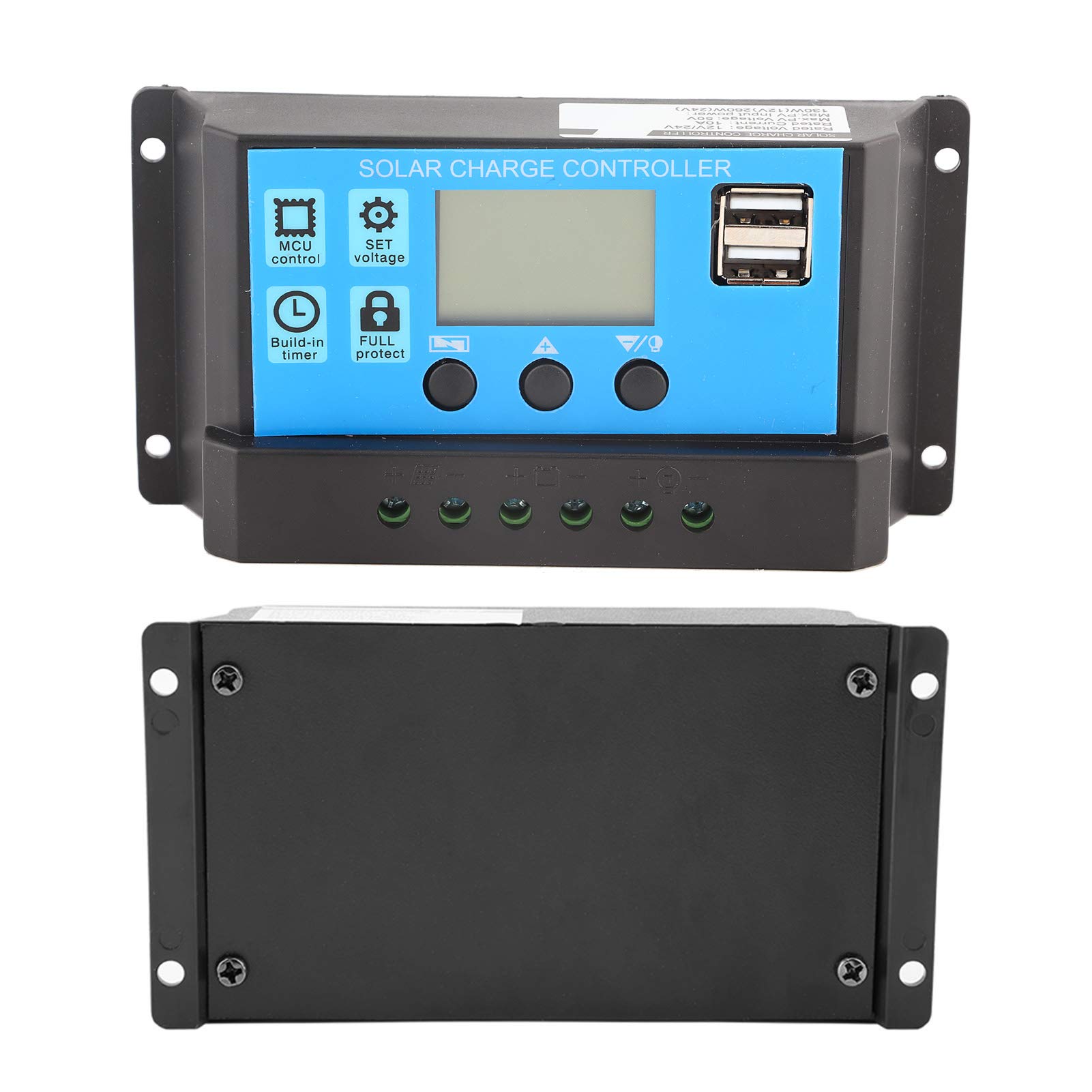

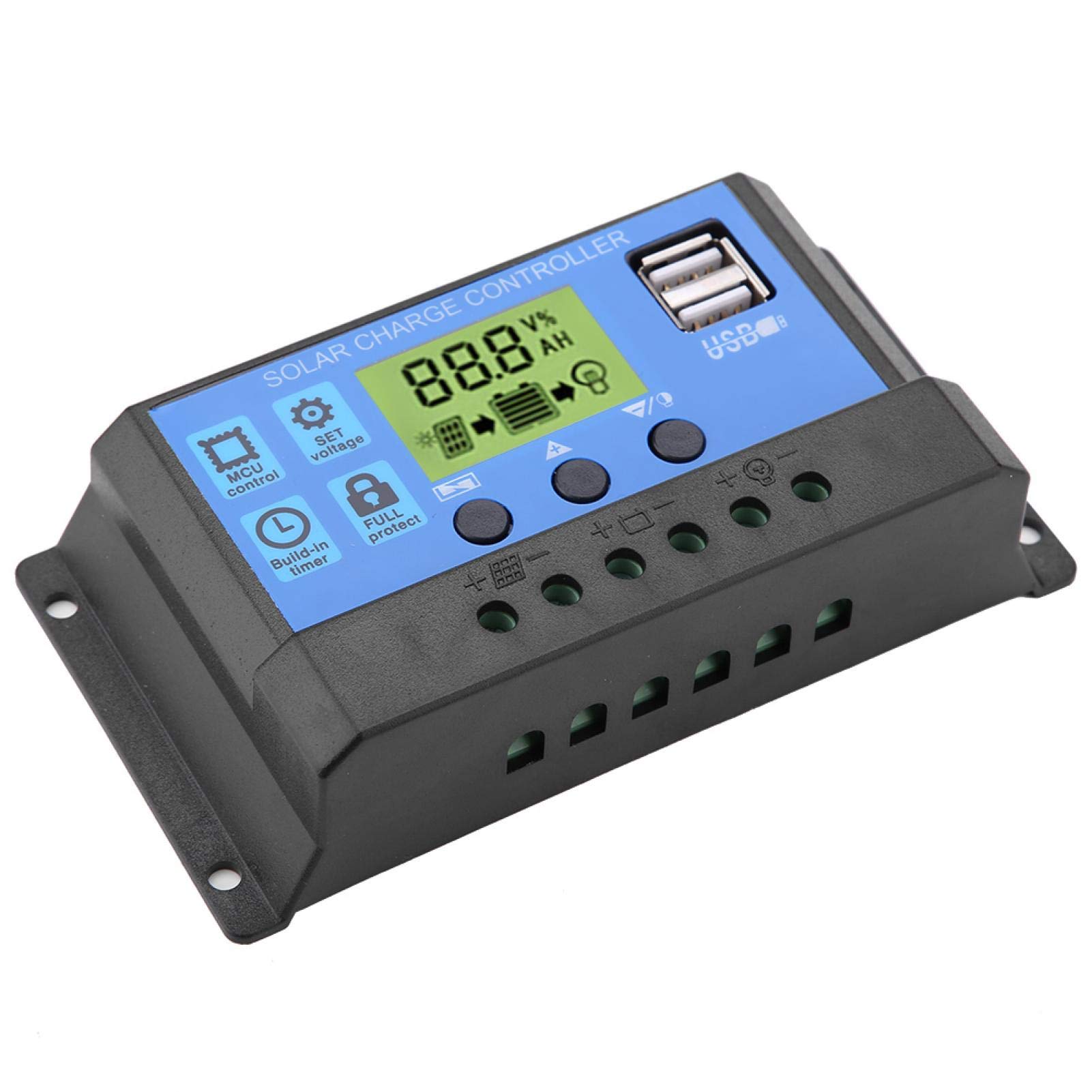

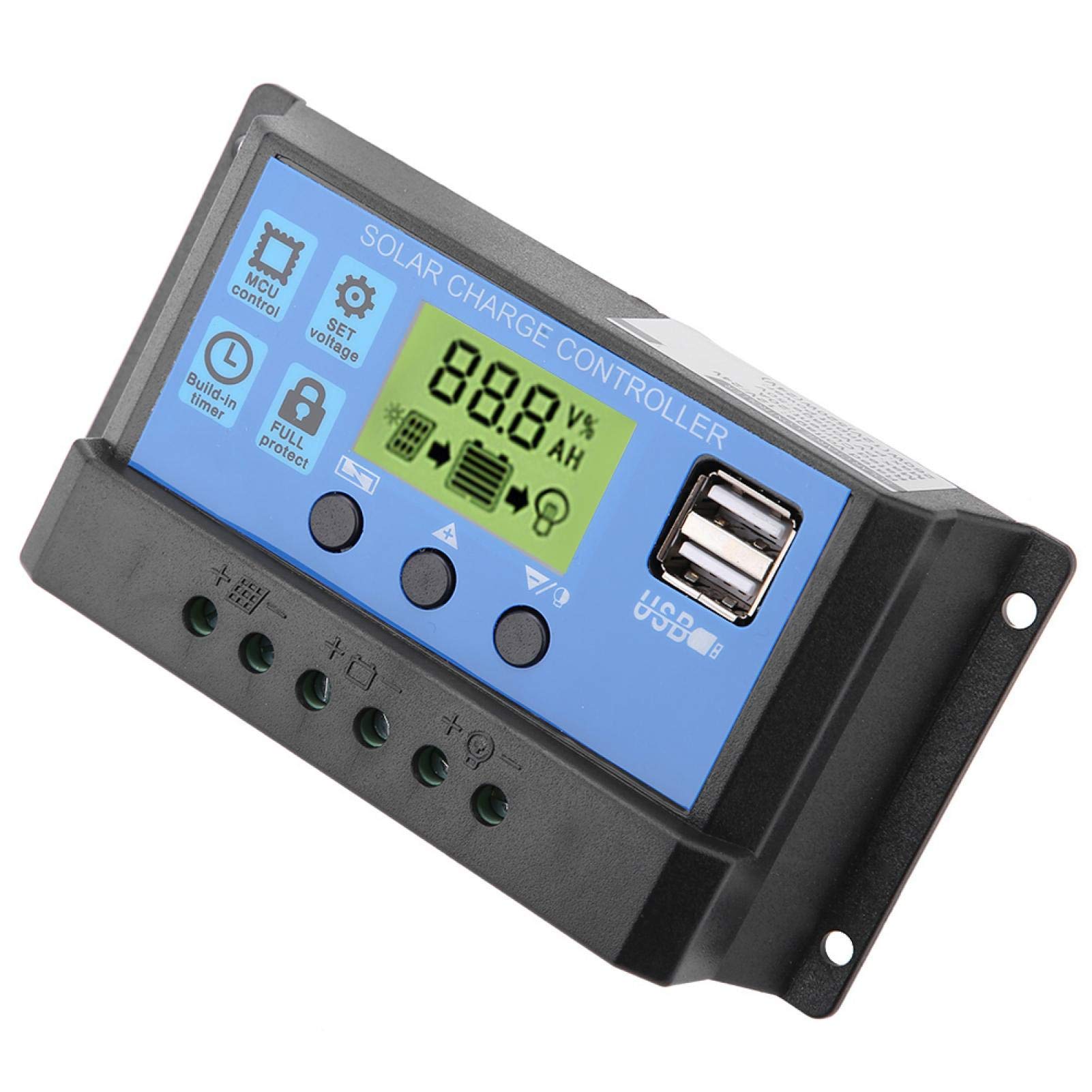

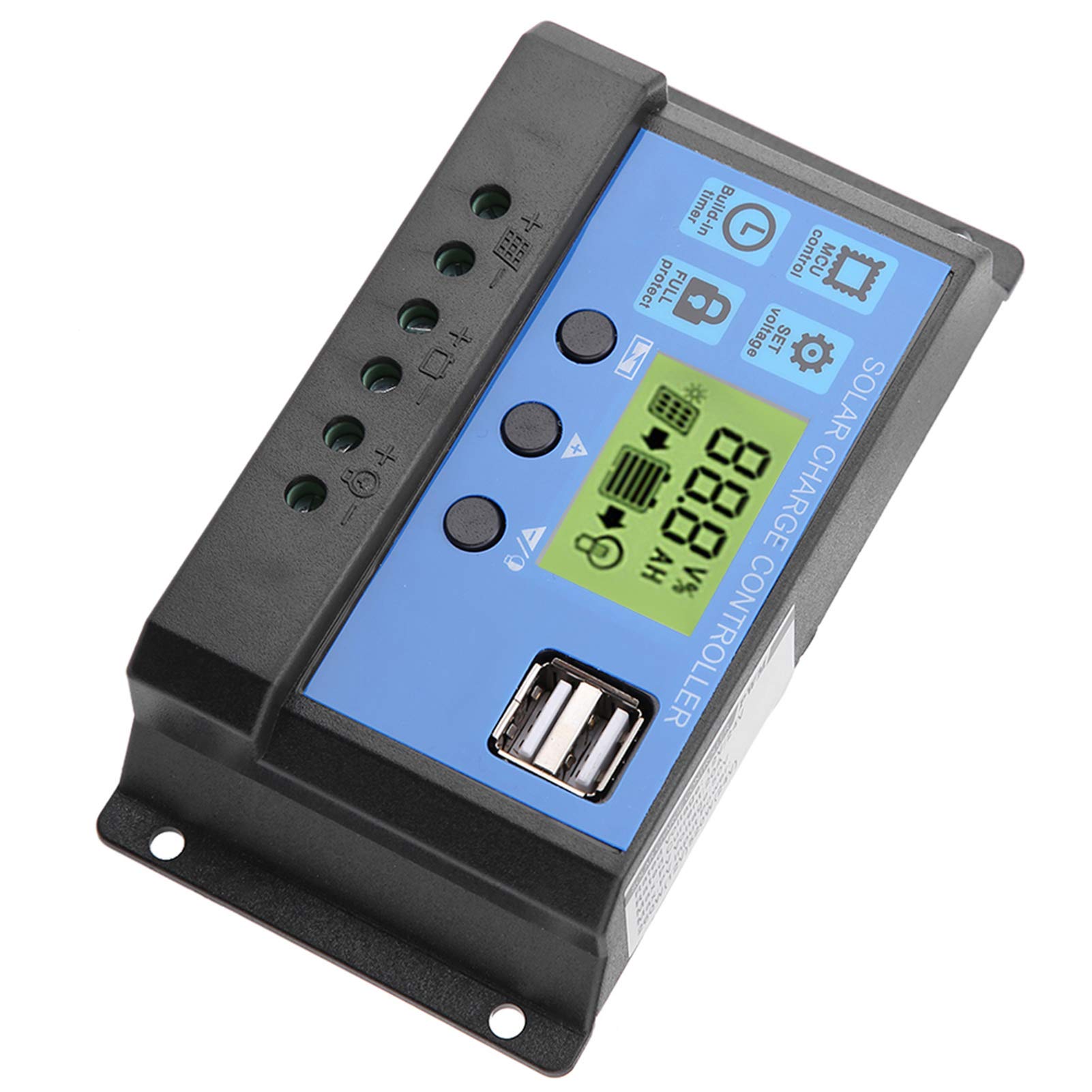

Akozon 10A Solar Controller + Solar Panel Controller, Intelligent Panel Battery Regulator PWM 12V 24V Dual USB (YJSS-10A)

• [Multiple Protection] Professional circuits involve multiple protections, including: over current, short circuit, open circuit, reverse connection protection, etc. The safety factor increases and safety is our priority. Six-hole terminal: increase the thickness of the fireproof terminal, increase the insulation performance and reliability of the installation, and preferably reduce the circuit voltage drop and loss.
• [Multiple Protection] Professional circuits involve multiple protections, including: over current, short circuit, open circuit, reverse connection protection, etc. The safety factor increases and safety is our priority. Six-hole terminal: increase the thickness of the fireproof terminal, increase the insulation performance and reliability of the installation, and preferably reduce the circuit voltage drop and loss.
• [High Quality Printed Circuit Board] We use professional dust-free placement machine to produce double MOSFET reverse current protection. Selected High Quality Shell: It is made of high quality ABS engineering plastic with high strength and impact resistance. High ignition point, anti-aging properties, effective life and safety index.

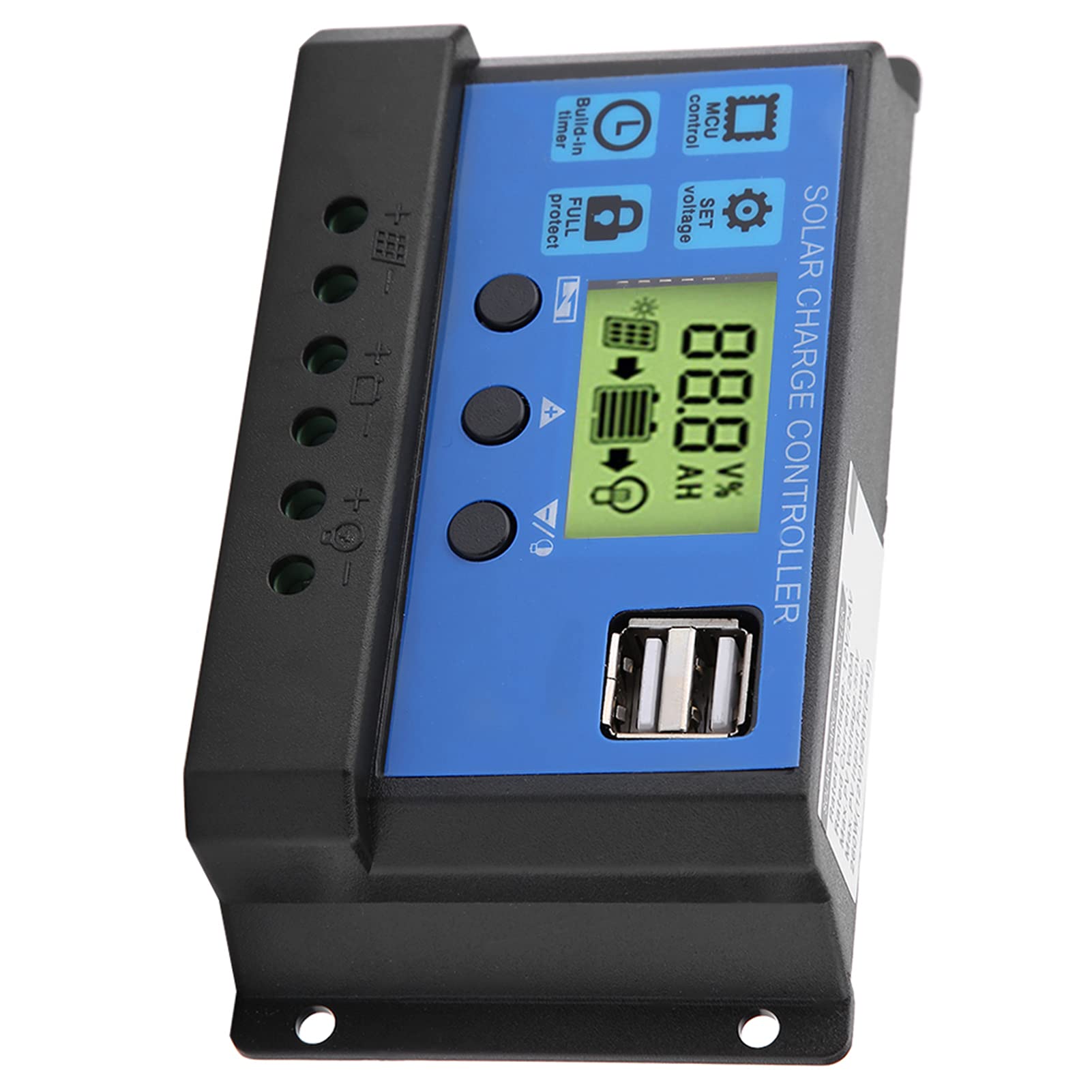

• [LCD Display] This solar charge controller is designed with a large backlit LCD display. The display timer setting perfectly matches the LCD display, which clearly and intuitively displays your battery voltage. Simple Panel: It adopts a three-button intro button, which is easy to understand and operate. Recessed panel design prevents touching.

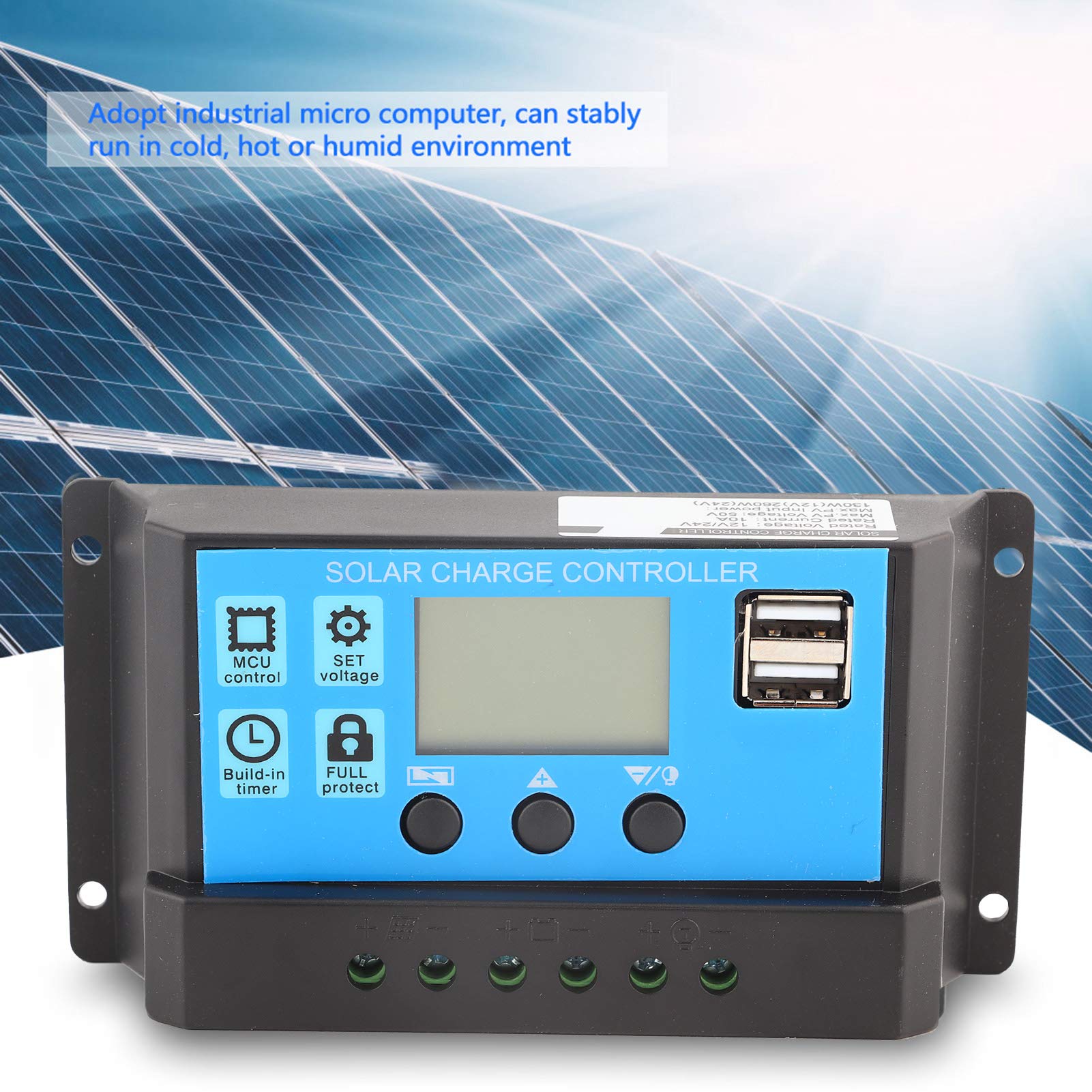

• [Fast Charging, Long Battery Life] Full 3-level PWM charging management, using PWM charging technology, 10% charging than general controller, extended battery life of 3 years. With industrial microcontrollers, the charge and discharge parameters can be adjusted.

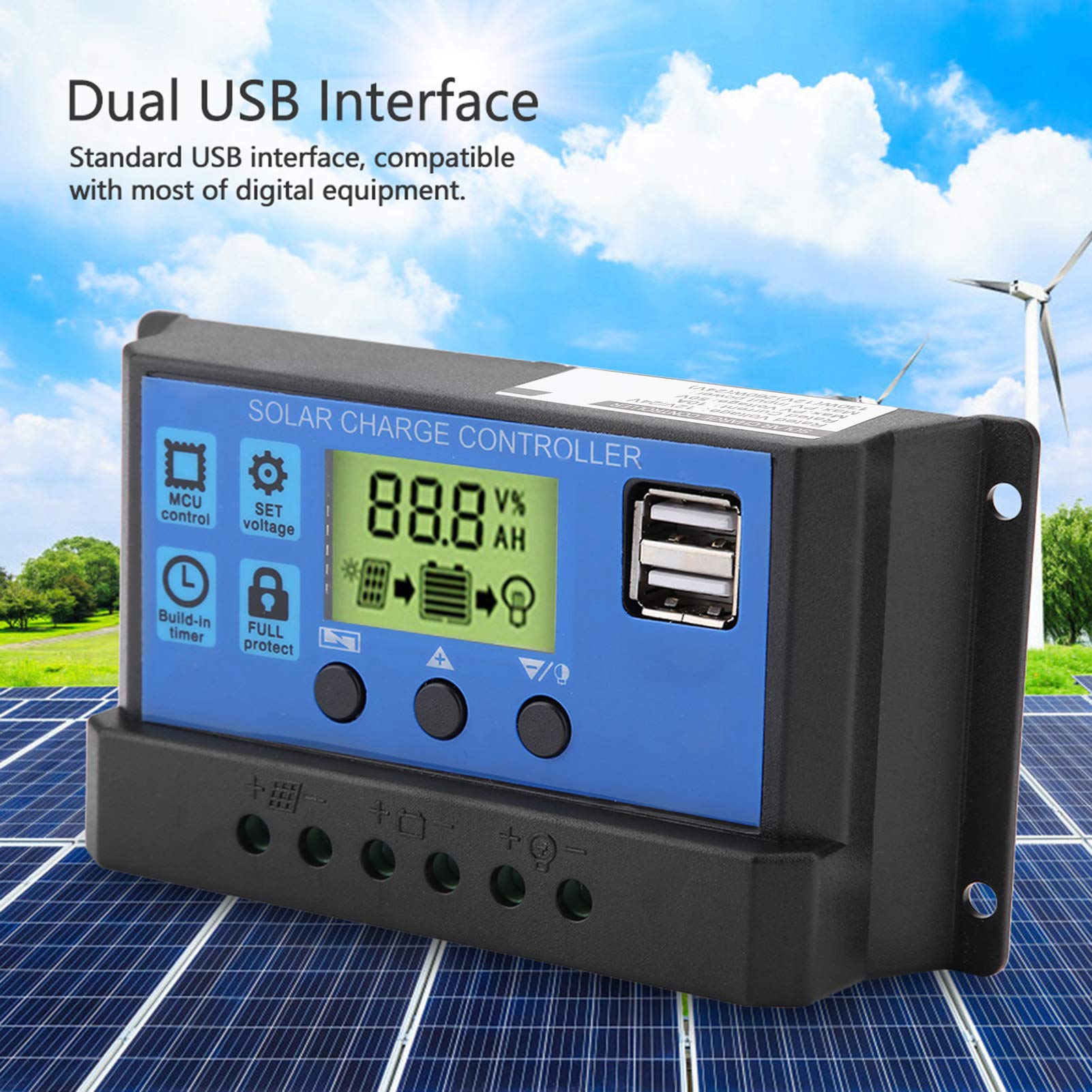

• [Easy to Use] Comes with a display that can clearly show the status and data, it can be conveniently switched to modes and setting of parameters, suitable for home, industry, commerce, etc.

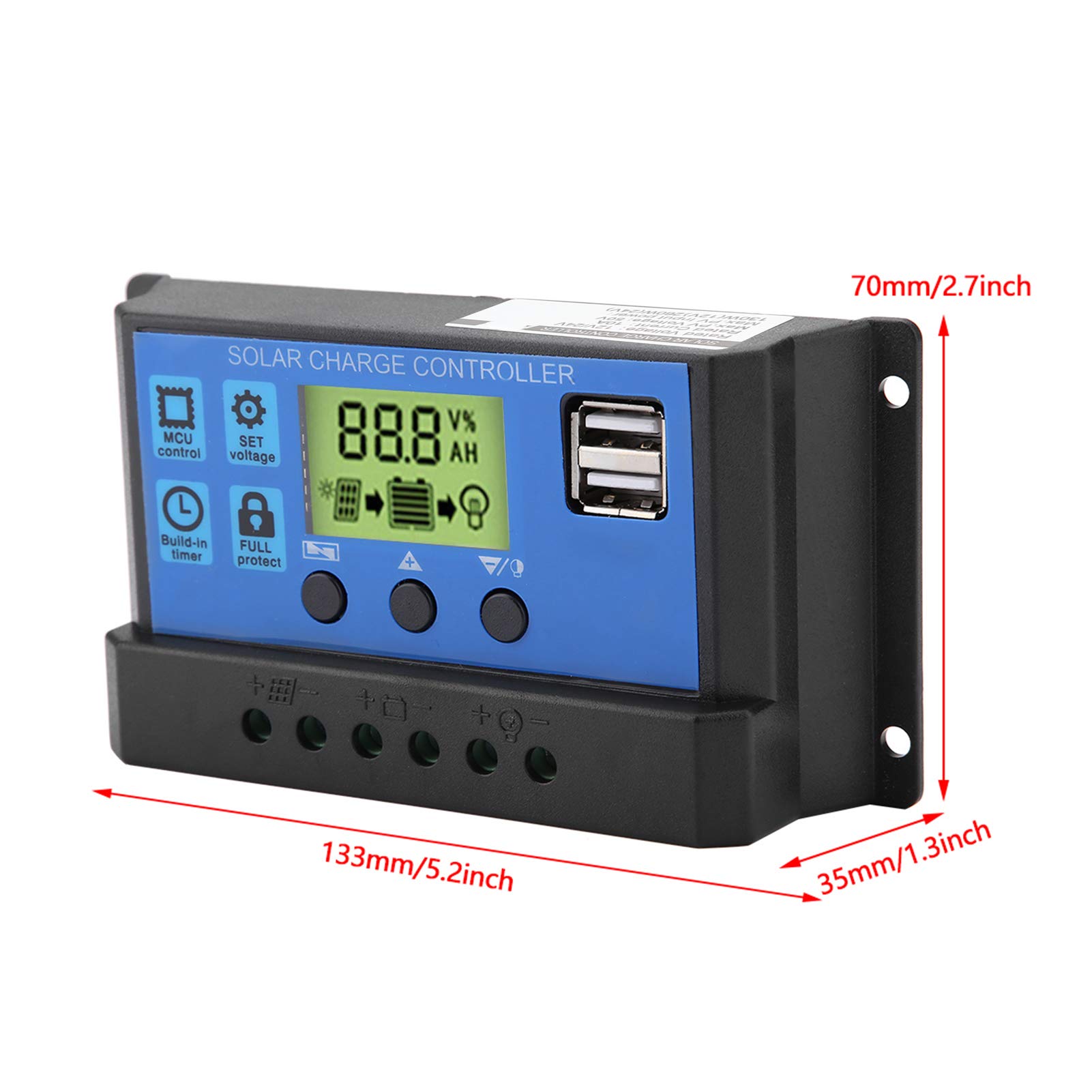

Specification: Model: YJSS-10A Batt Voltage: 12V/24V self-adapting Current: 10A Discharge Current: 10A Max Solar Input: <41V Equalization: B01 sealed-- 14.4V Model: YJSS-20A Batt Voltage: 12V/24V self-adapting Current: 20A Discharge Current: 10A Max Solar Input: <41V Equalization: B20 Gel-- 14.2V Model: YJSS-30A Batt Voltage: 12V/24V self-adapting Current: 30A Discharge Current: 10A Max Solar Input: <41V Equalization: B03 flood-- 14.6V YJSS-10A / YJSS-20A / YJSS-30A Floating Charge: 13.7V (default, 12.7-15V adjustable) Discharge Stop: 10.7V (default, 9-11.3V adjustable) Discharge Reconnect: 12.6V (default, 11.5-13V adjustable) Standby Current: <10mA USB Output: 5V/2A Max Operating Temperature: -35~60℃ Size: 133*70*35mm / 5.2*2.7*1.3in Weight: Approx. 148g / 5.2oz Tips: All red voltage is only for 12V system, please double it while using 24V system Package list: 1 * Solar Controller Note: 1. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL. Not suitable for NiMH, Li-ion or other batteries. 2. Make sure your battery has enough voltage for the controller to recognize the battery type before first installation. 3. The battery cable should be as short as possible to minimize loss. 4. The controller is only suitable for regulating solar modules. Never connect another charging source to it. 5. The controller will be hot when running. Please install it in a well ventilated place.
