Solar Charger Controller 30A, Solar Panel Battery Regulator 12V/24V Auto Paremeter Adjustable LCD Display with Dual USB Load Timer Setting ON/Off Hours

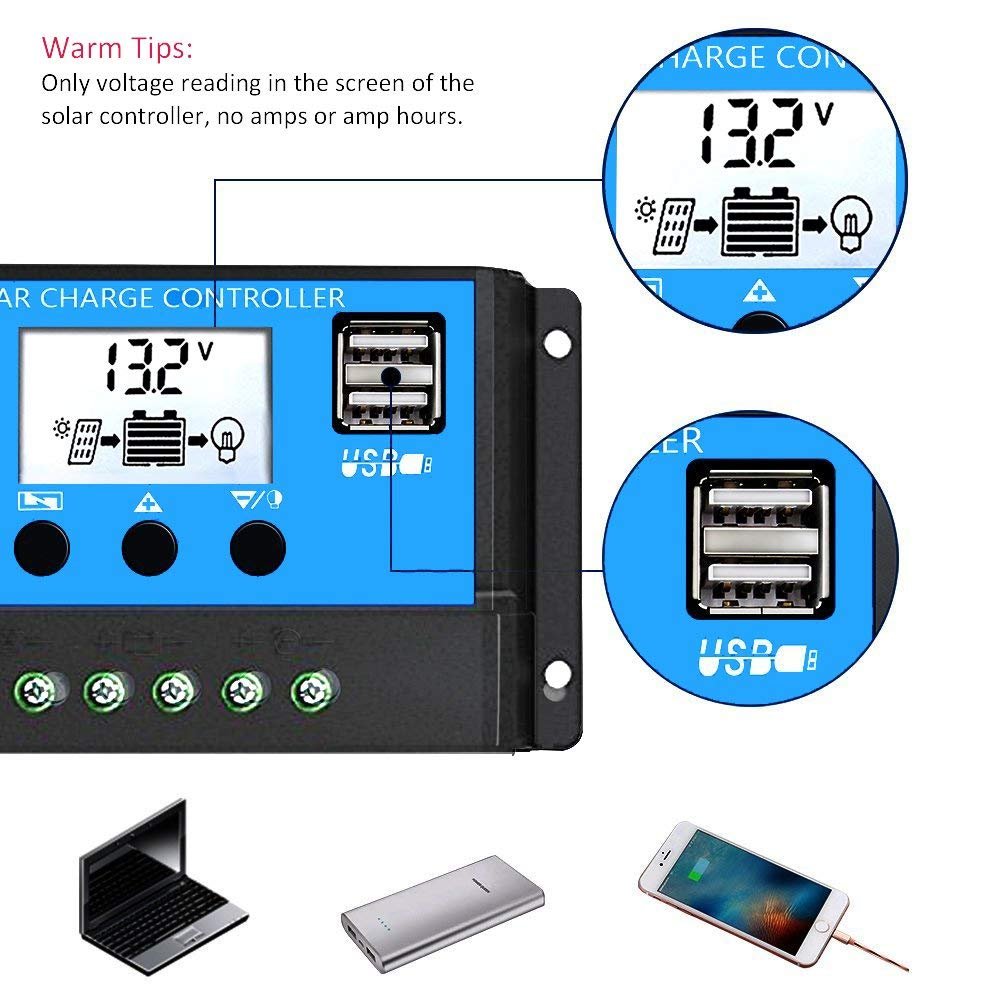

• Solar charge Controller with dual USB ports, USB Output: 5V/2A max. 12V/24V auto; Rated Charge & Discharge Current: 30A; Settable operating modes of loads, fully 4-stage PWM charge management.
• The solar regulator is only suitable for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, Liions, or other batteries. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically
• Mutiple Electric Protection: short-circuit protection,open-circuit protection,reverse protection,over-load protection, more safty for using, suitable for home, industrial, commercial etc.

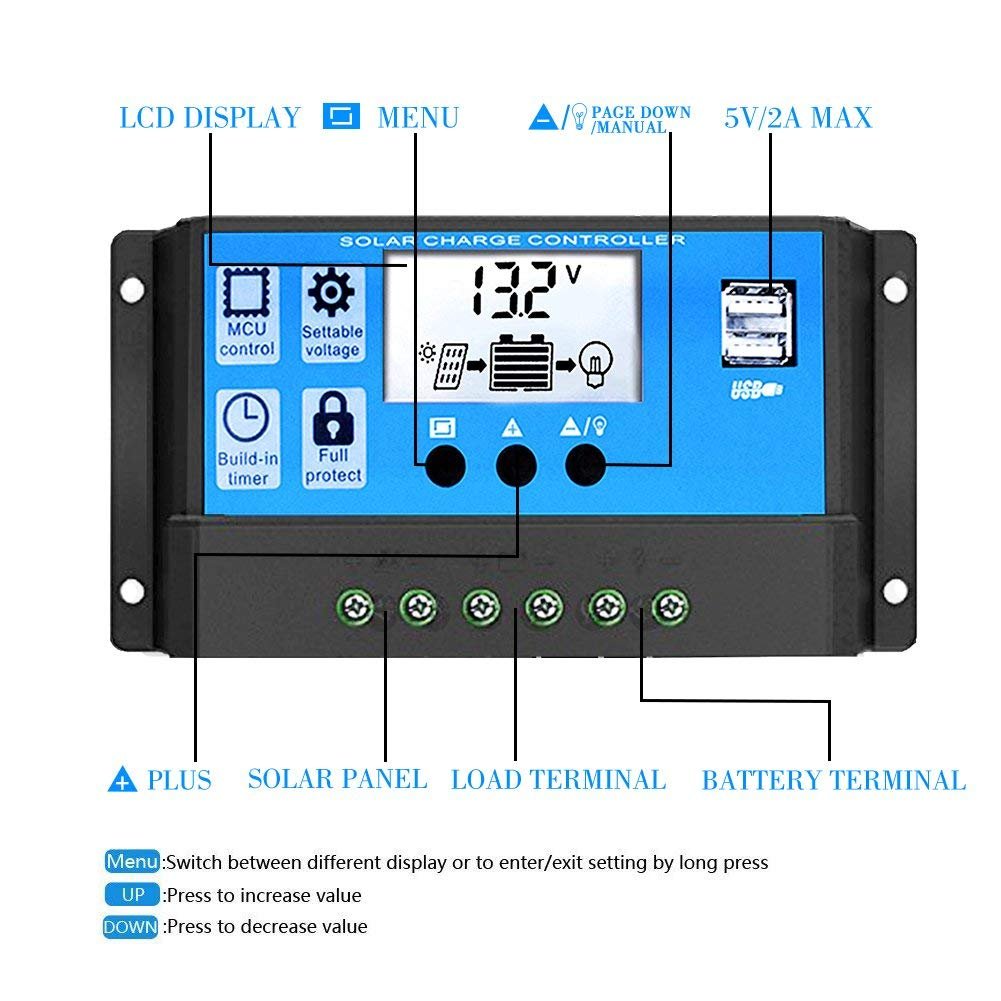

• Easy to install and operate: Solar controller can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc. And has 12-months warranty.
• Easy to set up and operate. Suitable for home, industrial, commercial, boat, car etc.

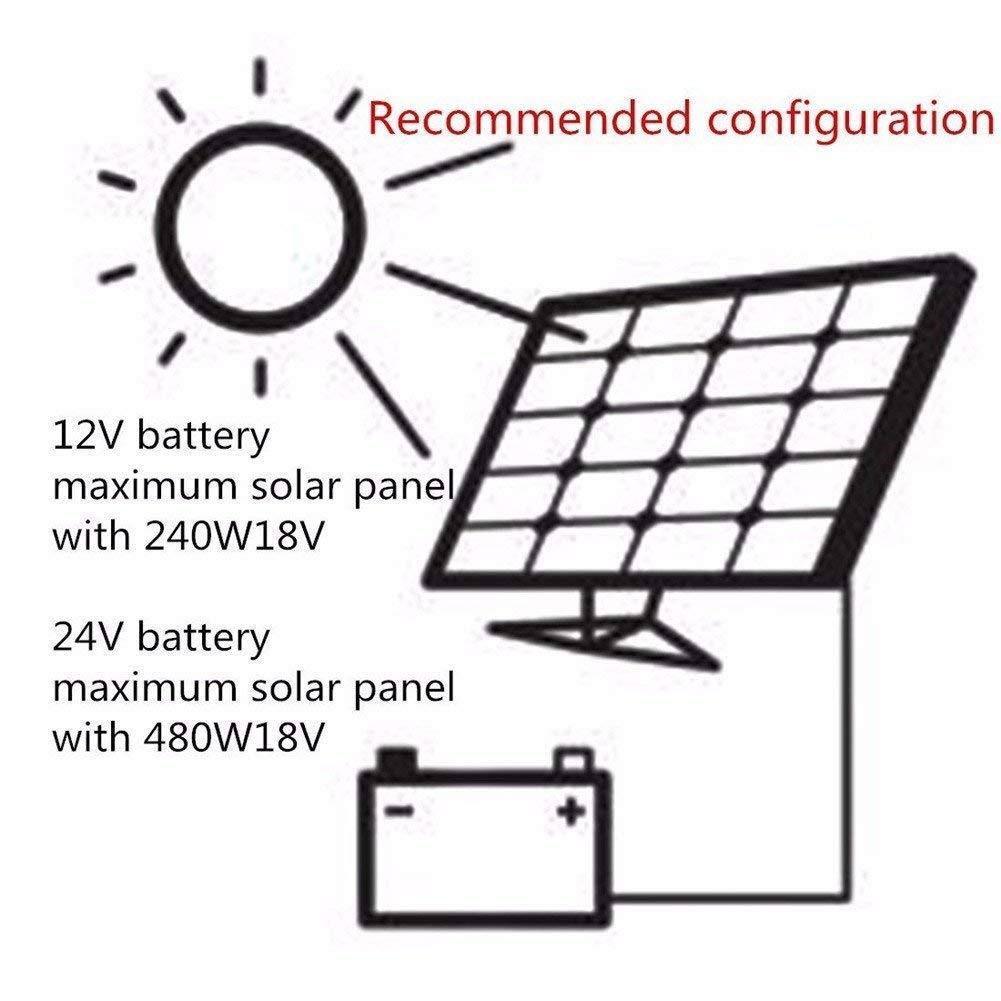

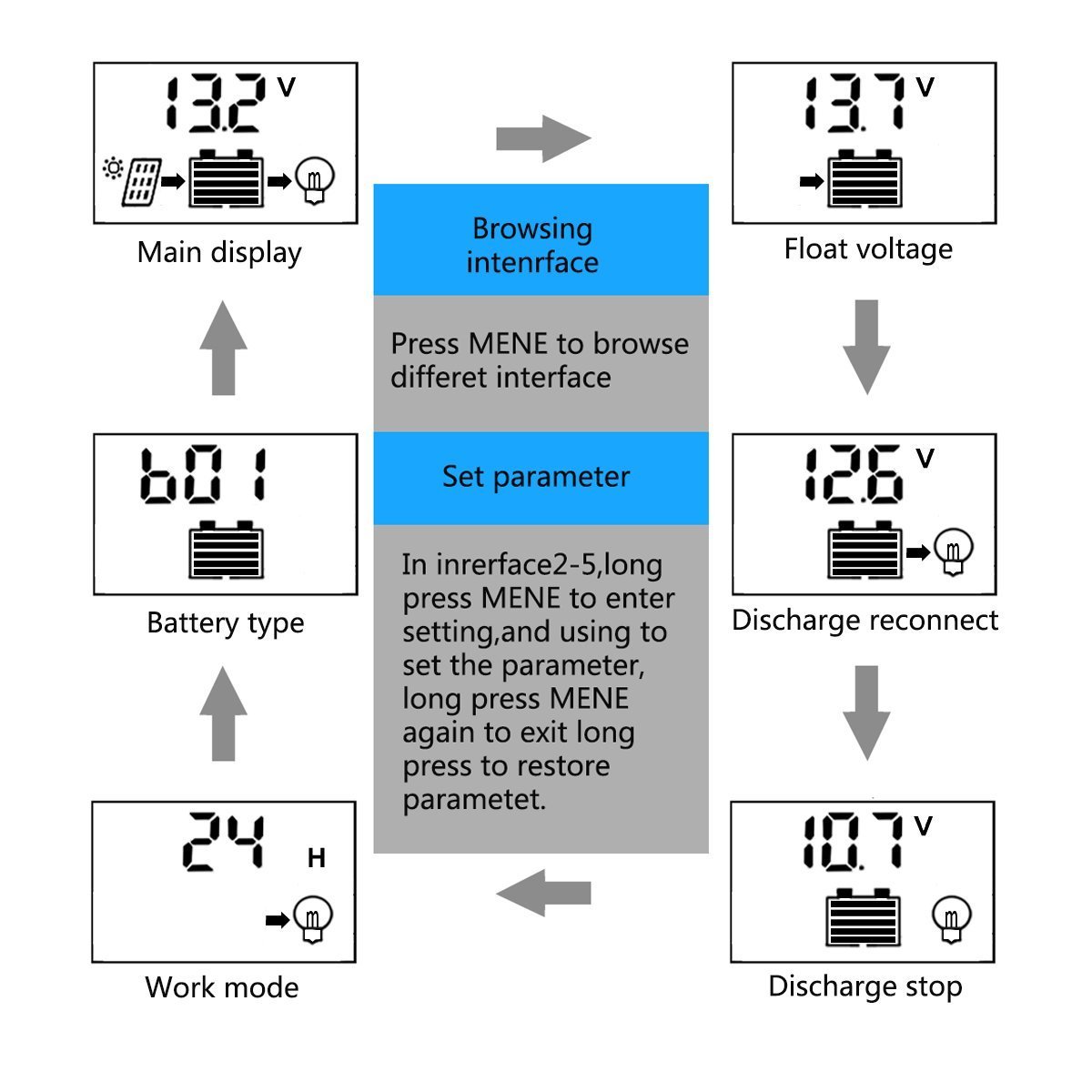

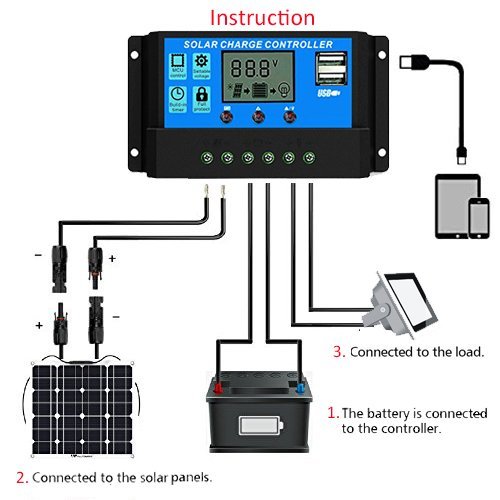

Features: Batt voltage: DC 12V/24V Auto Charge /Discharge current: 30A Max input Power 360W (12v system), 720W (24v system) Max Solar input: <50V Two USB output: 5V/3A Load Mode: 24 hours, 1-23 hours, 0 hour Battery Option : 1. AGM = Sealed、Flooded / OPEN. 2. GEL Operating temperature: -35℃-60℃ Protection:short-circuit protection /open-circuit protection / reverse protection / over-load protection. Suitable for small solar energy system. Parameters: Below Battery Voltage Control Parameters are in 12V system, please double the values in 24V system Equalization: B01: sealed 14.4V / B02: Gel 14.2V / B03: flood 14.6V Float Charging Voltage: 13.7V Low Voltage Disconnect Voltage: 10.7V Low Voltage Reconnect Voltage: 12.6V Battery Voltage Control Parameters (defaul,adjustable) 1. Floating charge Voltage (HVD 13.3V-14V) 2. Recovery after under Voltage (LVD 11V-13.5V) 3. Under Voltage protection (RVD 9V-12.3V) Installation Procedure: The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL, not for nickel hydride, lithium, ions, or other batteries. Make sure your battery has enough voltage for the controller to recognize the battery before first installation. When the battery voltage is too low, the controller will stop output (≤ 8V, controller turn off itself, LCD is blank,≤10.7V, 12Voutput ports are not available); after the solar panels charging, the battery will return to 12.6 V. It is a natural to output. Float voltage should be higher than battery voltage. If an inverter is to be connected to the system, connec
