Solar Charge Controller 80A PWM 12V 24V 1920W Solar Panel Charging Discharge Regulator with 5V USB Output Multip Circuit Protection Anti-Fall Durable ABS Housing Enhanced Heat Sink

• Max input Voltage/Power (Battery Voltage): 24V/960W(12V), 48V/1920W(24V)
• Intelligent High-complex ProtectionTechnology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection
• ABS Material Shell Design: Anti-Fall & Durable Overall Design to Extend Product Lifetime

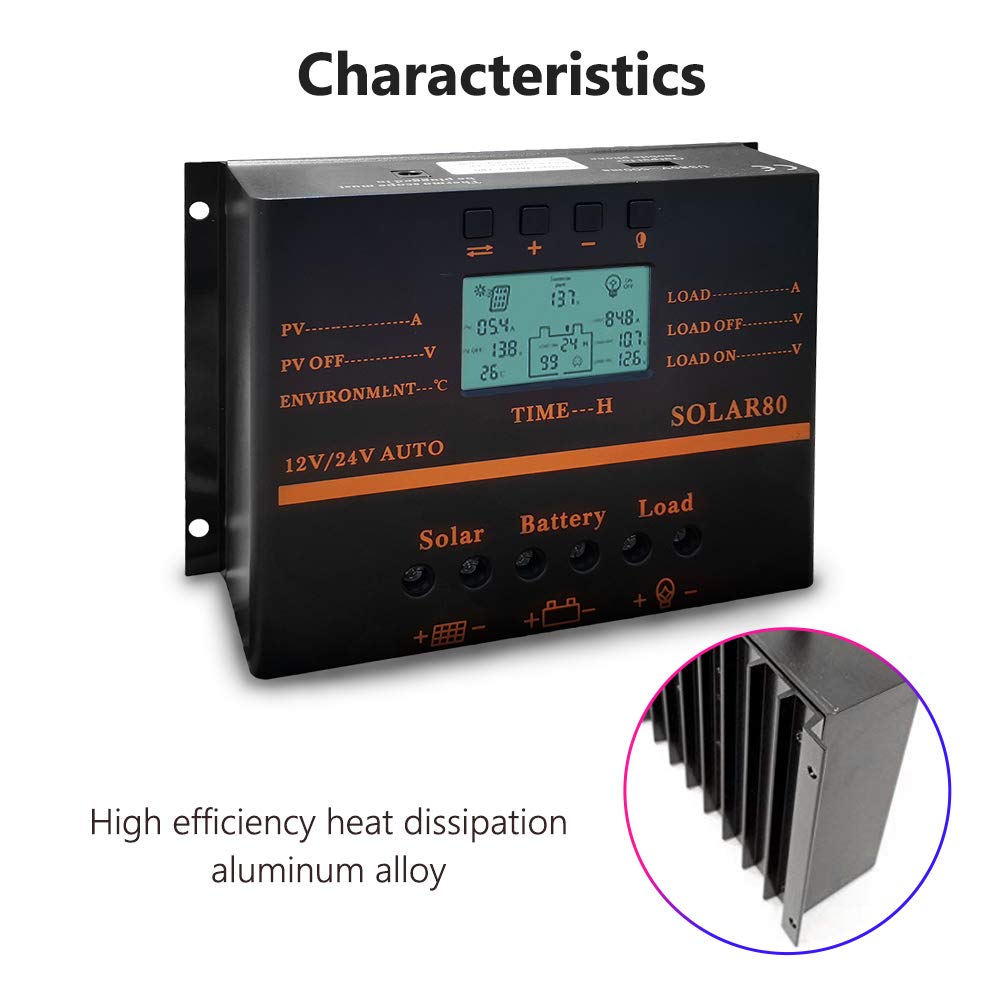

• Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In. Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is Settable

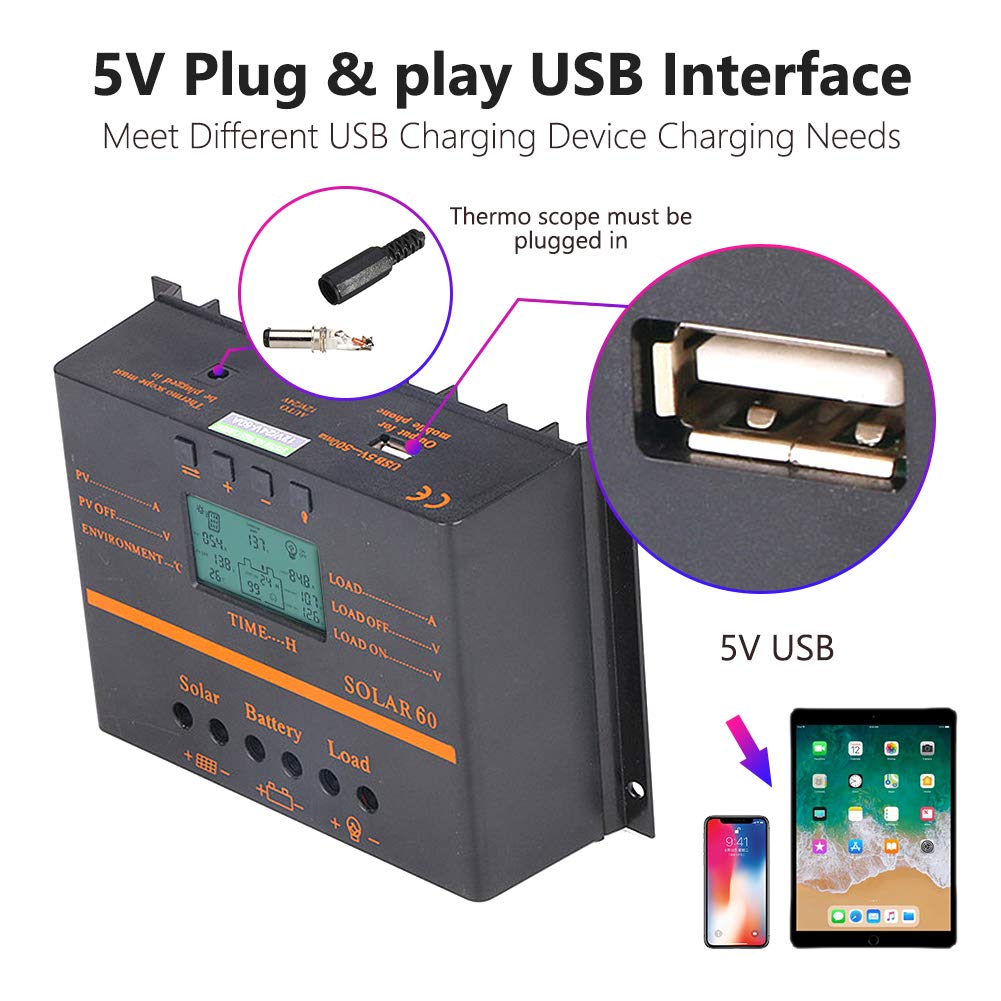

• High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output

the controller has an efficient charging system and can handle high power input reach to 1920W, this controller equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. And, it has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and is adaptable to different industries. the housing of this controller is made of superior quality ABS material that is extra durable.USB output port also equipped with this controller for electrical devices charging. Technical Parameter Model: 80A Solar Charge Controller Rated Working Current: 80 Amps Rated Working Voltage: 12V/24V DC Auto No Load Loss: <13mA Loop Voltage Drop: ≤100mV Battery Float Voltage: 13.8V(12V System)/27.6V(24V System) Battery (under voltage) Protection:10.6V(12V System)/21.2V(24V System) Battery (under voltage) Recovery Voltage:12.6V(12V System)/25.2V(24V System) Temperature Compensation: -4mv//cell Installable Max.Cable: 3AWG Working temperature: -14℉~140℉ Storage temperature: -22℉~158℉ Weight: ≤850g 1.87lb Dimension: 7.48×5.12×2.36 in Installed Dimension: 7×3.81 in
