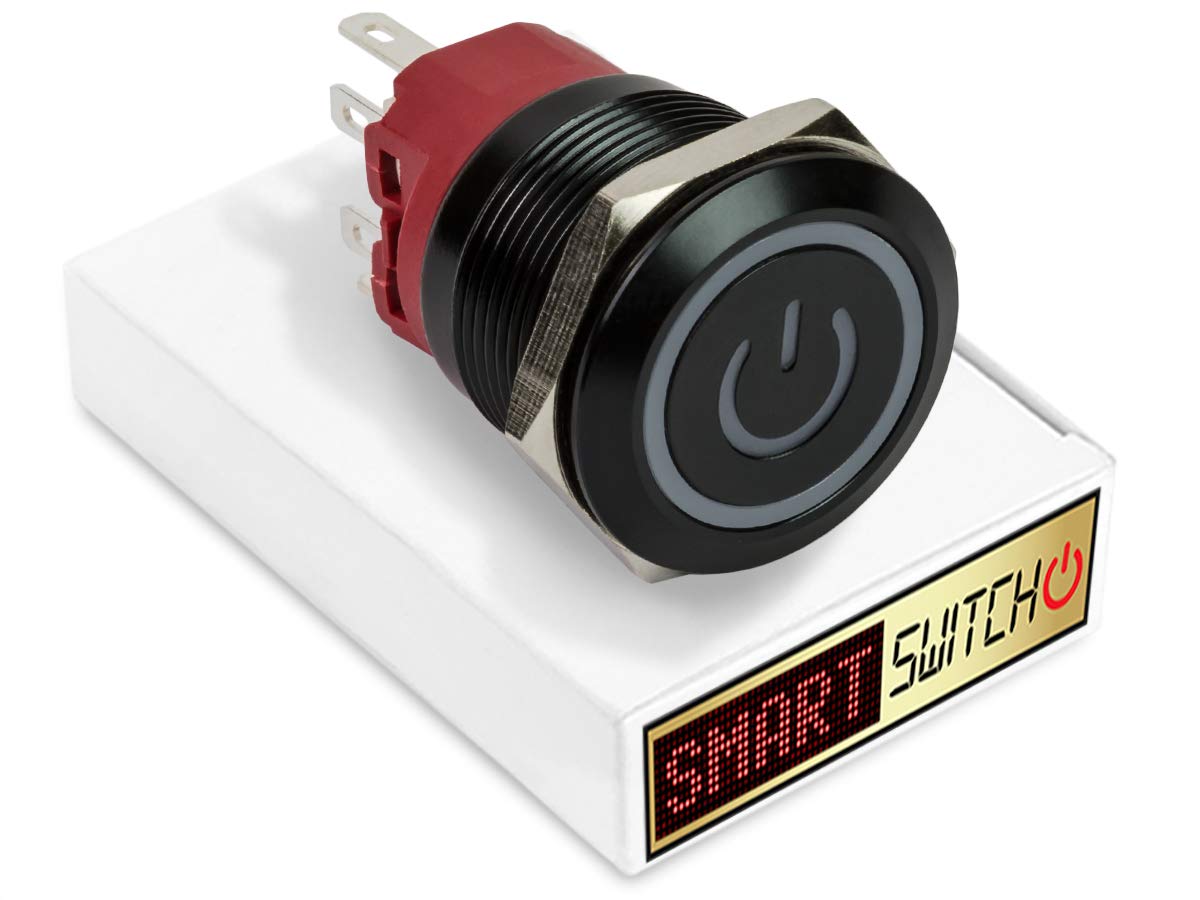

SmartSwitch 25mm Angel Eye Power Black Aluminium Latching DPDT 2NO2NC Push Button Yellow LED Metal Switch AE25

• High quality stainless steel and brass angel eye power illuminated switch with an integrated Yellow LED. Features a 25mm face diameter and 22mm mounting hole size.
• Features a latching switch mechanism to visually display the on and off position.
• High strength and high tolerance to temperature in a lightweight module ensures longevity and reliability (IP67, IK10)
• Ideal for a range of applications including for additional electronic equipment inside & outside vehicles and boats
• See description for full technical specifications.

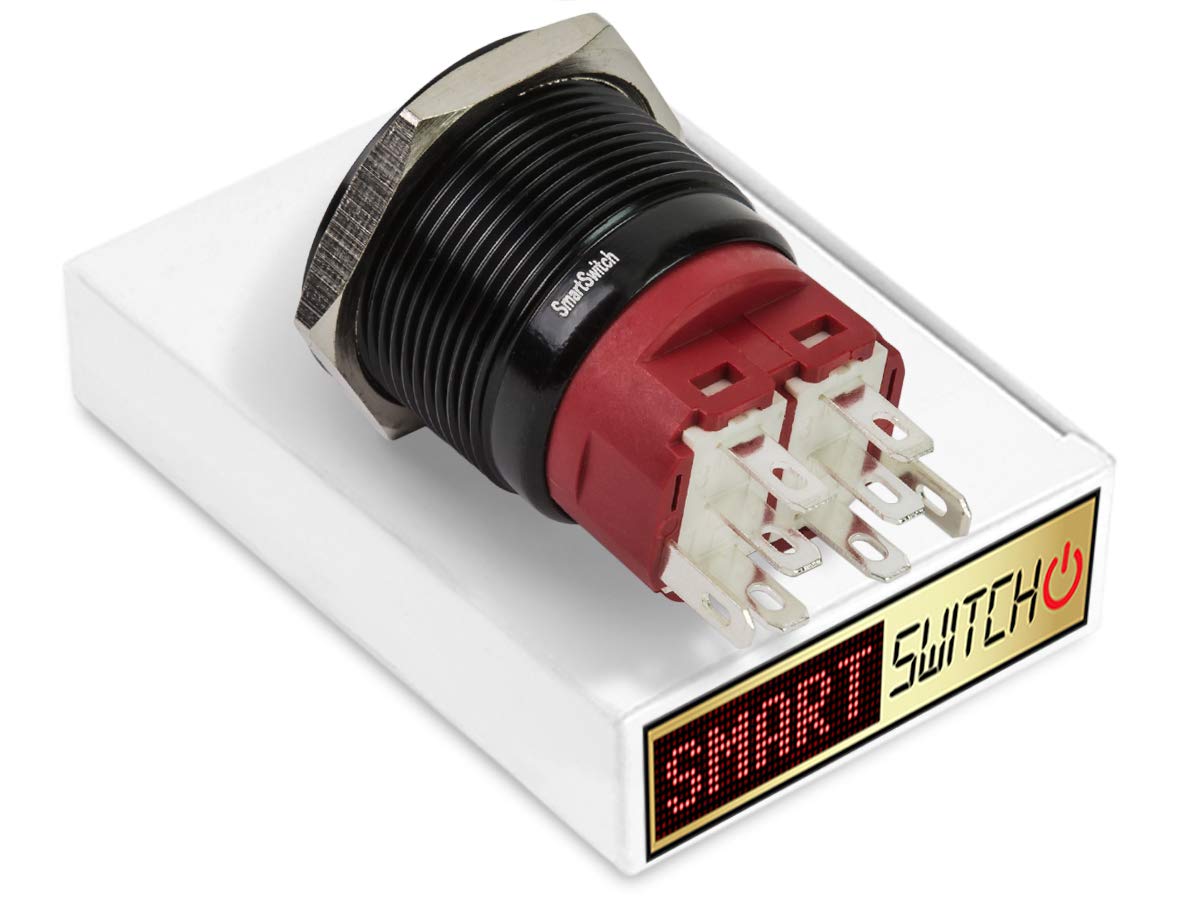

The SmartSwitch Angel Eye Power push button switch is a high quality panel mounted switch made of Stainless Steel with an integrated LED available in a selection of LED colours. Features a Latching switch mechanism to toggle on / off contacts with silver contacts,providing high strength and a high tolerance to temperature in a lightweight module, ensuring longevity and reliability. The LED can be wired independently or inline with the switch operation depending on requirements. IP67 rated for a high standard of waterproofing and IK10 for high impact protection. The switches are also tamper proof and cannot be removed without access to the rear once fixed. The double pole double throw (DPDT / 2NO2NC ) switches come with 2 inputs and 4 outputs allowing you to control upto 2 different devices with 2 operational modes. The switches can be wired or soldered directly in to your existing wires or quick-fit snap on fly leads can be supplied for easy installation and removal. Dimensions Face Diameter: 25mm Fits Hole Size: 22mm Fits Panel Thickness: 1mm to 10mm Technical Specifications Contact type: 2NO2NC Rated Voltages (DC): 6V/12V/24V Rated Voltages (AC): 100-110V/220-240V LED Operating Voltage: 5V-24V Power Rating: 5A Mechanical Life: 500,000 Cycles Electrical Life: 50,000 Cycles LED Life: 40,000 Hours Ingress Protection: IP67 (protected from dust and capable of withstanding water immersion between 15 cm and 1 meter for 30 minutes) Impact Protection: IK10 (protected against 20 joules impact, equivalent to impact of 5 kg mass dropped from 400 mm above impacted surface)
