Khadas VIM3 Amlogic A311D Hexa-core Single Board Computer wtih onboard 5.0 TOPS NPU 2GB LPDDR4 + 16G eMMC

• Faster CPU Performance---A311D big-little architecture. x4 2.2Ghz Cortex-A73 cores, paired with x2 1.8Ghz Cortex-A53 cores.
• Neural Processing Unit for A.I.---Next generation, Neural Processing Unit for A.I.---Next generation, deep-neural-network applications, at 5.0 TOPS.deep-neural-network applications, at 5.0 TOPS.
• Switchable PCIe and USB 3.0---Use the Khadas KBI to switch the "combo interface" to either the USB-3.0 port or PCIe interface.
• USB-C Power Delivery---Wide-range of power input, from 5-20V for power-hungry applications, e.g. Microphone Array and Speakers.
• Dual Independent Displays---HDMI and MIPI-DSI, with 3-axis digital accelerometer for display rotation detection.Dual Cameras---4 lane MIPI-CSI, up to 8MP ISP, with 30 Pin 0.5mm Pitch FPC Connector.

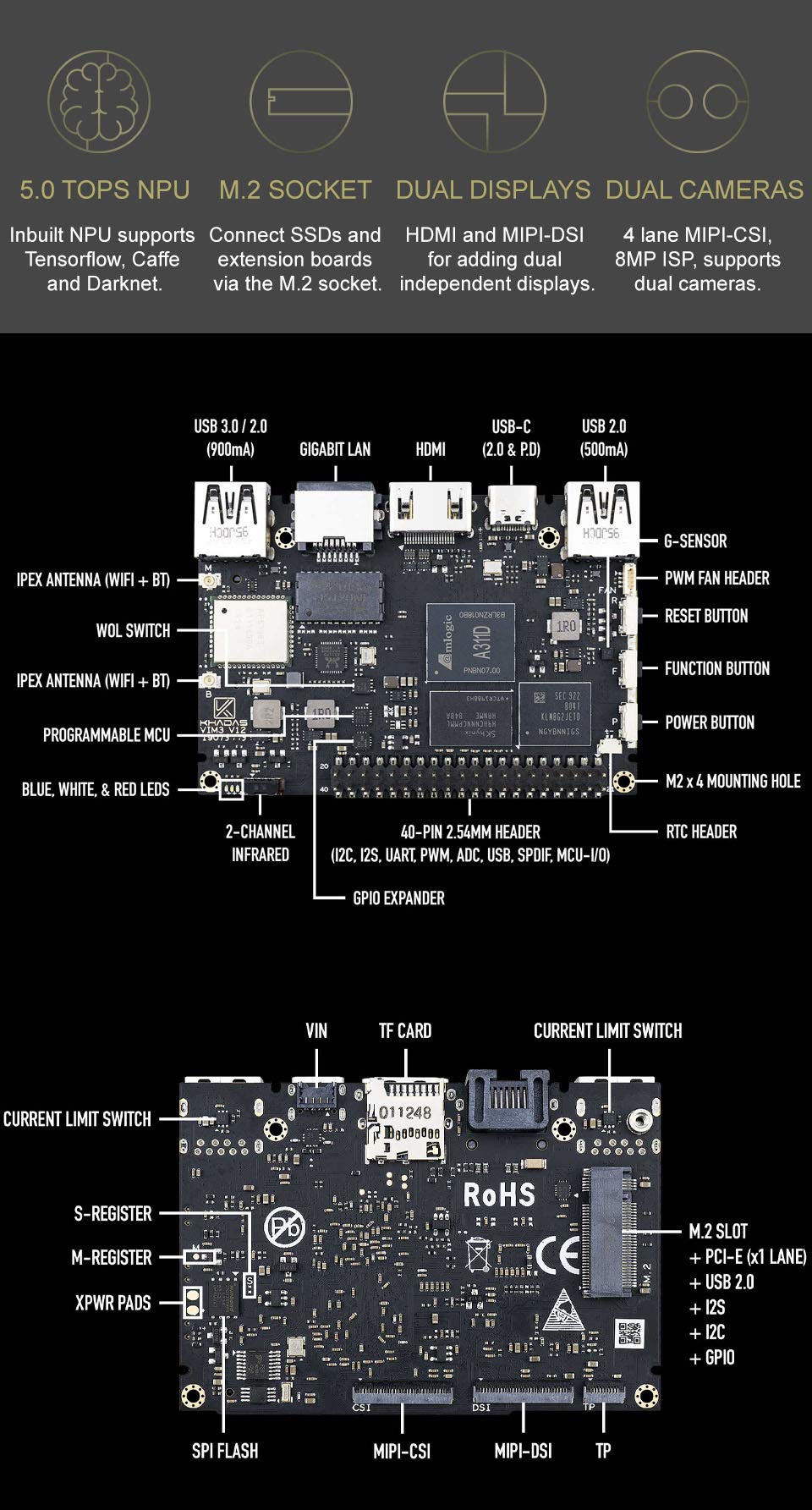

The new VIM3 SBC goes beyond what our original VIM models have to offer. It has an onboard 5.0 TOPS NPU for neural network applications,an M.2 slot for NVMe SSDs that can switch between PCle and USB 3.0 via Khadas KBI commands, and a USB-C port with 5-20 volt USB power-delivery input. Key Features: High Performance:Amlogic A311D - x4 2.2Ghz Cortex A73, x2 1.8Ghz Cortex A53 12nm SoC fabrication process for low heat 2T2R AC Wi-Fi with RSDB Features Bluetooth 5.0 USB 3.0 Available Gigabit Ethernet with WOL support LPDDR4/X USB-C PD for heavy applications NVMe SSD:M.2 Connector Neural Network Accelerator: NPU: Supports a maximum frequency of 800MHz at 5.0 TOPS INT8 inference up to 1536 MAC Internal L2 cache (512KB) and system workspace buffer (1MB) Supports all major deep learning frameworks including TensorFlow and Caffe Maker Friendly: Stackable Design Programmable MCU 3 Programmable LEDs (Blue, Red and White) XPWR for external Power button Business Applications: Dual independent displays with GSensor H.264 / H.265 Encoding Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps VIN Power Input Rich IO: 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc) 8-ch I2S for Microphone Array application (over M.2 Connector) MIPI-DSI MIPI-CSI Designed with GPIO Extender Chip -In the Box- 1x VIM3 2G RAM+16G eMMC Board 1x 3705 Cooling Fan 1x VIM3 Heatsink 1x 18W QC Power Adapter 1x Type-C Cable -Technical Support- Wiki: https://youyeetoo.com/blog/khadas-vim3-amlogic-a311d-50-tops-npu-aivi0034-vi0035-39 -Tech team- monica@smartfire.cn Skype: monica_9122
