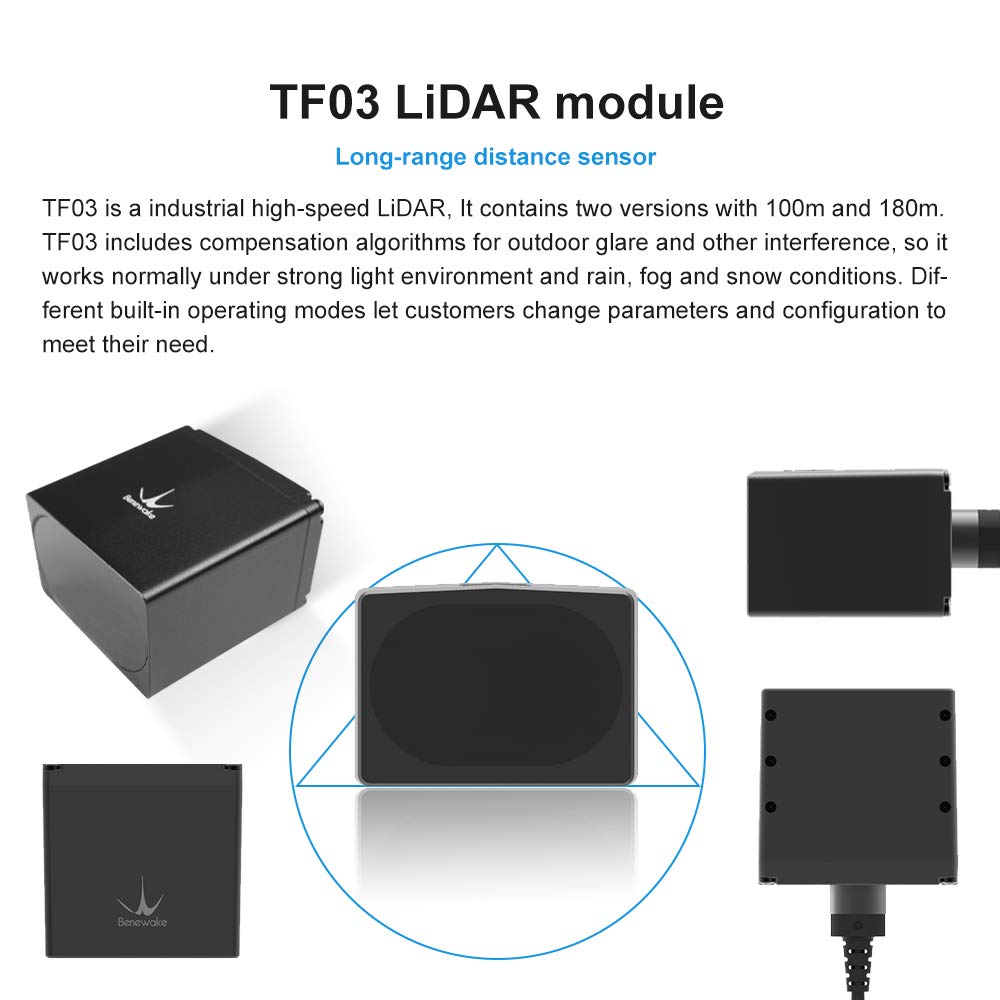

SmartFly info TF03-100 Industrial High-speed Lidar Sensor IP67 100m Long-Range Distance Single-Point Ranging Finder Module UART / I2C Compatible with Pixhawk and Raspberry Pi for drone/robot Outdoor

• [High Accuracy] TF03-100 's accuracy can reach up to 1% at full range distance,increasing the measurement frequency to 1000Hz. The dead zone is shortened to 10 cm improving accuracy and stability. Ambient light immunity is 100Klux and central wavelength is 905nm,but it only keep 77g at weight
• [Excellent Outdoor Performance] TF03-100 is a industrial high-speed LiDAR with a range of up to 100m and Ambient light immunity up to 100Klux. TF03-100 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light outdoor environment

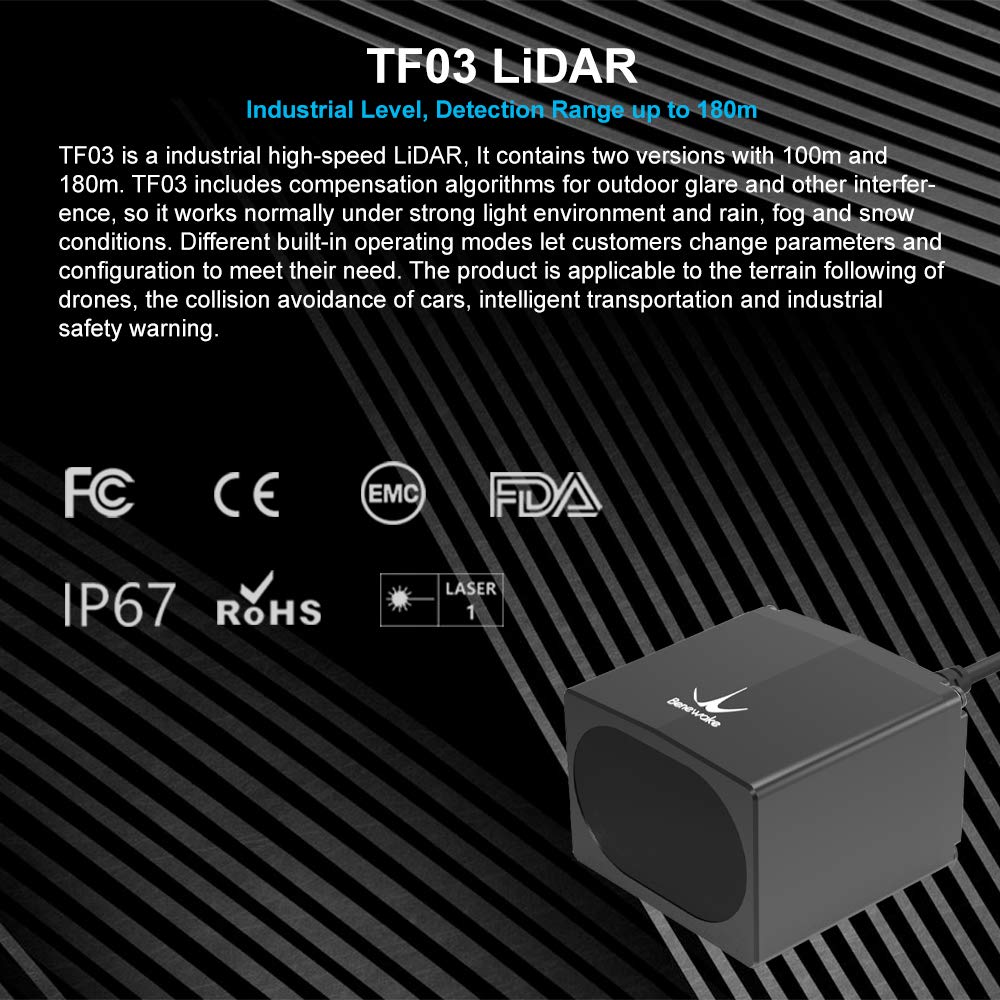

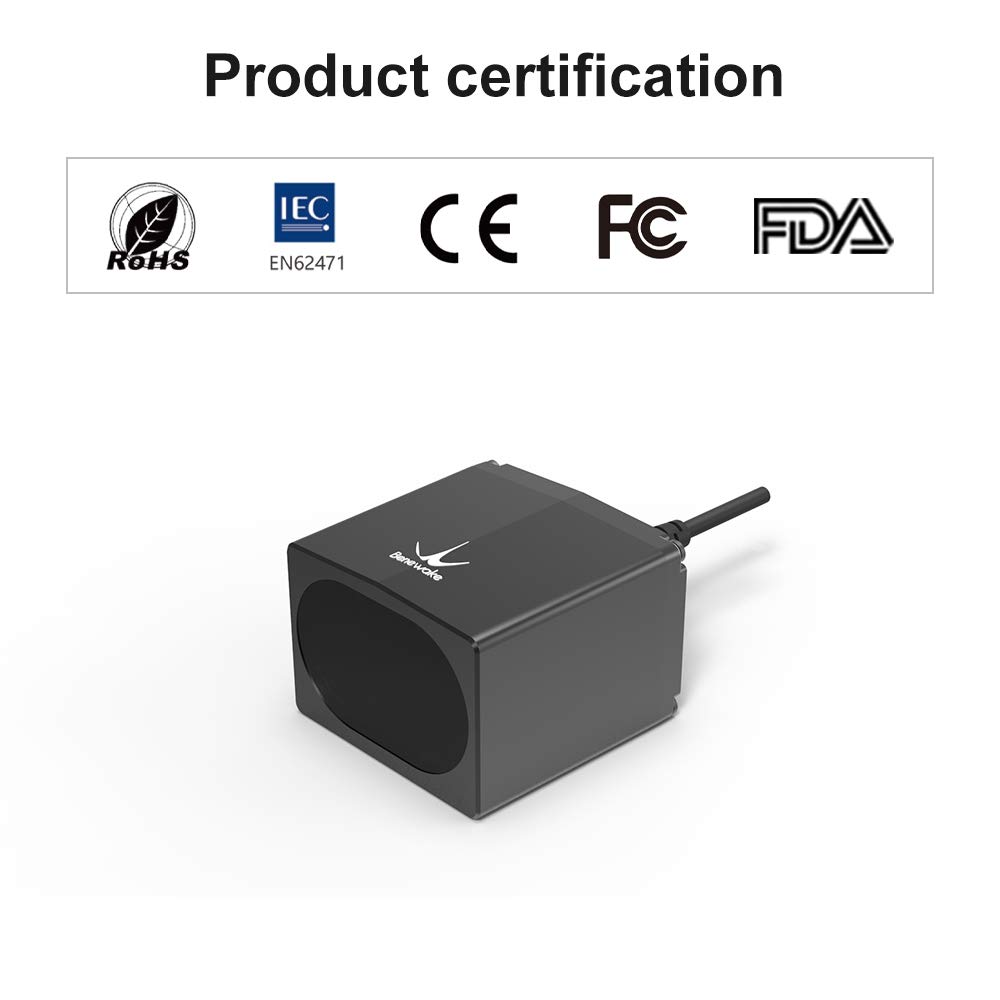

• [Waterproof and Dustproof,Safe and Stable] TF03-100 has been designed with IP67 enclosures, and also passed the vibration test of drone level, which will greatly expand its application range. Also it's compliant with CE,RoHs,and FCC certification
• [Wide Application] Traffic Monitoring,Obstacle detection,Level measurement,Smart device Security and obstacle avoidance,Drone altitude holding and terrain following,Machine control and safety sensors,Distance measuring instrument
• Any technical issues after purchase please click on "WayPonDEV Tech" at the page and ask a question

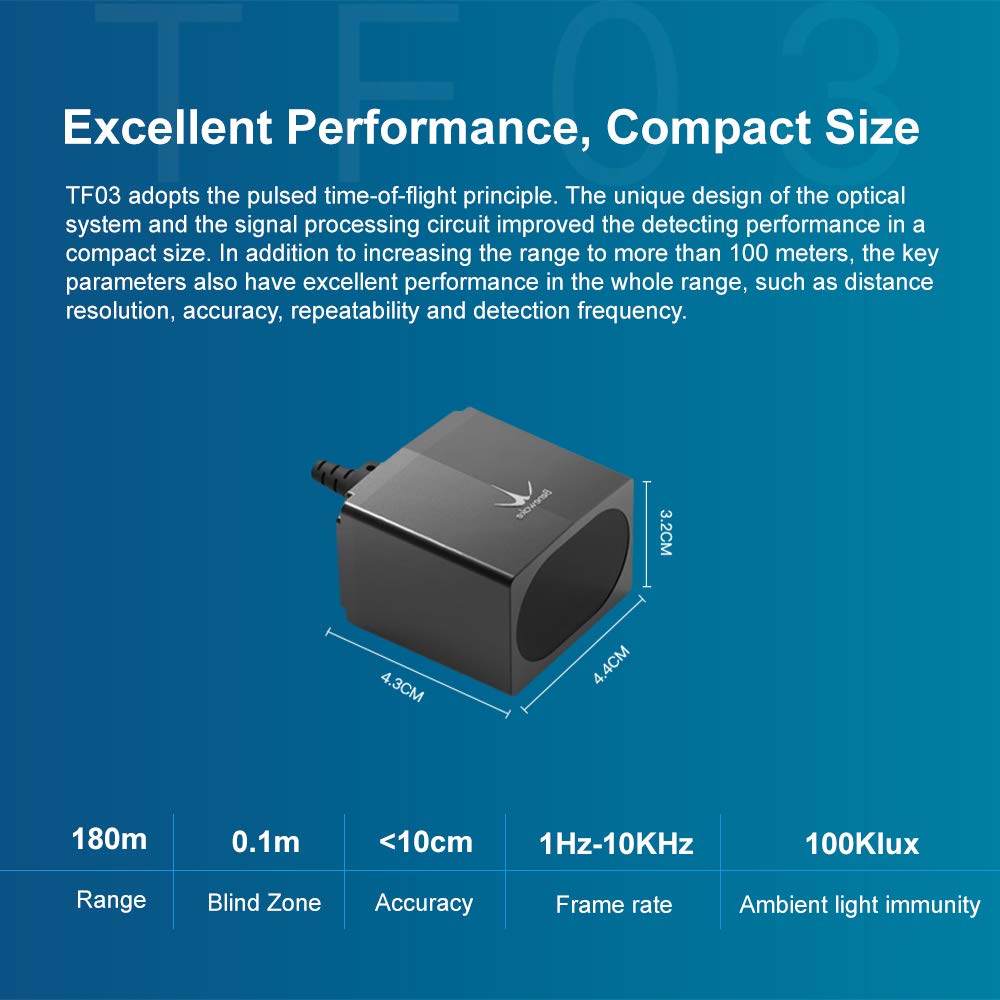

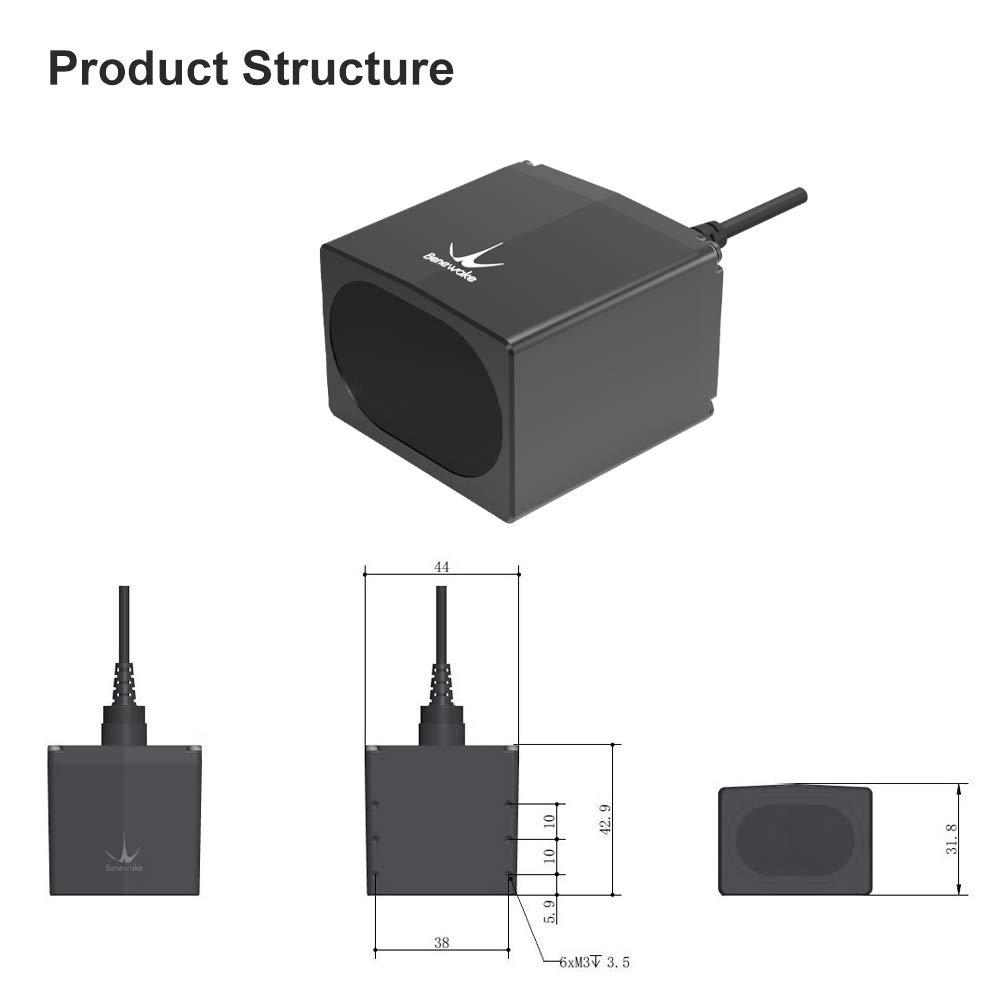

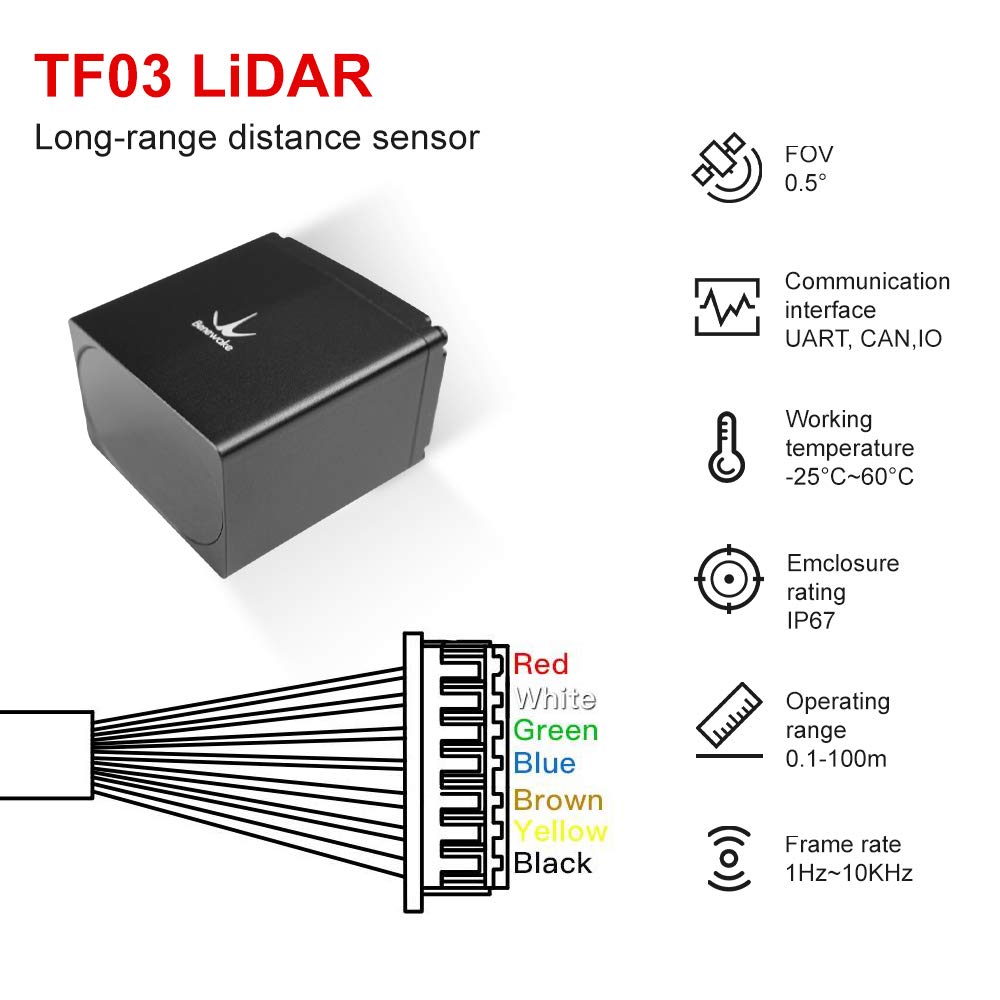

-Specification- Ambient light immunity: 100Klux Accuracy: ±10cm (within 10m), 1% (10m and further) Measurement unit:cm Range resolution: 1cm FOV: 0.5° Frame rate: 1~1000Hz(Fefault setting is 100Hz ) Supply voltage: DC 5V±0.5V Average current/Peak current: ≤180mA Power Consumption: ≤0.9W Communication level: LVTTL(3.3V) Communication interface: UART / RS485 / IO Default baud rate: 115200 (Adjustable,9600~921600bps) Output format: Serial port/Pixhawk/IO/CAN (Default: Serial port) Enclosure rating: IP67 Data bit: 8 Stop bit: 1 Parity check: None Light source:VCSEL Wavelength:905nm Operating temperature : -20°C~60°C Certification:CE,FCC,ROHS -Others- Dimensions: 44mm*43mm*32mm(L*W*H) Weight: 77g（with cables） Enclosure material: PC/ABS Storage temperature: -40~85℃ Cable length: 70cm -Major Applications- Traffic Monitoring Obstacle detection Level measurement Smart device -Package Content- 1 X TF03-100 LiDAR Module with Cable ( Standard version supports TTL serial port and CAN interface) Q:How to know whether a Lidar can be used under sunlight or not? A：With Ambient Light Immunity≤70Klux, lidar can only be used indoor and outdoor without sunlight like these short-range lidars TF-Luna, TFmini-s and TFmini Plus With Ambient Light Immunity＞70Klux,lidar can work normally under strong light environment like medium-range lidar TF02-Pro and long-r
