SmartFly info TF-Luna Lidar Sensor 0.1-8m Short-Range Distance Single-Point Ranging Finder Module UART / I2C Compatible with Pixhawk,Arduino and Raspberry Pi for Drone/Robot Obstacle Avoidance

• [Single-point Ranging LiDAR] TF-Luna is a single-point ranging LiDAR, based on TOF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement
• [Low Power Consumption] Power Consumption of TF-Luna is lower than 0.35W，suitable for battery-powered or low power consumption scenarios

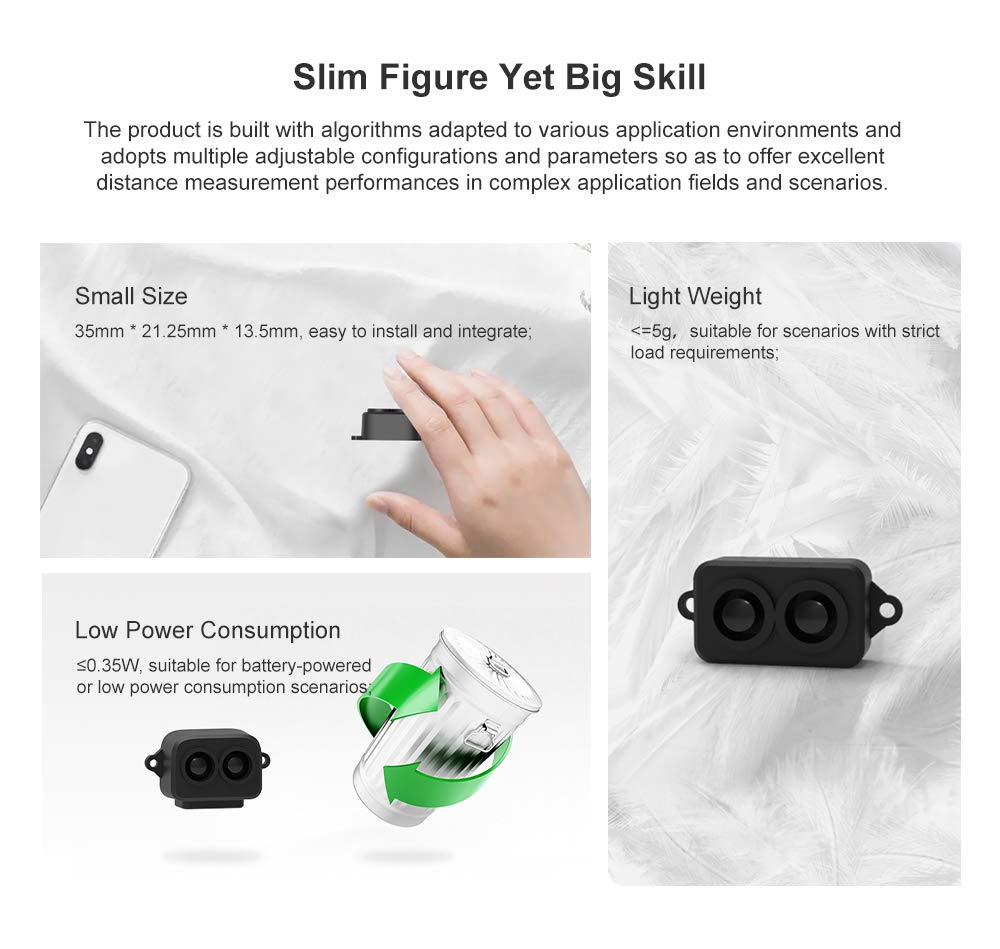

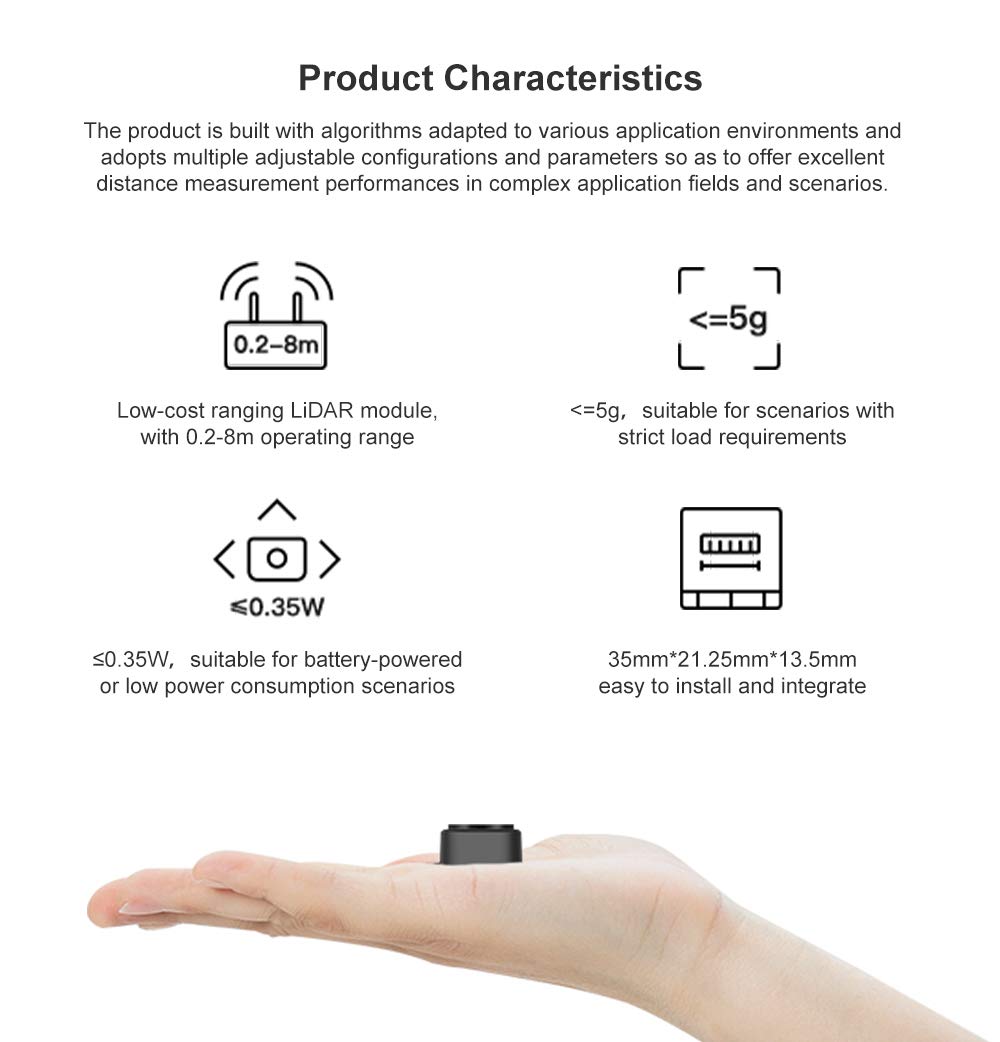

• [Slim Figure Yet Big Skill] easy to install and integrate with 35mm * 21.25mm * 13.5mm in size,it's 5g at weight which is suitable for scenarios with strict load requirements
• [Wide Application] Pedestrian detection, vehicle detection, intelligent barrier gate and altimeter,robot fall detection/Anti-Fall,Drones Obstacle Avoidance and Altitude Hold Mode, Obstacle Avoidance,Traffic Statistics, Vehicle Crash Warning
• Any technical issues after purchase please click on "SmartFly Tech" at the page and ask a question

Operating range: 0.2m~8m(90%reflectivity) Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m) Measurement unit:cm Range resolution: 1cm FOV: 2° Frame rate: 1~250Hz(Default setting is 100Hz ) Supply voltage: 5V±0.1V Average current: ≤70mA Peak current: 150mA Average power: 350mW Communication level: LVTTL(3.3V) Communication interface: UART/IIC Default baud rate: 115200 Data bit: 8 Stop bit: 1 Parity check: None Light source:VCSEL Wavelength:850nm Operating temperature : -20°C~75°C Certification:CE,FCC,ROHS Hardware Spec: Size: 35mm*21.25mm*13.5mm (L*W*H) Housing material: ABS+PC Storage temperature: -20C~75C Weight: ＜5g -Major Applications- Traffic Monitoring Obstacle detection Level measurement Smart device -Package Content- 1 X TF-Luna LiDAR Module FAQ Q1: Is TF-Luna available with 3.3V or other power supply voltage? A1: Sorry, it is not available for the time being. The Standard power supply of TF-Luna is 5V±0.1V. If you have any further requirement, please contact our sales person to consult a customization design matter. Q2: TF-Luna will heat up after operating for a while. Is it broken? A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case.
