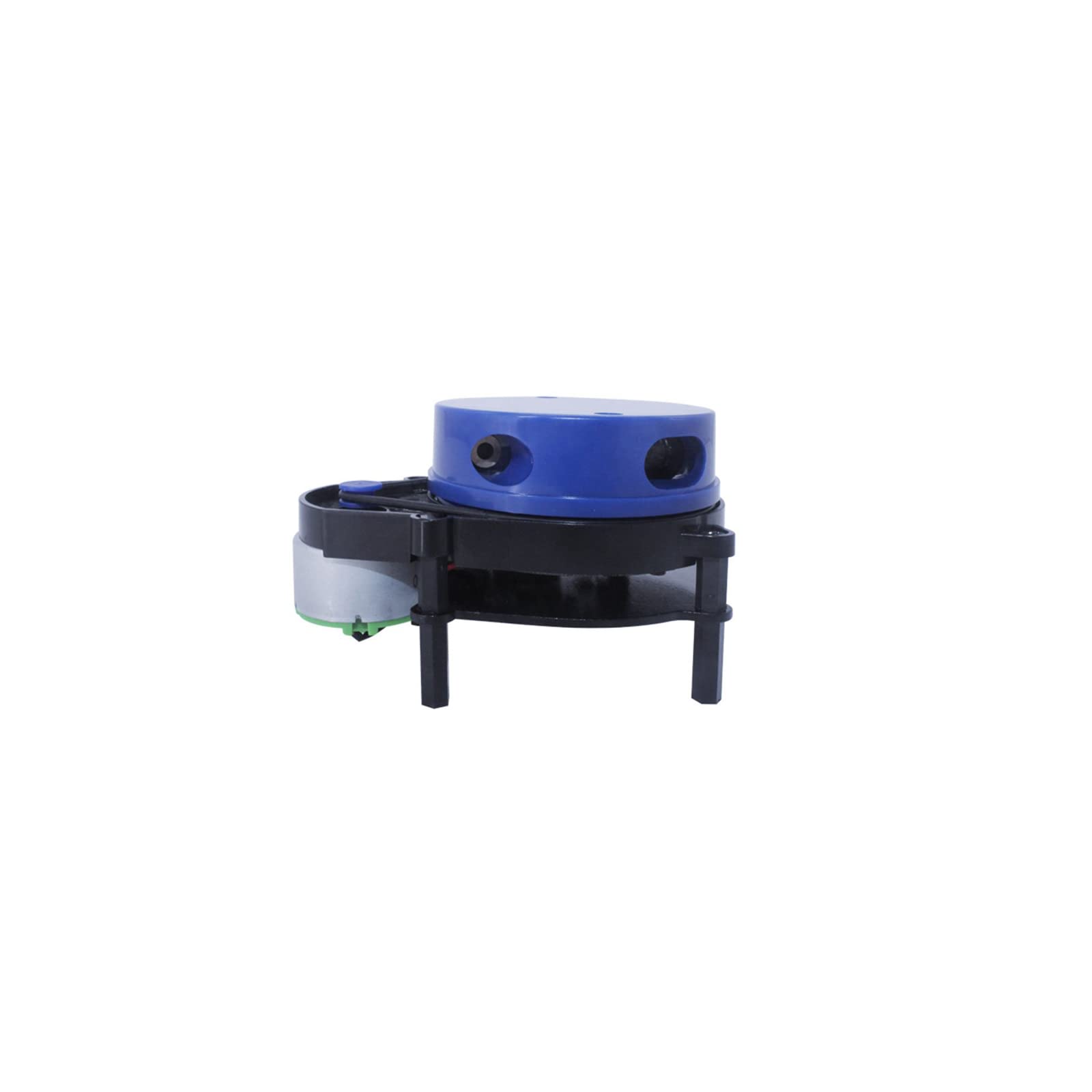

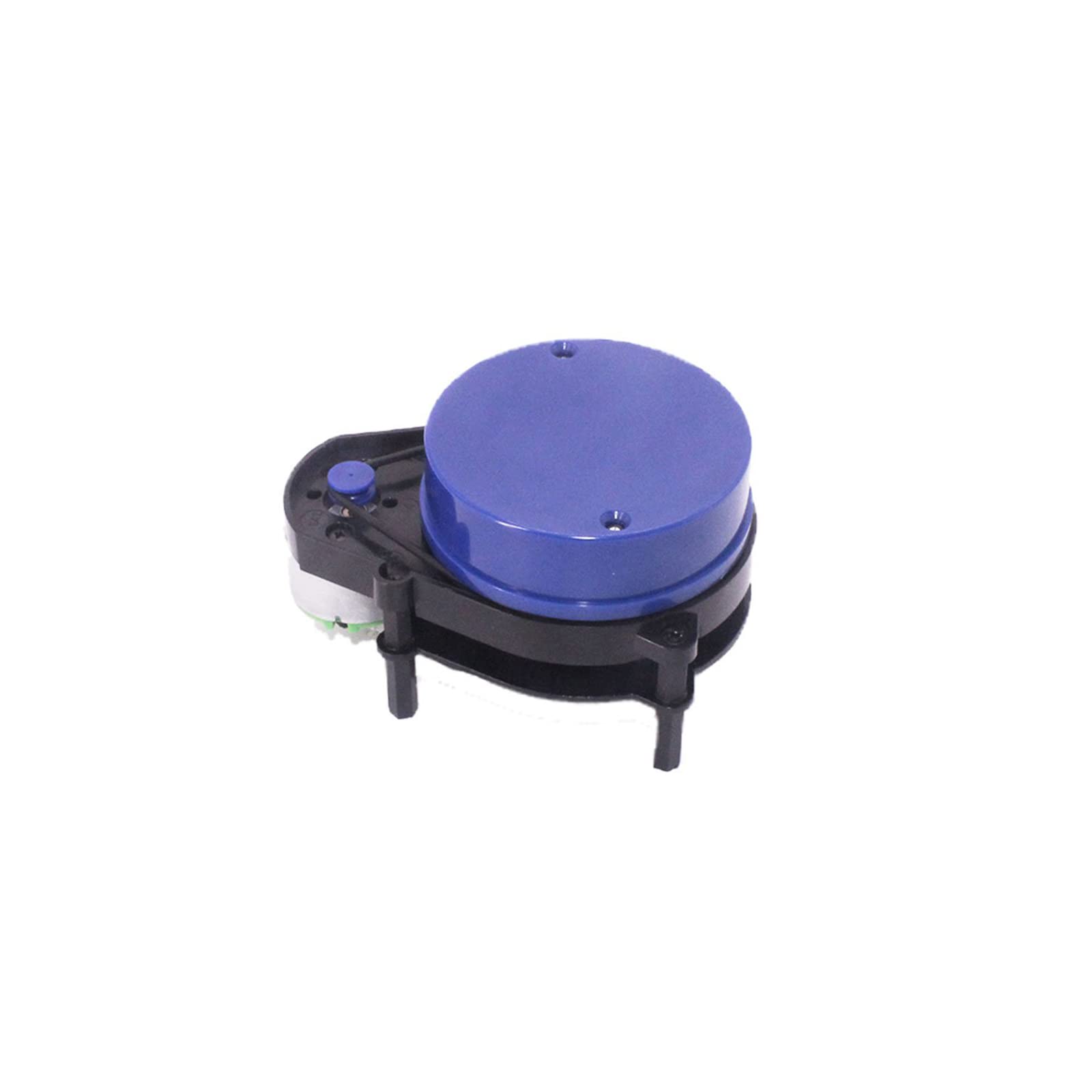

SmartFly info LIDAR-053 EAI YDLIDAR X4 LIDAR Laser Radar Scanner Ranging Sensor Module 10m 5k Ranging Frequency EAI YDLIDAR-X4

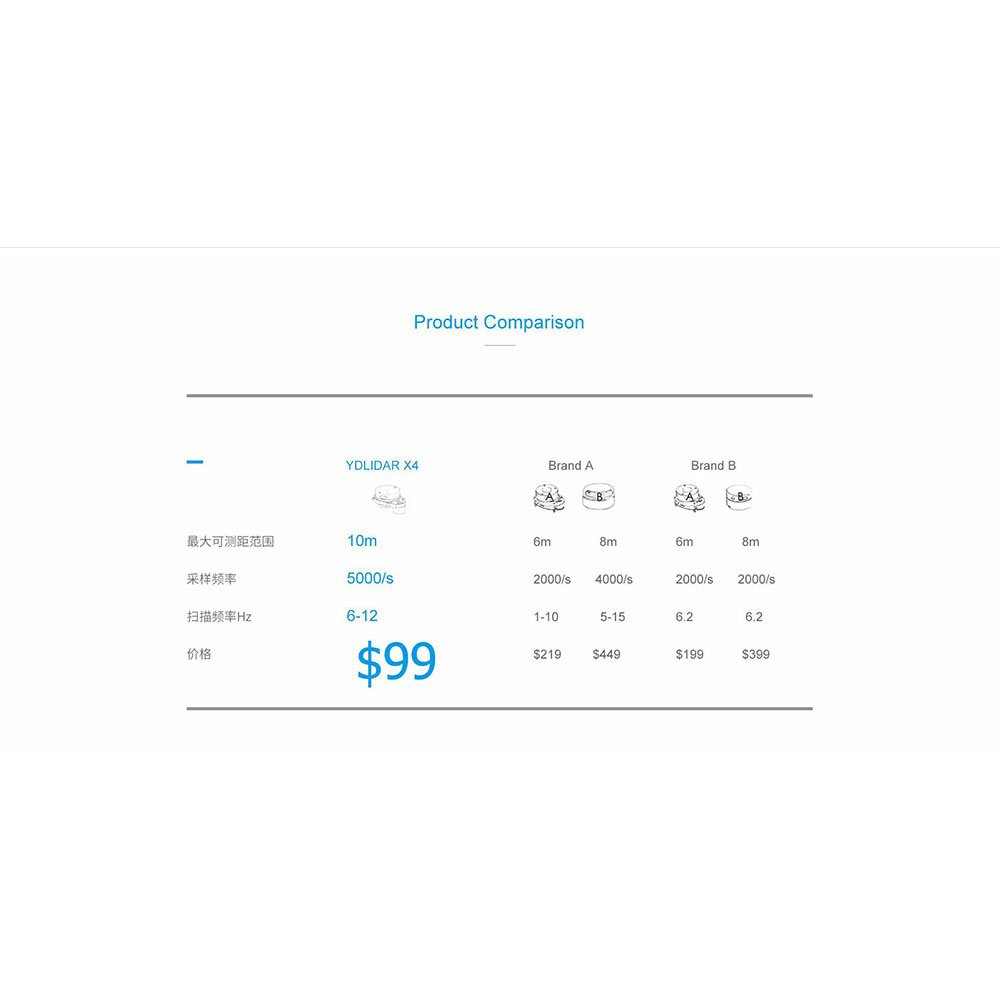

• [High Accurracy] Scan Frequency 6-12Hz,Range Frequency：5000Hz,Range Distance：0.12-10m based on the Based on reflectivity of objects
• [360-degree two-dimensional rangefinder] The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging
• [Safety Standard] X4 is compliant with FDA Class 1 laser safety standard, which is safe to human eyes, thus guarantees the safety of children or pets
• [Widly Application] Robot navigation and obstacle avoidance, Robot ROS teaching and research , Regional security, Environmental scanning and 3D reconstruction Commercial robot /Robot vacuum cleaner
• [Wiki] You can find more docs by using the document code LD0001 via the link:https://www.youyeetoo.com/blog/ydlidar-x4-lidar-laser-radar-ld0001-21Any technical issues after purchase please contact with our tech-support team: support@smartfire.cn. Or click "SmartFly Tech" and ask a question

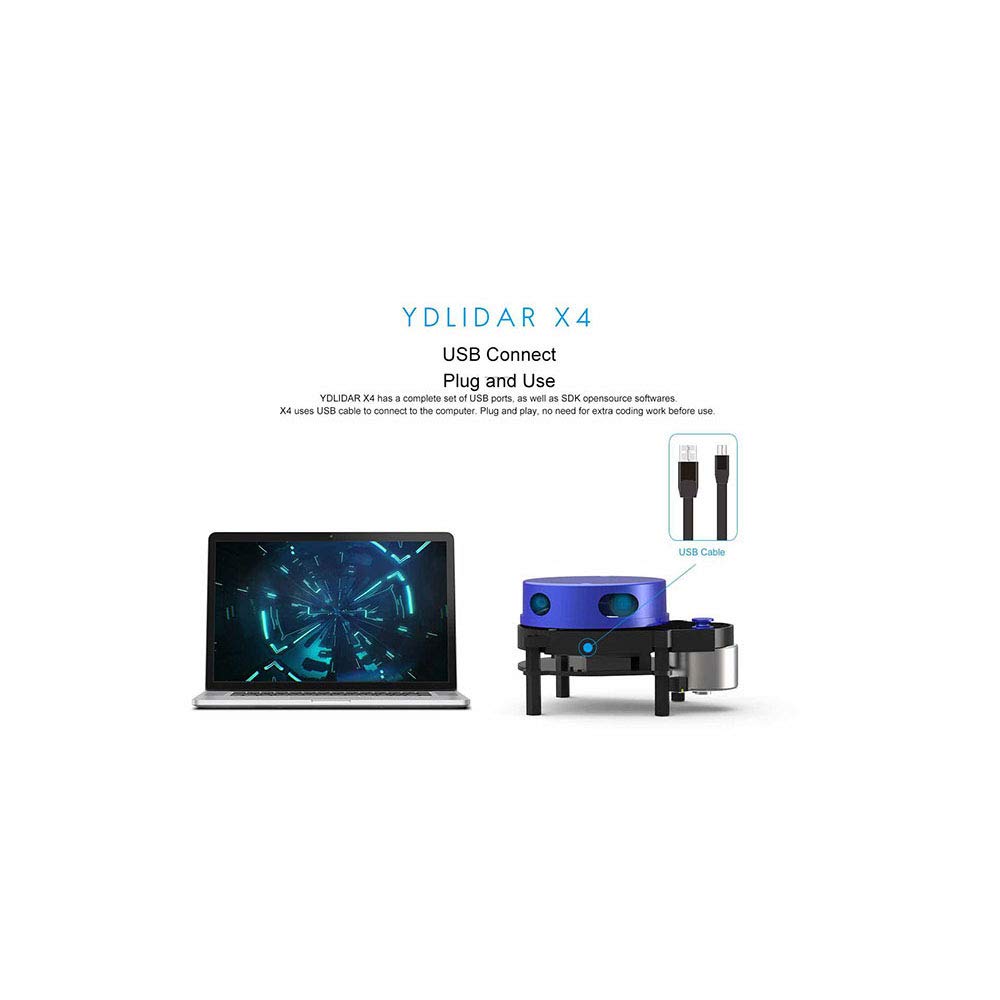

-Windows Guide- To evaluate and develop the YDLIDAR under Windows, you need to install the serial port driver of the USB adapter board. Note: The drive current of the USB interface of some development platforms or PCs is weak, and the Lidar needs to access the +5V auxiliary power supply, otherwise it will work abnormally. -Performance characteristics- Application field: Indoor Light source: Infrared (785nm) angle:360° Accuracy: Full range＜2% Noise:＜35db Range finder frequency:5000 times/S Scanning frequency:7Hz(Adjustable) Angular resolution:0.63° Measuring distance:0.12m - 10m Laser grade:class 1 Interface UART:LVTTL Level standard Support scan frequency adjustable:yes Support low power:yesMechanical / electronic parameters Electrical connection: 8 pin PH2.5 Connector working voltage:5V500MA Power waste:1.5W (Start peak2.5W) Shell color:black and blue weight:193g size:102mm*66mm*52mm -Environmental parameters- Working environment temperature:0~40° Storage temperature range:0~70 Development support Linux drive:yes drive:yes -Package Content- 1x YDLIDAR X4 1x USB Micro Cable 1x USB Adapter board 1x PH2.0-8P Pin Cable -Techical Support- www.youyeetoo.com/blog/ydlidar-x4-lidar-laser-radar-ld0001-21 technical team: monica#youyeetoo.com
