SmartFly info Banana Pi BPI M2 Berry Dual core Mali 400 MP2 GPU 1G LPDDR3 Open-source Development Board, Same Size as Raspberry Pi 3, Ship with Powerful Accessories

• CPU: Allwinner 32 Bit Quad Core ARM Cortex A7 1.2 GHz; GPU: Dual core Mali 400 MP2 GPU
• RAM: 1GB DDR3 SDRAM (Shared with GPU);Storage: MicroSD slot supports up to 64GB expansion. SATA port with minipc power
• USB Ports: USB 2.0 PORT (x4), USB OTG (x1); Network: 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth BT4.0 ; PCB Dimension: 92 x 60 mm
• Power Source: Micro USB (OTG) 5V 2A ; OS: Android and Linux etc.;GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O

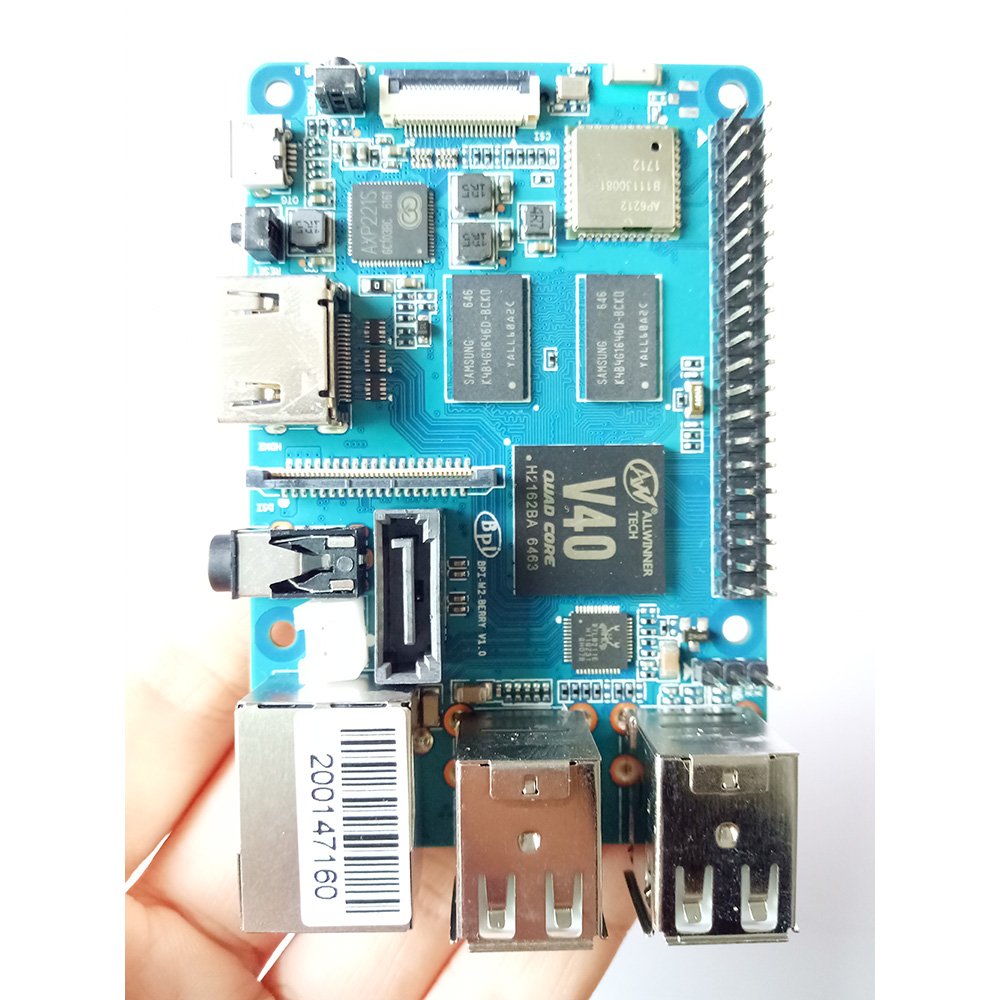

• Banana PI BPI-M2 Berry is the open source hardware platform, Banana PI BPI-M2 Berry is a quad-core cortex -A7 CPU ,use Allwinner R40 design, it support WIFI+BT on board.and support SATA interface on board.

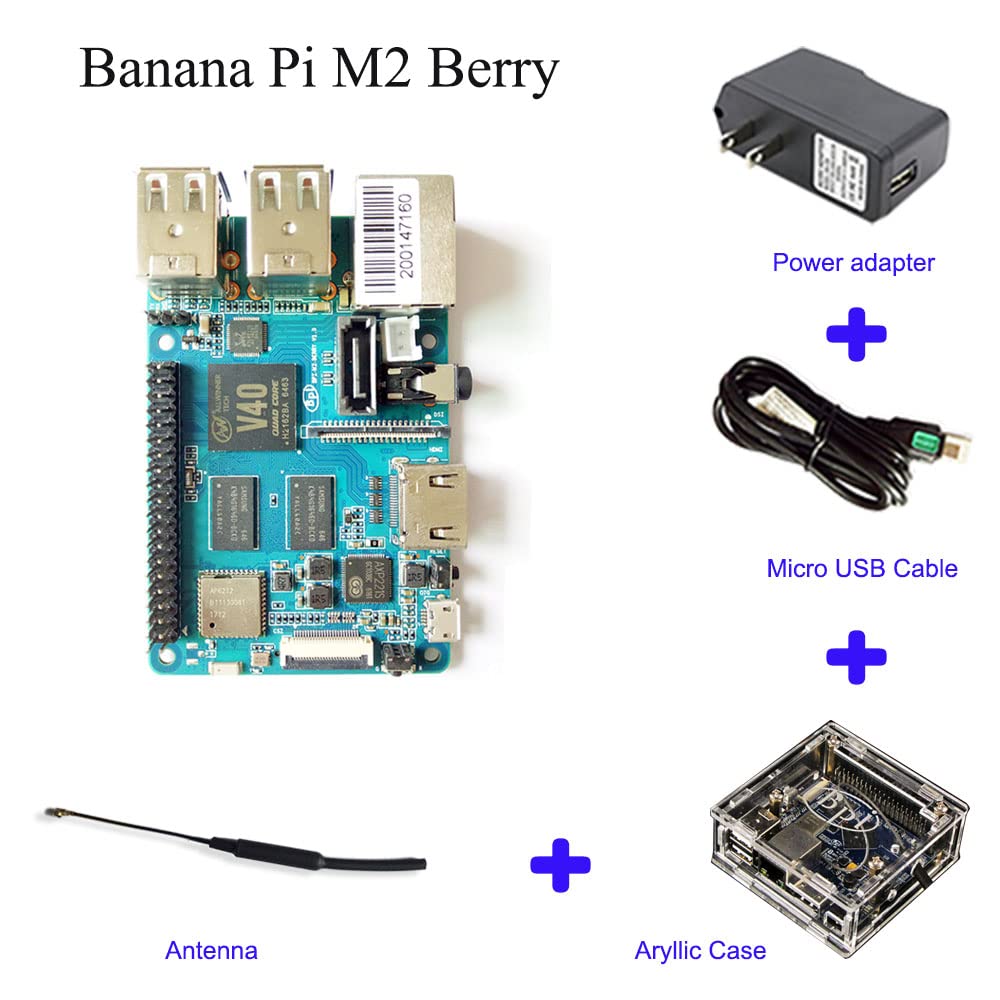

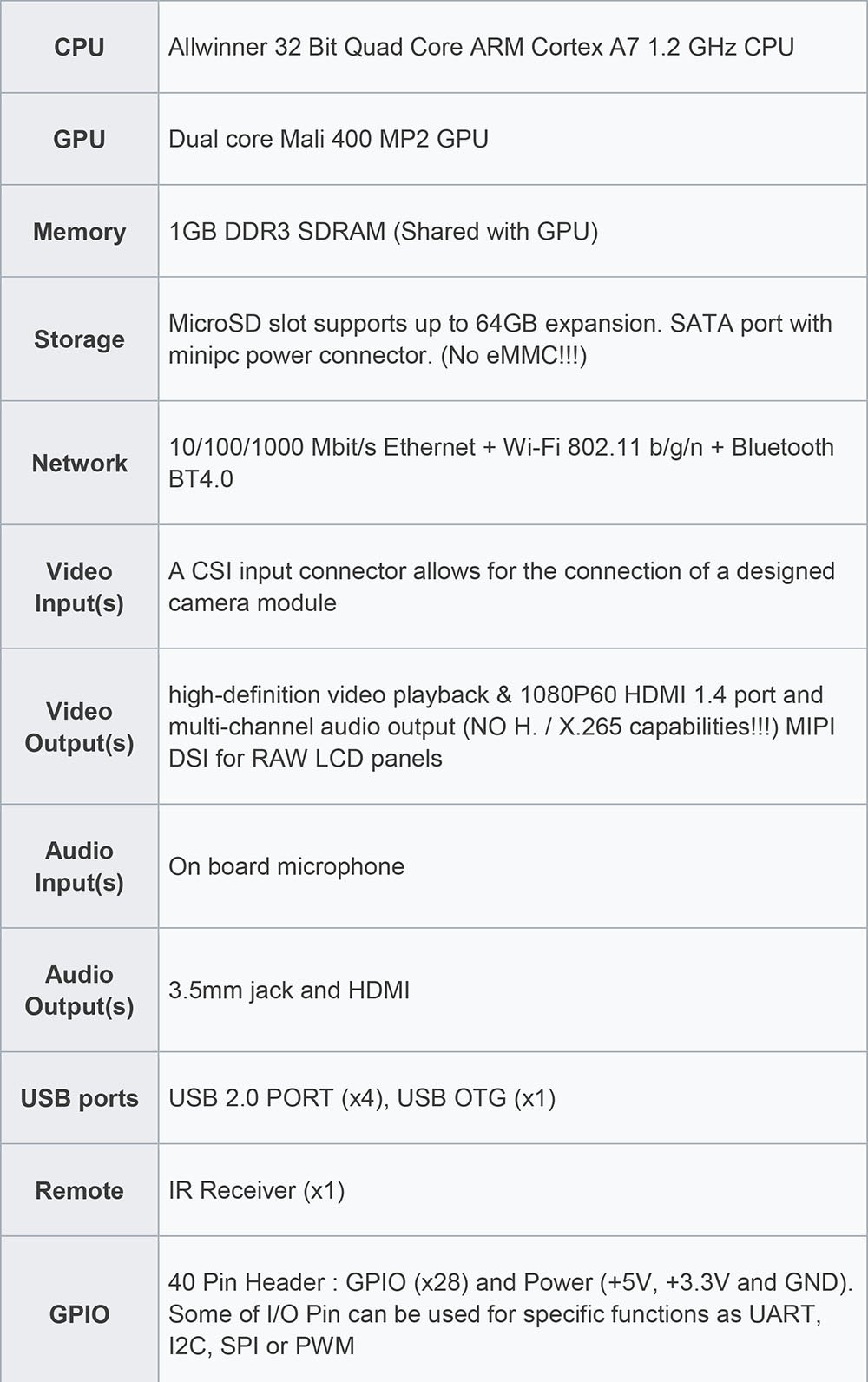

Banana Pi BPI-M2 Berry series run Android, Debian linux, Ubuntu linux,Raspbian system and other OS. Features: CPU: Allwinner 32 Bit Quad Core ARM Cortex A7 1.2 GHz CPU GPU: Dual core Mali 400 MP2 GPU RAM: 1GB DDR3 SDRAM (Shared with GPU) Storage: MicroSD slot supports up to 64GB expansion. SATA port with minipc power USB Ports: USB 2.0 PORT (x4), USB OTG (x1) Network: 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth BT4.0 PCB Dimension: 92 x 60 mm Power Source: Micro USB (OTG) 5V 2A OS: Android and Linux etc. Shipping list: Banana Pi BPI M2 Berry demo board x1 Micro USB Cable x1 Power adapter x1 Arylic Case x1 Antenna x1 Technical Support: Wiki: https://en.wikipedia.org/wiki/Banana_Pi#Banana_Pi_M2_Berry Resource: http://www.bananapi.com/product/detail_1.html Forum: http://www.bananapi.com/bbs/ Expert Support: firefly@ smartfire.cn Skype: smartfire_cn Product Customization: firefly@ smartfire.cn
