SmartFly info ASUS Tinker Edge T Linux Mini SBC Features Onboard ML Accelerator Google Edge TPU and Optimized for TensorFlow Lite Models

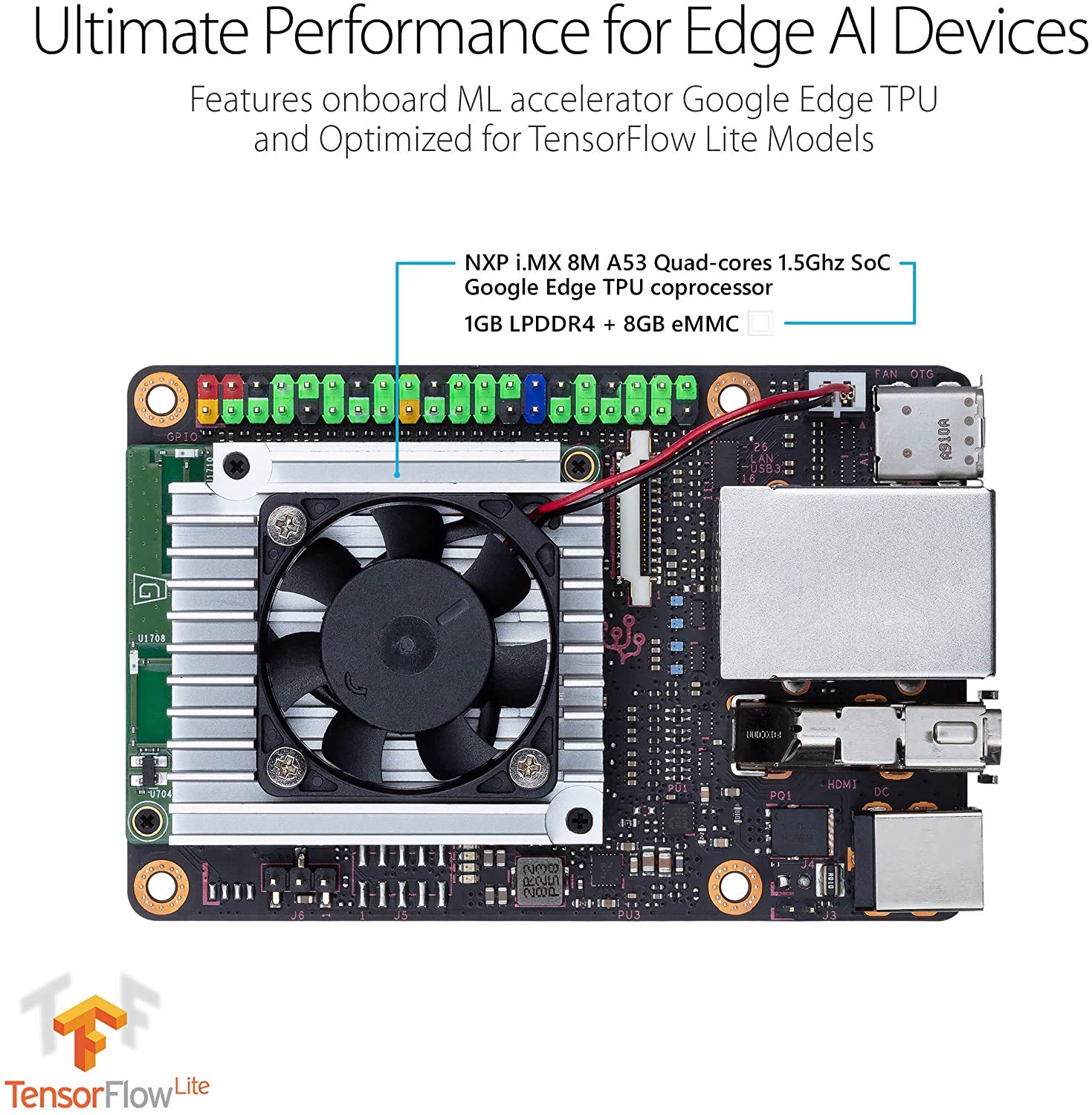

• Ultimate Performance for Edge AI Devices: Features onboard ML accelerator Google Edge TPU and Optimized for TensorFlow Lite Models
• NXP i.MX 8M processor: With its powerful and modern quad-core ARM-based NXP i.MX 8M processor, Tinker Edge T offers a powerful solution for graphics, machine vision, video, audio, voice and safety-critical applications

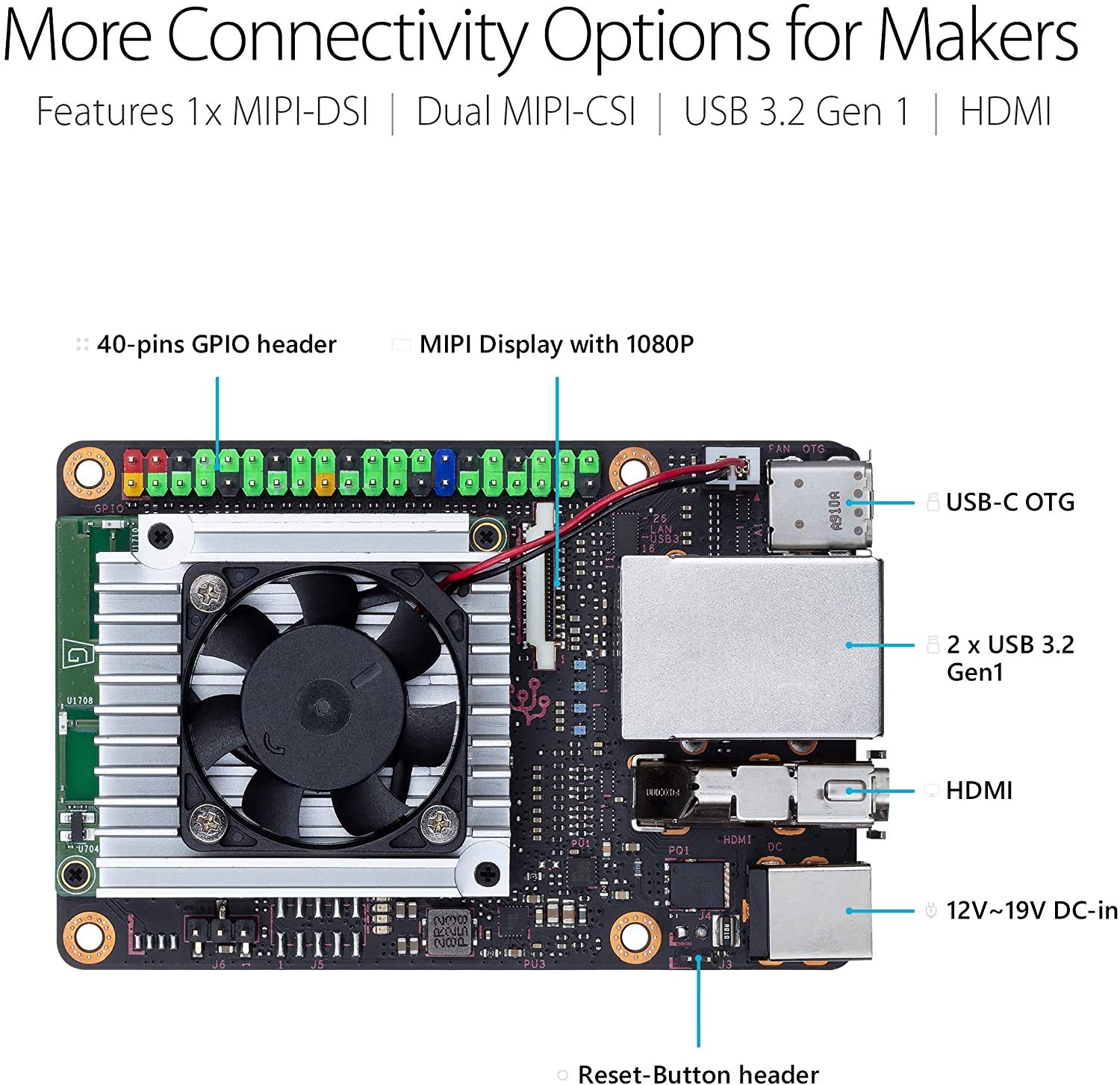

• More Connectivity Options for Makers: Tinker Edge T features a rich I/O interface, including one MIPI-DSI connection for displays and touch screens, and two MIPI-CSI connections for compatible cameras to enable computer vision for applications such as depth measurement, smart vending machine and interactive advertising
• CE,RHoS,FCC Certification Compliant: ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU
• WIKI: https://youyeetoo.com/blog/asus-tinker-edge-t-b0051.html. Any technical issues after purchase please contact with our tech-support team: support@smartfire.cn. Or click "SmartFly info" and ask a question. Package Content: Tinker Edge Tx1; Metallic backplate wth screw set x1; Quick start guide x1; Shielding bag x1

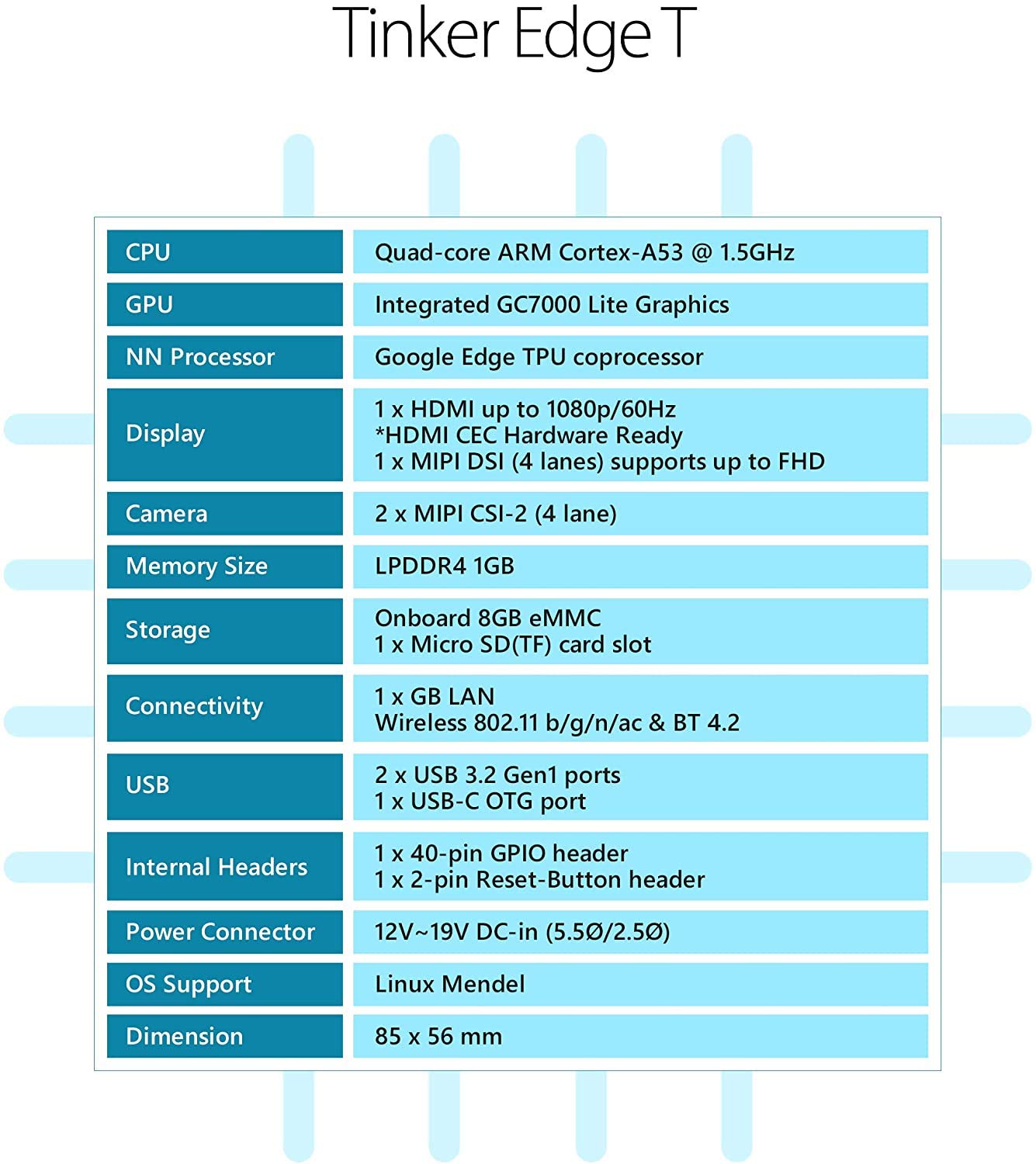

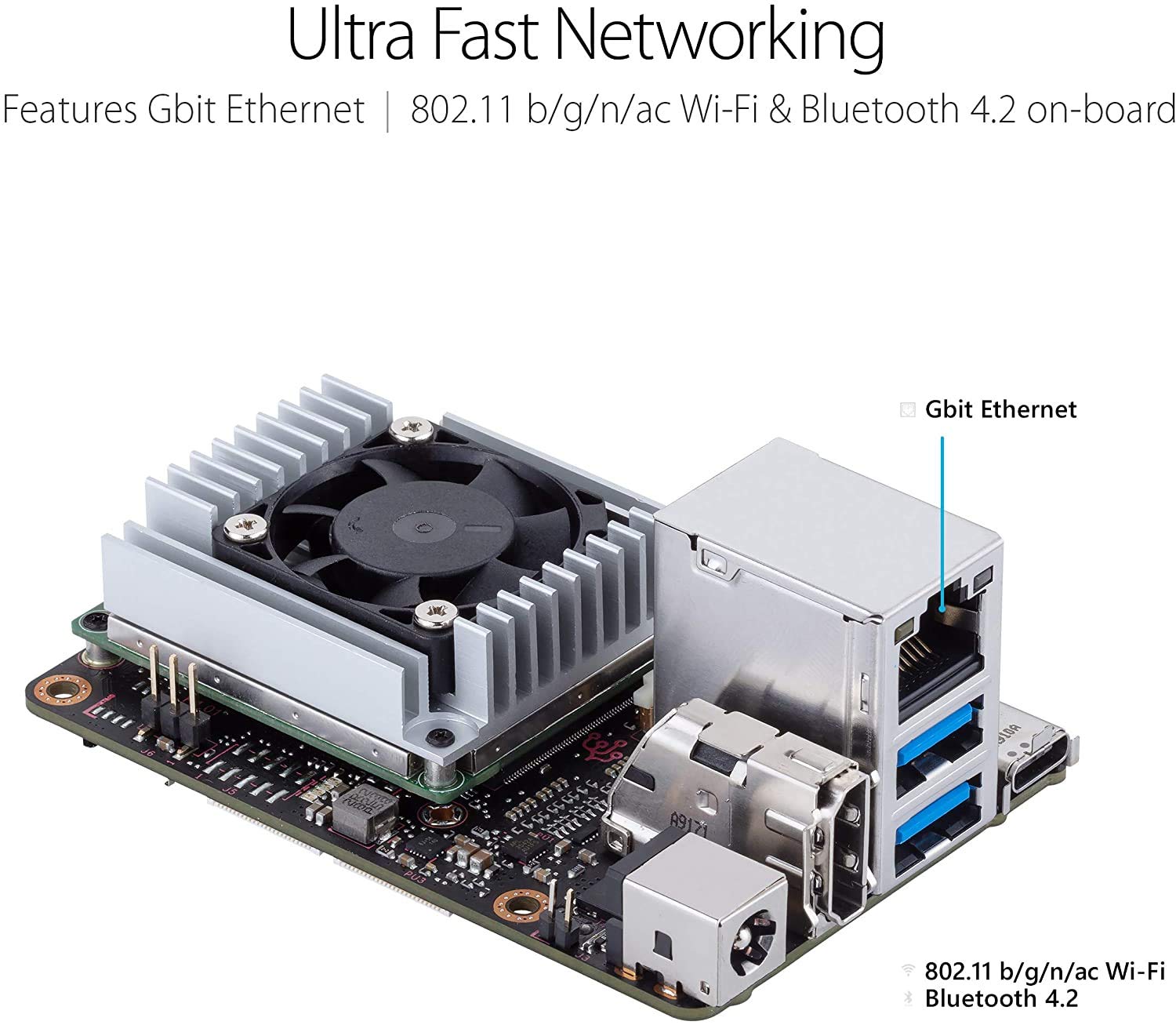

-Overview- CPU: Quad-core ARM Cortex-A53 @ 1.5GHz GPU: Integrated GC7000 Lite Graphics NN Processor: Google Edge TPU coprocessor Display: 1 x HDMI up to 1080p/60Hz HDMI CEC Hardware Ready 1x MIPI DSI (4 lanes) supports up to FHD Camera: 2 x MIPI CSI-2 (4 lane) Memory Size: LPDDR4 1GB Storage: Onboard 8GB eMMC 1 x Micro SD(TF) card slot Connectivity: 1x GB LAN Wireless 802.11 b/g/n/ac & BT 4.2 USB: 2 x USB 3.2 Gen1 ports 1 x USB-C OTG port Internal Headers: 1 x 40-pin GPIO header; 1 x 2-pin Reset-Button header Power Connector: 12V~19V DC-in (5.50/2.50) OS Support: Linux Mendel Dimension: 85x56 mm -Technical Support- https://youyeetoo.com/blog/asus-tinker-edge-t-b0051.html Tech-team : monica@smartfire.cn Skype: monica_9122 Product Customization : monica@smartfire.cn
