Sliding Gate Components: Track, Stop, Guide & Double Bearing Wheel (Medium Guide Bracket)

• Gate Tracks: (Bolt-on Track & Under-ground Gate Track)-Two Options Available
• Wheel: (Exterior & Interior Bracket Wheel)-Two Options Available

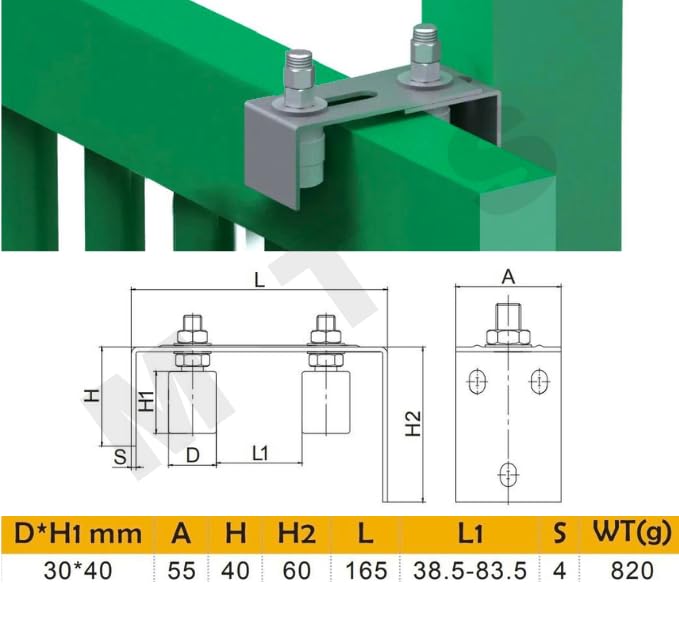

• Guide Bracket: (Medium, Large Guide Brackets)-Two Options Available
• Gate Stop
• End Stop

1. Gate Track (Two options are available) Bolt on Gate Tracks 1m/3m Length (within 3mm tolerance) Suitable for R10 U-Groove Wheel Galvanised Steel Underground Gate Track 1m Length (within 3mm tolerance) Suitable for R10 U-Groove Wheel Galvanised Steel 2. Wheels (Two options are available) Exterior Bracket Wheel R10 U-Groove Wheel External Mounting Bracket Double Bearing Wheel (Max Weight 300KG each) Wheel Diameter 78mm Interior Bracket Wheel R10 U-Groove Wheel Interior Mounting Bracket Double Bearing Wheel (Max Weight 300KG each) Wheel Diameter 88mm 3. Guide Bracket (Two options are available) Medium Guide Bracket Suitable for gate with thickness/depth 38.5mm-83.5mm Large Guide Bracket Suitable for gate with thickness/depth 10mm-85mm 4. Gate Stop (One options is available) Suitable for gate with thickness/depth up to 75mm 5. End Stop (One option is available) Bracket with rubber stop 5. What is not included Fixings are not included This is not a kit but individual component
