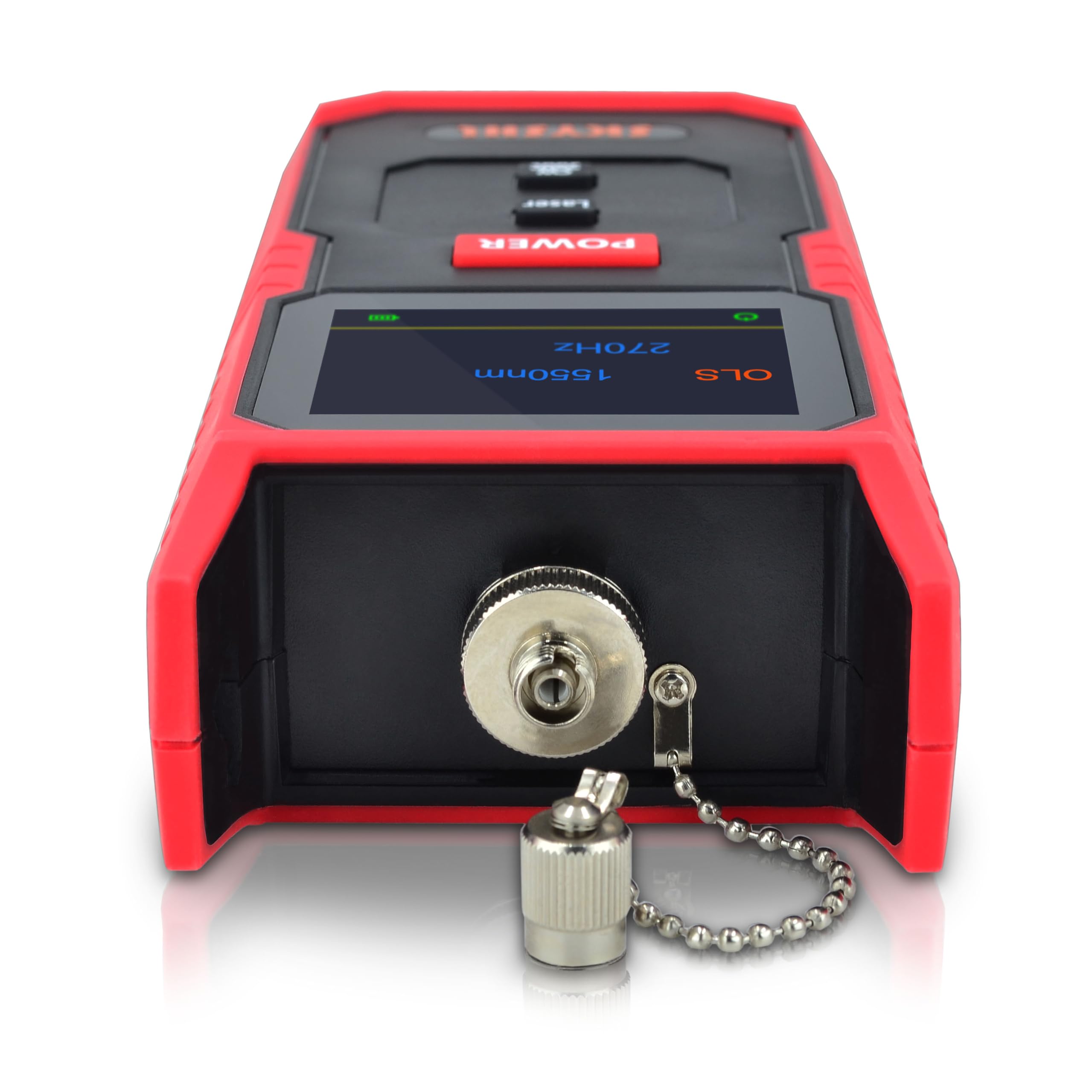

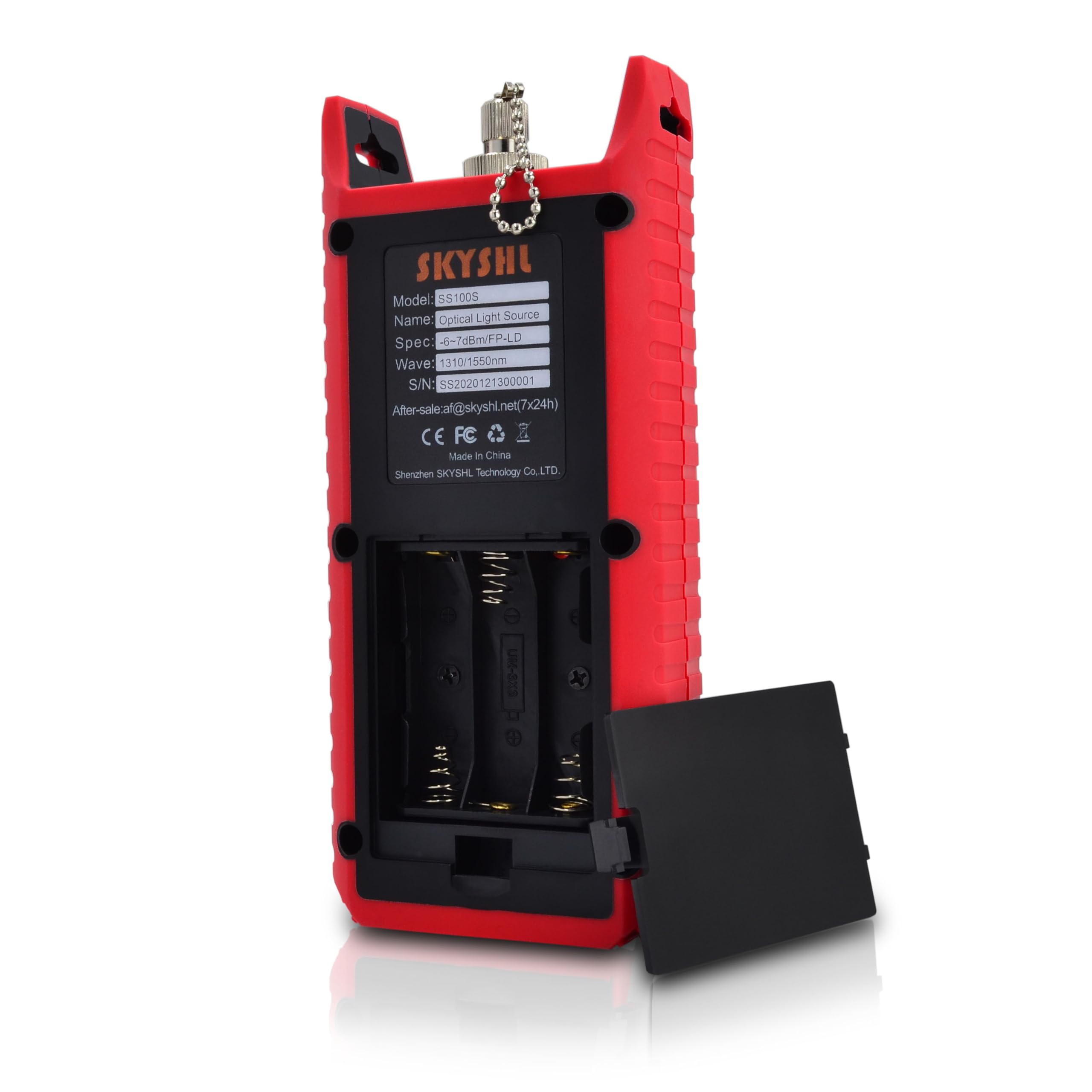

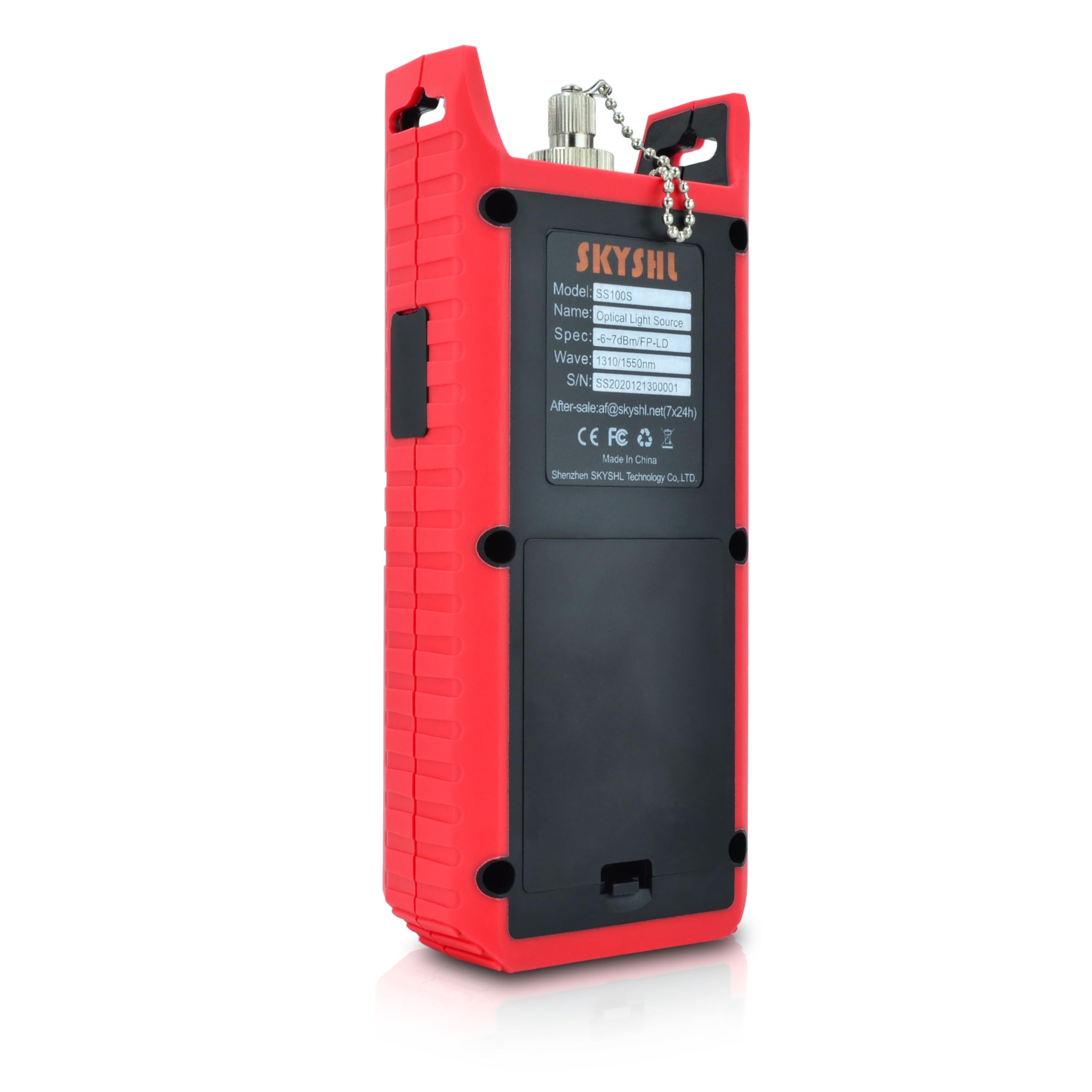

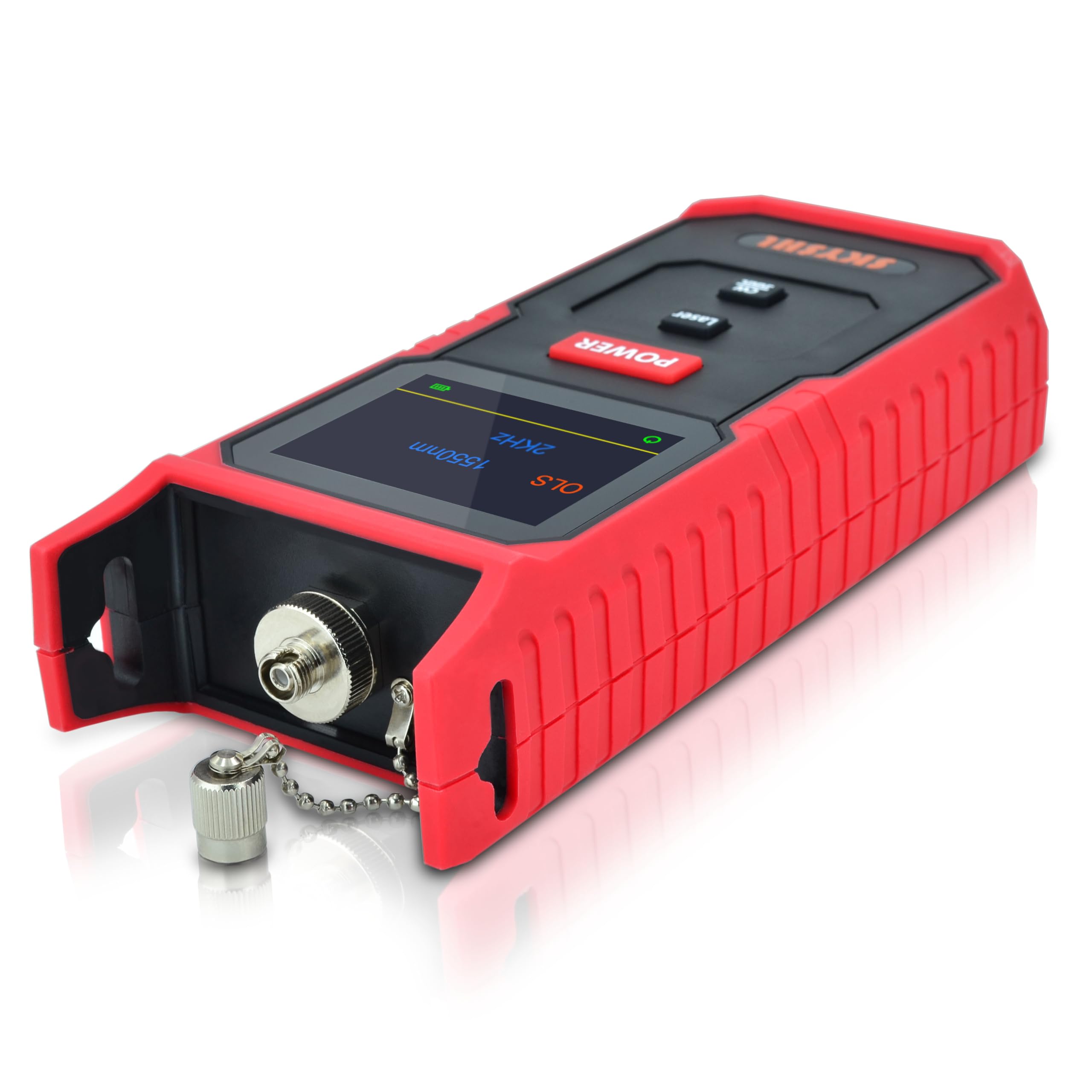

SKYSHL 1310nm 1550nm Handheld SM Optical Fiber Laser Light Source Tester With SC FC ST LC UPC Adapter and Color Screen(SS100S)

• ★1310/1550nm High Stability Output★--The SKYSHL SS100S Fiber Optic Light Source,offers excellent stability and portability for accurate fiber optic testing. The single output port provides stable laser power at dual wavelengths(1310nm/1550nm). and SS100S operates in either Continuous Wave(CW) mode or Modulated Mode(270Hz,1KHz,2KHz).
• ★Optimal solution for fiber testing★--SS100S optical light sources are ideal tools to complement the SS101PVA/SS101PVC optical power meters for insertion loss and continuity testing in optical fiber networks. They offer a dedicated and cost-optimized solution for testing and troubleshooting optical fibers in the field.

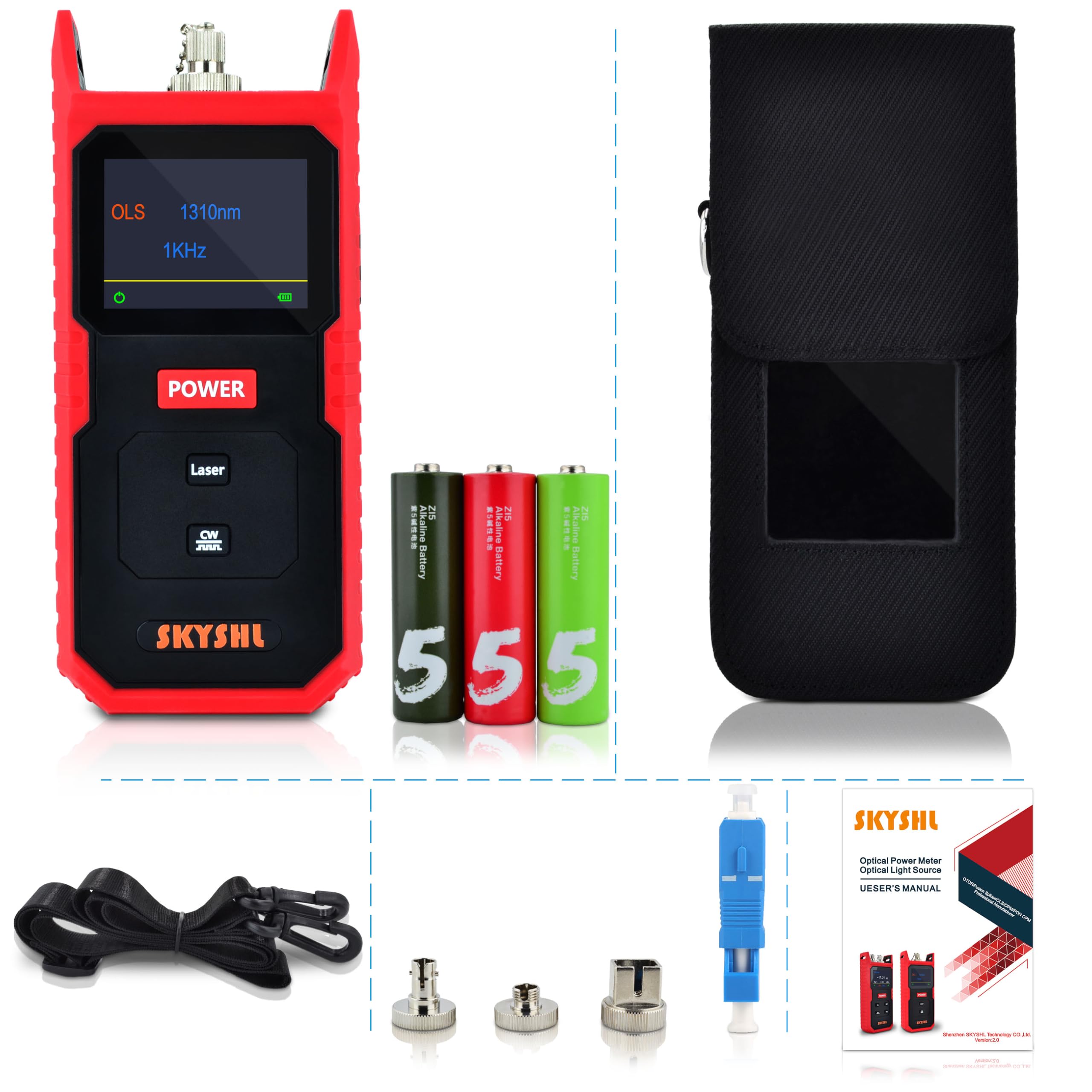

• ★Support ST,SC,FC and LC UPC Connector★--SKYSHL SS100S provides a complete optical fiber test kit suitable for network technicians who install and maintain the network. These kits include a variety of field-replaceable connectors(ST,SC,FC and LC UPC adapter),which provides great flexibility for the work of network technicians.

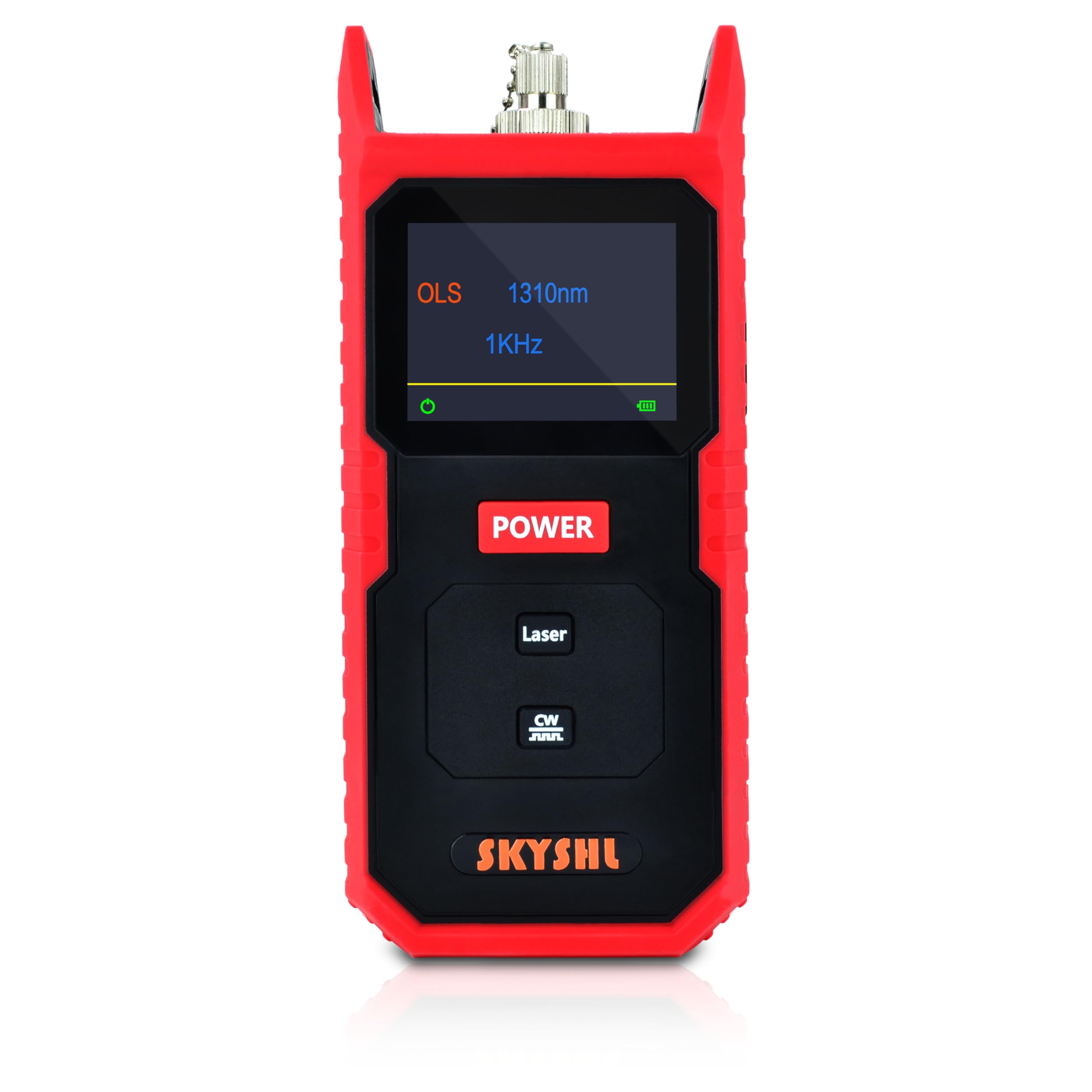

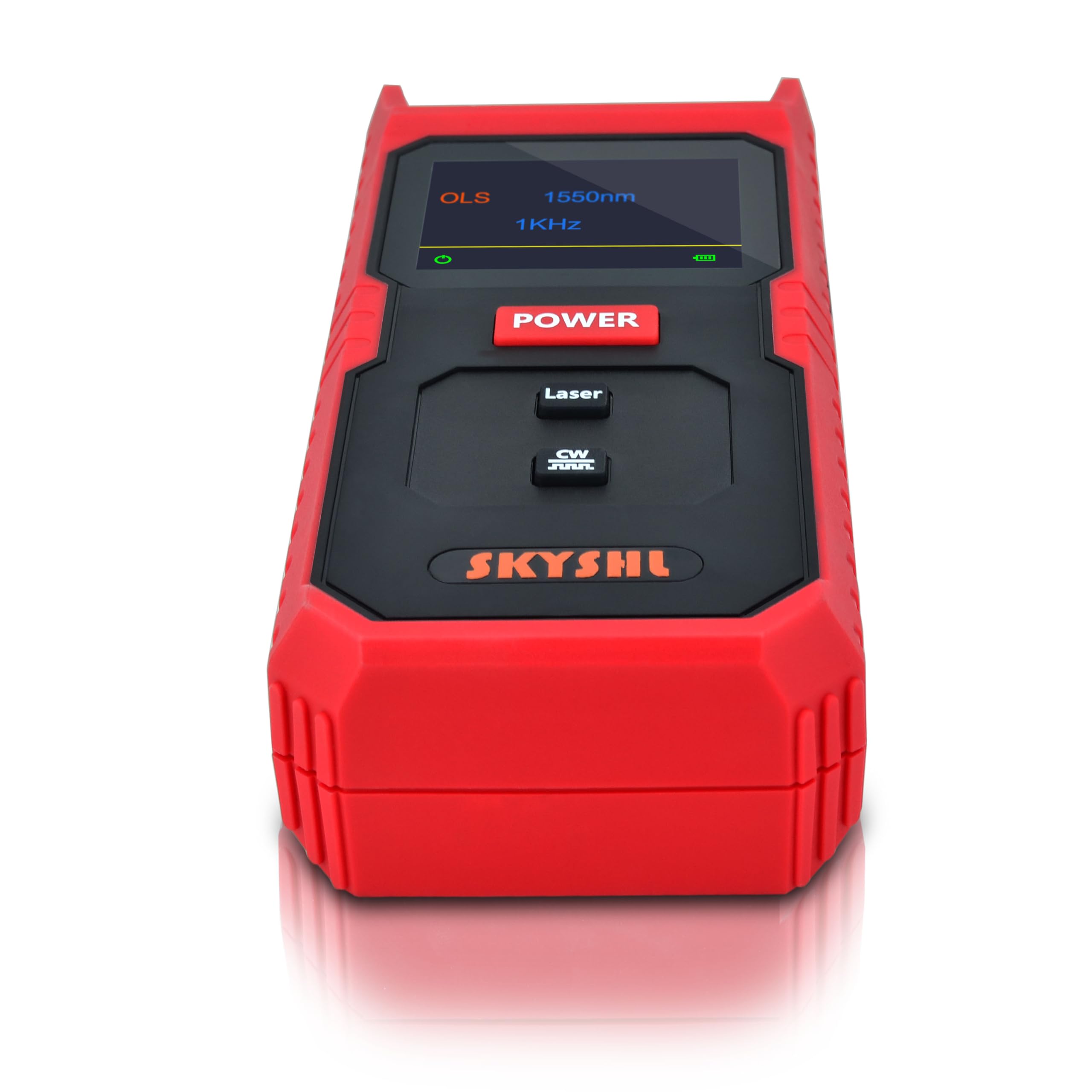

• ★Color LCD display★--SKYSHL SS100S provides a 2.4-inch color display which is completely different from the ordinary black and white display. It has a very wide viewing angle and displays different data through different colors, and it making the data display more intuitive.The LED backlight enables network engineers to work normally even at night.
• ★Compact Size and sturdy design★--The SKYSHL SS100S optical light sources has a very small size,which is very convenient for network engineers to carry. The ergonomic design provides a very comfortable hold. The combination of two kinds of high-strength plastic shell design and hard Oxford backpack ensures that the product can still be worked normally even if it is dropped from a height of 3m.

SKYSHL 1310nm 1550nm Handheld SM Optical Fiber Laser Light Source Tester With SC FC ST LC UPC Adapter and Color Screen(SS100S) SKYSHL SS100S Handheld Optical Fiber light sources offer versatility in measuring fiber optic light continuity,loss and quality in field,lab,and manufacturing environments. Versatile and compact handheld solutions are offered for field use and ultra-stable,high-power solutions for lab and manufacturing. SKYSHL SS100S light source is a simple and cost-effective fiber optic tester. and it can perform insertion loss measurements on single-mode fiber optic links when used with an optical power meter or test fiber optic cables when combined with fiber identifiers. Optical Fiber Light Source Specifications: ●Wavelength:1310nm+1550nm ●Stabilization:±0.05 dB/1hour;±0.1 dB/8hours ●Output Power:-6~-7dBm ●Modulation:CW,270Hz,1KHz,2KHz ●Connector:SC+ST+FC+LC/UPC ●Auto Power Off:10minutes ●Power Supply:3xAA Dry Battery(Exclude) ●Screen:2.4inch Color LCD ●Operate Time:≥13hours ●Size:175*75*40mm/6.89*2.95*1.57inch ●Weight:0.25kg/0.55 lb(Exclude Battery) Optical Fiber Light Source Features: ●Provides 1310nm and 1550nm output wavelengths ●CW,270Hz,1KHz,2KHz modulation output ●High stability of the output power ●Backlight LCD display supports night operation ●Compact size and sturdy design ●Large Color LCD screen,easy operation ●Energy saving mode; Automatic shutdown in 10 minutes ●Supports more than 13 hours of operation Optical Fiber Light Source Applications: ●Fiber Optic Lab Testing ●LAN,WAN for the purpose of telecommunication networks ●CATV systems ●Long distance optical networks ●FTTH Testing ●Other Fiber Optic Measurements Pacakge:1*SS100S Light Source+1*ST+1*SC+1*FC+1*FC-LC Adapter+1*Strap+1*User manual+1*Oxford bag
