SKT 5 m Gold Plated F-connector F-Plug Triple-Shielded Coaxial Cable

• High quality coaxial cable for broadband modem, cable TV, Satellite tv and Freeview, length 500 cm

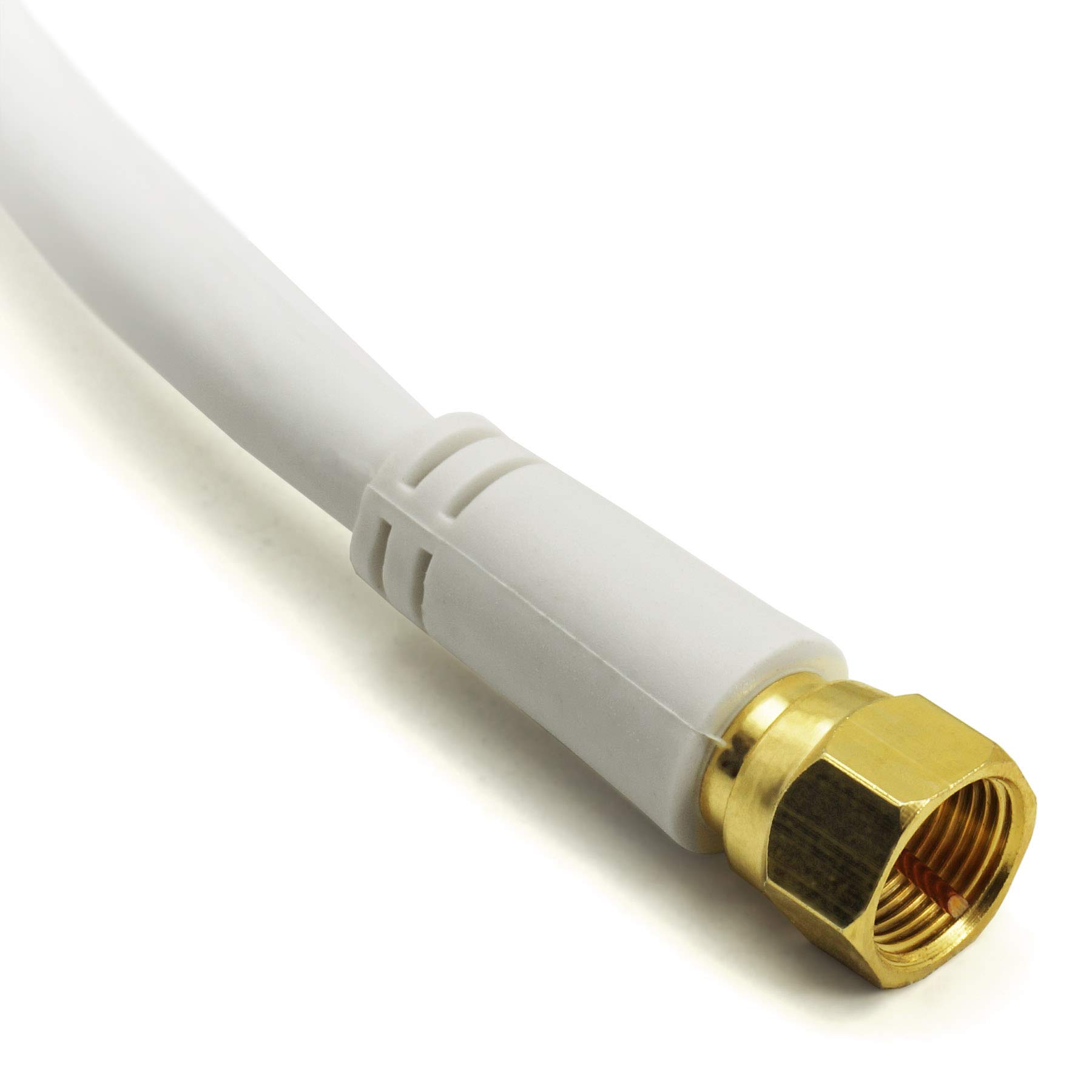

• Gold-plated F-plugs with 1 mm plug pin for durable, corrosion-resistant connection
• Triple shielded according to class A for suppression of external interference, cable diameter 6.8 mm
• For connecting cable router, super hub, Sky box, Virgin Media Tivo box, multimedia wall socket, TV/sat receiver and other devices with F-connector
• Low attenuation (<1 dB), low coupling resistance and high return loss

Product Description With these high-quality connection cable you connect two devices for the reception of satellite tv, cable TV or aerial / DTT. Also ideal for connecting a cable modem or cable router for the Internet (eg. Virgin Media). The coaxial cable is 3-way shielded. The F plugs are gold-plated and have an injection-moulded plastic sheath. Suitable for CATV and SAT signals ( 5 - 2400 MHz). Connector pin: 1.0 mm, outside diameter: 6.8 mm, dielectric: 4.6 mm, braiding: 3-ply, 2x AL foil, 1x 128 braiding. Attenuation: <1 dB at 2050 MHz, return loss: > 20 dB at 862 MHz, coupling resistance: <5 m Ohm/m at 5 MHz Impedance 75 Ohm Box Contains cable
