Bigamart
Price
$71.79
Home/Business, Industry & Science/Power Transmission Products/Bearings, Balls & Bushings/Ball Bearings/Radial Ball Bearings/Angular Contact Bearings
SKF 3204 A Angular Contact Ball Bearing Double Row — image 1
Angular Contact BearingsSKF✓ In stock

SKF 3204 A Angular Contact Ball Bearing Double Row

★★★★★
$71.79
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
  • Design: 32 and 33 series
  • Performance class: SKF Explorer
  • Bore diameter d: 20mm
Product description

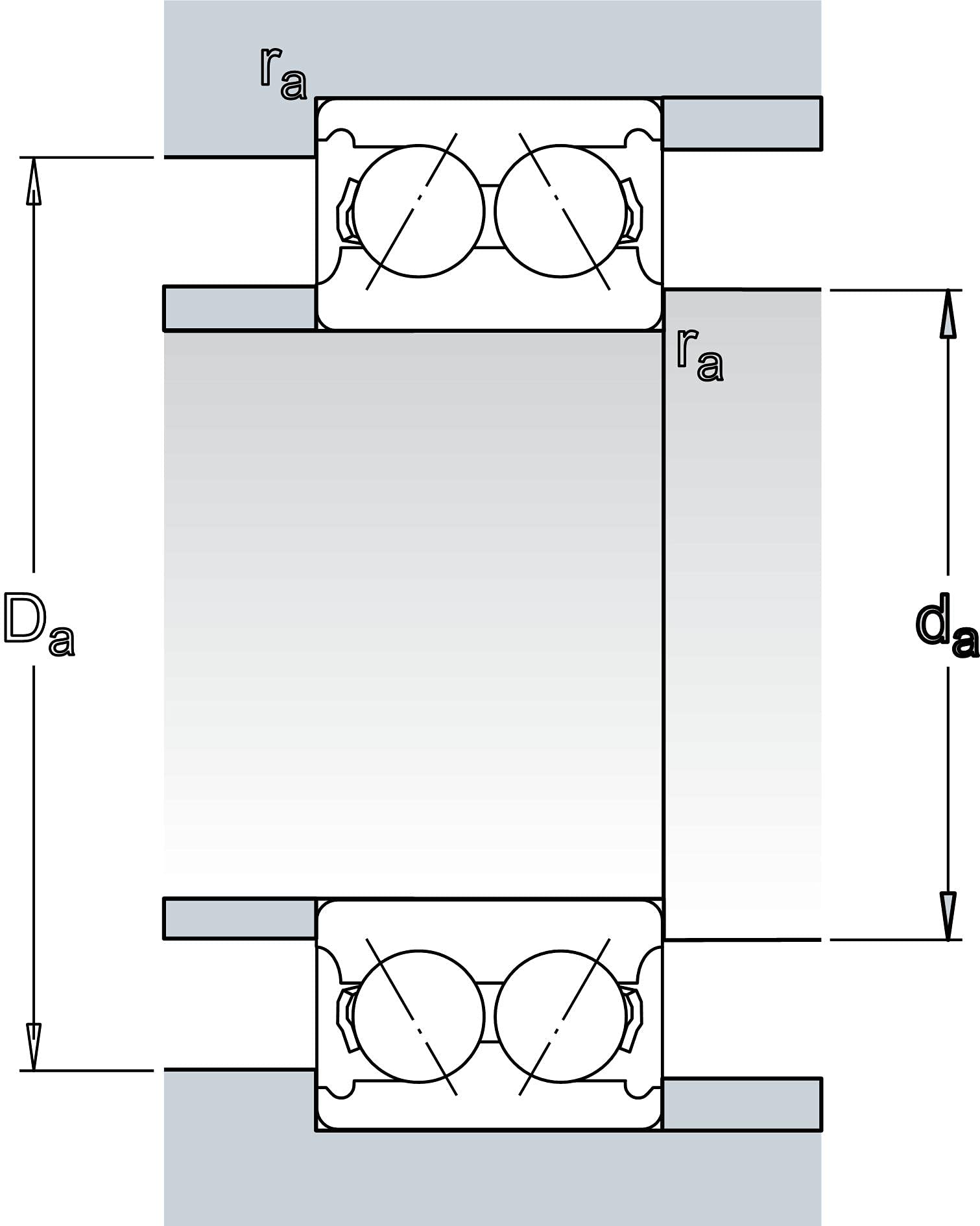

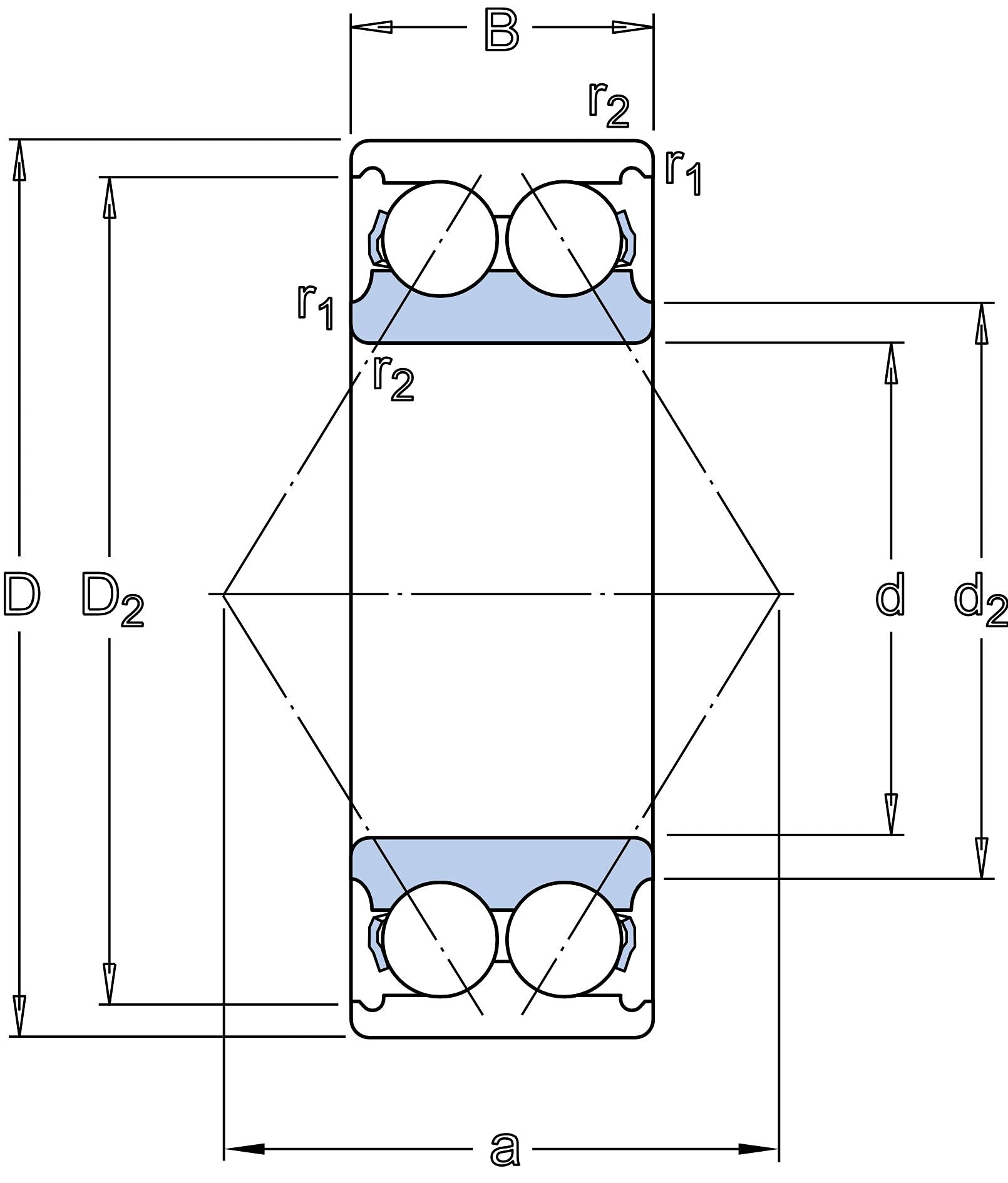

Angular contact ball bearings, double row. Outside diameter D: 47mm. Width B: 20.6mm. Shoulder diameter inner ring d1: 29.44mm. Recess diameter inner ring shoulder d2: 27.7mm. Shoulder diameter outer ring D1: 39.45mm. Recess diameter outer ring shoulder D2: 40.9mm. Chamfer dimension inner ring r1,2min: 1mm. Distance pressure points a: 28mm. Abutment diameter shaft damming: 25.6mm. Abutment diameter housing Amax: 41.4mm. Fillet radius remix: 1mm. Basic dynamic load rating C: 20kN. Basic static load rating C0: 12kN. Fatigue load limit Pu: 0.51kN. Reference speed: 14000r/min. Limiting speed: 14000r/min. Calculation factor or: 0.06. Calculation factor e: 0.8. Calculation factor X: 0.63. Calculation factor: 0.66. Calculation factor Y1: 0.78. Calculation factor Y2: 1.24.

Product details
Brand
SKF
Manufacturer
SKF Group
