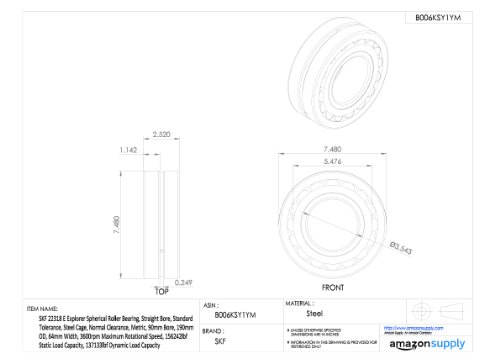

SKF 22318 E Spherical Radial Roller Bearing

• Codes: eCl@ss code@ 23050911; UNSPSC code: 31171510
• Number of rows: 2; Sealing: Without
• Bore/Inside Diameter: 90.000; Body Outside Diameter: 190.000; Width/Thickness: 64.000; Tolerance group: Class 5 (P5); Radial internal clearance / preload group: CN
• Bearing Material: Bearing steel; Coating: Without; Locating Feature: None
• Bore type: Cylindrical; Lubricant: None

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
