Maix M1W Dock Kit K210 AI+lOT WiFi Development Board RISC-V Dual Core 64bit MCU for Edge Computing

• High performance and Low Power: Maix M1 Dock is based on the intelligent computing chip K210 (RISC-V Dual Core 64bit, with FPU，400Mhz-500Mhz, Neural network processor ) for AloT edge computing solution
• EASY to USE ROBOT VISION: It's a development kit to simplify AIOT application programming, so that developers can use simple Micropython syntax to development, easy to apply to machine vision and machine hearing, such as face recognition identification, object recognition, microphone array applications
• Computing power Up to 1 TOPS: Support TensorFlow/Keras/Darknet/Caffe Mainstream framework
• Application: Attendance and access control, automatic driving, smart robots, Internet of Things, passenger flow statistics, smart wear, smart home,predictive maintenance, anomaly detection, machine vision, robotics, voice recognition
• [Wiki] https://youyeetoo.com/blog/-72.Any technical issues after purchase please contact with our tech-support team: monica@smartfire.cn. Or click "SmartFly Tech" and ask a question

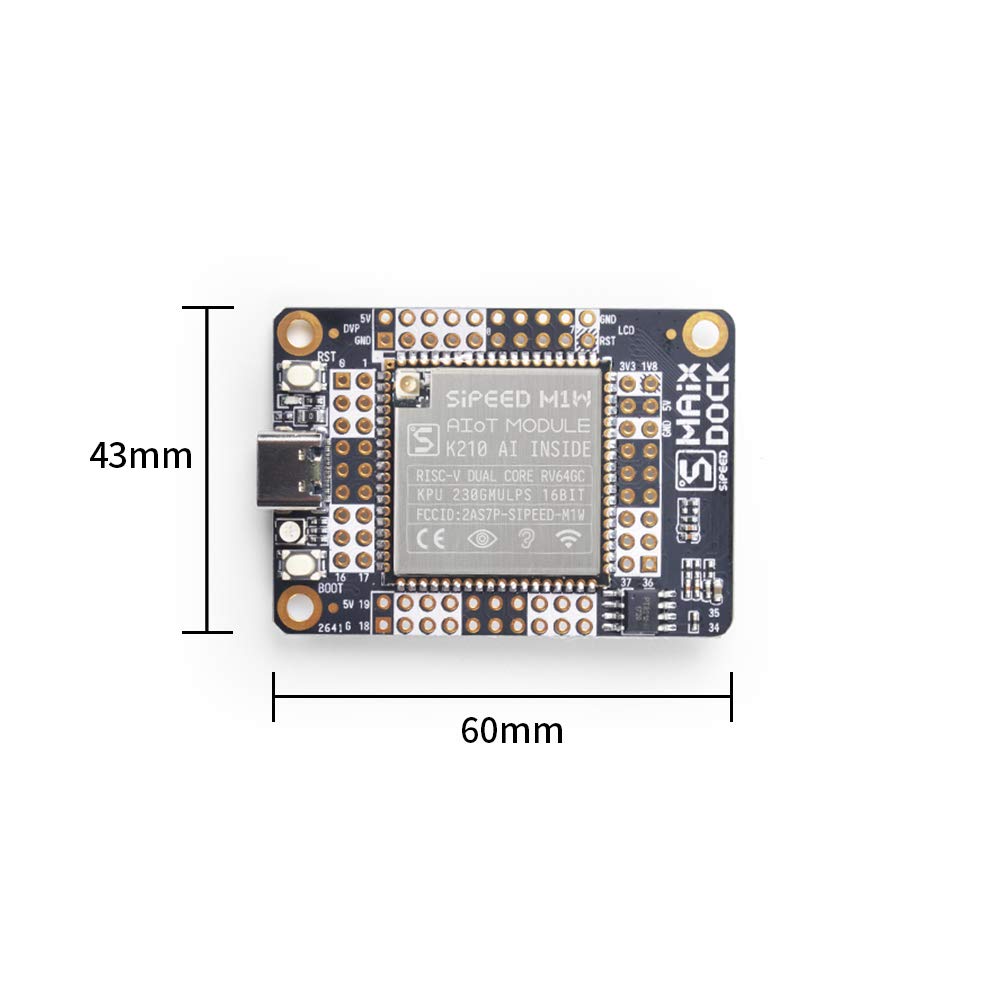

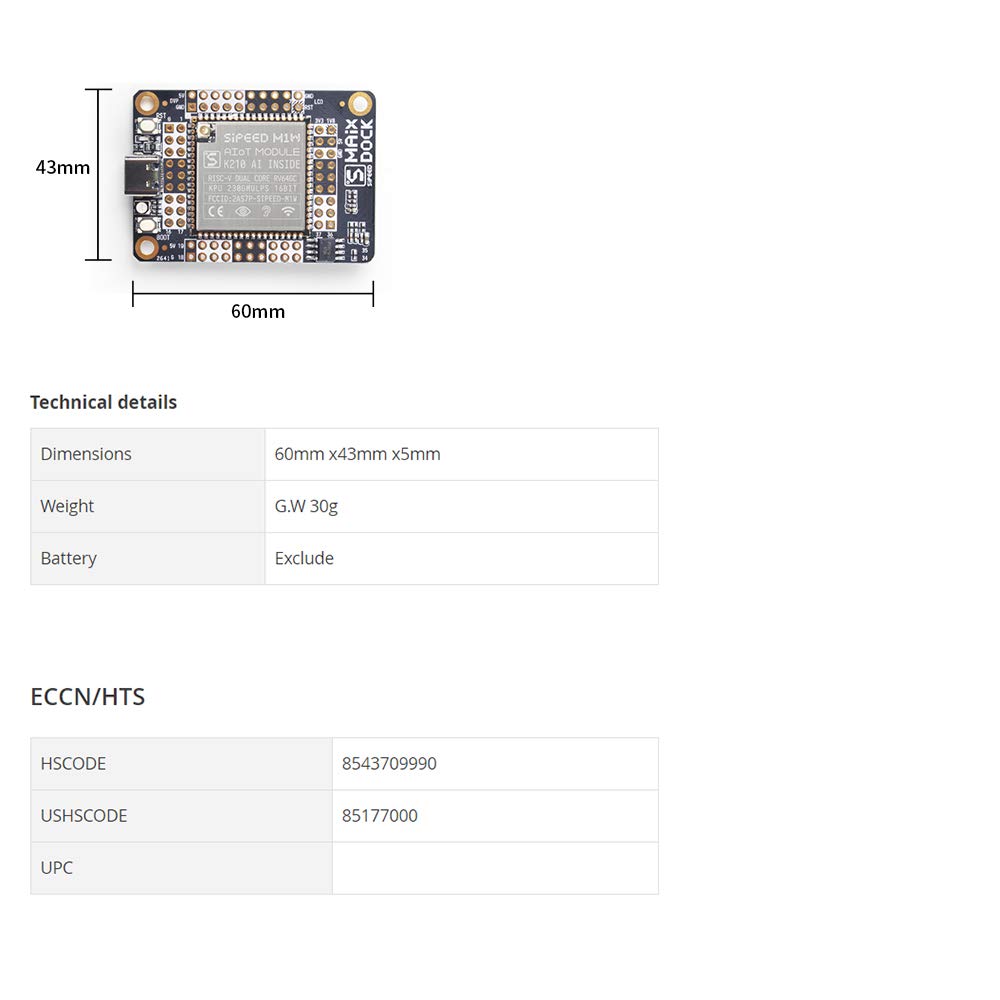

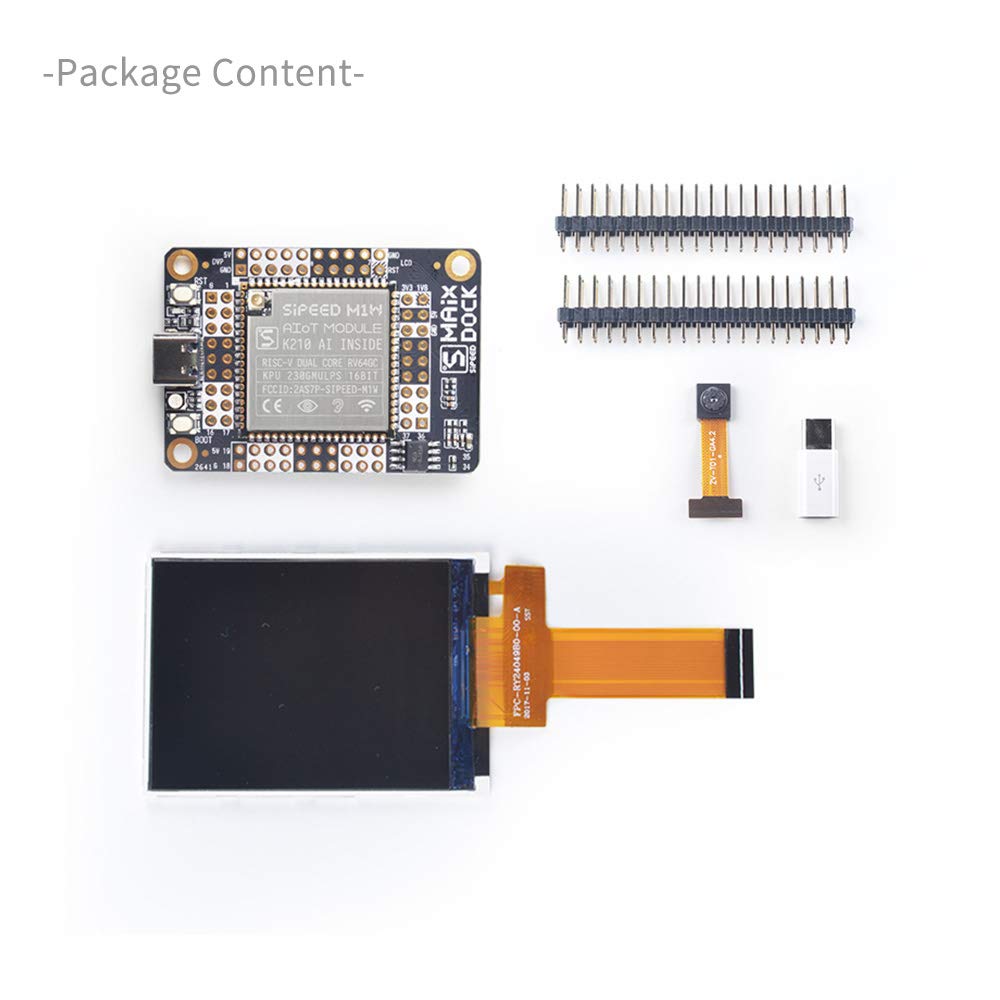

The MAIX Dock development board is a member of the MAIX product line of SiPEED. It is an AIOT development board based on the intelligent computing chip K210 (RISC-V architecture 64-bit dual core). Development board parameters : 1. Onboard resources: button *2 RGB light*1 MEMS Microphone*1 USB to UART 128Mbit Flash*1 2. Onboard interface: USB Type-C interface 24PIN DVP camera interface 24PIN LCD interface MicroSD card slot Audio interface (support external 2x3W speakers) All IO header pins lead out 3. Size: 52.3*37.3mm 4. Power supply voltage: 5.0V @ 300mA (power supply current needs to be greater than 300mA) 5. Working temperature: -30°℃ ~85°℃ Software Development 1. Chip operating system: FreeRTOS, RT-Thread, etc. 2. Development environment: MaixPy IDE, PlatformlO IDE, for Arduino IDE etc. 3. Programming languages: C, C++, MicroPython -In the Box- 1x Maix M1W Dock K210 Development Board 2x Double Row Straight Pin Header Strip 1x GC0328 Camera 30MP 1x TP-C Adapter 1x 2.4 inch LCD Tech-Support Tech-team: wpd#youyeetoo&com (#--->@,&--->.) skype: monica_9122
