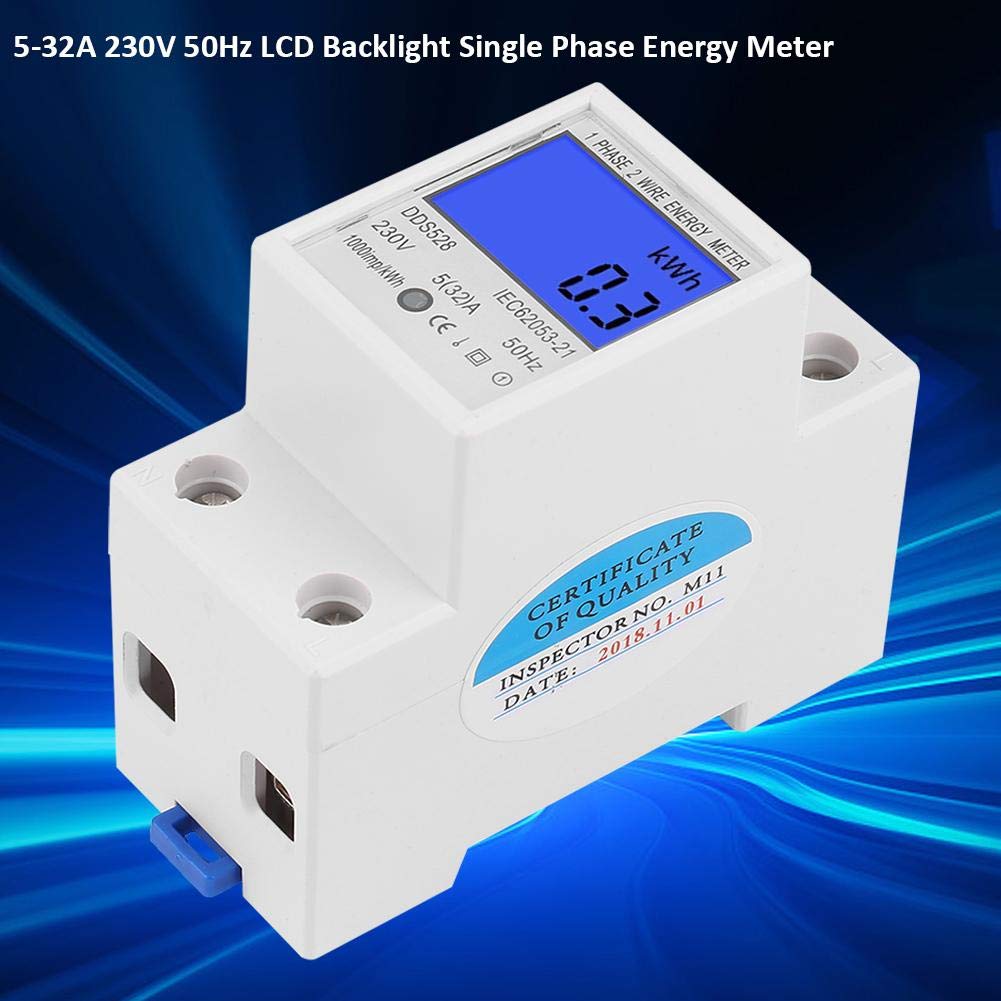

Single Phase Digital Energy Meter 5-80A 230V 50Hz LCD Display DDS528 Watt KWH Meter 35mm DIN Rail Mounting for Home Industrial Use

• ACCURATE MEASUREMENT: This energy meter can accurately measure positive active energy in electric energy measurement, which is clearly displayed by LCD screen.
• ADVANCED TECHNOLOGIES: The energy meter adopts multiple advanced technologies: microelectronics and digital processing technology for measurement of electric energy, large-scale integrated circuit single-phase intelligent control.

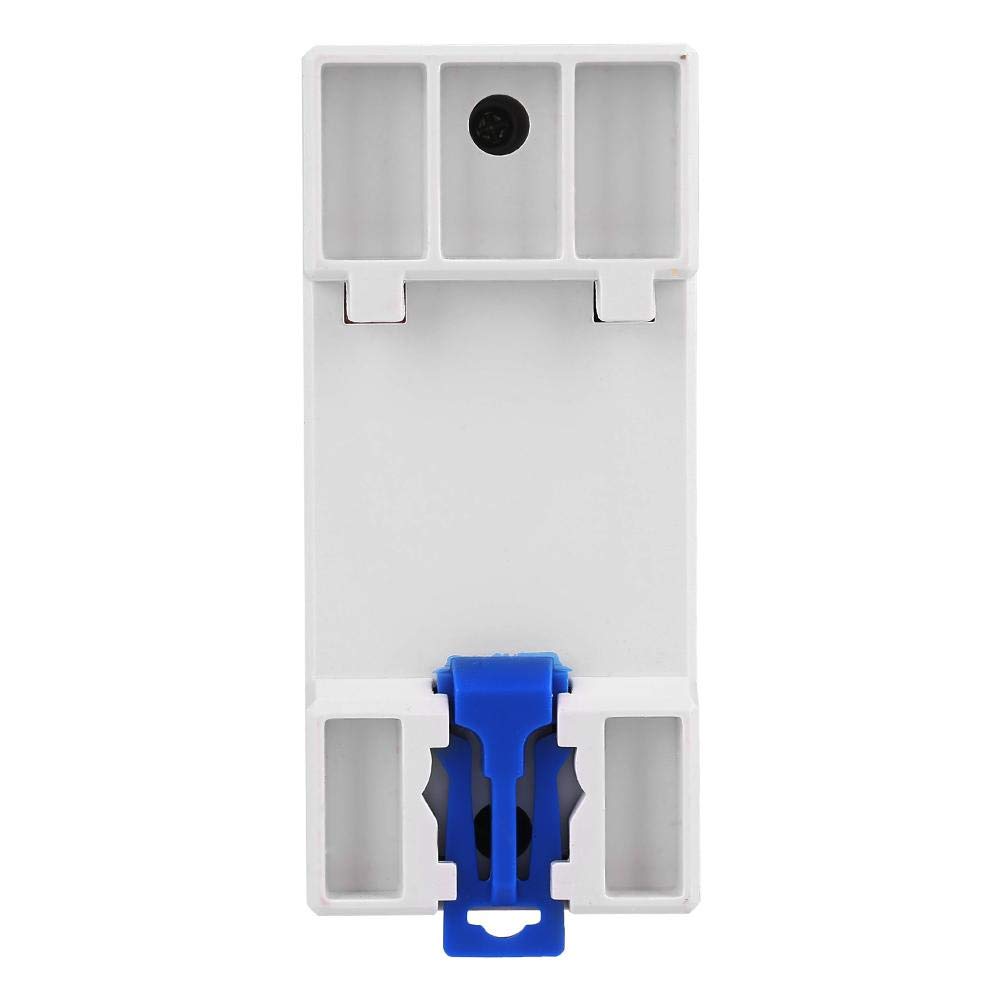

• HIGH RELIABILITY: High reliability, small size, light weight, beautiful appearance, advanced technology, and 35mm DIN standard rail installation.

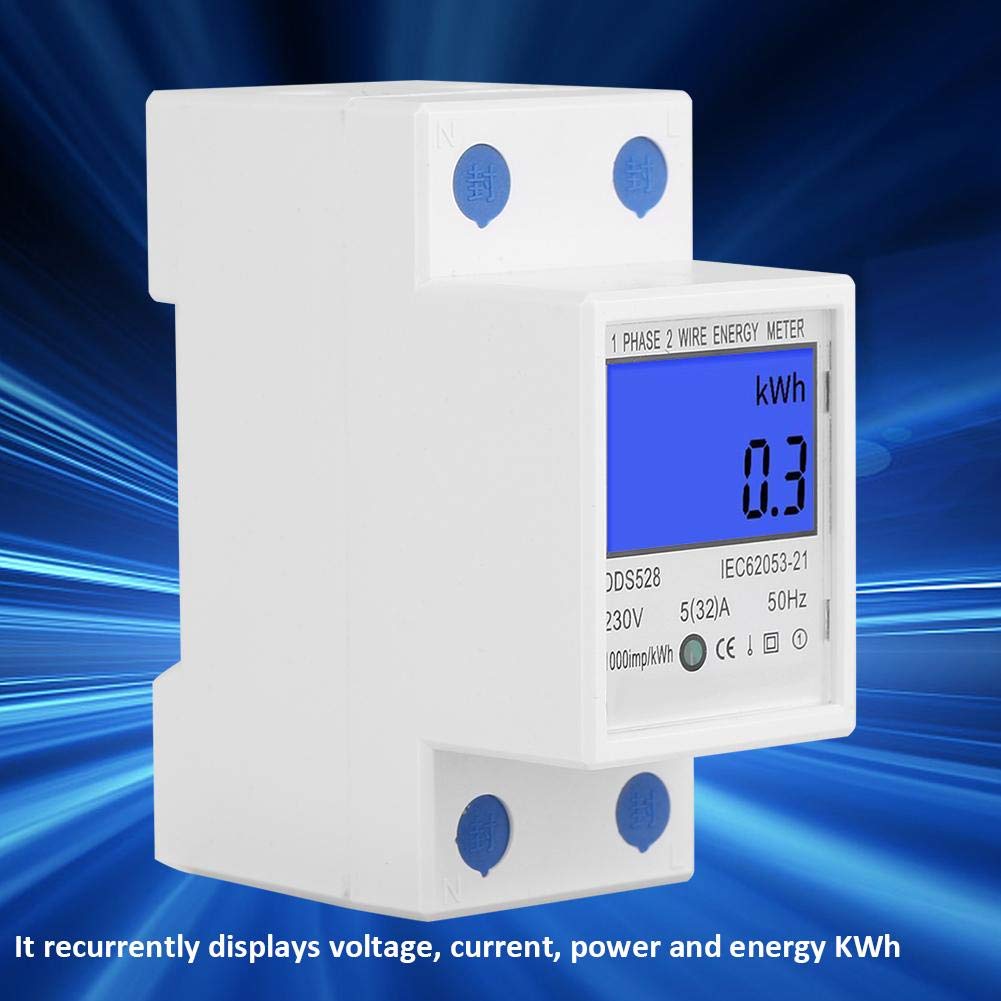

• PRACTICAL USE: The single phase energy meter is able to circularly display voltage, current, power and energy KWh, practical and convenient to use.
• GOOD ANTI-ELECTROMAGNETIC INTERFERENCE: Good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability and anti-stealing, long life.

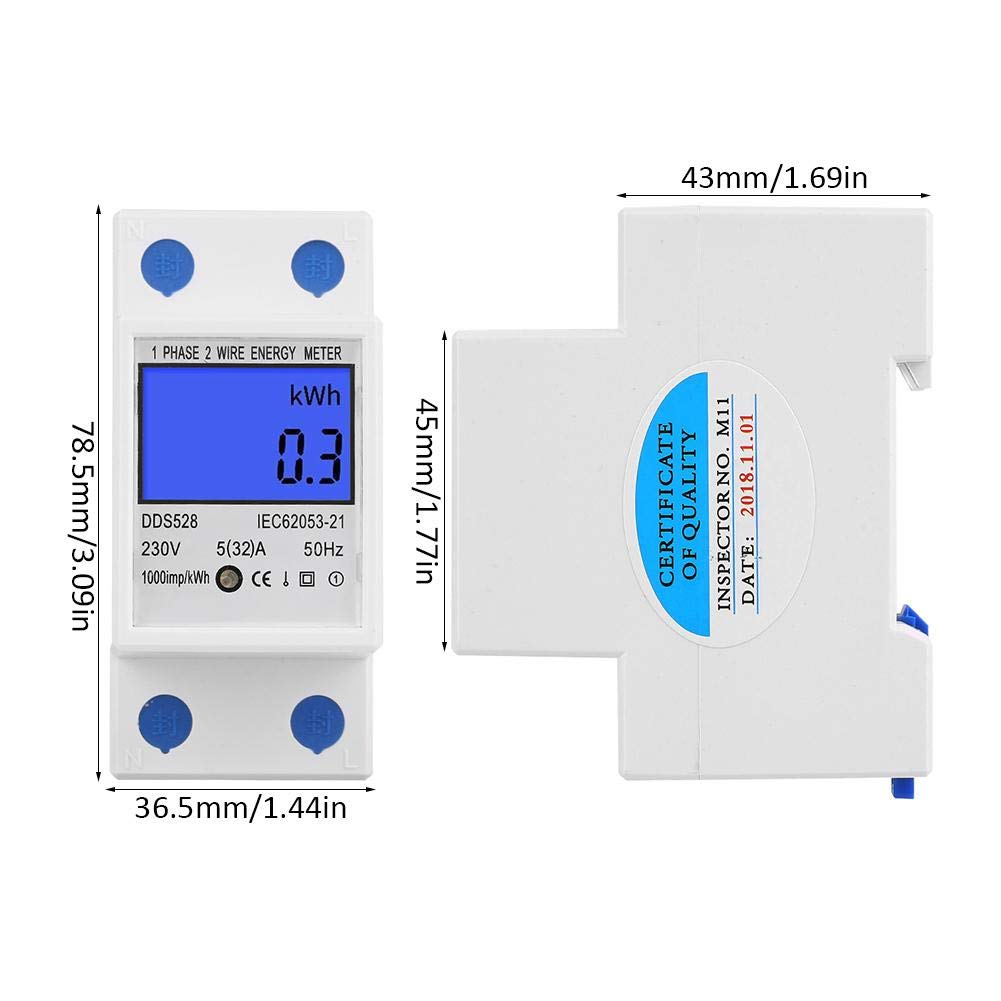

Specification: Model: DDS528 Rated voltage: 230VAC Rated current: 5-32A Load capacity: 0.05Ib - Imax (direct access type) or 0.02Ib - Imax (access via transformer) Data display: LCD display Backlight: No Power indication: Green light Electric energy pulse indication: Red light (When there is a sampling signal, it lights for about 80ms) Mounting method: 35mm DIN rail Working environment: -25~55, 95%RH Size: 78.5*36.5mm / 3.09*1.44in Package weight: Approx. 131g/4.6oz Package list: 1 * Energy Meter 1 * Buckle 4 * Seal Cap Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
