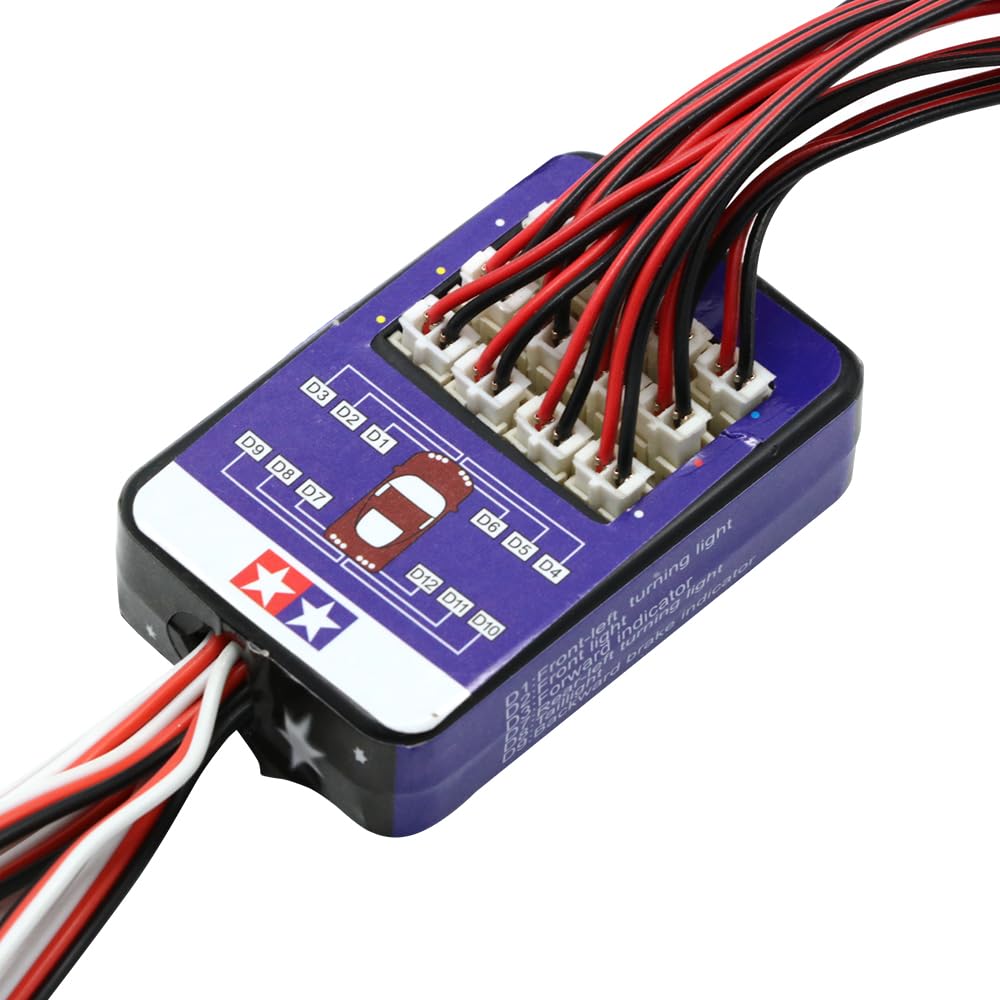

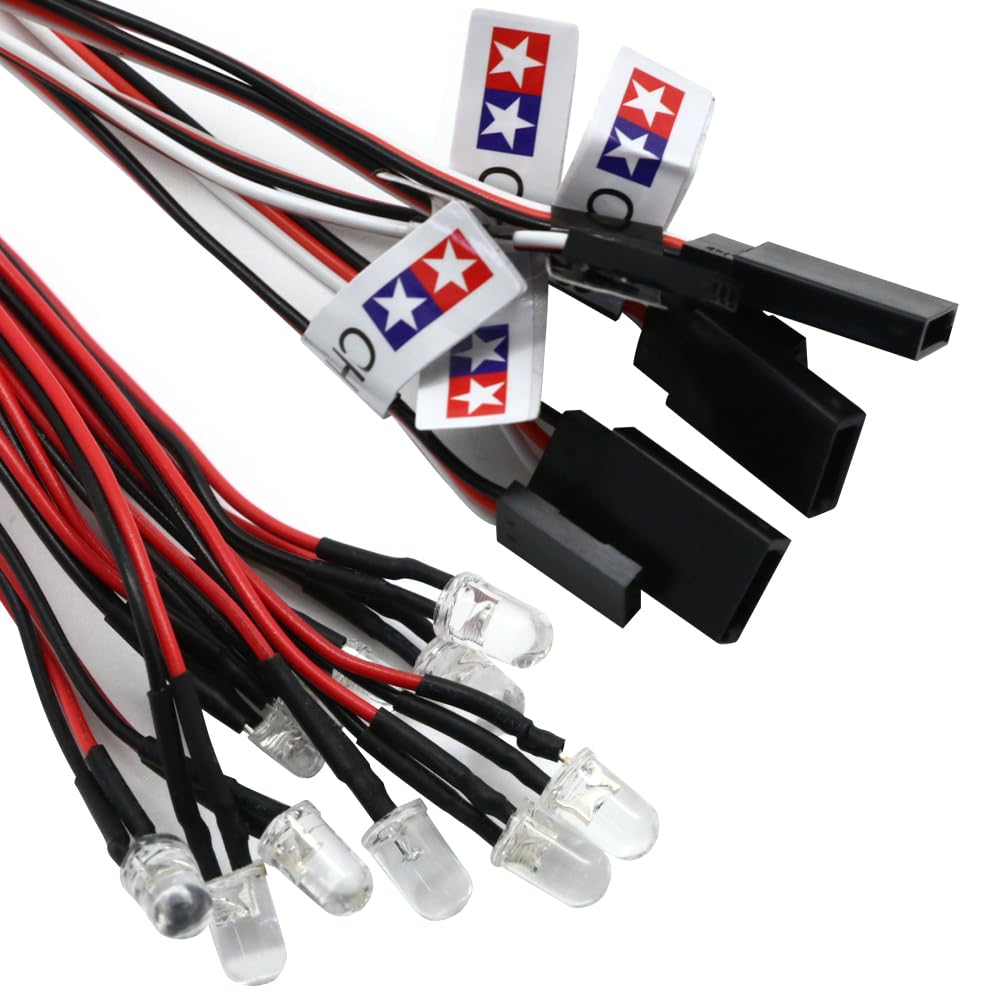

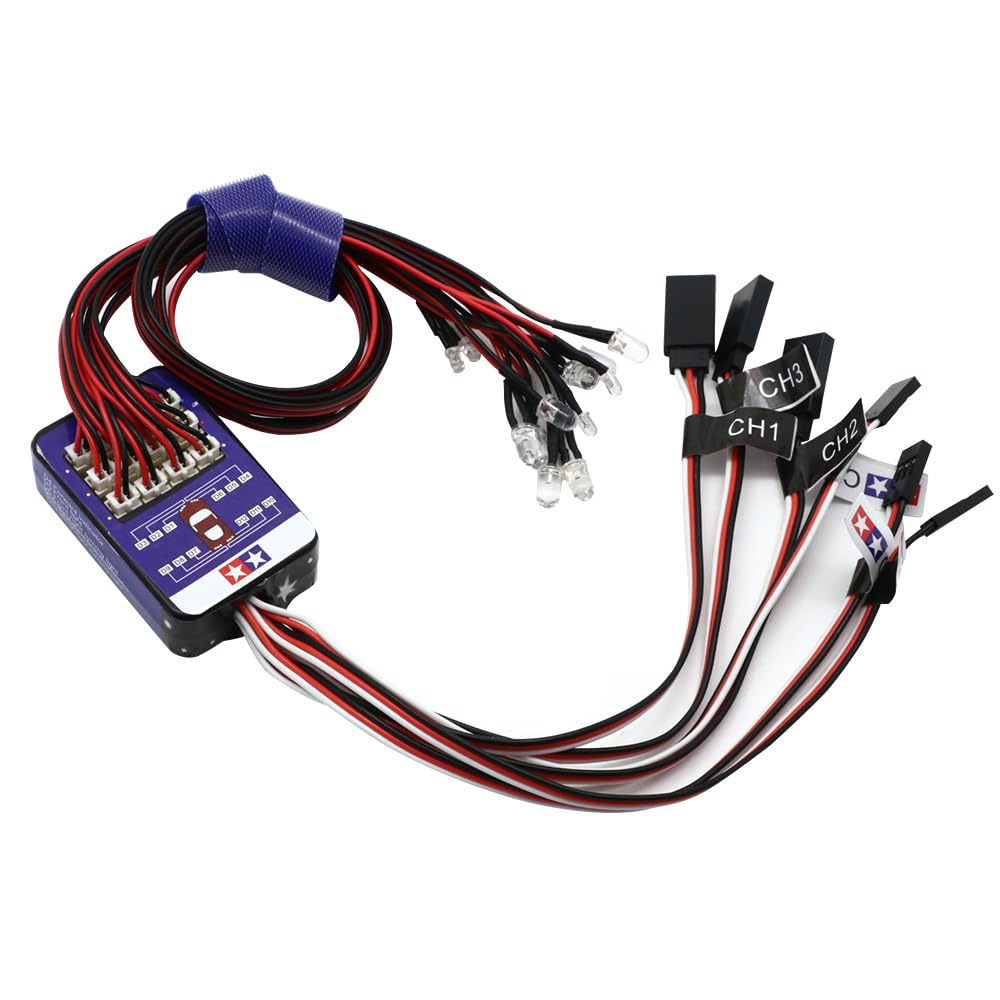

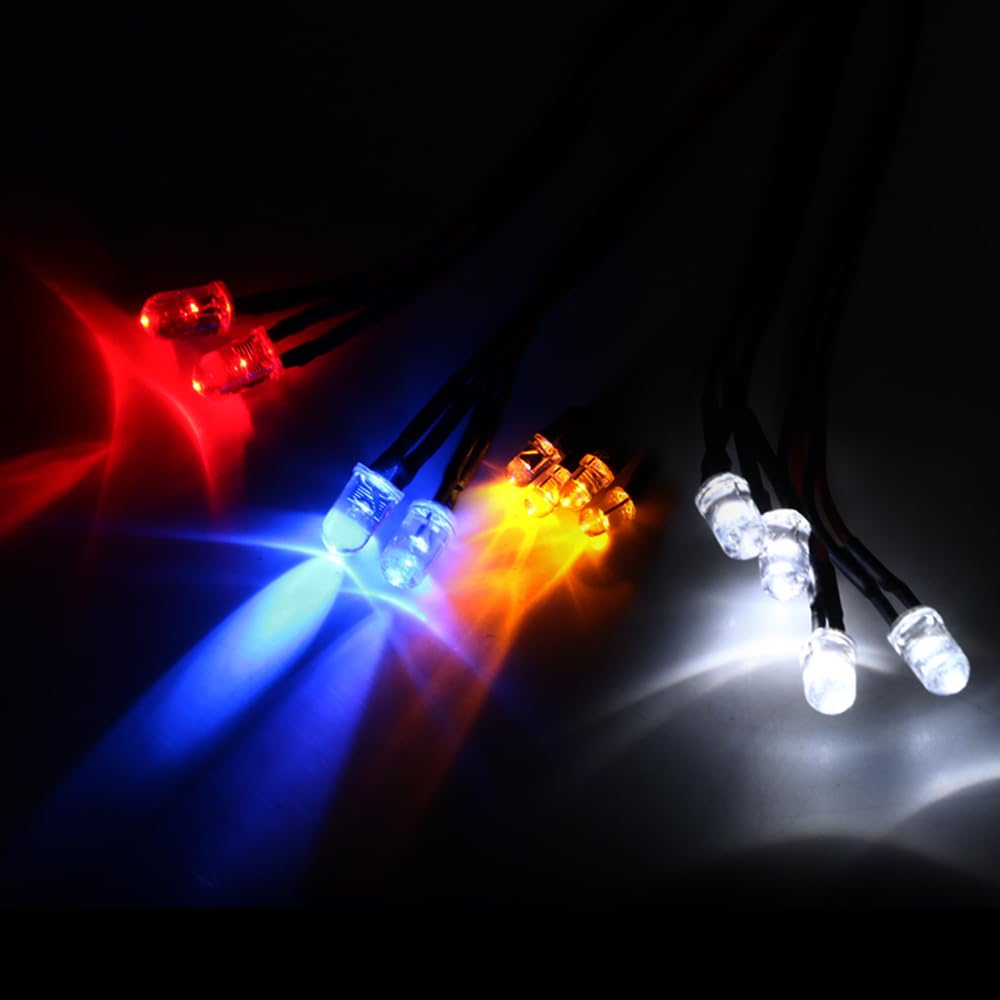

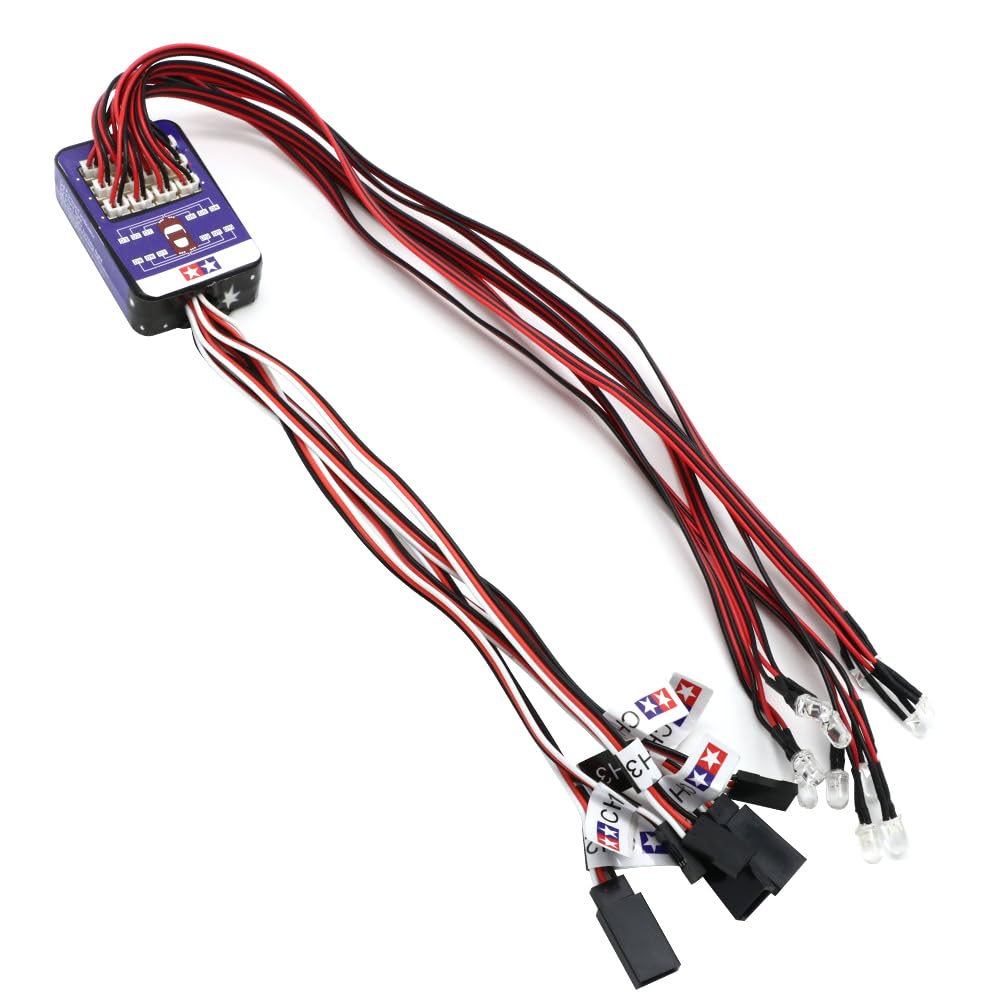

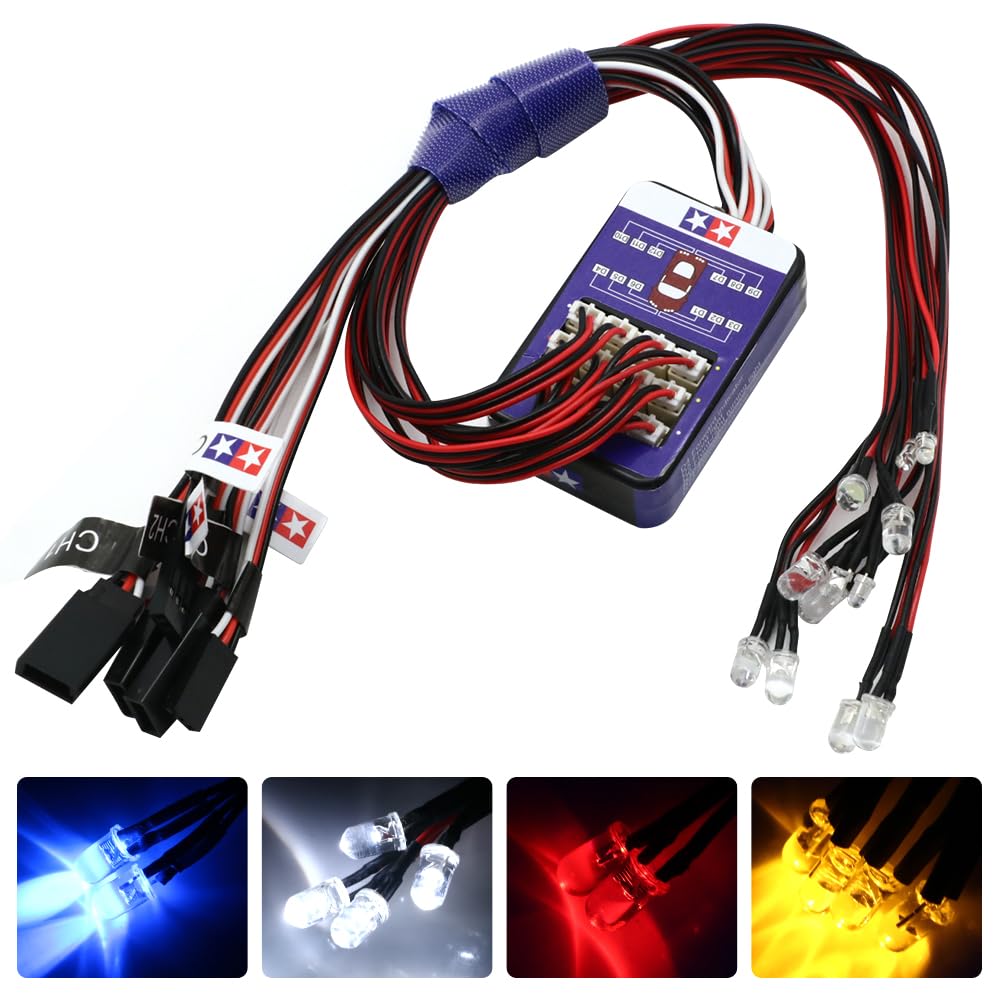

Simulation Flash Light 12 LED Lighting Kit Steering Brake for 1/10 Scale Models RC Car Yokomo Tami-ya HSP HPI AXIAL RC4WD TRX (Blue-12LED)

• This 12 LED Lighting System Kit is suitable for 1/10 RC cars.
• It have four colors lights, include white headlights, blue taillights, red brake lights and yellow turn lights.Super Shiny and Bright Simulated Car Lights
• With improved circuit board, it can support High-V receiver and normal receiver，HOSI power saving. And one set of lights can be controlled by the transmitter.
• LED light is made of plastic, working current 100mA, input voltage 4.8V-6.0V.
• If you have any questions about rc lighting system, please feel free to contact us, we will do our best to solve the problem for you!

Specifications Name: 12 LED Lighting System Kit Material: Plastic LED bulb quantity: 12 Working Current: 100mA Input voltage: 4.8V - 6.0V Lights color: White, red, yellow, blue Connection method: CH1 - Servo CH2 - Speed controller CH3 - Receiver Suitable for: 1/10 RC cars LED cable length: about 300mm Circuit board size: 55*35*15.8mm Weight: 60g Lights Description Headlights:4 white LED lights Connect the lighting system to the CH3 on receiver: the transmitter can independently control a group of lights, another group of lights are on when the car speed up; Not connect to the CH3 on receiver: one group of lights are always on, another group of lights are on when the car speed up. Turn lights:4 yellow LED lights With the remote control change the direction, the lights will synchronous flashing. Taillights:2 blue LED lights, 2 red LED lights The blue lights are always on. When the car speed up or brake, blue lights will go out. Only when brake, the red lights on. Installation Method CH2 Transmitter Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1 and CH2 to receiver. CH3 Transmitter Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1, CH2 and CH3 to receiver. Package List 1 * 12 LED Lighting System Kit
