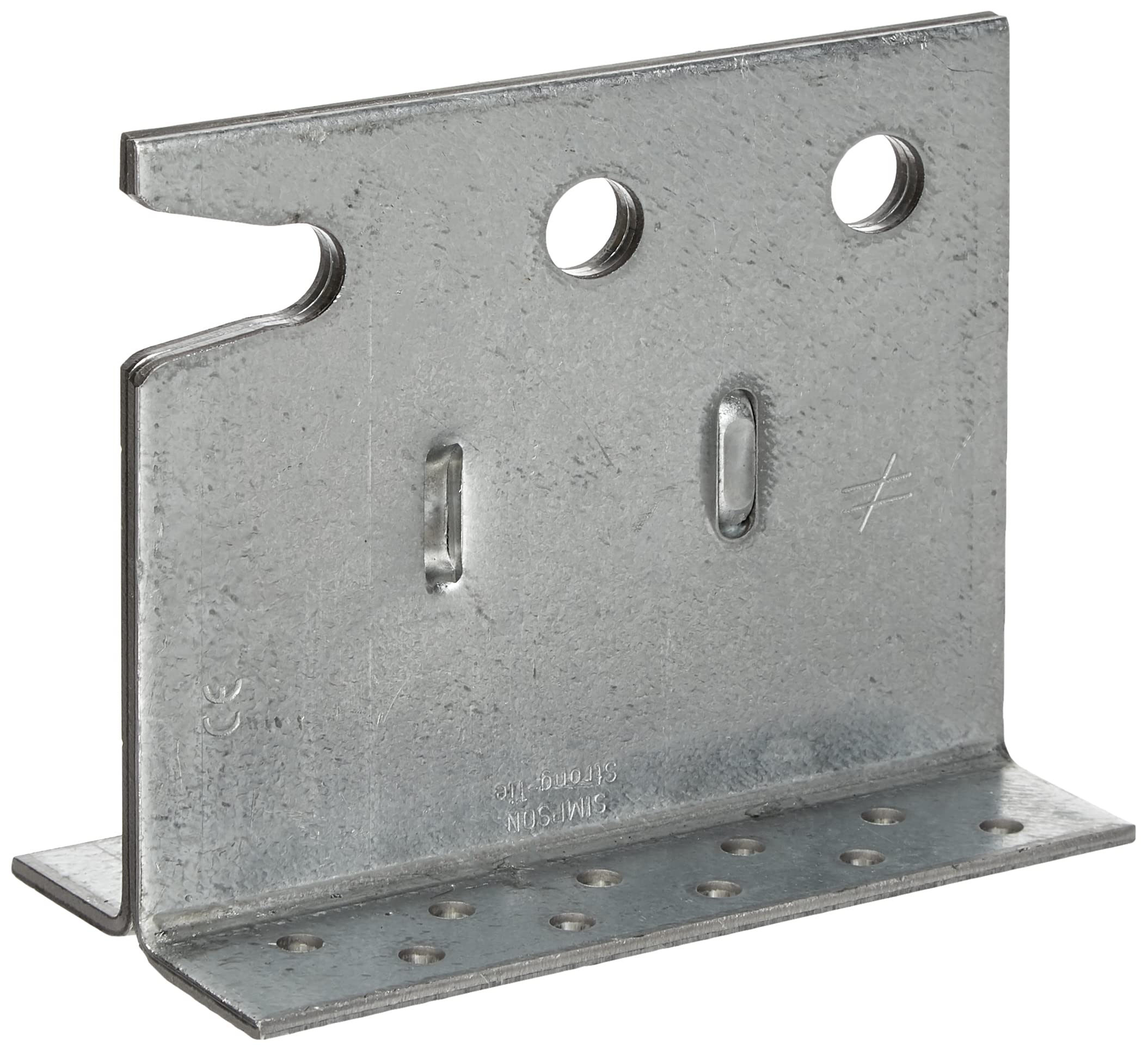

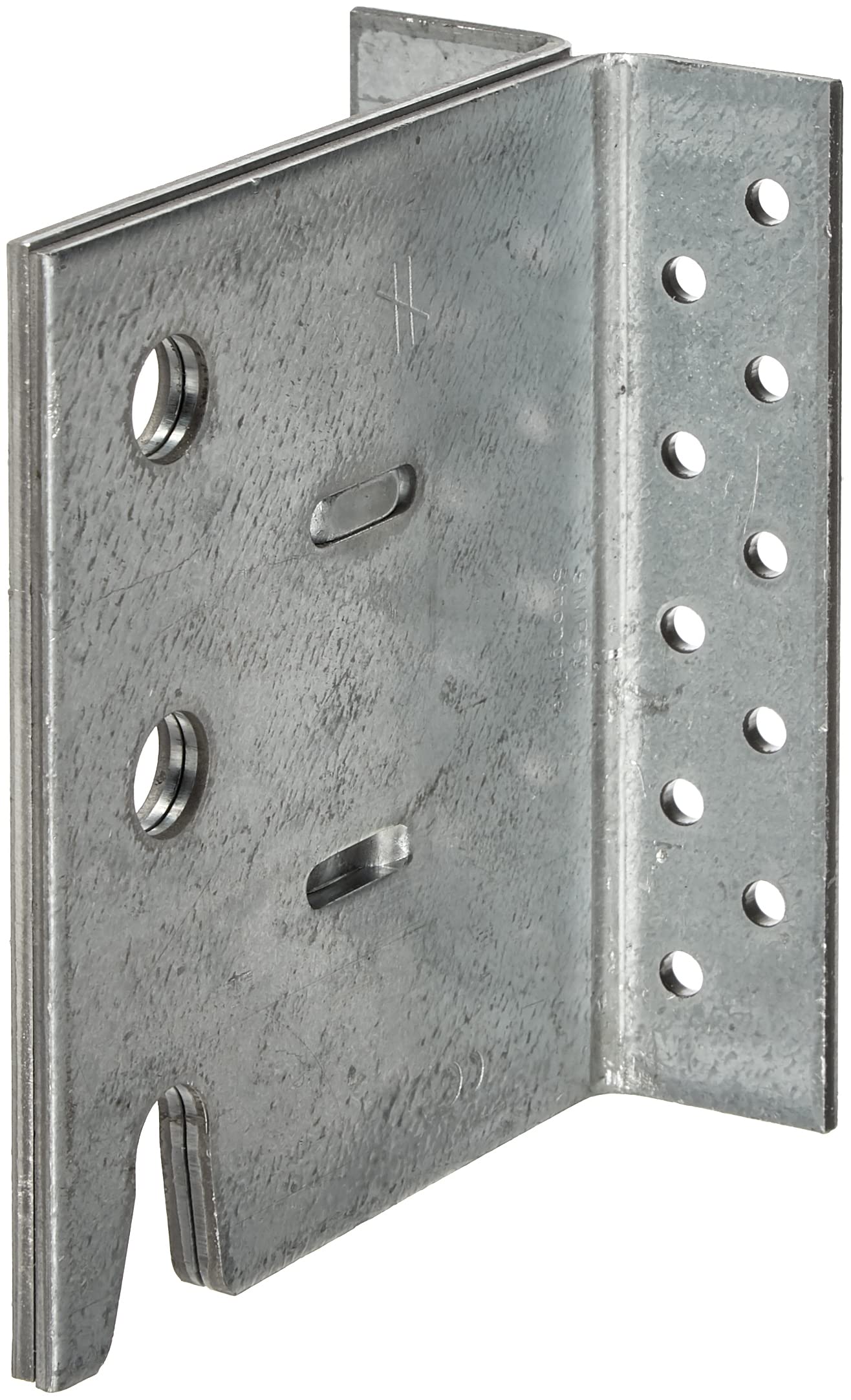

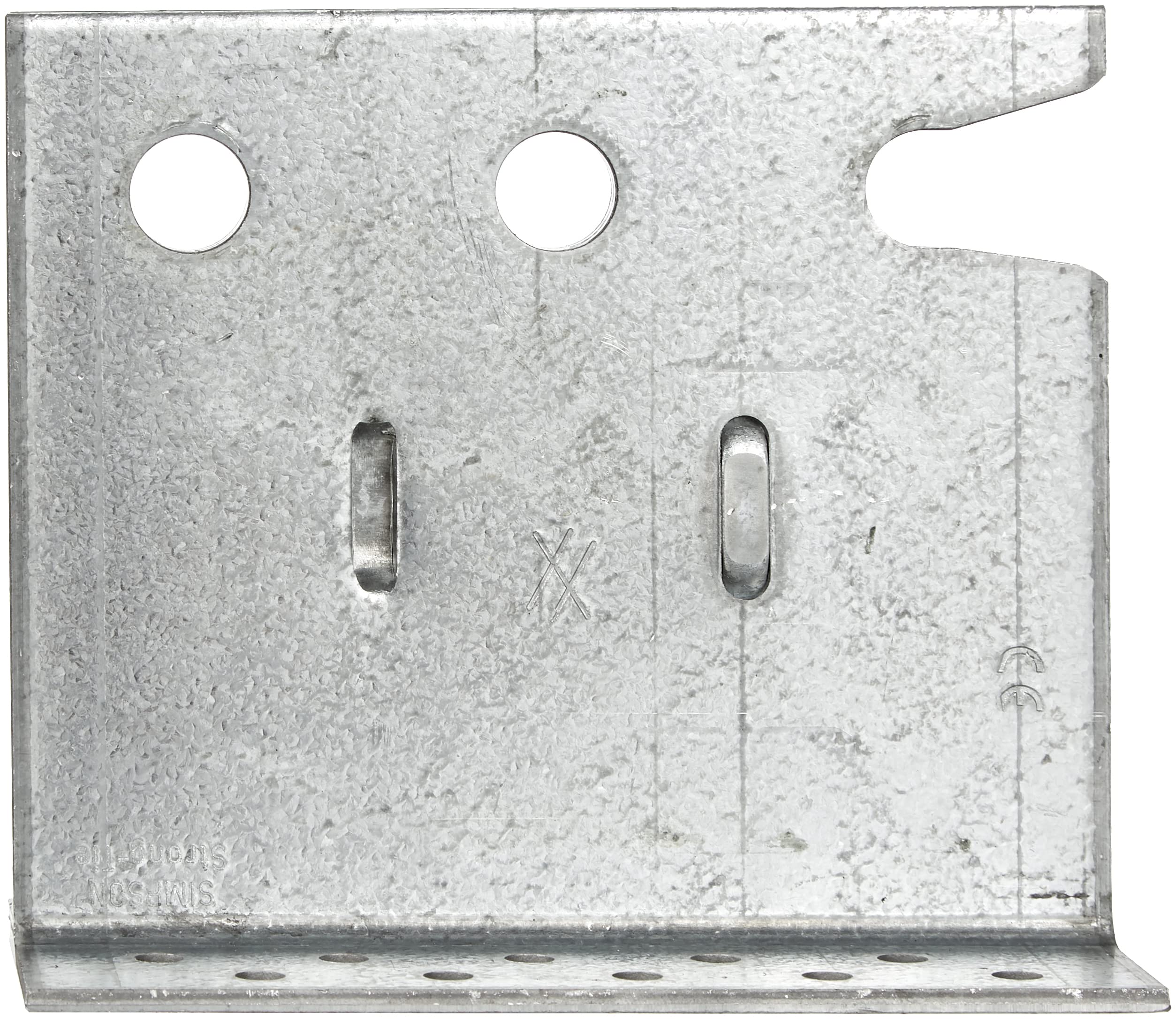

Simpson BT4-120-B Balkenträger feuerverzinkt Bar Support BT4 120-B hot-dip galvanised with Approval, Silver, 120 mm
Options
1 availableAbout this item
- Dimensions A large (mm): 120
- Dimensions B (mm): 109
- Dimensions C (mm): 62
- Material thickness: 3 mm
- Number of holes: 5 (pieces): 20
Product description
Application: concealed wood/wood connections of secondary beams to main beams or supports. With the beam supports, connections can be made with tilt up to 45°. Slot width for flange 7-8 mm. Attachment: comb nails CNA4.0 x 60 mm or screws CSA5.0 x 40 mm and rod dowel diameter 8 mm / diameter 12 mm. With European technical rating (ETA 07/0245).
Product details
