SIMPSON ETB120-B End Grain Wood Connector ETB 120-B Aluminium with Approval, 120 mm

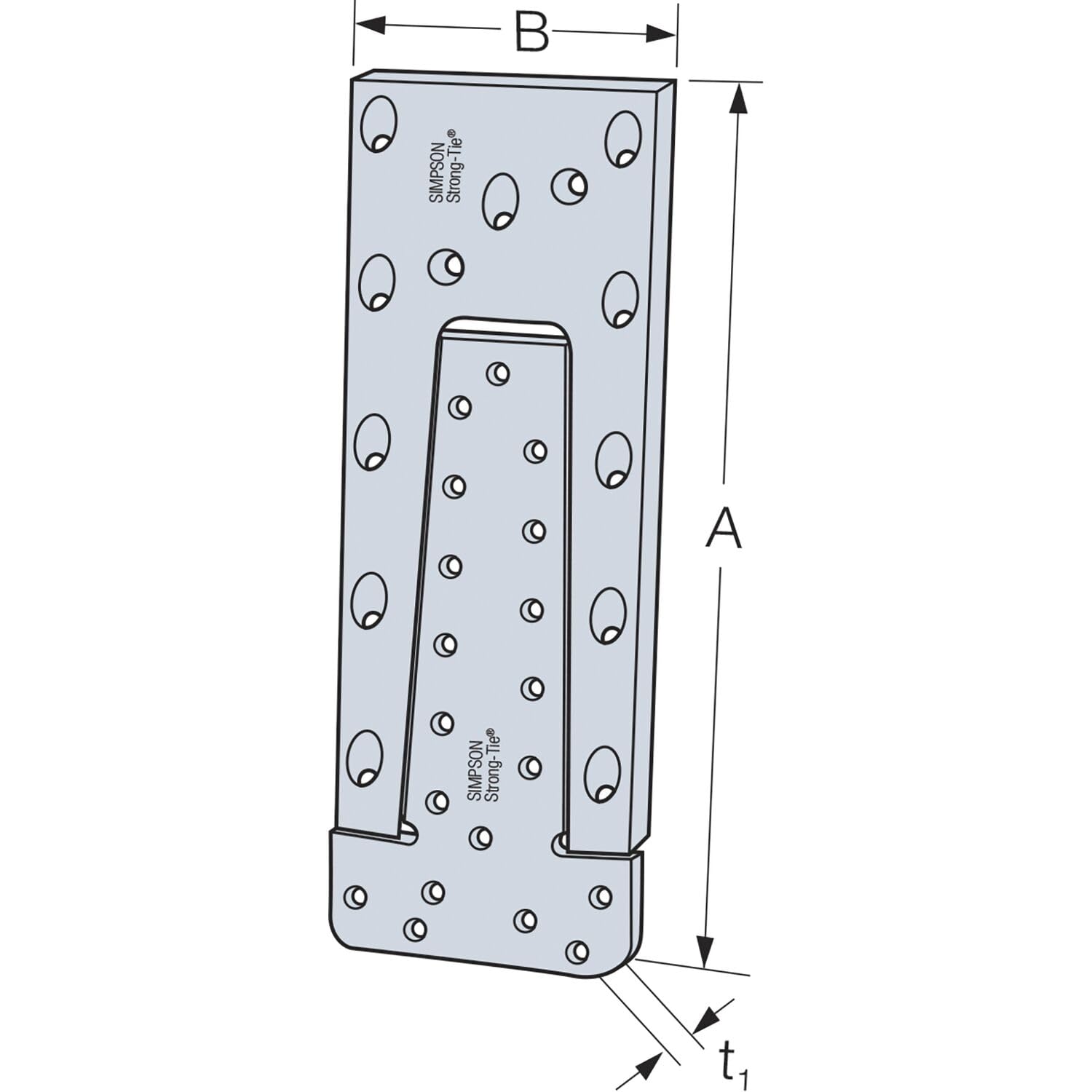

• Height dimensions a large (mm): 123
• Width Dimensions: W (mm): 60

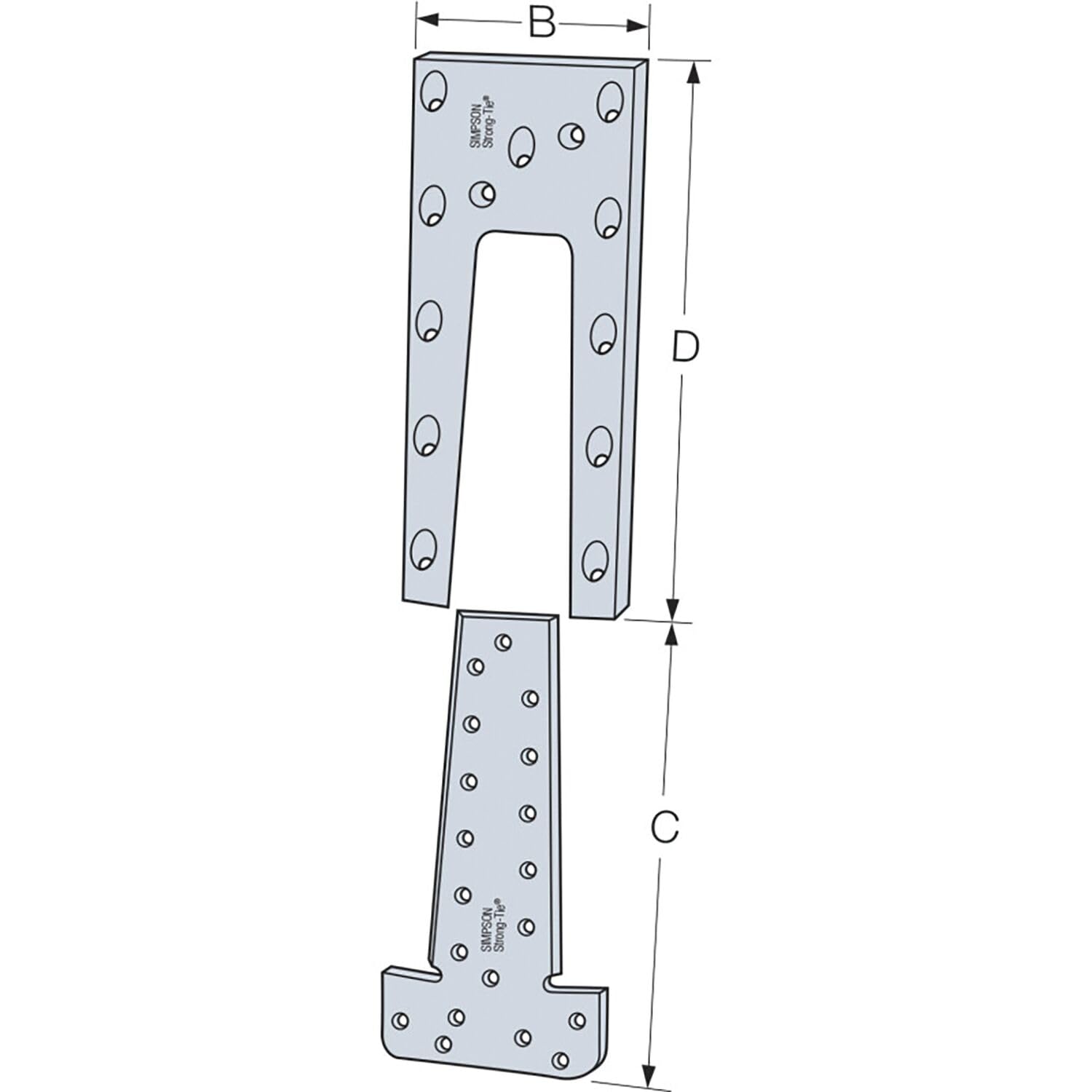

• Bottom C (mm): 85 Height
• Height upper D (mm): 95

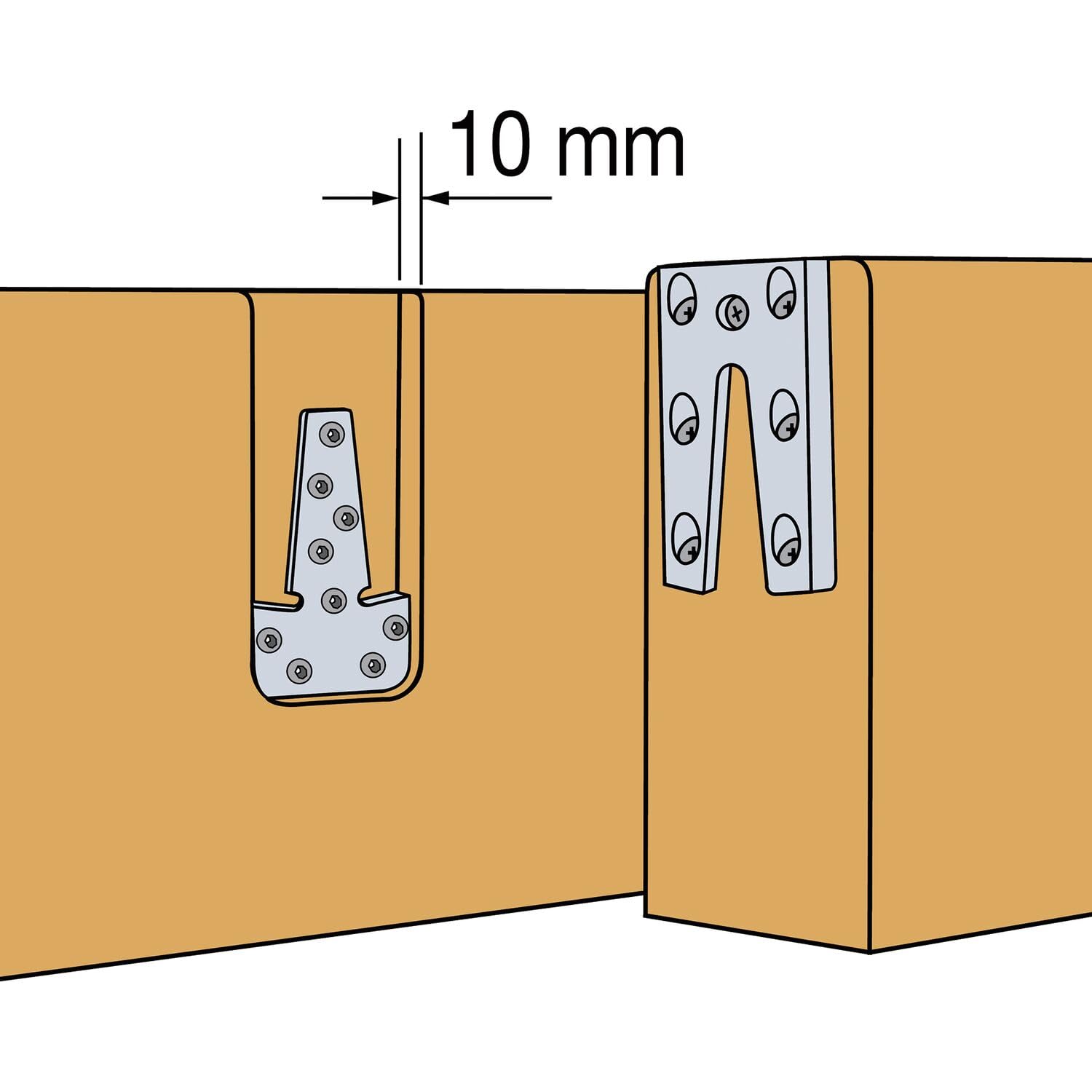

• Material thickness (mm): 10

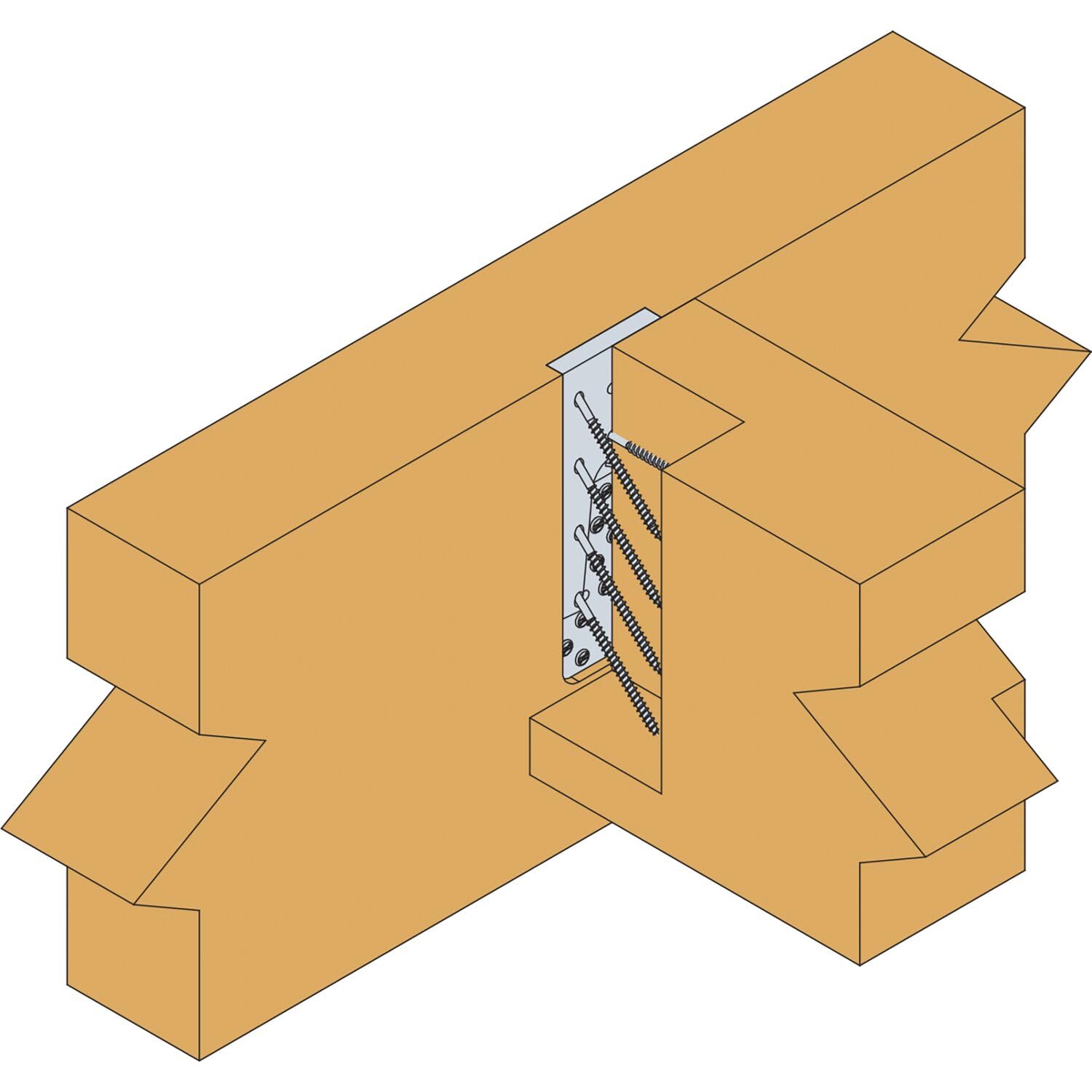

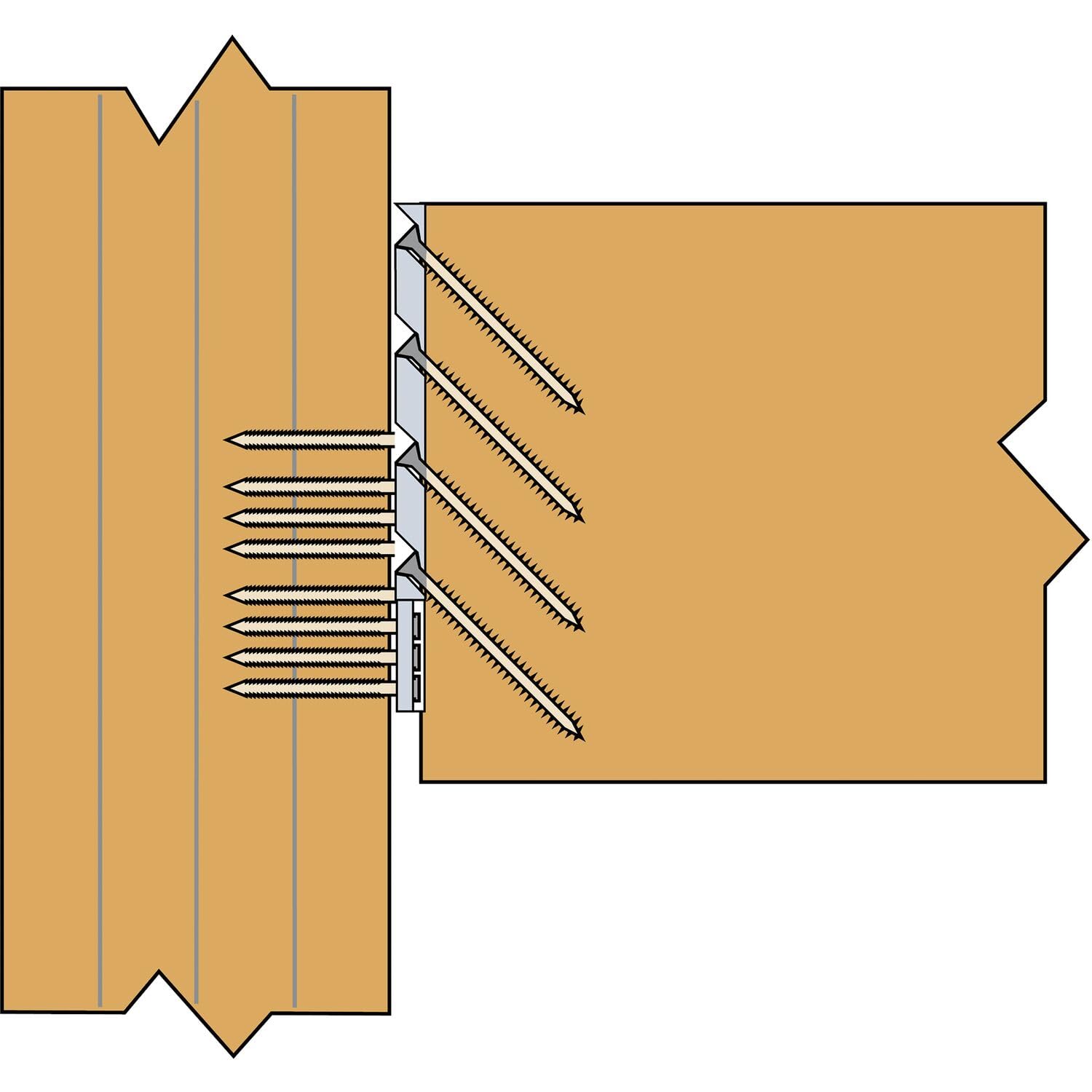

Application: wood/wood connections of secondary beams to main beams or supports. With the system, tilts up to 90° and slopes of 15°-165° can be realized. Mounting: in the main carrier comb nails CNA4, 0x40 - 100 mm or screws CSA5, 0x40 - 50 mm. Spax fully threaded screws with the dimensions 5.0 x 60 - 100 mm must be used in the secondary beam. With European technical approval (ETA 07/0245).
