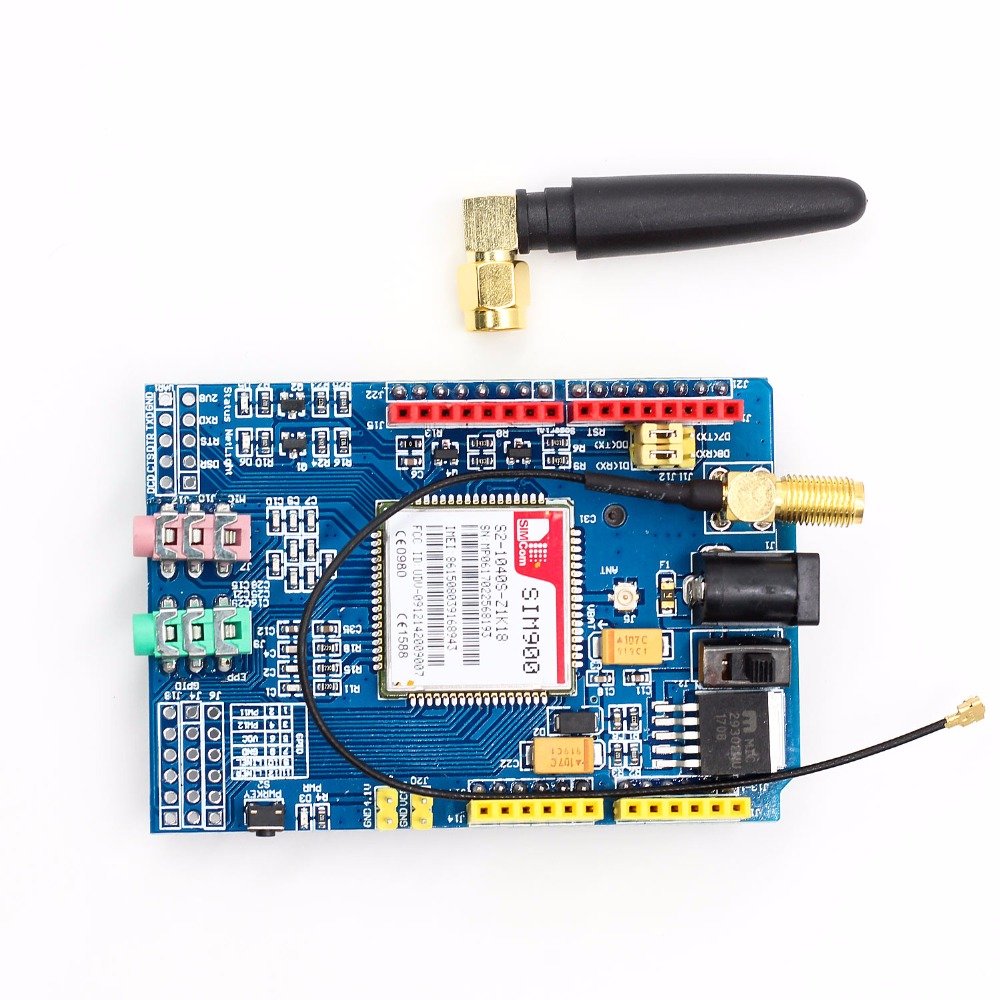

SIM900 GPRS/gsm Shield Development Board Quad-Band Module with Antenna

Description: The GPRS Shield is based on SIM900 module from SIMCOM and compatible with and its clones. The GPRS Shield provides you a way to communicate using the GSM cell phone network. The shield allows you to achieve SMS, MMS, GPRS and Audio via UART by sending AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands). The shield also has the 12 GPIOs, 2 PWMs and an ADC of the SIM900 module(They are all 2V8 logic) present onboard. Be careful: Insert the SIM card into the SIM card holder by gently press down the SIM card holder!! Don't force up, otherwise you could damage the card slot!! You can find the datasheet and all the related driver in the following link: https://www.amazon.es/clouddrive/share/4hqEmKyhWDl3yrYC3KzeRHkM9K0Degv14kj7atvmJkF https://www.youtube.com/watch?v=66wZ5GPPoDY https://www.youtube.com/watch?v=BfiY58e4OQM General features: Quad-Band 850 / 900/ 1800 / 1900 MHz - would work on GSM networks in all countries across the world. GPRS multi-slot class 10/8 GPRS mobile station class B Compliant to GSM phase 2/2+ Class 4 (2 W @ 850 / 900 MHz) Class 1 (1 W @ 1800 / 1900MHz) Control via AT commands - Standard Commands: GSM 07.07 & 07.05 | Enhanced Commands: SIMCOM AT Commands. Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal). Embedded TCP/UDP stack - allows you to upload data to a web server. RTC supported. Selectable serial port. Speaker and Headphone jacks Low power consumption - 1.5mA(sleep mode) Industrial Temperature Range - -40°C to +85 °C Size:8.5x5.7x2cm(approx) Package Contains: • 1 x SIM900 GPRS/GSM Shield Development Board • 1 x Antenna
