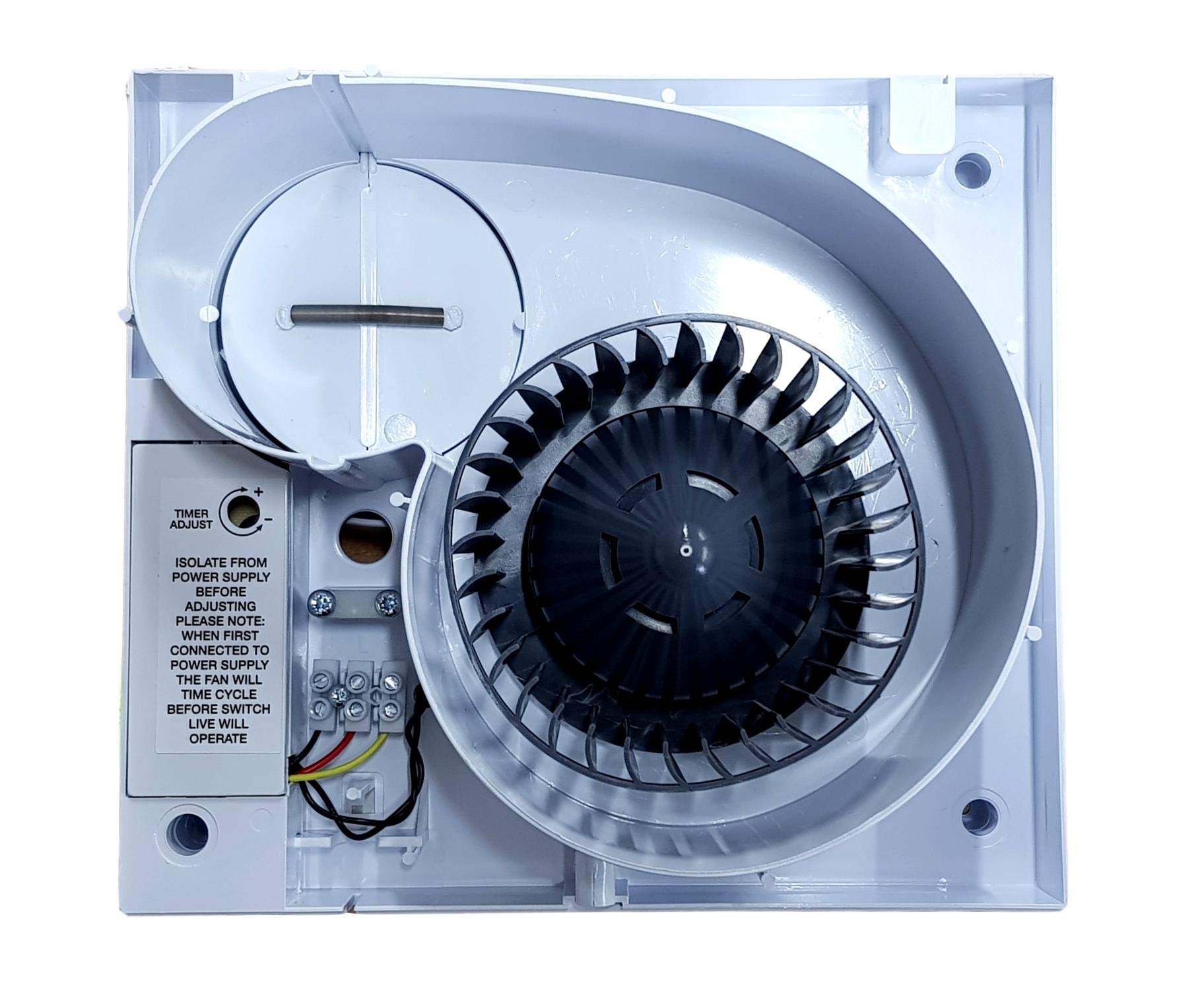

Silavent Curzon CUR7003B 100mm Centrifugal Timer Fan

• This product is now branded "Domus". Mains Voltage 230/240V AC
• 22 litres per second, 80 cubic metres per hour extract rate
• 35 watts power concumption
• IP rating X4. 2 years manufacturers
• Dimensions: 216mm wide x 195mm high x 98mm deep. For connection to 100mm (4 inch) ducting

Silavent Curzon CUR7003B 100mm Centrifugal Timer Fan The Curzon CUR7003B 100mm Centrifugal Fan with Timer is an ideal choice for use in bathrooms and toilets where longer duct runs may be required. Built to the highest specification, the fan is easy to  install and the motor is mounted onto rubber bushes making it exceptionally quiet in operation. Finished in a high gloss ABS plastic and able to produce a high level pressure performance, the fan is able to extract up to eighty cubic metres of air along a longer ducting run. It is suitable for wall or ceiling mounting and is best used with Silavent 100mm duct and flat duct.  The fan can also be used with an integral fire shutter backplate which is rated to 1 hour. Technical Specification Description  230V  Maximum Extract Volume (cubic metres per hour)   80 Maximum Extract Volume ( litres per second) 22 Maximum Pressure (Pa) 150 Supply Frequency (Hz) 50 Maximum Power (W) 35 Maximum Sound dB(A) at 3 metres 26 Weight (kgs) 1.1 IP Rating X4 Maximum Temperture (degrees C) 40 (years) 3  Dimensions A B C D E F G  216    195    98    80/100   32/57    50     52   Â
