SHAOYAYAZHANG Pack of 10 3-Pin LED Connectors for LED Strip Lights 8 mm Wide Gapless LED Tape Light Clips Solderless Adapter Extension (3pin-8 mm)

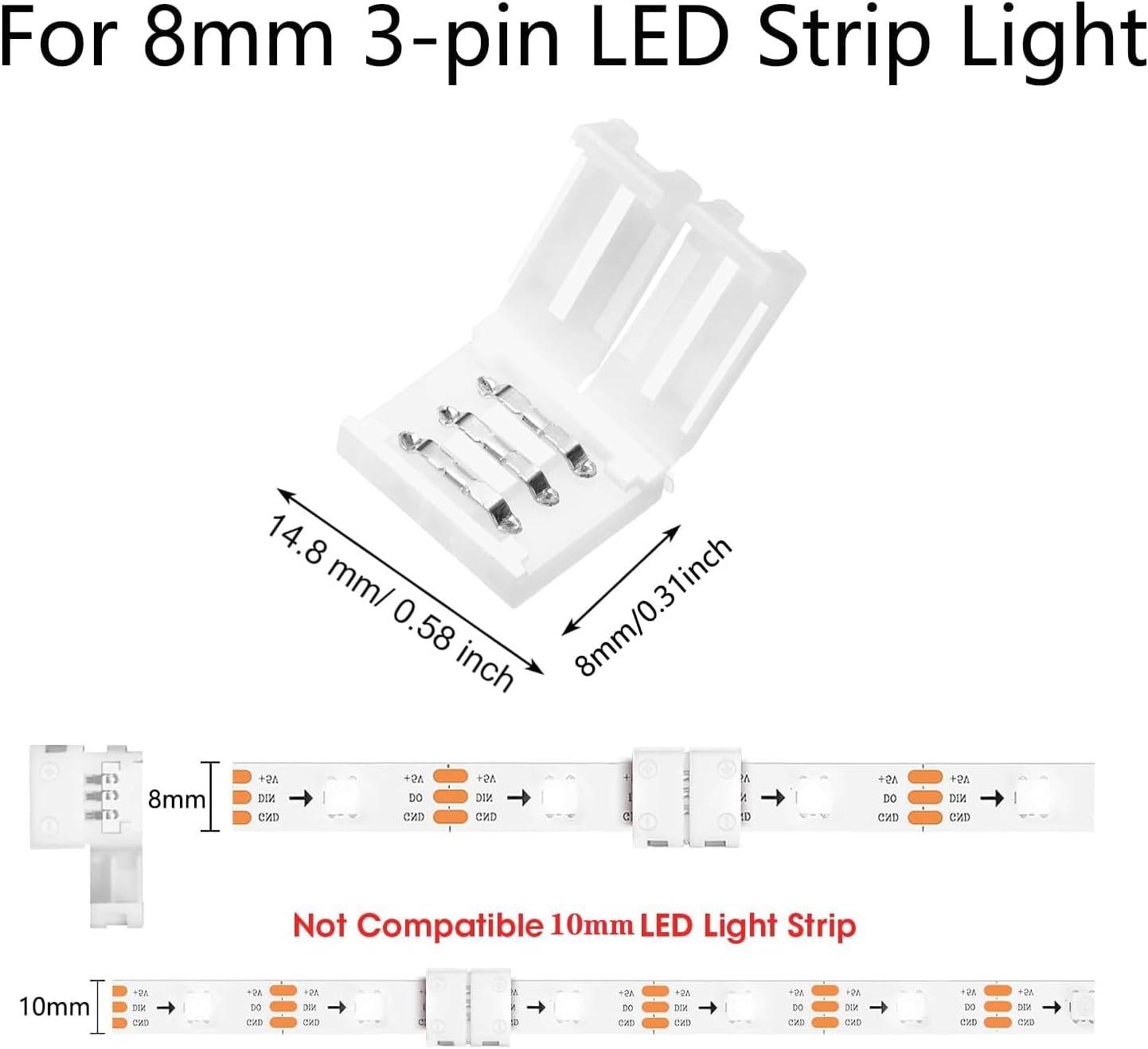

• Compatibility: suitable for 3 pin 8 mm (0.31 in) wide 5 V, 12 V, and 24 V SMD 2835 3825 RGB LED flexible light strips.

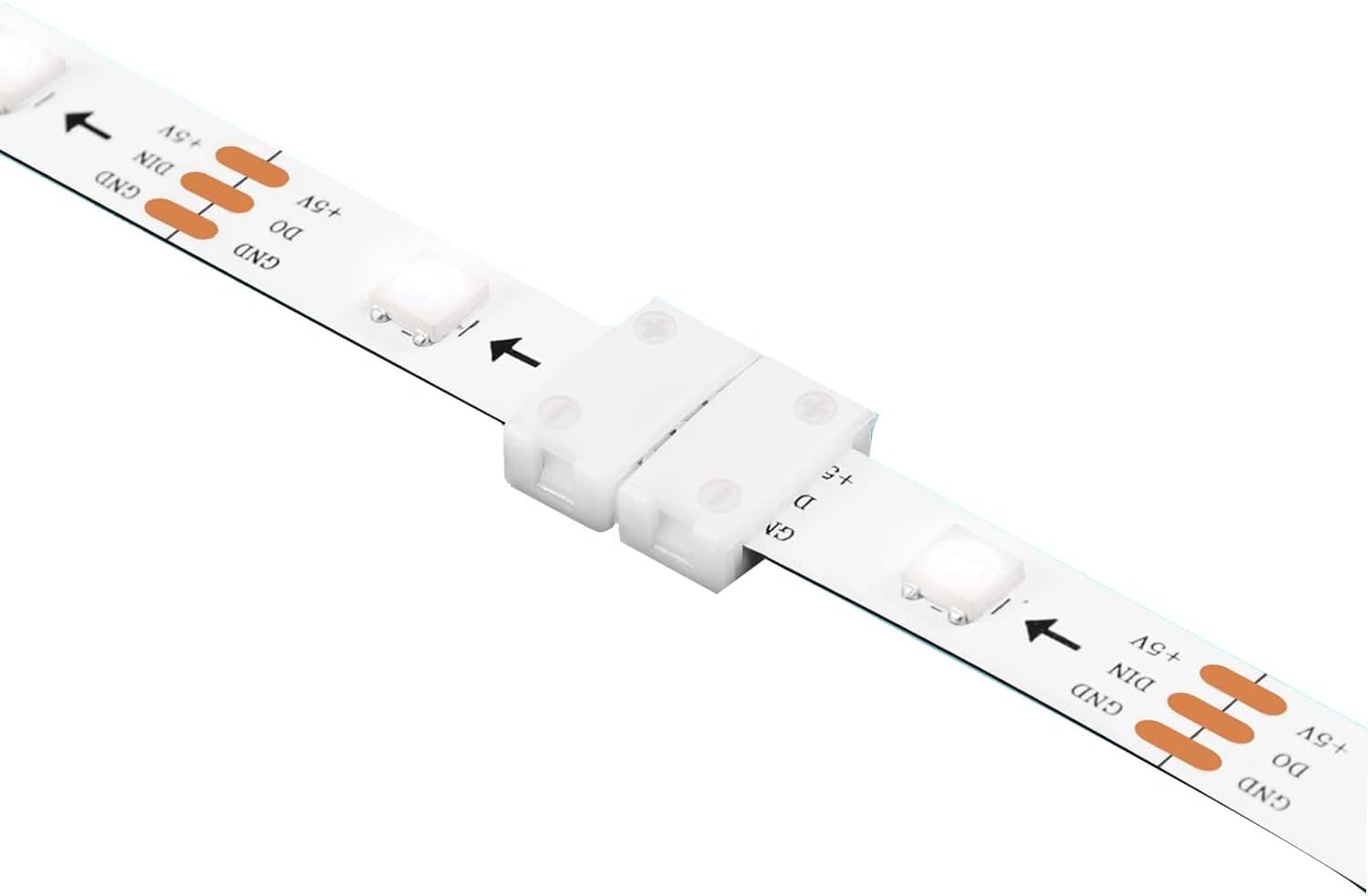

• EASY TO USE No soldering required, just slide the light strip under the metal pins of the connector, align the "+" sides, snap the clip into place, and make an ultra strong stable connection
• High quality materials: RGB LED strip connectors 3 pin are made of high quality plastic and copper. The flame retardant material has perfect conductivity, durability, heat resistance, fire resistance and connection stability for long-term use.
• Multiple applications: these led connectors for light bars are perfect for connecting multiple strips or repairing damaged strips, providing versatile solutions for your DIY lighting projects

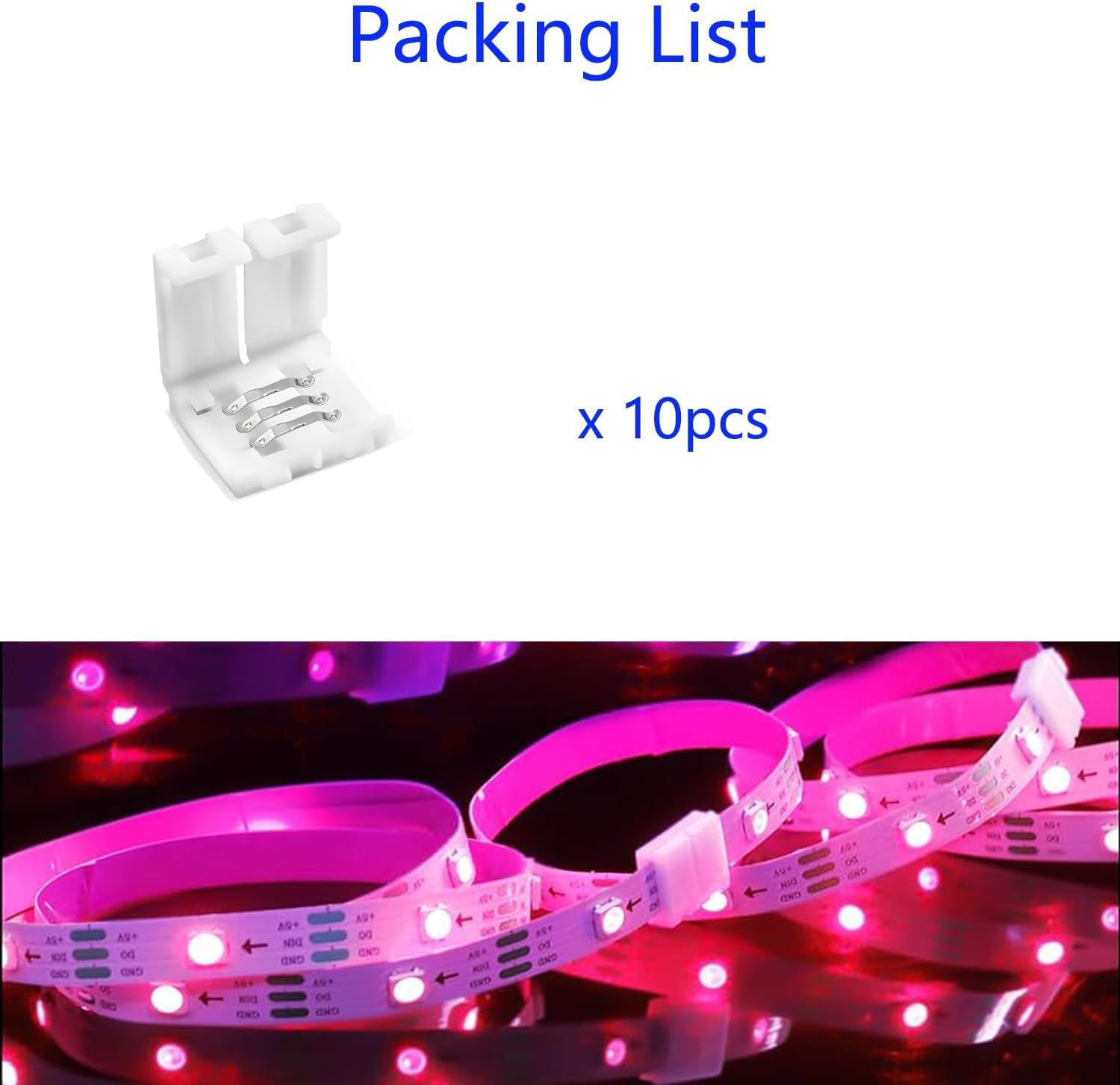

• Box contents: 10 pieces 3-pin plugs for 8 mm wide RGB LED strips.

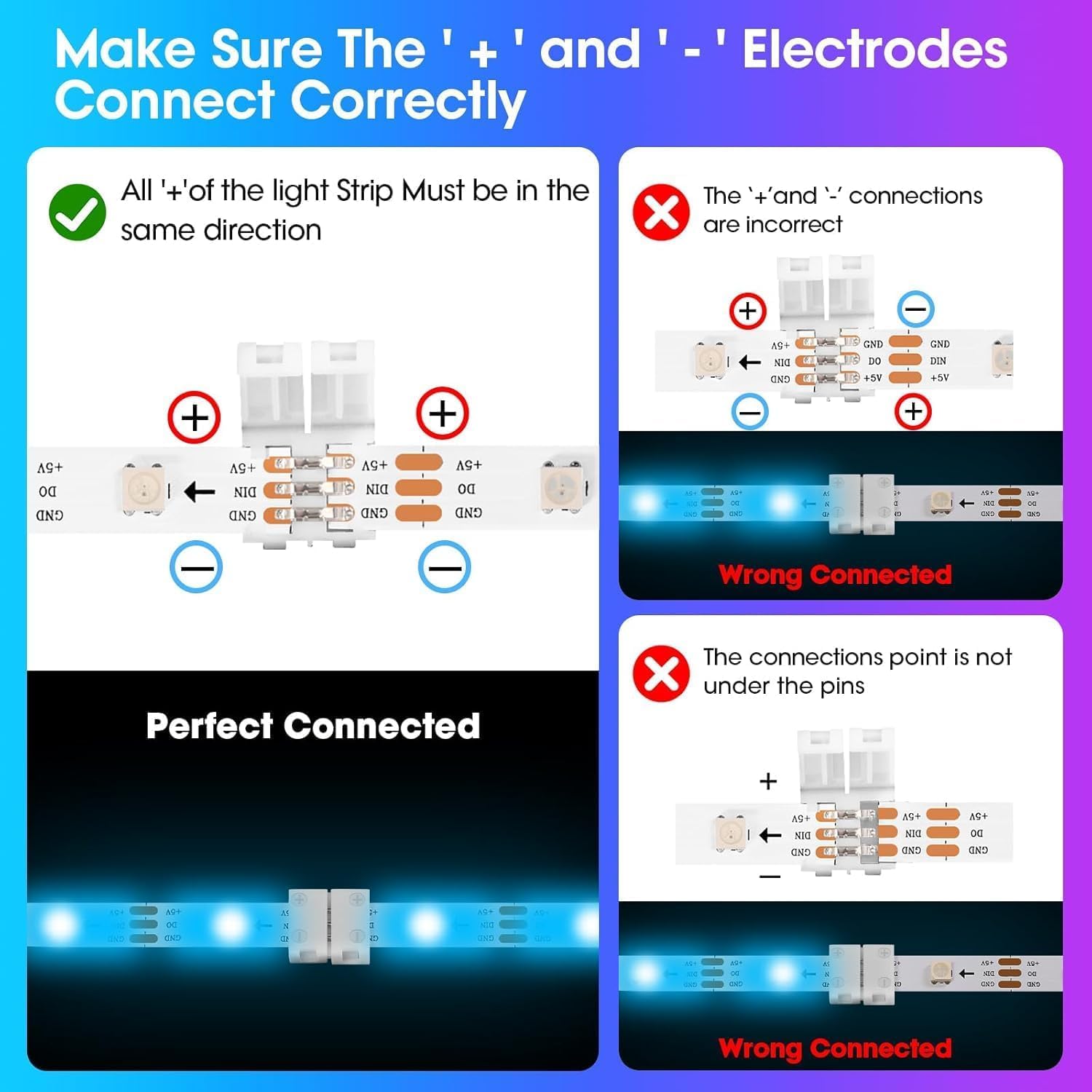

Installation instructions: 1. Make sure your LED strip is 8mm wide and has 3 copper contacts on the cutting line. 2. Carefully cut your LED strip along the cutting line. Do not tear off the paper on the back of the LED strip before finishing the connection. Just insert the paper and the LED strip together into the connector. In this way, the LED strip is easier to insert into the socket without the LED strip being bent, and the connection is also more stable. 3. Open the cap of the plug. 4. If you use anon-waterproofLED strip, please insert the LED strip into the connector. If you use awaterproofLED strip, please first remove the waterproof silicone around the cutting line, then insert the LED strip into the connector. Make sure the 3 copper contacts of the LED strip are below the 3 electrical conductors of the plug. 5. Close the cap and check if the plug works well. 6. Tear off the paper on the back of the LED strip to stick the LED strip, but please store the paper that was already in the connector. Note: Please make sure that the positive poles of your LED strips at both ends of the connector are on the same one channel. Please make sure the arrow markings on your cable, LED strip and controller are on the same channel. Box contents: 10 pieces 3-pin plugs for 8 mm wide RGB LED strips.
